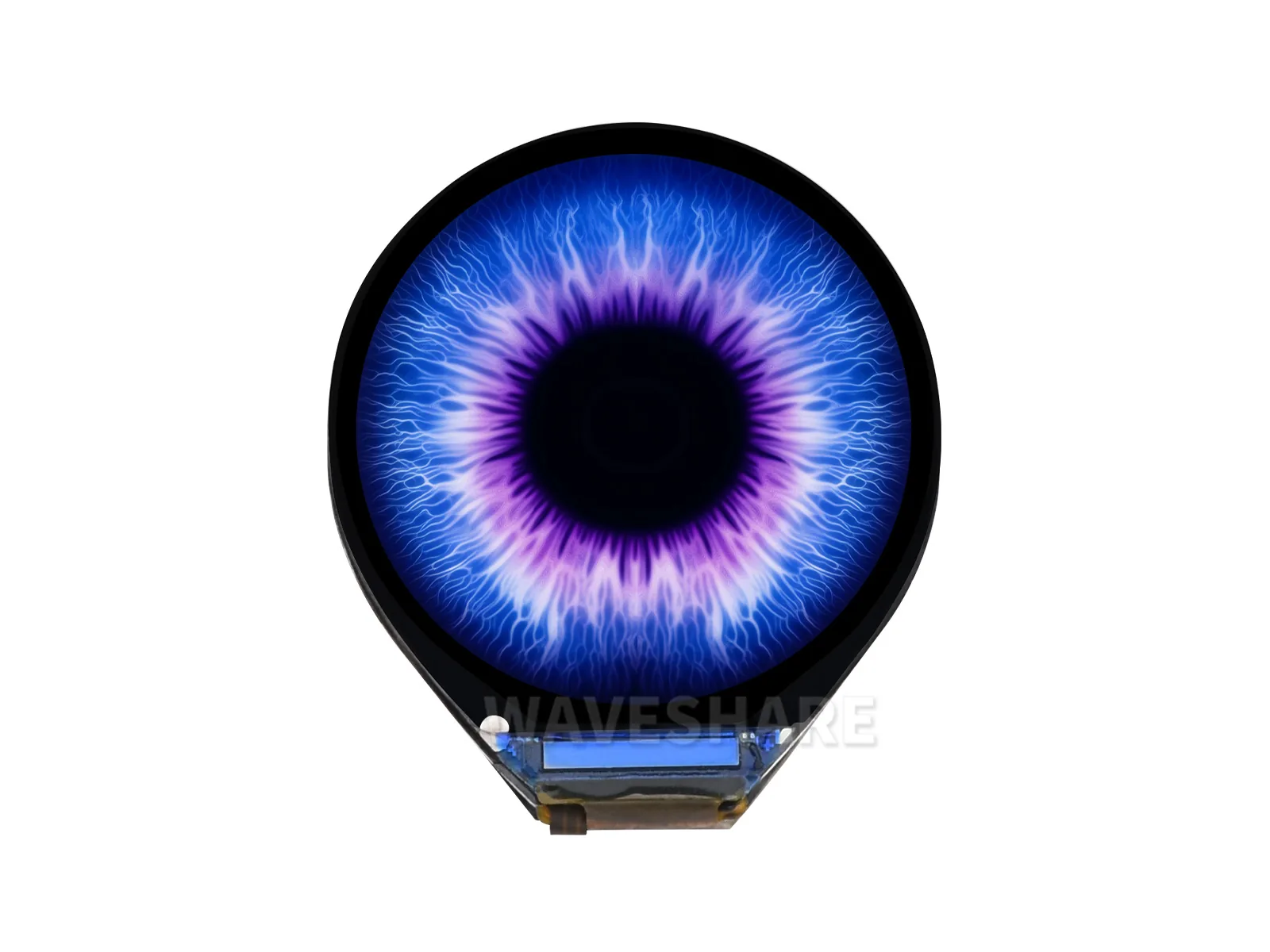

0.71inch LCD Module
0.71inch LCD Module is a 0.71inch round LCD module with a resolution of 160 × 160 pixels. It uses an IPS display panel and the GC9D01 driver chip, and communicates via a 4-wire SPI interface. The module supports 3.3 V / 5 V operating voltage and can be used with controllers such as ESP32, Raspberry Pi Pico, and Arduino.
| SKU | Product |
|---|---|
| 29380 | 0.71inch LCD Module |
Product Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 3.3 V / 5 V |
| Resolution | 160 × 160 pixels |
| Display Driver | GC9D01 |
| Communication Interface | 4-wire SPI |
| Display Panel | IPS |
| Display Size | 18 × 18 mm |
| Pixel Pitch | 0.0375 × 0.1125 mm |
| Product Dimensions | 20.12 × 22.30 mm |

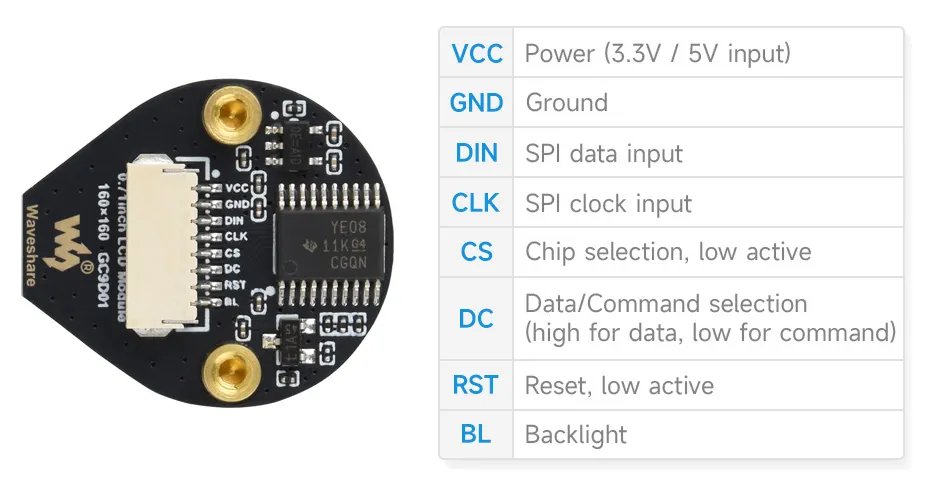

Pinout
| Pin | Description |
|---|---|
| VCC | Power supply positive (3.3 V / 5 V input) |
| GND | Ground |
| DIN | SPI communication MOSI pin |
| CLK | SPI communication SCLK pin |
| CS | Chip select pin, active low |
| DC | Data/Command pin, low for command, high for data |
| RST | Reset pin, active low |
| BL | Backlight control pin |

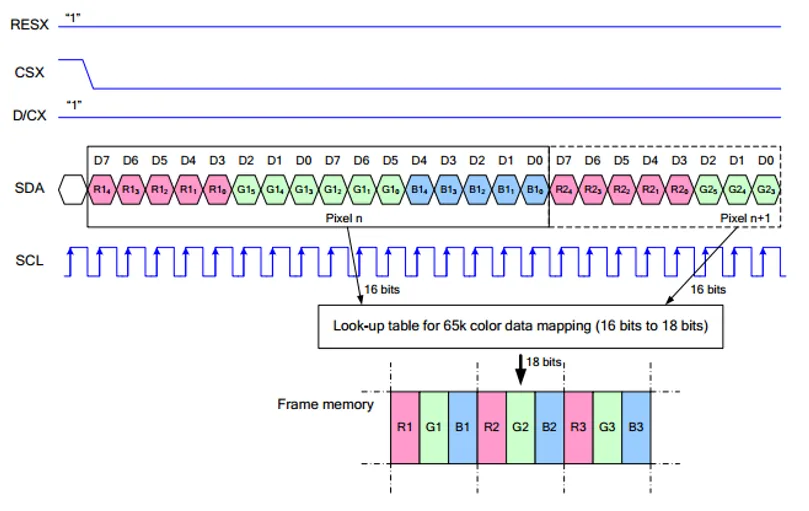

Communication Protocol
This LCD uses a 4-wire SPI communication interface. SPI communication controls data transmission timing through the combination of clock phase (CPHA) and clock polarity (CPOL). This module uses SPI Mode 0: CPOL = 0 (idle low), CPHA = 0 (sampled on the first edge), with the most significant bit first and the least significant bit last.

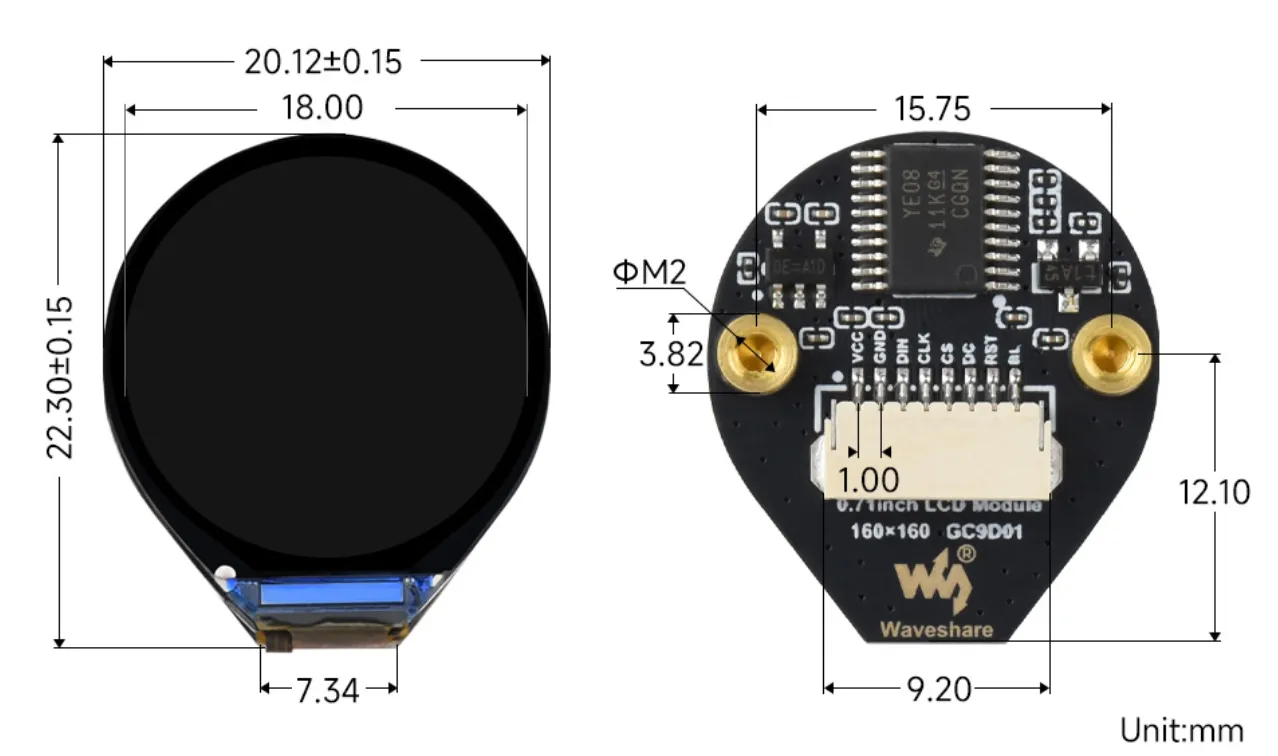

Product Dimensions
