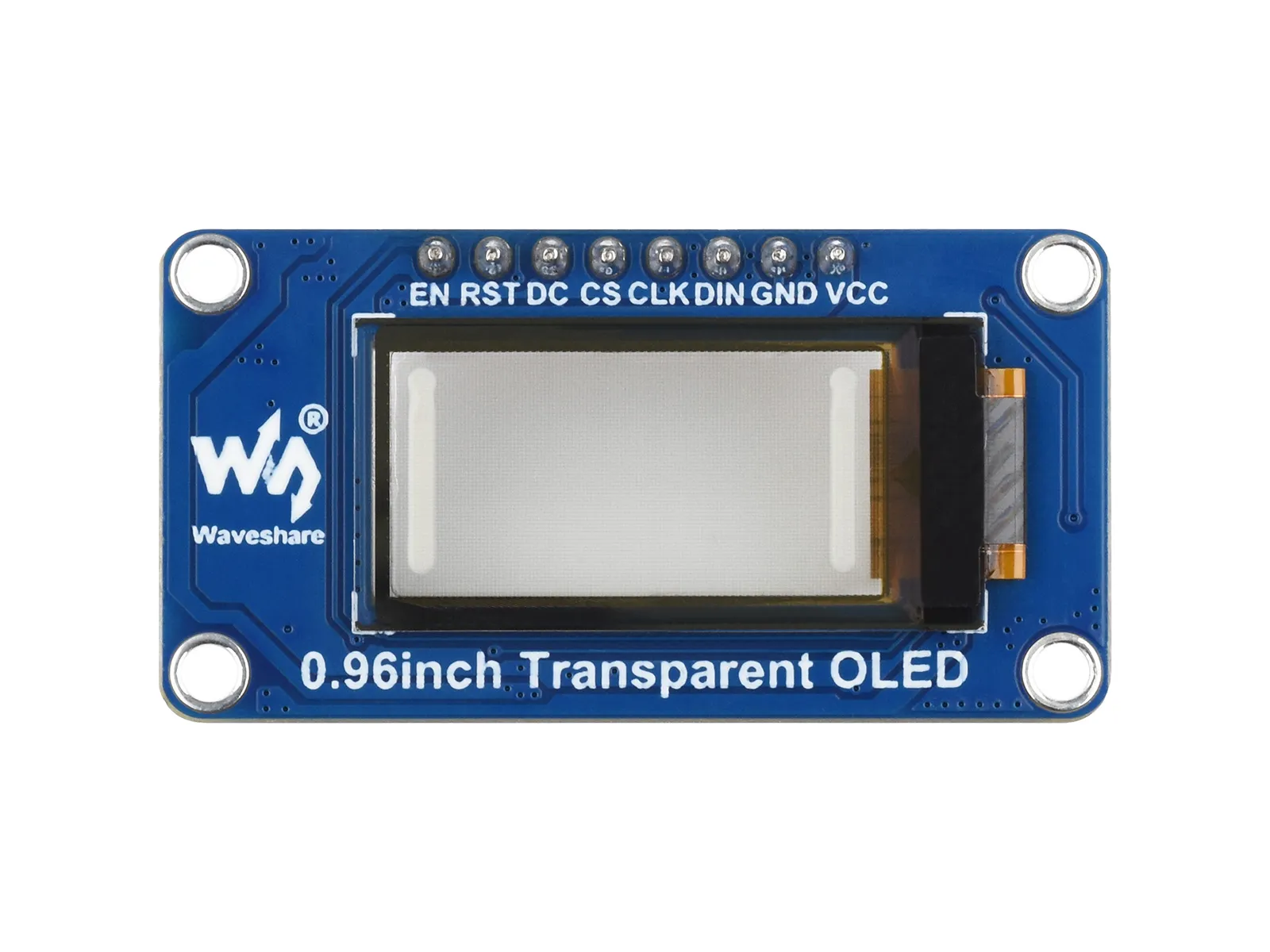

0.96inch Transparent OLED
This is a 0.96inch transparent OLED display module, featuring the SSD1312 driver chip. It uses 4-wire SPI communication by default and can be switched to an I2C interface via solder pads. It offers good compatibility and fast transmission speeds, and can connect to mainstream controller platforms such as Raspberry Pi, Pico, STM32, and ESP32. It supports text, graphics, and BMP image display, making it easy to get started and develop further.
| SKU | Product |
|---|---|
| 33163 | 0.96inch Transparent OLED |
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 3.3V |
| Display Panel | OLED |
| Resolution | 128 × 64 pixels |
| Pixel Size | 0.15 × 0.15 (mm) |

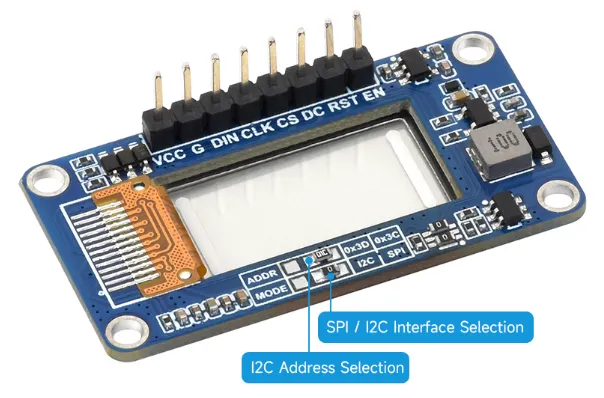

| Communication Interface | 4-wire SPI (default) / I2C (solder pad switch) |
| Driver IC | SSD1312 |
| Display Size | 10.86 × 21.74 (mm) |
| Product Dimensions | 22.00 × 42.35 (mm) |
| Display Color | White |
Interface Description
| Pin | Description |
|---|---|
| VCC | Power supply positive (3.3V power input) |
| GND | Ground |
| DIN | Data input |
| CLK | Clock signal input |
| CS | Chip select, active low |
| DC | Data/Command pin, low for command, high for data |
| RST | Reset pin, active low |
| EN | Power enable pin, enabled by default |

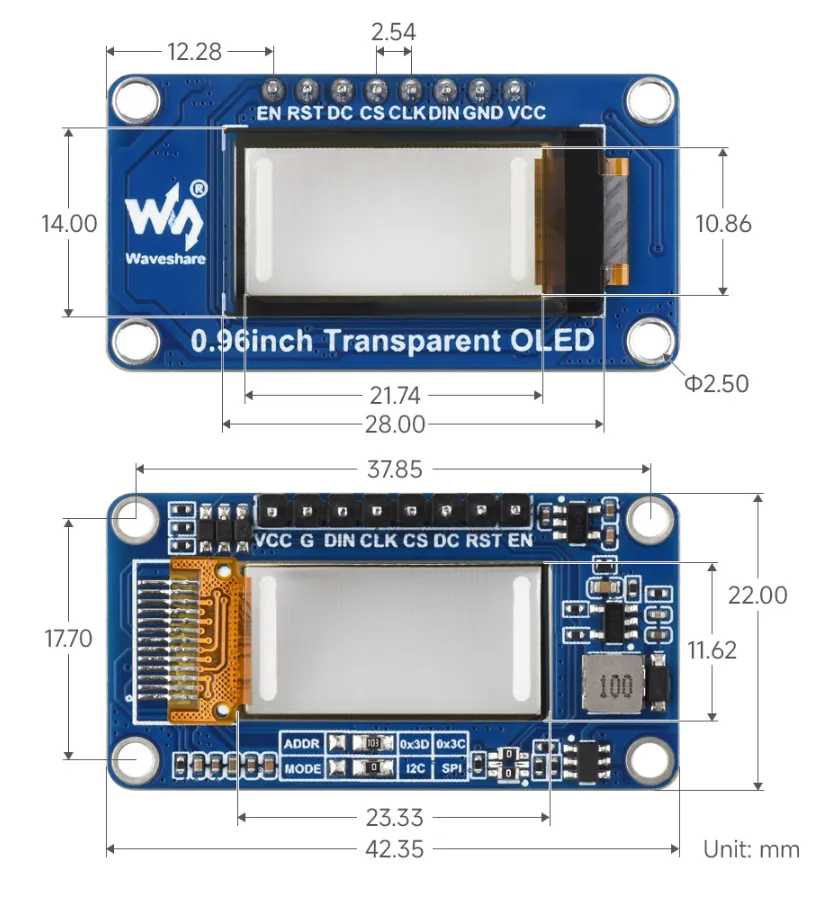

Dimensions
