1.83inch Touch LCD Module
The 1.83inch Touch LCD Module is a 1.83inch IPS color touch screen module. It features a high-definition resolution of 240×284 pixels, supports 262K true-to-life colors, delivering clear, detailed images and excellent visual performance. Equipped with a high-transmittance capacitive touch panel, it offers responsive touch feedback and long operational life. The module integrates the ST7789P display driver IC and the CST816D capacitive touch IC, communicating via SPI and I2C interfaces respectively, which minimizes pin usage and simplifies hardware integration. An onboard level shifter ensures compatibility with both 3.3V and 5V power inputs, allowing seamless connection to mainstream controller platforms such as Raspberry Pi, ESP32, Pico, Arduino, and STM32.
| SKU | Product |
|---|
| 33985 | 1.83inch Touch LCD Module |
Specifications
| Parameter | Specification |
|---|
| Operating Voltage | 3.3V / 5V |
| Resolution | 240 × 284 pixels |
| Display Driver | ST7789P |
| Touch Chip | CST816D |
| Display Interface | 4-wire SPI |
| Touch Interface | I2C |
| Display Panel | IPS |
| Touch Type | Capacitive |
| Display Size | 29.52 × 34.93 (mm) |
| Pixel Size | 0.126 × 0.126 (mm) |
| Product Size | 35.00 × 42.00 (mm) |

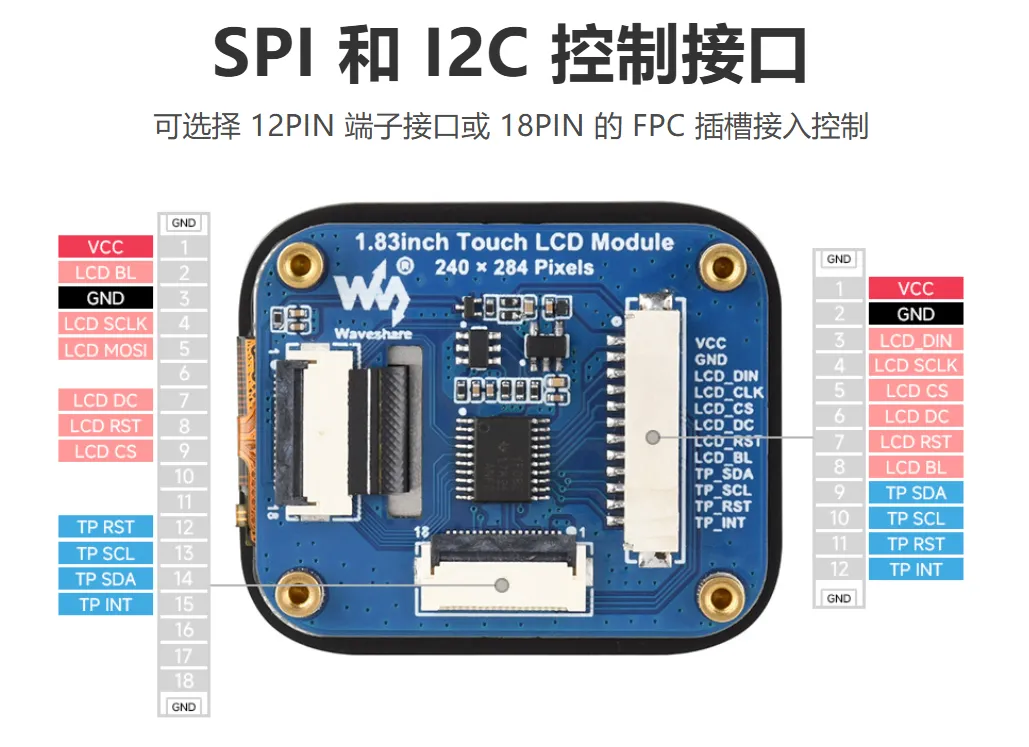

Interface Description
| Function Pin | Description | 12PIN Number | 18PIN Number |
|---|
| VCC | Power positive (3.3V / 5V input) | 1 | 1 |
| GND | Power ground | 2 | 3 |
| MOSI | SPI data pin (Master Out Slave In) | 3 | 5 |
| SCLK | SPI clock pin | 4 | 4 |
| LCD_CS | LCD chip select, active low | 5 | 9 |
| LCD_DC | LCD data/command control, low for command, high for data | 6 | 7 |
| LCD_RST | LCD reset, active low | 7 | 8 |
| LCD_BL | LCD backlight control | 8 | 2 |
| TP_SDA | Touch panel I2C data pin | 9 | 14 |
| TP_SCL | Touch panel I2C clock pin | 10 | 13 |
| TP_RST | Touch panel reset, active low | 11 | 12 |
| TP_INT | Touch panel interrupt output | 12 | 15 |

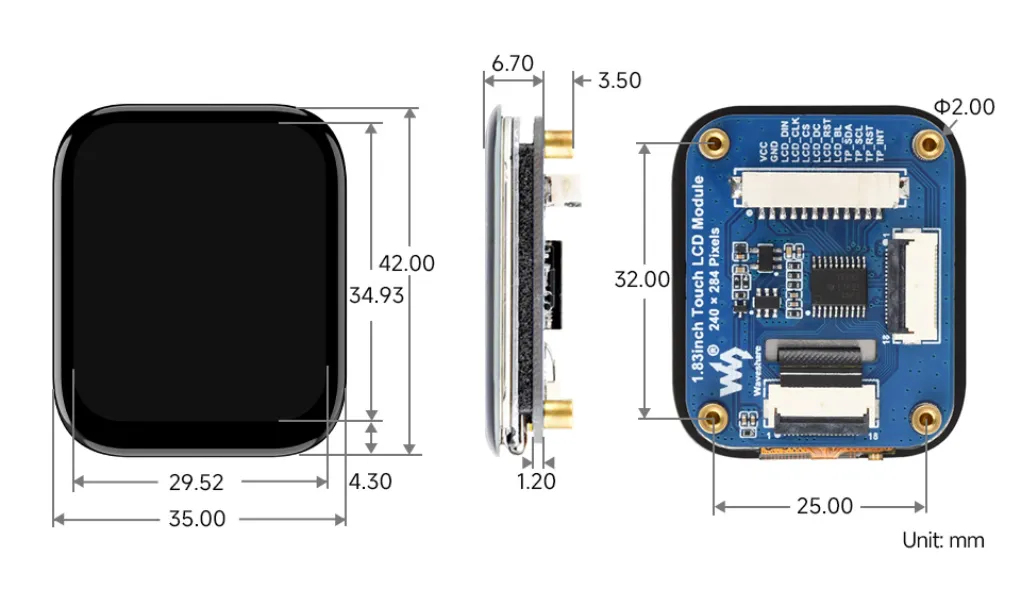

Dimensions
