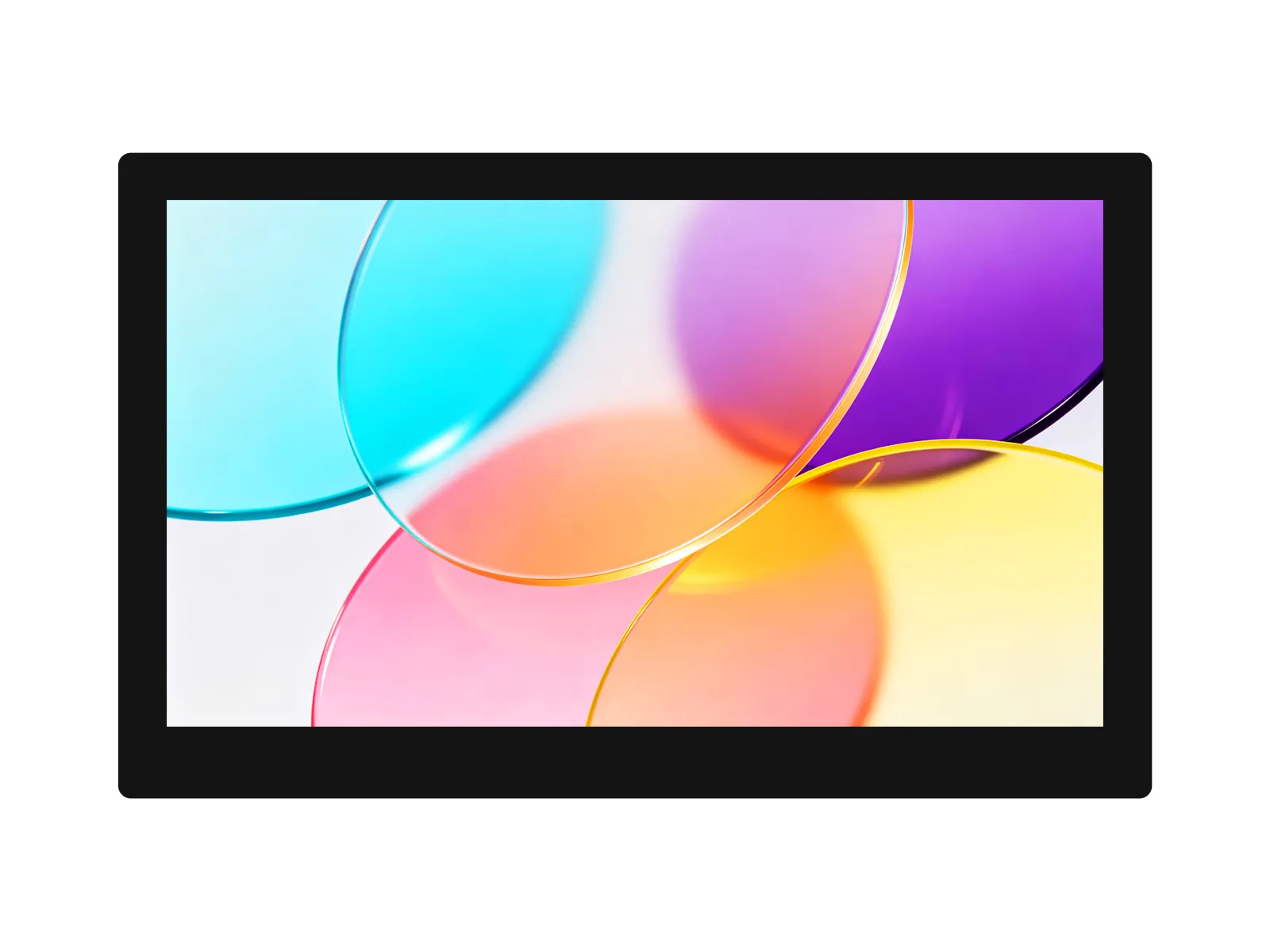

10.1HP-CAPQLED-B
| SKU | Product |
|---|---|
| 35309 | 10.1HP-CAPQLED-B (US) |
| 35310 | 10.1HP-CAPQLED-B (EU) |
| 35311 | 10.1HP-CAPQLED-B (UK) |
Features
- 10.1inch IPS QLED display panel with a hardware resolution of 1280 × 720.
- G+G tempered glass capacitive touch panel, 6H hardness, supports 10-point touch.
- When used with Raspberry Pi, Raspberry Pi OS supports 10-point touch; Ubuntu, Kali, and Windows 10 IoT support single-touch.
- Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
- Brightness and contrast adjustable via the on-screen button board, or via software (DDC/CI) brightness control.
- Supports HDMI audio output, with a 3.5mm headphone jack and PH2.0 4PIN speaker interface.
Specifications
| Item | Parameter |
|---|---|
| Model | 10.1HP-CAPQLED-B |
| Display Size | 10.1inch |
| Display Panel | IPS QLED |
| Hardware Resolution | 1280 × 720 |
| Viewing Angle | 170° |
| Max Brightness | 500 cd/m² |
| Color Gamut | 88% NTSC |
| Active Area | 222.72 × 125.28 mm |
| Dimensions | 245.80 × 153.58 × 15.03 mm |
| Touch Type | 10-point capacitive touch |
| Touch Panel | G+G tempered glass, 6H hardness |
| Display Interface | HDMI |
| Touch Interface | Micro USB |
| Power Interface | Micro USB, 5 V |
| Backlight Control | Button adjustment, DDC/CI adjustment |
| Audio Output | 3.5 mm headphone jack, PH2.0 4PIN speaker interface |

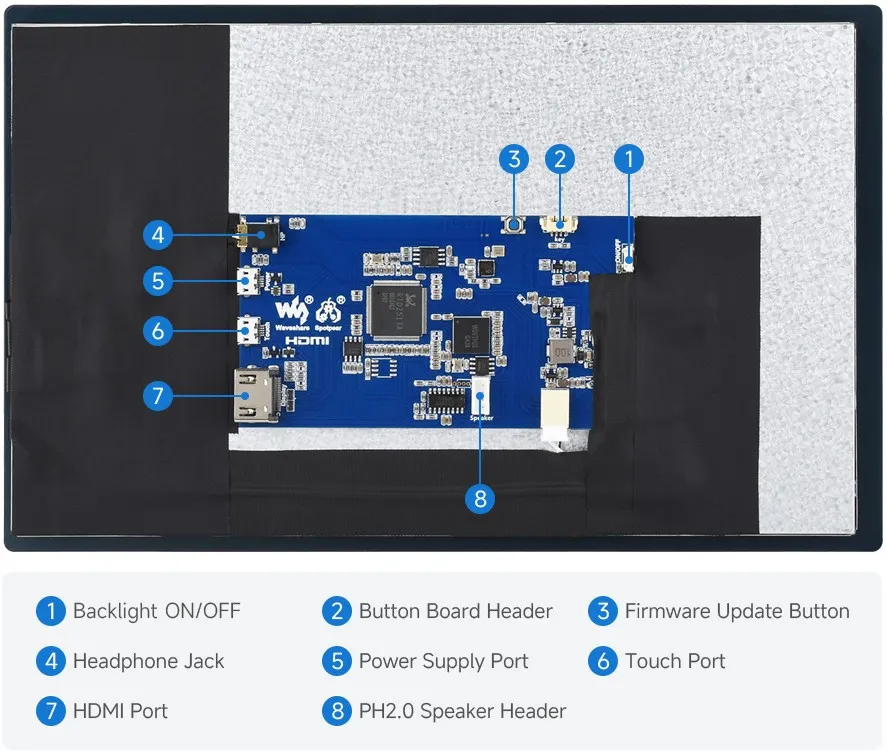

Interface Introduction

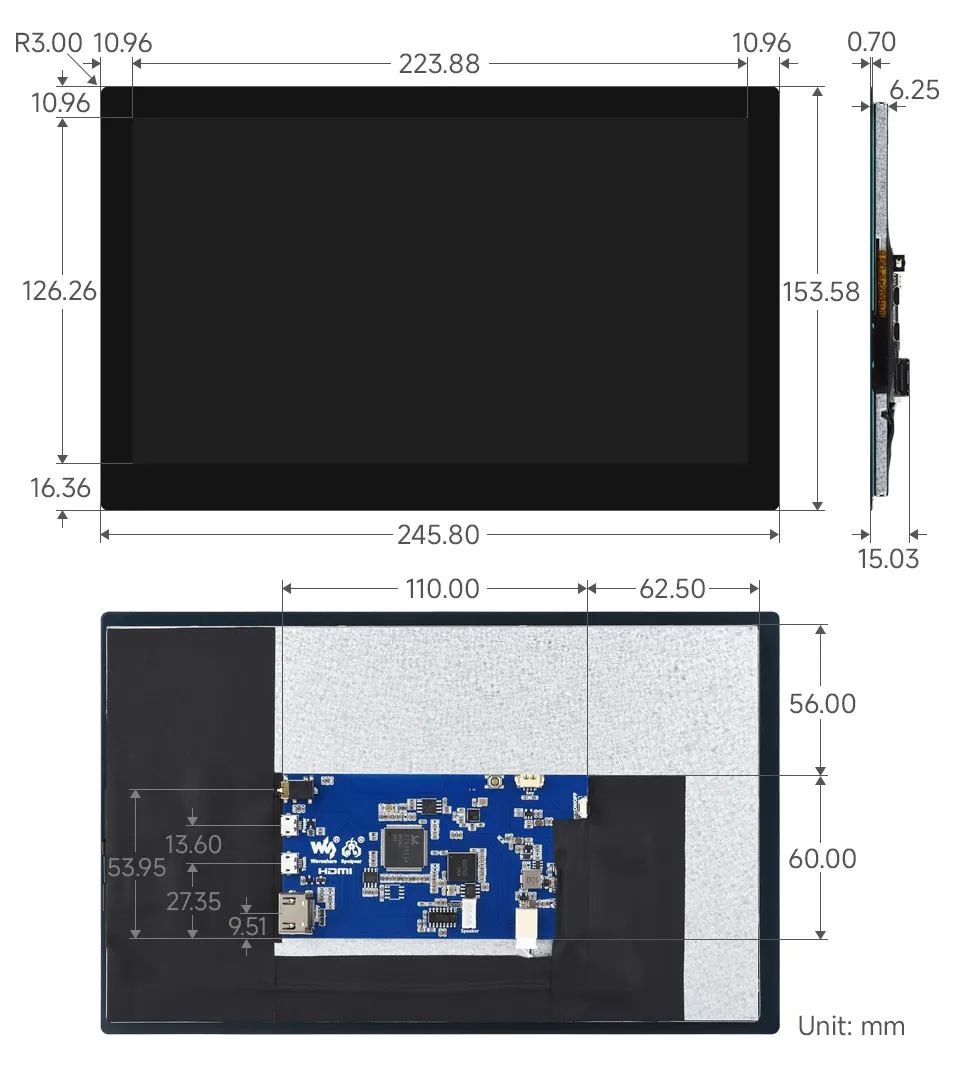

Dimensions
