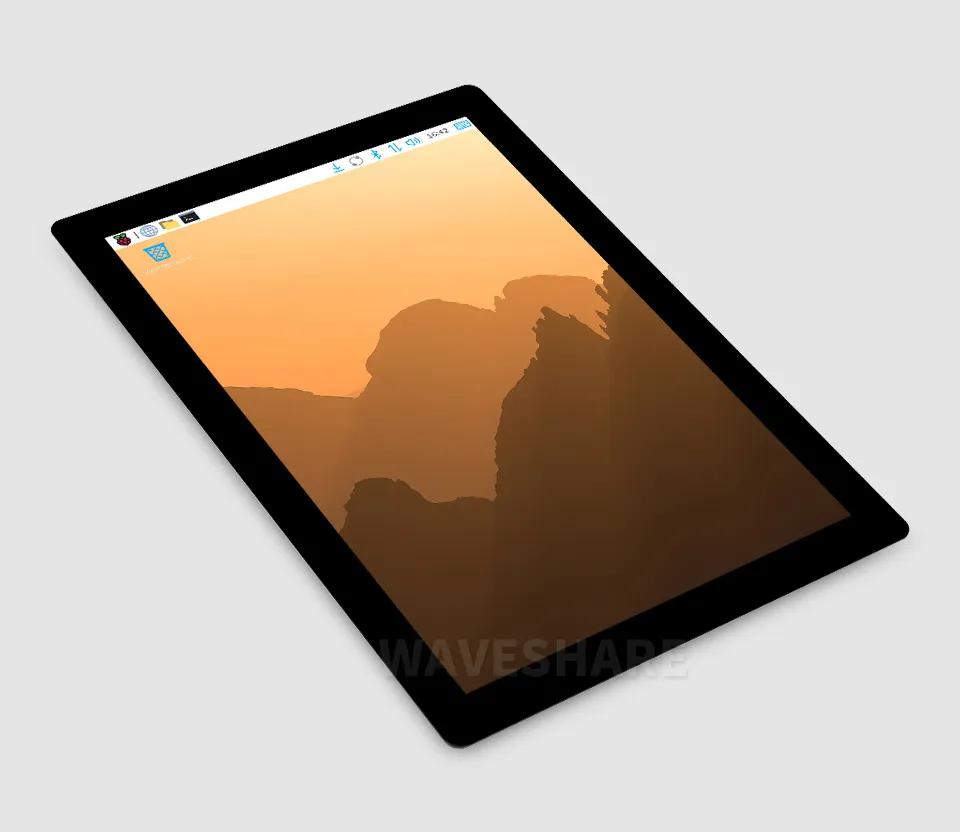

10.1inch Raspberry Pi Touch Display 2

10.1inch Raspberry Pi Touch Display 2

SKUProduct
3535310.1inch Raspberry Pi Touch Display 2

Features​

  • 10.1inch DSI touchscreen with 10-point capacitive touch.
  • IPS display panel with hardware resolution of 1200 × 1920.
  • Portrait display by default; display orientation can be switched via system display settings.
  • DSI display interface and I2C touch interface, powered via Raspberry Pi GPIO.
  • Compatible with Raspberry Pi 5 and newer models, as well as Raspberry Pi Compute Module.
  • Supports plug-and-play use with the latest Raspberry Pi OS, with backlight brightness adjustable via software.

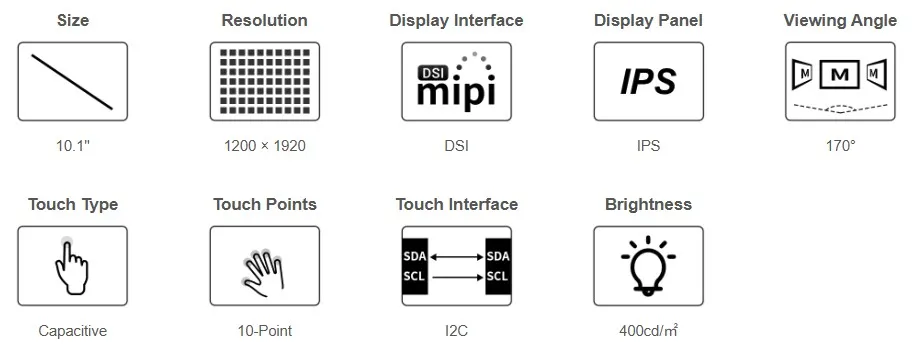

10.1inch Raspberry Pi Touch Display 2 Product Features

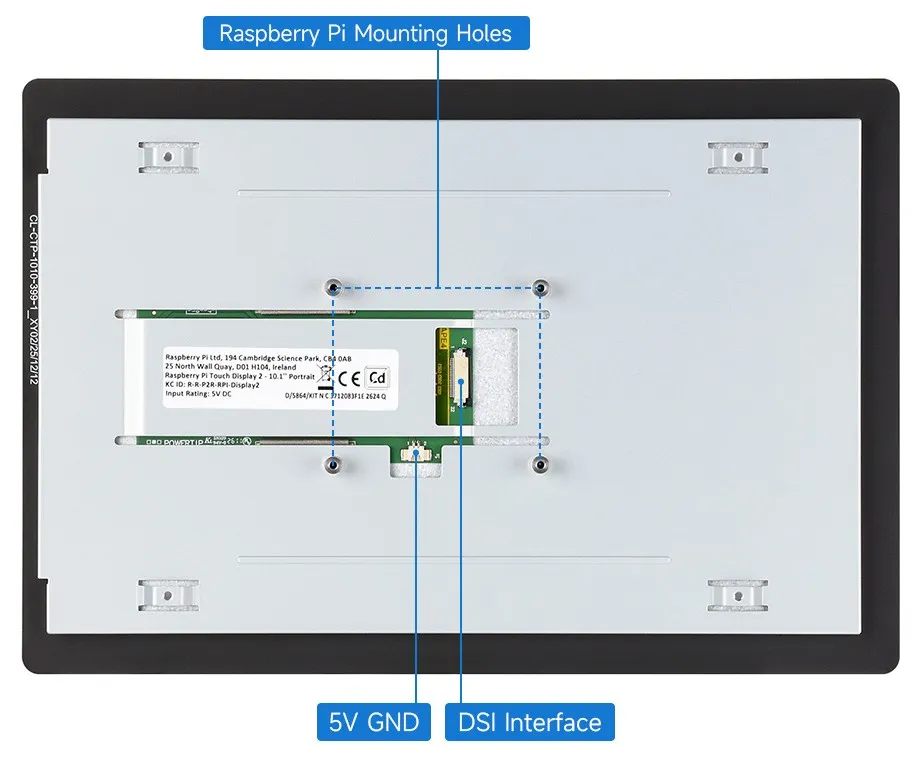

Interface Introduction​

10.1inch Raspberry Pi Touch Display 2 Interface Overview

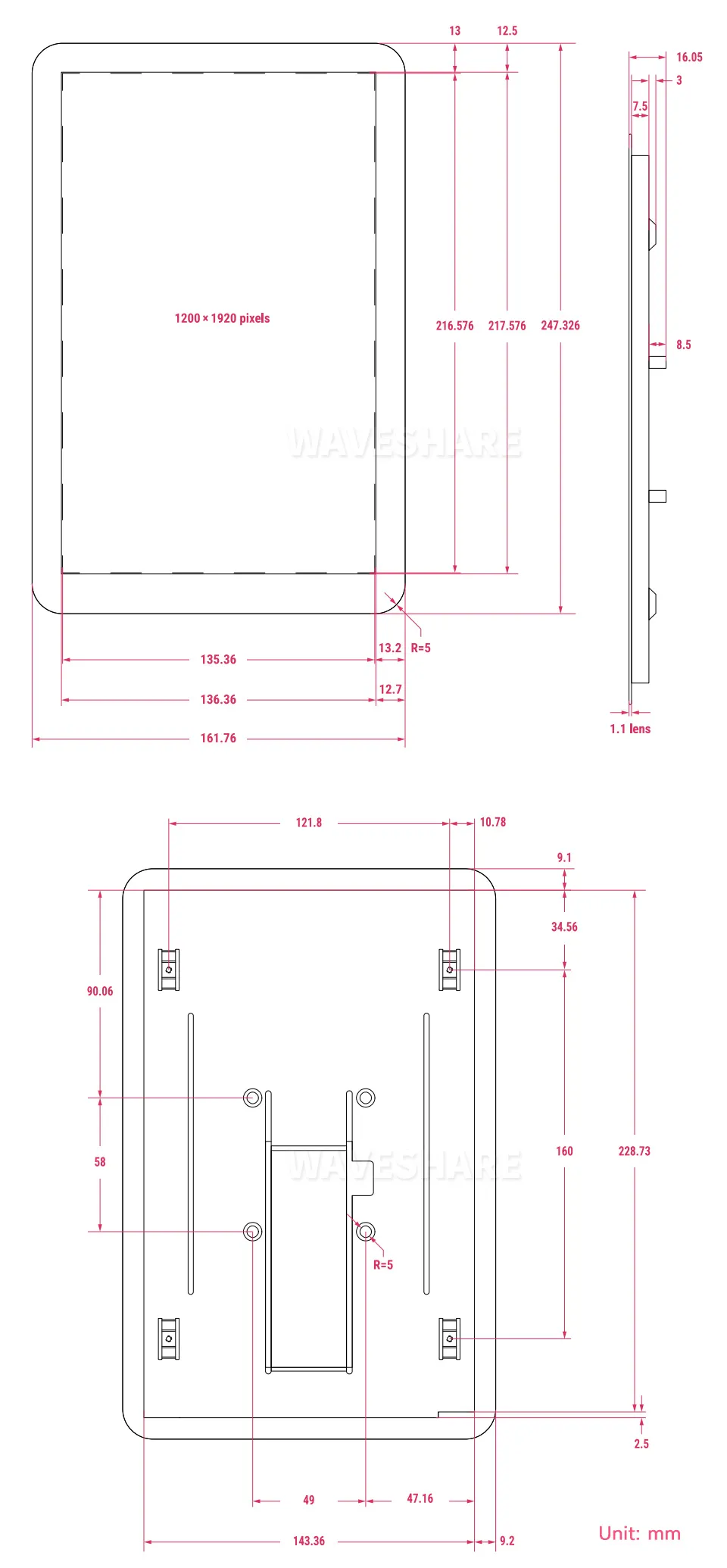

Dimensions​

10.1inch Raspberry Pi Touch Display 2 Dimensions
