2.13inch NFC-Powered e-Paper (G)
- 2.13inch NFC-Powered e-Paper (G)

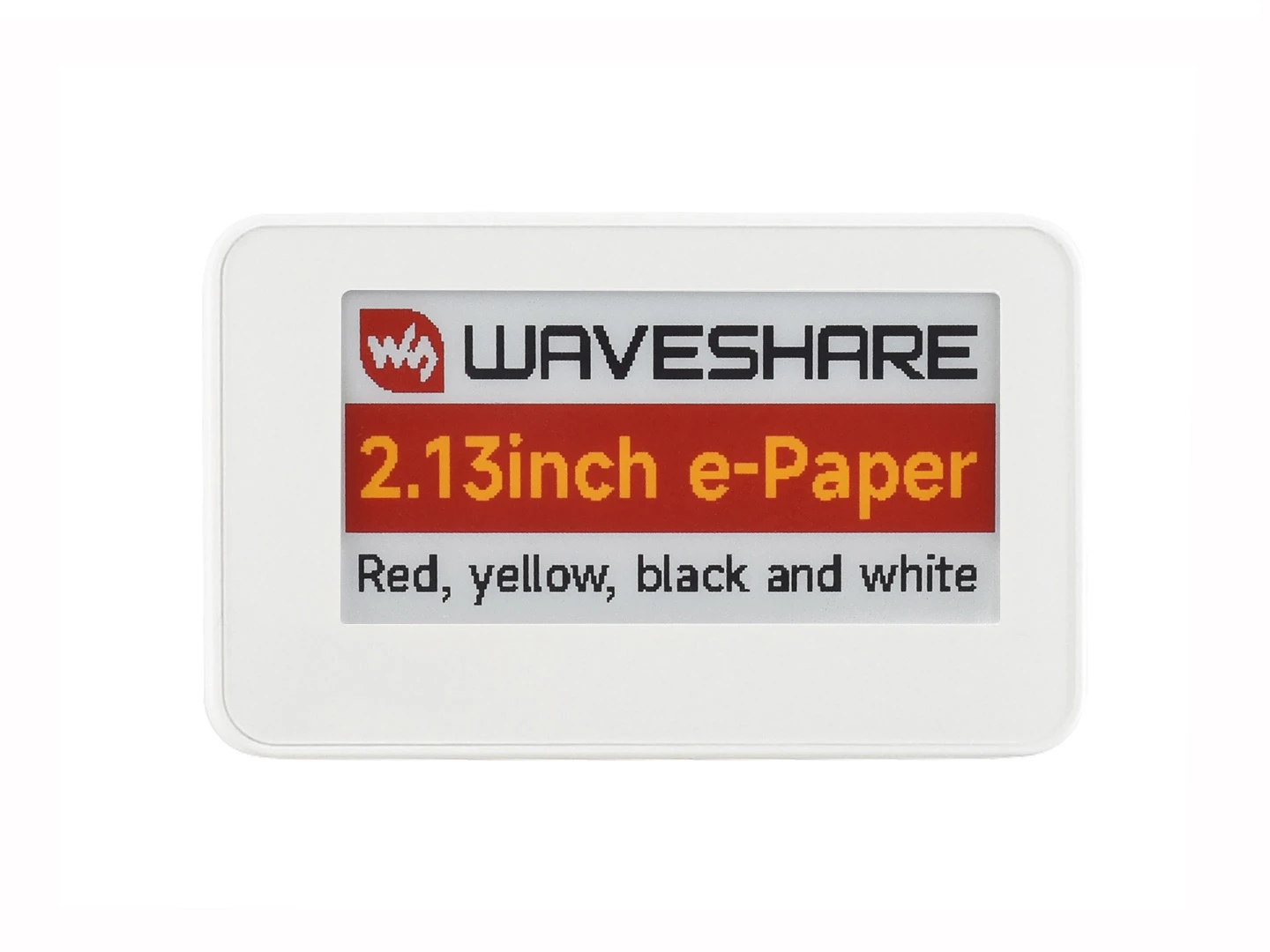

This is a 2.13inch NFC‑driven e‑Paper module with a resolution of 122 × 250. It allows users to wirelessly transfer image data via an NFC‑enabled reader/writer or mobile phone, and display the information on the e‑Paper screen.
| SKU | Product |
|---|
| 32814 | 2.13inch NFC-Powered e-Paper (G) |
Specifications
| Parameter | Value |
|---|
| Power Supply | NFC wireless power |
| Resolution | 122 x 250 |
| Dot Pitch | 0.194 mm × 0.194 mm |
| Display Color | Red, Black, White, Yellow |
| Refresh Time | 16 s |
| Viewing Angle | > 170° |
| Overall Size | 65.35 mm × 40.05 mm × 12.70 mm |
| Display Size | 23.70 mm × 48.55 mm |
