2.9inch NFC-Powered e-Paper (G)
- 2.9inch NFC-Powered e-Paper (G)

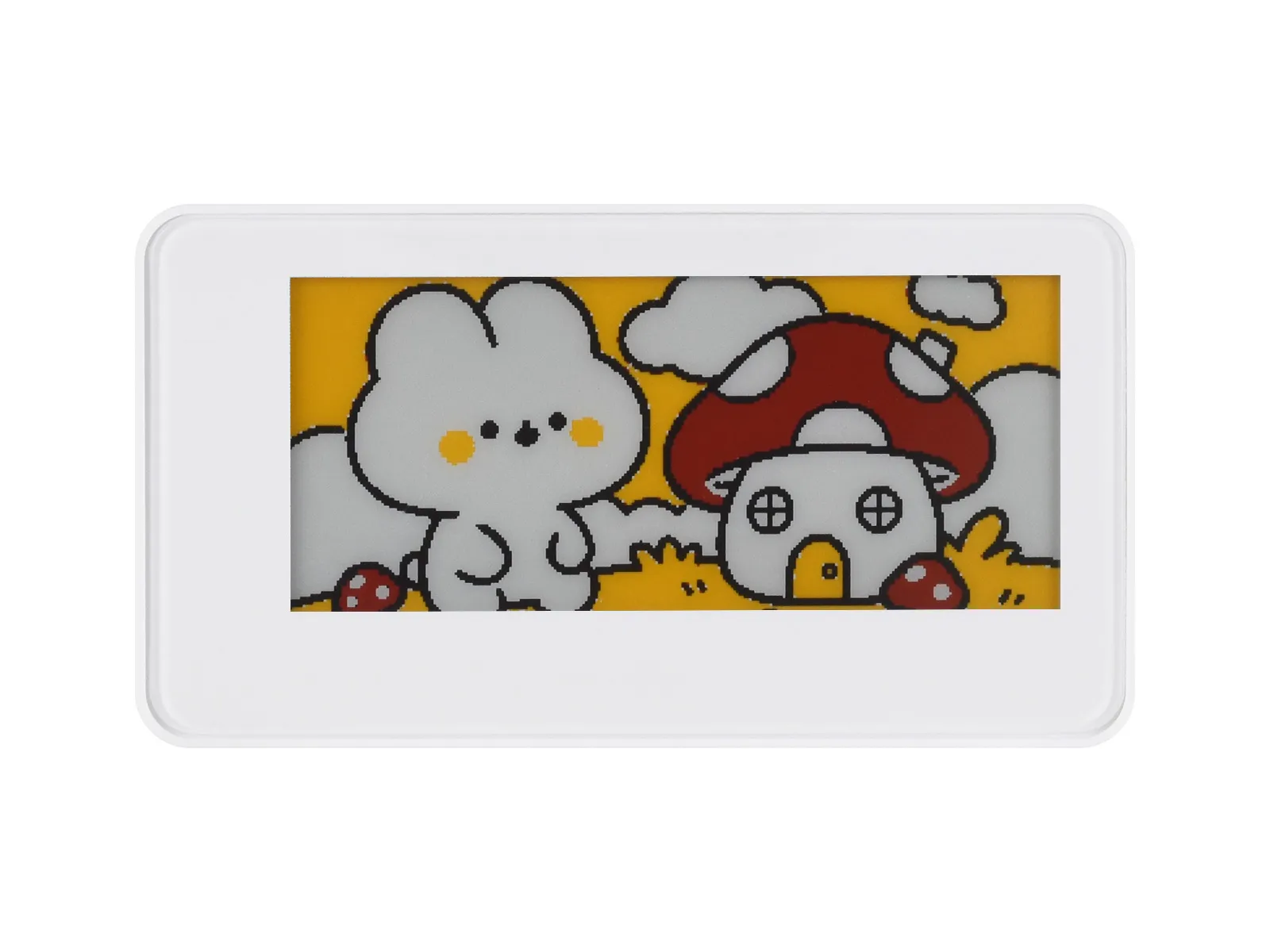

This is a 2.9inch NFC‑driven e‑Paper module with a resolution of 296 × 128. It allows users to wirelessly transfer image data via an NFC‑enabled reader/writer or mobile phone, and display the information on the e‑Paper screen.
| SKU | Product |
|---|
| 34751 | 2.9inch NFC-Powered e-Paper (G) |
Specifications
| Parameter | Value |
|---|
| Power Supply | NFC wireless power |
| Resolution | 296 x 128 |
| Dot Pitch | 0.138 mm × 0.138 mm |
| Display Color | Red, Black, White, Yellow |
| Refresh Time | 16 s |
| Viewing Angle | > 170° |
| Overall Size | 87.5 mm × 47.7 mm × 12.4 mm |
| Display Size | 66.89 mm × 29.05 mm |
