| SKU | Product |
|---|
| 33975 | 27inch FHD Monitor |
| 34082 | 27inch FHD Monitor (EU) |
| 34083 | 27inch FHD Monitor (UK) |

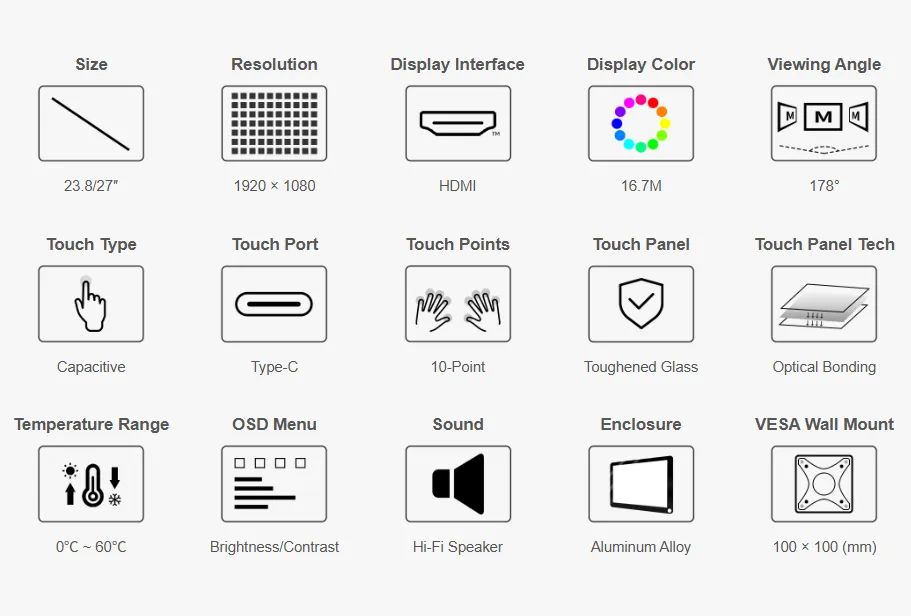

Features
- 27inch IPS screen with 1920x1080 hardware resolution
- 10-point capacitive touch with toughened glass panel, hardness up to 6H
- Uses optical bonding touch process for better display effect
- Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi
- Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor
- Supports Ubuntu when used with Jetson Nano
- Supports multi-language OSD menu (for power control, brightness/contrast adjustment, etc.)
- Built-in high-fidelity speaker supporting HDMI audio output
Specifications
| Item | Description | Unit |
|---|
| Model | 27inch FHD Monitor | / |
| Size | 27 | Inch |
| Viewing Angle | 178 | Deg |
| Resolution | 1920×1080 | Pixels |
| Dimensions | 629.62(H) × 367.40(V) × 18.00(D) | mm |
| Active Area | 597.88(H) × 336.31(V) | mm |
| Pixel Pitch | 0.3114(H) × 0.3114(V) | mm |
| Color Gamut | 99% | sRGB |
| Contrast Ratio | 1500:1 | / |
| Backlight Adjustment | OSD Menu | / |
| Refresh Rate | 60 | Hz |
| Display Interface | Standard HDMI Interface | / |
| Power Interface | 12V | / |
| Typical Power Consumption | 36 | Watt |
| Weight | 4.92 | kg |
Electrical Specifications
| Parameter | Min | Typical | Max | Unit | Note |
|---|
| Operating Temperature | 0 | 25 | 60 | ℃ | Note 3 |
| Storage Temperature | 0 | 25 | 60 | ℃ | Note 3 |
| Input Voltage | 11.5 | 12.00 | 12.5 | V | Note 1 |
| Input Current | 3 | 3 | TBD | A | Note 2 |
Note 1: Exceeding the maximum input voltage or improper operation may cause permanent damage to the device.
Note 2: The input current must be ≥3A, otherwise startup failure or display abnormalities may occur.
Note 3: Do not expose to high temperature and high humidity for long periods.
Interfaces

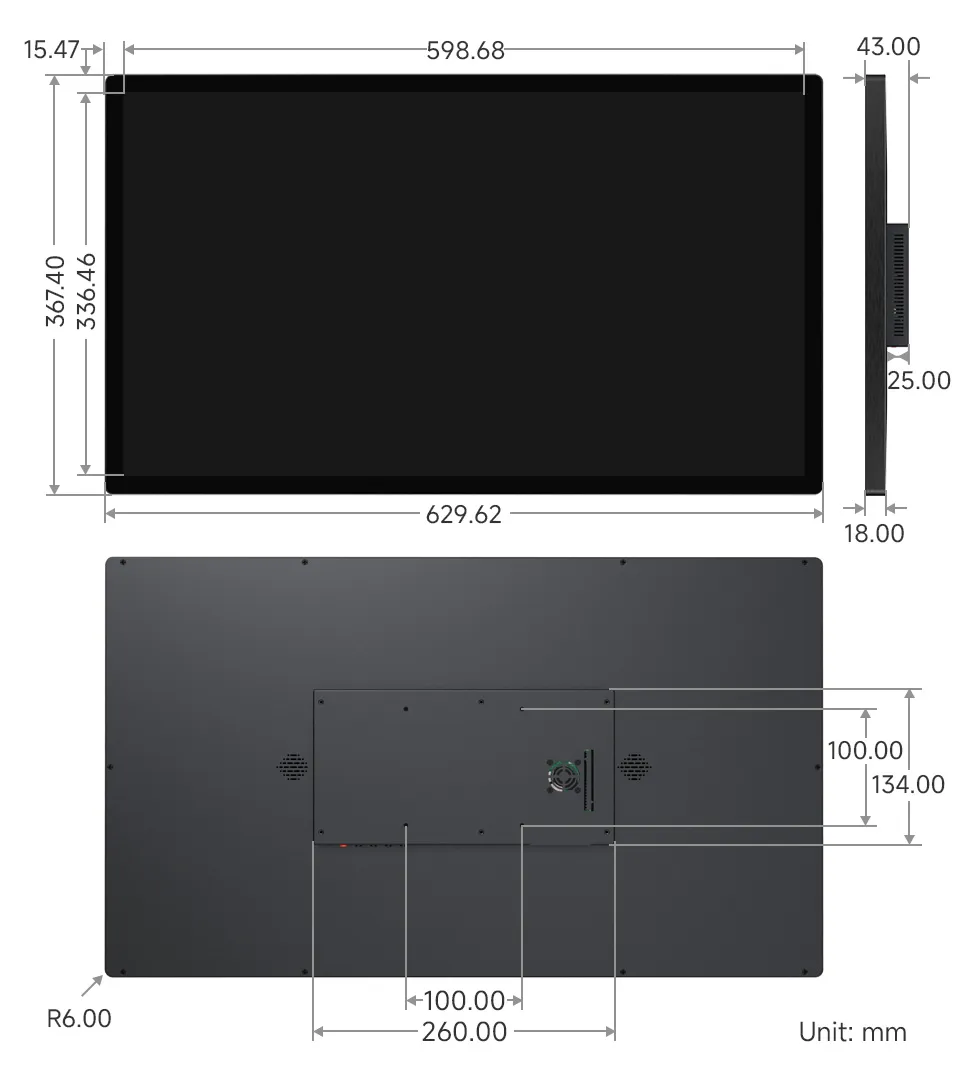

Dimensions
