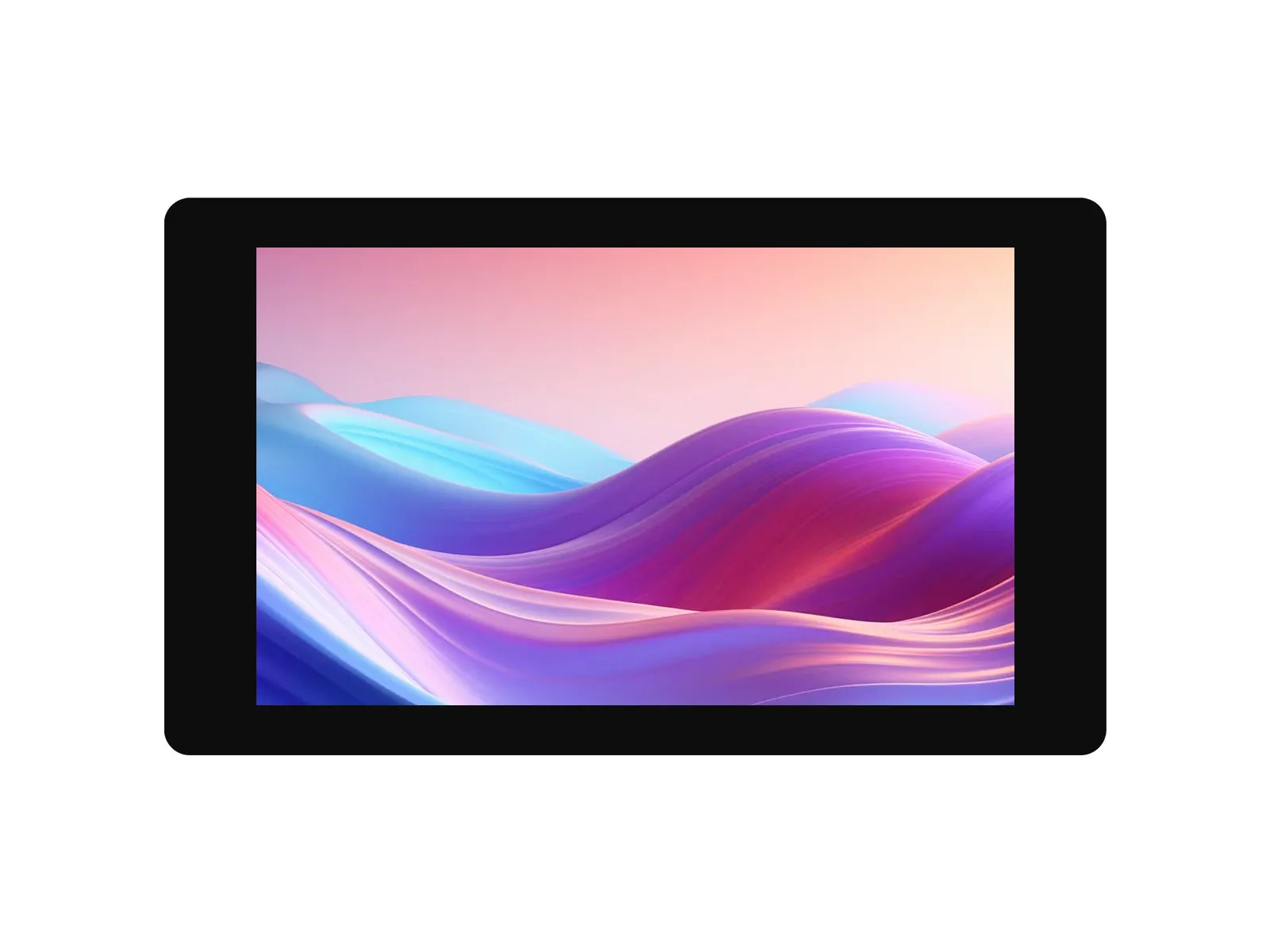

4.3-DSI-TOUCH-A

4.3-DSI-TOUCH-A

SKUProduct
343534.3-DSI-TOUCH-A

Features​

  • 4.3inch DSI touch screen, capacitive 5-point touch control
  • IPS display panel with a hardware resolution of 480×800
  • Features the optical bonding process for clearer picture quality
  • Toughened glass touch panel, hardness up to 6H
  • Drives the LCD through the DSI interface, with a refresh rate of up to 60Hz
  • Supports software control of backlight brightness
  • Aluminum alloy back cover design, pure passive cooling design

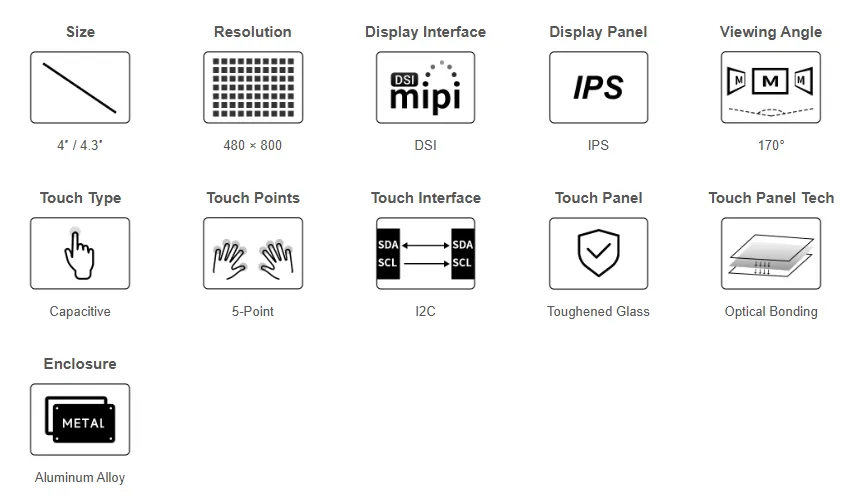

4.3-DSI-TOUCH-A LCD Product Features

Electrical Specifications​

ParameterMinTypicalMaxUnitNote
Input Voltage4.755.005.25VNote 1
Input CurrentTBD200TBDmANote 2
Operating Temperature02560℃Note 3
Storage Temperature-102570℃Note 3
  • Note 1: Exceeding the maximum input voltage or improper operation may cause permanent damage to the device.
  • Note 2: Input current must be ≥200mA, otherwise it will cause startup failure or display abnormalities. Prolonged abnormal operation may cause permanent damage to the device.
  • Note 3: Do not store the display in high temperature or high humidity environments for extended periods. The display must operate within the specified limits to avoid damage.

Interface Introduction​

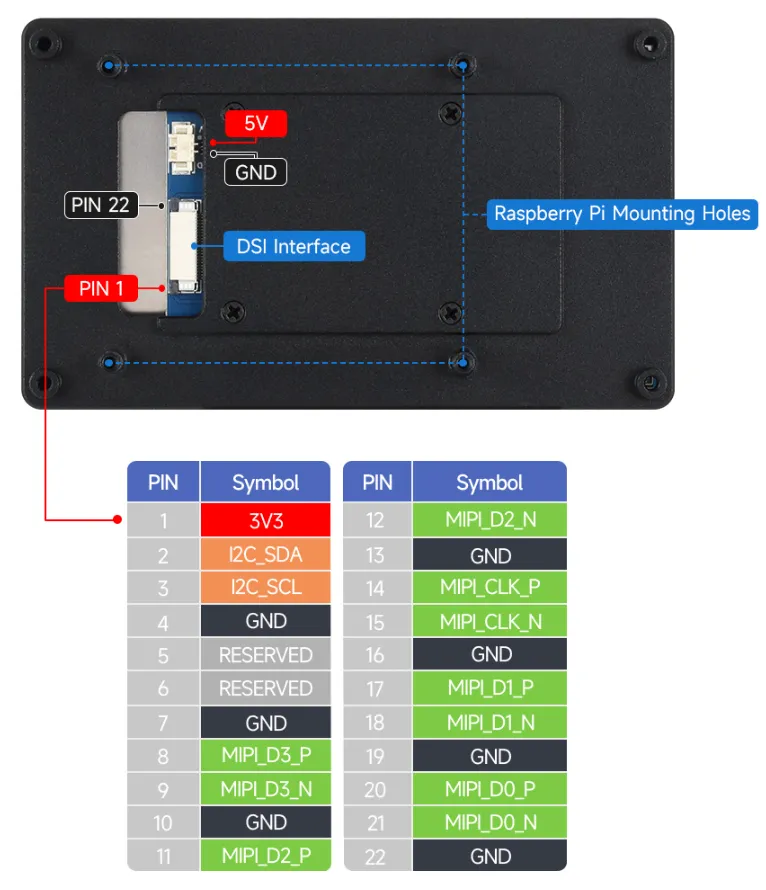

4.3-DSI-TOUCH-A Interface Introduction

Dimensions​

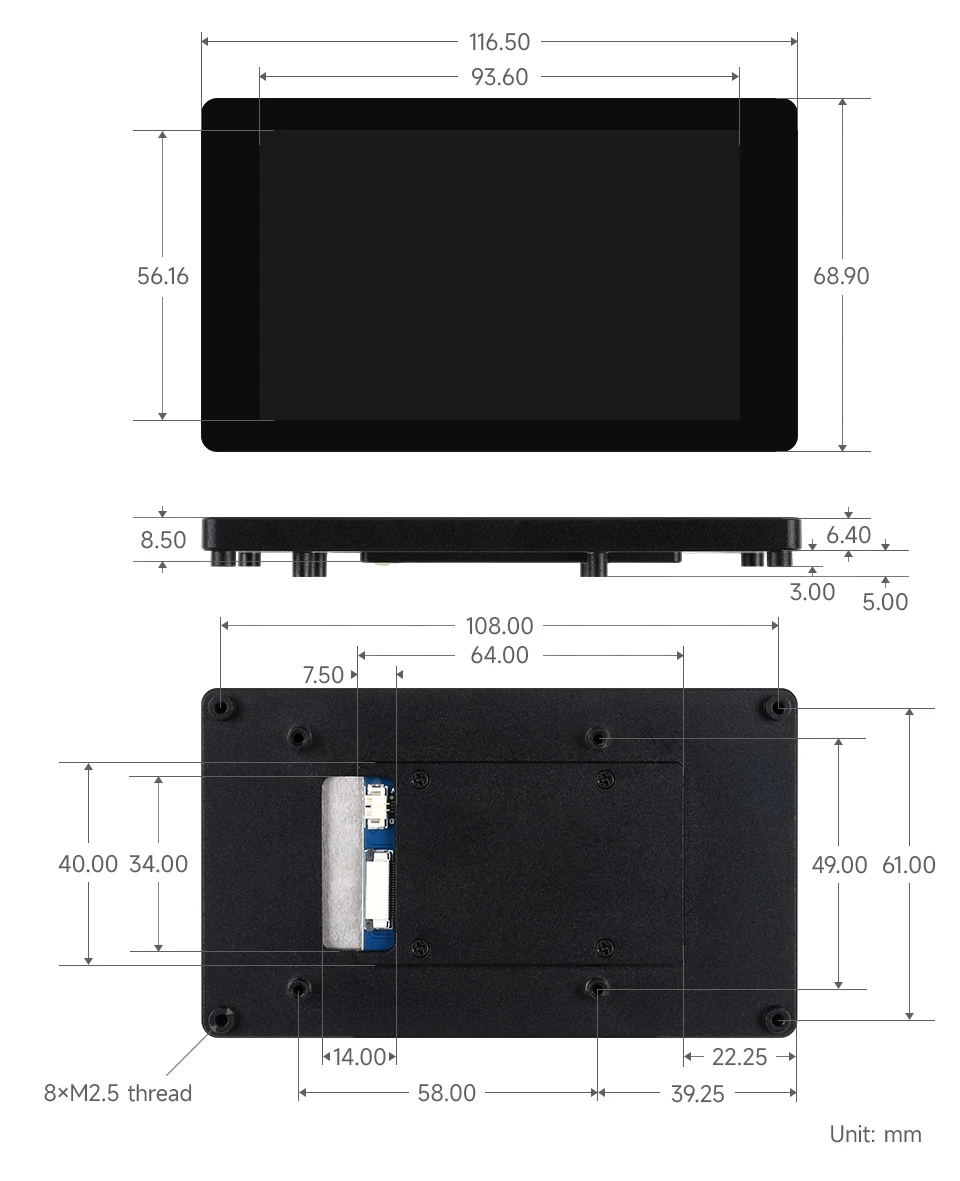

4.3-DSI-TOUCH-A Dimensions
