Working with Raspberry Pi

Hardware Connection

• When connecting to the Raspberry Pi, you can directly plug the board onto the 40PIN header, ensuring the pins are aligned correctly.
• If using a 9PIN cable, please refer to the pin mapping table below:
  • Raspberry Pi pin mapping

    e-Paper	Raspberry Pi Pin Mapping
    	BCM2835 Pin	Board Physical Pin Number
    VCC	3.3V	3.3V
    GND	GND	GND
    DIN	MOSI	19
    CLK	SCLK	23
    CS	CE0	24
    DC	25	22
    RST	17	11
    BUSY	24	18
    PWR	18	12

Enabling the SPI Interface

• Open the Raspberry Pi terminal and enter the following command to access the configuration interface:

  sudo raspi-config

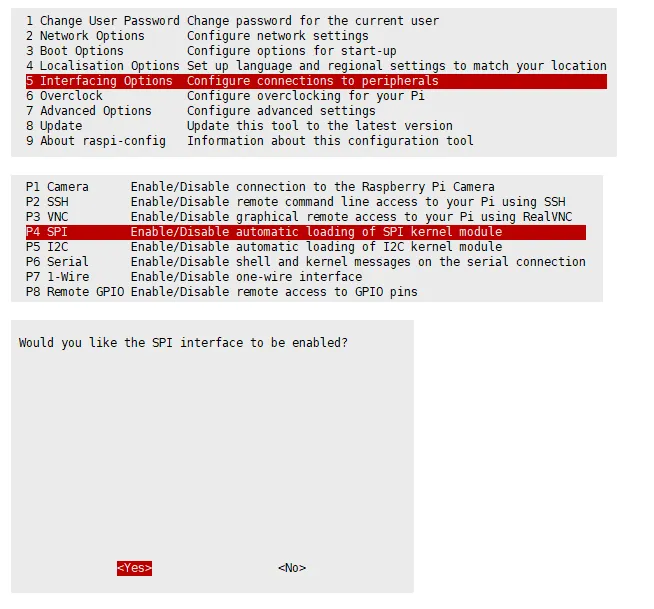

  Select Interfacing Options -> SPI -> Yes to enable the SPI interface



• Reboot the Raspberry Pi:

  sudo reboot

• Check /boot/config.txt, you should see that dtparam=spi=on has been written



• To ensure SPI is not occupied, it is recommended to temporarily disable other driver overlays. Use ls /dev/spi* to check the SPI occupancy. The terminal output /dev/spidev0.0 and /dev/spidev0.1 indicates that SPI is functioning normally.



Running the C Example

• Install the lg library

  #Open the Raspberry Pi terminal and run the following commands:
  wget https://github.com/joan2937/lg/archive/master.zip
  unzip master.zip
  cd lg-master
  make
  sudo make install
  # For more information, please refer to the source code: https://github.com/gpiozero/lg

  Install gpiod library (optional)

  #Open the Raspberry Pi terminal and run the following commands:
  sudo apt-get update
  sudo apt install gpiod libgpiod-dev

  Install BCM2835 (optional)

  #Open the Raspberry Pi terminal and run the following commands:
  wget http://www.airspayce.com/mikem/bcm2835/bcm2835-1.71.tar.gz
  tar zxvf bcm2835-1.71.tar.gz
  cd bcm2835-1.71/
  sudo ./configure && sudo make && sudo make check && sudo make install
  # For more information, please refer to the official website: http://www.airspayce.com/mikem/bcm2835/

  Install wiringPi (optional)

  #Open the Raspberry Pi terminal and run the following commands:
  sudo apt-get install wiringpi
  #For Raspberry Pi systems after May 2019 (those earlier may not require execution), an upgrade may be necessary:
  wget https://files.waveshare.com/wiki/common/wiringpi-latest.deb
  sudo dpkg -i wiringpi-latest.deb
  gpio -v
  # Run gpio -v and version 2.52 will appear. If it does not appear, there is an installation error.

  #Bullseye branch system uses the following command:
  git clone https://github.com/WiringPi/WiringPi
  cd WiringPi
  ./build
  gpio -v
  # Run gpio -v and version 2.60 will appear. If it does not appear, there is an installation error.

• Download the demo (skip if already downloaded)

  wget https://files.waveshare.com/wiki/5inch_e-Paper/5inch_e-Paper.zip
  unzip 5inch_e-Paper.zip -d 5inch_e-Paper
  cd 5inch_e-Paper/RaspberryPi_JetsonNano/

  Alternative extraction method

  git clone https://github.com/waveshare/e-Paper.git
  cd e-Paper/E-paper_Separate_Program/5inch_e-Paper/RaspberryPi_JetsonNano

  Download the program via GitHub (alternative method, skip if already downloaded)

  • Accessing GitHub may not be very smooth at present. It is recommended to use the above method to download from our official website.

    sudo apt-get install p7zip-full
    7z x 5inch_e-Paper.zip -O./5inch_e-Paper
    cd 5inch_e-Paper/RaspberryPi_JetsonNano/

• Compile the program (Note: -j4 uses 4 threads for compilation; you can modify the number)

  # It is now in 5inch_e-Paper/RaspberryPi_JetsonNano position
  cd c
  sudo make clean
  sudo make -j4

• Run the program

  sudo ./epd

Running the Python Example

• Install libraries

  sudo apt-get update
  sudo apt-get install python3-pip
  sudo apt-get install python3-pil
  sudo apt-get install python3-numpy
  sudo pip3 install spidev

  Install libraries (python2)

  sudo apt-get update
  sudo apt-get install python-pip
  sudo apt-get install python-pil
  sudo apt-get install python-numpy
  sudo pip install spidev

  Install gpiozero library (pre-installed by default, if not, install using the following commands)

  sudo apt-get update
  # python3
  sudo apt install python3-gpiozero
  # python2
  sudo apt install python-gpiozero

• Download the demo (skip if already downloaded)

  wget https://files.waveshare.com/wiki/5inch_e-Paper/5inch_e-Paper.zip
  unzip 5inch_e-Paper.zip -d 5inch_e-Paper
  cd 5inch_e-Paper/RaspberryPi_JetsonNano/

  Alternative extraction method

  sudo apt-get install p7zip-full
  7z x 5inch_e-Paper.zip -O./5inch_e-Paper
  cd 5inch_e-Paper/RaspberryPi_JetsonNano/

  Download the program via GitHub (alternative method, skip if already downloaded)

  • Accessing GitHub may not be very smooth at present. It is recommended to use the above method to download from our official website.

    git clone https://github.com/waveshare/e-Paper.git
    cd e-Paper/E-paper_Separate_Program/5inch_e-Paper/RaspberryPi_JetsonNano

• Run the program

  # Make sure it is in 5inch_e-Paper/RaspberryPi_JetsonNano/ position
  cd python/examples/
  python3 epd_5in0_test.py
