7inch 1080x1080 LCD
| SKU | Product |
|---|---|
| 33686 | 7inch 1080x1080 LCD |

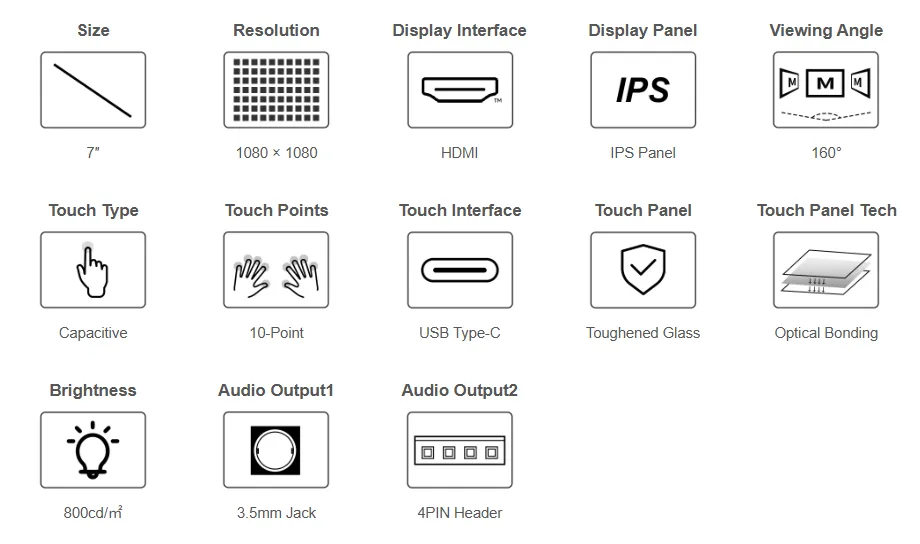

Features
- 7inch IPS circular screen with 1080x1080 hardware resolution
- 10-point capacitive touch with toughened glass panel, hardness up to 6H
- Uses optical bonding touch process for better display effect
- Supports Raspberry Pi OS / Ubuntu / Kali and RetroPie when used with Raspberry Pi.
- Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
- Supports HDMI audio output, with a 3.5mm headphone jack and 4PIN speaker connector.
- Supports button backlight adjustment and HID software dimming
Specifications
| Parameter Name | Parameter | Unit |
|---|---|---|
| Product Model | 7inch 1080x1080 LCD | / |
| Size | 7.0 | Inch |
| Viewing Angle | 160 | Deg |
| Resolution | 1080x1080 | Pixels |
| Overall Dimensions | 230.34(H)×230.34(V)×6.45(D) | mm |
| Active Area | 177.55(H) × 177.55(V) | mm |
| Color Gamut | 65% | NTSC |
| Maximum Brightness | 800 | cd/m² |
| Contrast Ratio | 1200:1 | / |
| Backlight Dimming | Button dimming / HID software dimming | / |
| Refresh Rate | 60 | Hz |
| Display Interface | Standard HDMI Interface | / |
| Power Interface | 5V Type-C power supply | / |
| Power consumption | 2 | Watt |
Electrical Specifications
| Parameter | Min | Typical | Max | Unit | Note |
|---|---|---|---|---|---|
| Input Voltage | 4.75 | 5.00 | 5.25 | V | Note 1 |
| Input Current | 300 | 400 | TBD | mA | Note 2 |
| Operating Temperature | 0 | 25 | 60 | ℃ | Note 3 |
| Storage Temperature | -10 | 25 | 70 | ℃ | Note 3 |
- Note 1: Exceeding the maximum input voltage or improper operation may cause permanent damage to the device.
- Note 2: Input current must be ≥300mA, otherwise it will cause startup failure or display abnormalities. Prolonged abnormal operation may cause permanent damage to the device.
- Note 3: Do not store the display in high-temperature, high-humidity environments for extended periods. The display must operate within the specified limits to avoid damage.

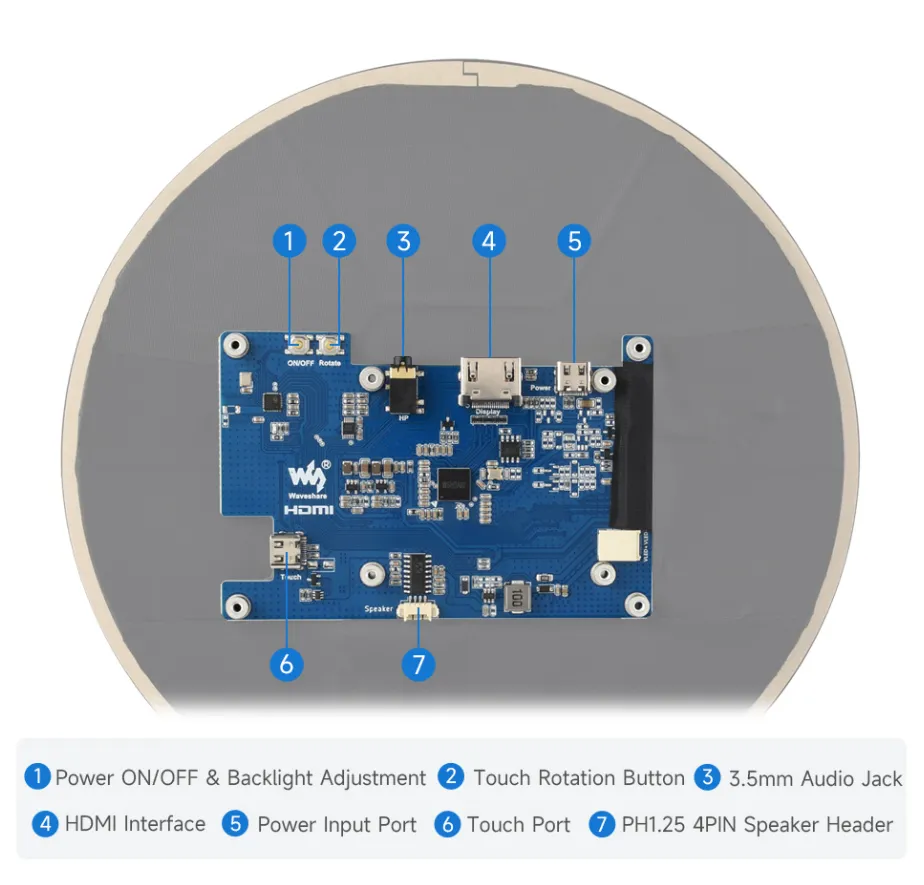

Interface Introduction
EDID Timing Parameters
-
If the host system can automatically recognize the EDID for display, no additional timing parameter settings are required.
-
Otherwise, you can refer to the following EDID settings:
| Pixel Clock | H Addressable | H Blanking | V Addressable | V Blanking | H Front Porch | H Sync Width | V Front Porch | V Sync Width | H Image Size | V Image Size | H Border | V Border |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 84.06 | 1080 | 180 | 1080 | 32 | 80 | 20 | 10 | 8 | 67 | 145 | 0 | 0 |

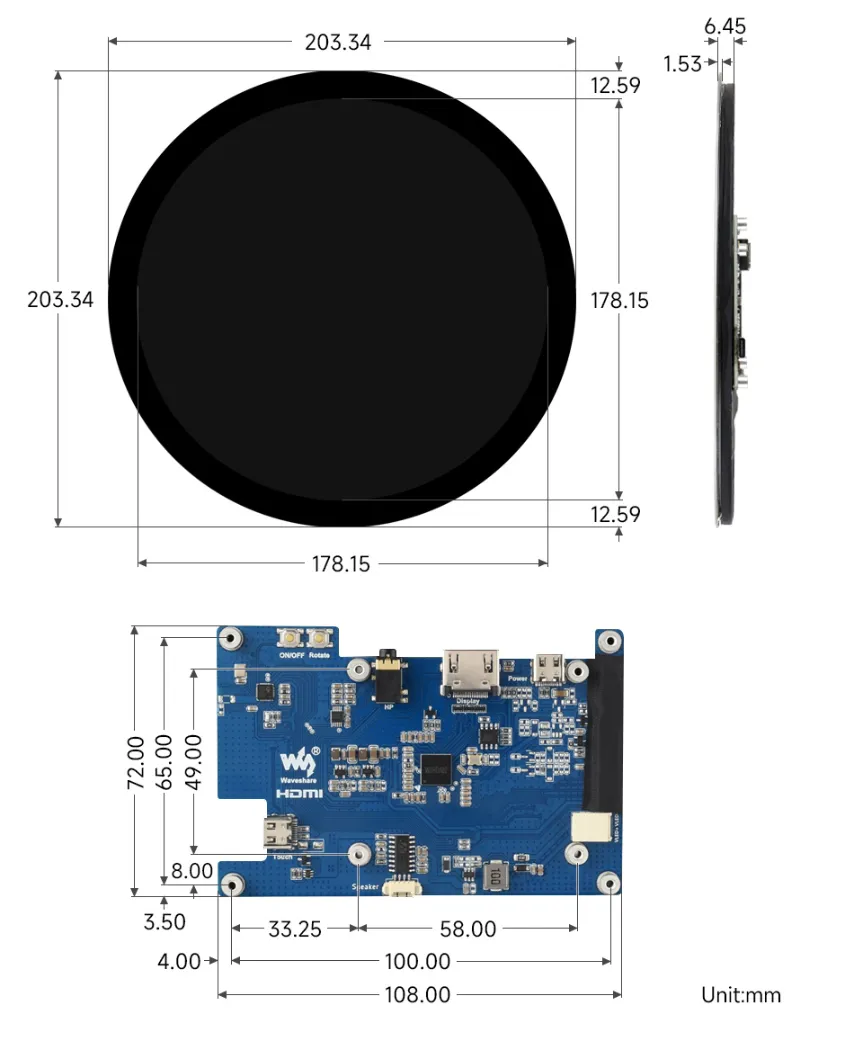

Dimensions
