Python Execution Example

This section mainly describes the methods for setting up the Python environment and running Python examples on Windows.

Deploying Python Environment on Windows​

First, go to the Python official website to download the latest version of the Python installer. You can download it according to your operating system, I downloaded it here for Windows, the version is 3.11.5.

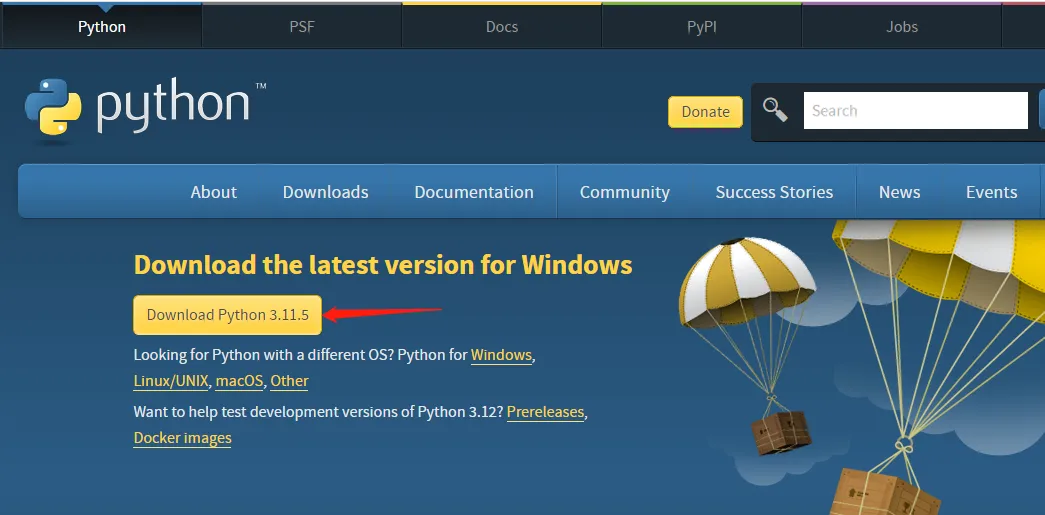

Download Python installer

After downloading, double-click the installer python-3.11.5-amd64, click "Customize installation" to enter the "Optional Features" screen.

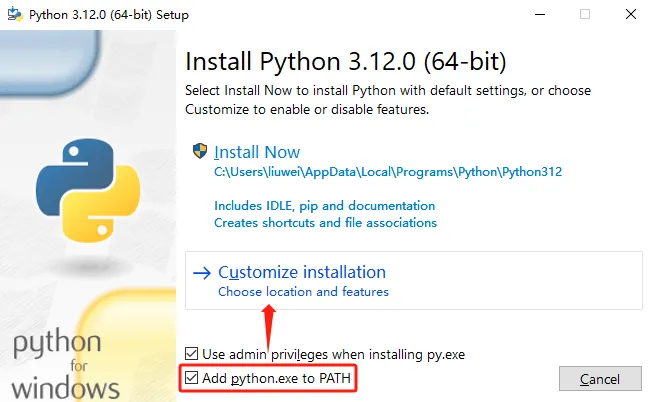

Python Installation

Keep the default selections, click "Next" to go to the "Advanced Options" screen. Make sure to keep "Add Python to environment variables" checked. You can change the installation path by clicking "Browse"; here the default path is used. After setting, click "Install" and wait for the installation to complete.

Once installed, we can proceed to compile and run Python examples.

ST Series Servo Python Execution Example​

Download the ST Bus Servo Control Library (Python) program, unzip it, then open the Windows command prompt by typing cmd in the start menu. Use cd "folder path" to navigate to the STServo_Python project folder. A virtual environment named stservo-env has already been created. Then enter:

stservo-env\Scripts\activate.bat

This command activates the virtual environment. Note: If you do not use a virtual environment, it may cause dependency conflicts.

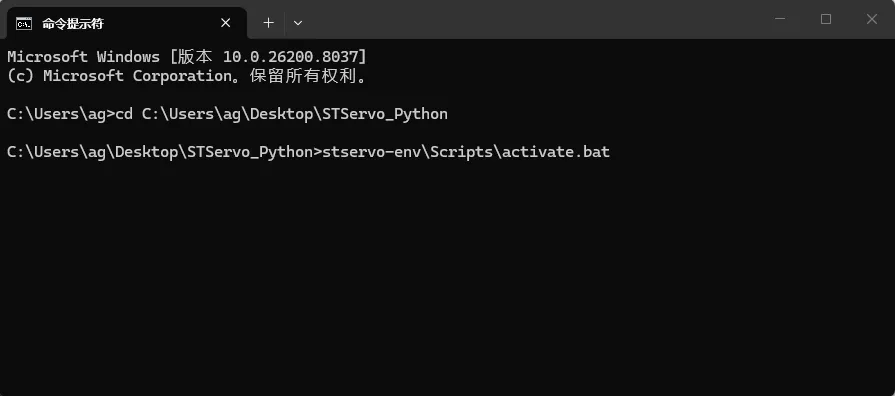

Activate Virtual Environment

In the STServo_Python project, you can see the requirements.txt file, which lists the packages used by this project. After entering the virtual environment, input:

python -m pip install -r requirements.txt

This command installs the required packages for the project. You can see that the only package used here is pyserial, which is already installed.

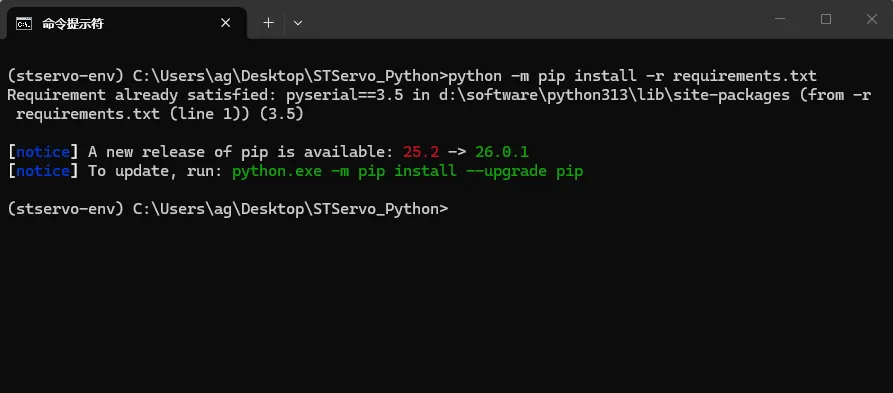

Installing Packages

Connect the ST series servo to the bus servo interface on the driver board, and connect a 9~12.6V power supply. Search for "Device Manager" in the start menu to check the newly connected port number.

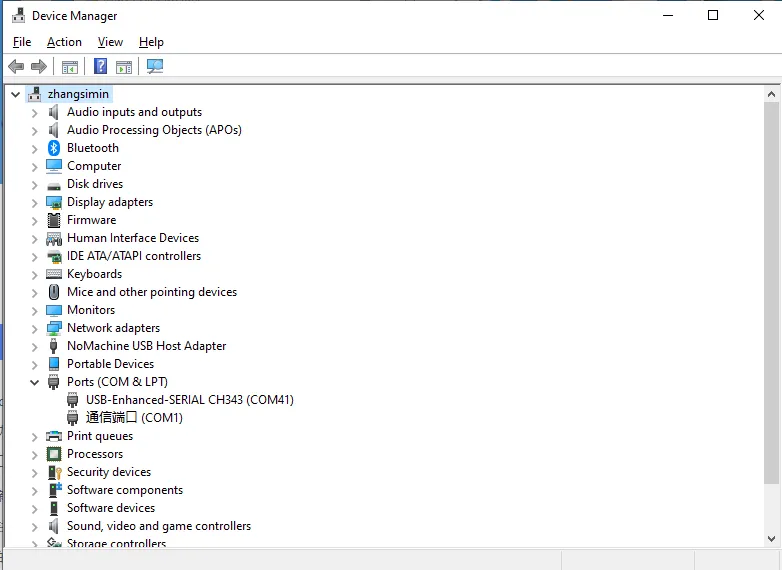

Check Port Number

Next, modify the SCS_ID in the example you want to run to the ID of the connected servo. Our servo's factory default ID is 1. Change DEVICENAME to the connected port number; here it is COM41 (the port number may differ on different computers).

Modify ID and Port Number

info

The sms_sts folder under STServo_Python\stservo-env contains examples for ST series servos, and the scscl folder contains examples for SC series servos.

After modifying, you can run the example. Here, using ping.py file as an example, enter cd "folder path" to navigate to the folder containing the Python example. Then enter: Then enter:

python ping.py

You can see that the execution succeeded, and the servo with ID 1 is connected successfully.

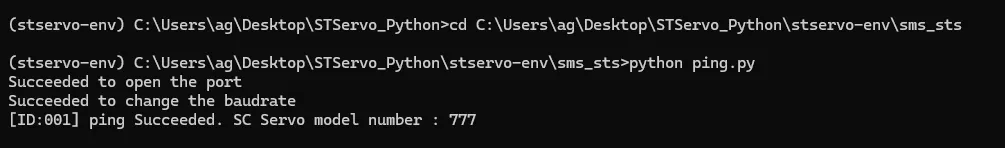

Servo Connected Successfully

The above is a simple tutorial for Python examples. The resources also include SDKs for different hardware devices and examples in various programming languages.
