Working with Raspberry Pi Pico

This chapter contains the following sections. Please read as needed:

Setting Up Development Environment​

1. Installation and Configuration​

  • For setting up the Raspberry Pi Pico environment and basic usage, please refer to the following links:
  • After setting up the environment, connect the sensor and download the example package.

Hardware Connection​

Connect according to the table below.

Core2021-XFRaspberry Pi Pico/Pico2
CLK10
MISO11
MOSI12
CS13
DIO1115
RESET5
BUSY14

Example​

  • Raspberry Pi Pico example programs are located in the core2021-xf\examples\pico directory of the example package.
  • Examples 01, 02, and 03 require two Core2021-XF modules: one for transmission and one for reception.
ExampleBasic DescriptionDependency Library
01_lr2021_txLR2021 TransmitRadioLib
02_lr2021_rxLR2021 ReceiveRadioLib
03_lr2021_pingpongLR2021 Ping‑PongRadioLib
04_lr2021_tx_cwLR2021 CW Mode TransmitRadioLib
05_lr2021_LoRaWANLoRaWANRadioLib

Arduino Pico Examples​

  • Navigate to core2021-xf\examples\pico\arduino and select the example program you wish to test.

  • Select the chip model and port.

    Arduino Pico 2

  • After uploading, open the serial port monitor, and the relevant information will be output.

01_lr2021_tx_arduino​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, implements periodic LoRa packet transmission using interrupts.
  • Uses the Pico/Pico2 hardware SPI1 port with custom SPI pin mapping.
  • Uses non‑blocking transmission, does not occupy CPU resources in the main loop.
  • After each packet is sent, automatically delays 1 second before sending the next packet.
  • Supports string data transmission, with a built‑in packet sequence number for easy debugging.

Code Analysis

  • SPI1.setSCK / setRX / setTX: Remaps pins for RP2040 hardware SPI1.
  • SPI1.begin(): Starts the Raspberry Pi Pico hardware SPI1.
  • radio.irqDioNum = 11: Configures the LR2021 interrupt mapping pin; must be set before initialization.
  • radio.XTAL = true: Enables the external crystal oscillator to ensure frequency accuracy.
  • setFlag(void): Interrupt callback function triggered automatically after the module finishes transmission, sets a transmission‑complete flag.
  • radio.setPacketSentAction(setFlag): Binds the transmission‑complete interrupt function.
  • radio.startTransmit("content"): Starts asynchronous LoRa transmission (supports string / byte array).
  • radio.finishTransmit(): Cleanup after transmission, turns off the transmit circuit and resets the module state.
  • loop() main logic: Check transmission‑complete flag → print status → delay → send next packet with sequence number.

Operation Result

  • After compiling and uploading, open the serial monitor to see logs indicating transmission completion, as shown below (in combination with 02_lr2021_rx):

02_lr2021_rx_arduino​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, implements wireless LoRa packet reception using interrupts.
  • Uses the Pico/Pico2 hardware SPI1 port with custom pin mapping.
  • Uses non‑blocking listening mode; the module automatically waits for data without consuming CPU resources.
  • After successful reception, automatically parses the data and prints the packet content, RSSI, and SNR.
  • The same frequency, spreading factor, bandwidth, and coding rate must be configured on both the transmitter and receiver for successful communication.

Code Analysis

  • SPI1.setSCK / setRX / setTX: Remaps pins for RP2040 hardware SPI1.
  • SPI1.begin(): Initializes the Raspberry Pi Pico hardware SPI1 bus.
  • radio.irqDioNum = 11: Configures the LR2021 interrupt mapping pin; must be set before initialization.
  • radio.XTAL = true: Enables the external crystal oscillator to ensure frequency accuracy and improve reception stability.
  • setFlag(void): Interrupt callback function triggered automatically after a complete packet is received.
  • radio.setPacketReceivedAction(setFlag): Binds the reception‑complete interrupt service function.
  • radio.startReceive(): Starts continuous LoRa reception mode, enters a data‑waiting state.
  • radio.readData(str): Reads the received wireless data (supports string parsing).
  • radio.getRSSI() / radio.getSNR(): Retrieves signal quality parameters for debugging and link evaluation.
  • loop() main logic: Check reception‑complete flag → read data → parse and print → continue listening.

Operation Result

  • After compiling and uploading, open the serial monitor to see real‑time reception logs including data content, RSSI, and SNR, as shown below (in combination with 01_lr2021_tx):

03_lr2021_pingpong​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, implements LoRa automatic ping‑pong (question‑answer) two‑way communication.
  • Uses the Pico/Pico2 hardware SPI1 port with arbitrary pin mapping.
  • Two modules can send and receive to each other without manual control.
  • Enabling INITIATING_NODE sets the module as the initiator; the other module acts as the responder.
  • Automatically switches between transmit and receive states, driven by non‑blocking interrupts.

Code Analysis

  • SPI1.setSCK / setRX / setTX: Remaps pins for Raspberry Pi Pico SPI1.
  • SPI1.begin(): Initializes the hardware SPI1 bus.
  • radio.irqDioNum = 11: Configures the LR2021 interrupt mapping pin; must be set before initialization.
  • radio.XTAL = true: Enables the external crystal oscillator to ensure communication frequency accuracy.
  • setFlag(void): General interrupt callback, triggered on either transmit or receive completion.
  • radio.setIrqAction(setFlag): Binds the shared transmit/receive interrupt function.
  • INITIATING_NODE macro: Used to distinguish the initiating node.
  • radio.startTransmit(): Starts packet transmission.
  • radio.startReceive(): Switches the module to listening (receive) mode.
  • radio.readData(str): Reads the received LoRa packet.
  • loop() main logic: Transmit complete → enter receive; receive complete → delay reply → transmit again.

Operation Result

  • Flash the program onto two modules, enabling the INITIATING_NODE macro on one of them.
  • After power‑on, they automatically send and receive to each other; the serial monitor prints the transmit/receive status, data, RSSI, and SNR, as shown below:

04_lr2021_tx_cw​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, implements LoRa continuous wave (CW) / direct transmit.
  • Uses the Pico/Pico2 hardware SPI1 port with arbitrary pin mapping.
  • Outputs a fixed‑frequency carrier signal without packet formatting, used for band testing, signal detection, and instrument calibration.
  • Fixed frequency 868 MHz, transmit power 22 dBm.
  • Upon power‑up, transmits continuously with no additional logic.

Code Analysis

  • SPI1.setSCK / setRX / setTX: Remaps pins for Raspberry Pi Pico SPI1.
  • SPI1.begin(): Initializes the hardware SPI1 bus.
  • radio.XTAL = true: Enables the external crystal oscillator to ensure carrier frequency accuracy.
  • OUT_HZ 868000000UL: Defines the direct transmit frequency (868 MHz); can be modified.
  • radio.setOutputPower(22): Sets the transmit power to 22 dBm.
  • radio.transmitDirect(OUT_HZ): Enters continuous direct transmission mode, outputting a fixed‑frequency carrier.
  • loop(): No business logic; the carrier continues to transmit without program intervention.

Operation Result

  • After flashing, the module immediately outputs a fixed‑frequency carrier signal.

  • The serial port prints initialization and transmission start status; a spectrum analyzer or receiving module can detect the continuous RF signal, as shown below:

05_lr2021_LoRaWAN​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, implements LoRaWAN OTAA join and uplink/downlink communication.
  • Uses EEPROM emulation storage to save session information, allowing fast reconnection after power‑off reboot.
  • Custom SPI1 pin mapping fully adapted to Pico/Pico2 hardware design.
  • Periodically sends uplink data (default every 5 minutes) and automatically listens for server downlink messages.
  • Supports HEX/ASCII formatting of received data for debugging and link verification.

Code Analysis

  • SPI1.setSCK/setRX/setTX: Remaps pins for RP2040 hardware SPI1.
  • SPI1.begin(): Initializes the Raspberry Pi Pico hardware SPI1 bus.
  • radio.irqDioNum = 11: Configures the LR2021 interrupt mapping pin; must be set before initialization.
  • radio.XTAL = true: Enables the external crystal oscillator to ensure LoRaWAN frequency accuracy.
  • EEPROM.begin(256): Initializes the RP2040 on‑chip Flash to emulate EEPROM.
  • restoreLoRaWANState(): Recovers session information from EEPROM for fast reconnection.
  • node.beginOTAA()/activateOTAA(): OTAA join key functions.
  • saveLoRaWANState(): Saves session information to EEPROM after successful join.
  • node.sendReceive(): Sends uplink data and automatically listens for downlink messages.
  • printHex / printAscii: Formats and prints downlink data.

Operation Result

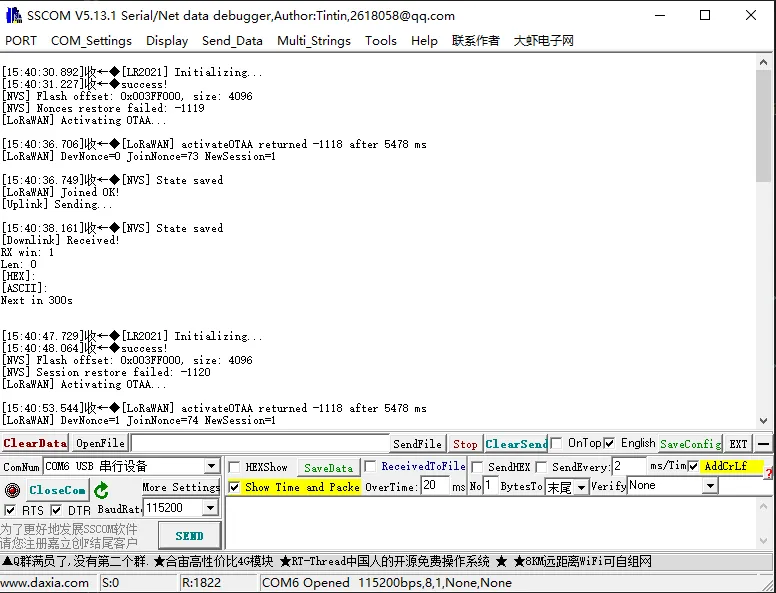

  • After flashing, the module automatically completes OTAA join, periodically reports data, and listens for downlink messages.

  • The serial port prints join status, uplink/downlink data, signal quality, etc., as shown below:

C/C++ Examples​

  • Navigate to core2021-xf\examples\pico\c and select the example program you wish to test.

  • Select the chip model and port.

    Arduino Pico 2

  • After uploading, open the serial port monitor, and the relevant information will be output.

01_lr2021_tx​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, runs the RadioLib library directly on the Pico in a non‑Arduino environment.
  • Uses the hardware SPI1 port with custom SPI pins (SCK=10, MOSI=11, MISO=12).
  • Configures LR2021 pins:
    • NSS=13, IRQ(DIO0)=15, RESET=5, BUSY=14
  • Supports interrupt callbacks, automatically triggered when a packet transmission is complete.
  • Non‑blocking transmission; the main loop can check the transmission‑complete flag for further operations.
  • Supports sending C‑strings or byte arrays, up to 256 bytes.
  • Can continuously send packets with sequence numbers for easy debugging.

Code Analysis

  • PicoHal* hal = new PicoHal(SPI_PORT, SPI_MISO, SPI_MOSI, SPI_SCK): Creates a Pico hardware abstraction layer instance and binds the SPI port.
  • LR2021 radio = new Module(hal, RFM_NSS, RFM_IRQ, RFM_RST, RFM_BUSY): Initializes the LR2021 module object.
  • radio.irqDioNum = 11: Configures the interrupt mapping pin.
  • radio.XTAL = true: Enables the external crystal oscillator for better frequency accuracy.
  • radio.begin(): Initializes the module and returns an error code.
  • radio.setPacketSentAction(setFlag): Binds the transmission‑complete callback function setFlag().
  • radio.setFrequency(868.0), setOutputPower(22), setBandwidth(125.0), setSpreadingFactor(7), setCodingRate(5), setSyncWord(...), setPreambleLength(8): Configures LoRa parameters.
  • radio.startTransmit("Hello World!"): Starts the first packet transmission.
  • setFlag(): Sets transmittedFlag = true when transmission is complete; this flag is polled in the main loop.
  • Main loop for(;;):
    1. Check transmittedFlag
    2. Print success/failure status
    3. Call radio.finishTransmit() to clean up the transmission
    4. Delay 1 second
    5. Build a new packet with an incremented sequence number and continue transmitting

Operation Result

  • After startup, the serial port prints initialization status (paired with 02_lr2021_rx):

02_lr2021_rx​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, runs the RadioLib library directly on the Pico in a non‑Arduino environment to receive data.
  • Uses the hardware SPI1 port with custom SPI pins (SCK=10, MOSI=11, MISO=12).
  • Configures LR2021 pins:
    • NSS=13, IRQ(DIO0)=15, RESET=5, BUSY=14
  • Supports interrupt callbacks, automatically triggered when a packet is received.
  • Continuous listening mode, automatically re‑enters receive state after each packet.
  • Received data can be printed in HEX format or as a string.

Code Analysis

  • PicoHal* hal = new PicoHal(SPI_PORT, SPI_MISO, SPI_MOSI, SPI_SCK): Creates a Pico hardware abstraction layer instance and binds the SPI port.
  • LR2021 radio = new Module(hal, RFM_NSS, RFM_IRQ, RFM_RST, RFM_BUSY): Initializes the LR2021 module object.
  • radio.irqDioNum = 11: Configures the interrupt mapping pin.
  • radio.XTAL = true: Enables the external crystal oscillator for better frequency accuracy.
  • radio.begin(): Initializes the module and returns an error code.
  • radio.setPacketSentAction(setFlag): Binds the transmission‑complete callback function setFlag().
  • radio.setFrequency(868.0), setOutputPower(22), setBandwidth(125.0), setSpreadingFactor(7), setCodingRate(5), setSyncWord(...), setPreambleLength(8): Configures LoRa parameters.
  • radio.startReceive(): Starts receive mode and enters listening state.
  • setFlag(): Sets receivedFlag = true when a packet is received; this flag is polled in the main loop.
  • Main loop for(;;):
    1. Check receivedFlag
    2. Read packet length radio.getPacketLength() and call radio.readData(rxBuf, len)
    3. Based on the return status, print:
      • On success: packet length, RSSI, SNR, HEX dump, and string content
      • On CRC error: indicate CRC error
      • On other errors: print error code
    4. Automatically re‑enter receive mode radio.startReceive()
    5. Delay 10 ms to avoid excessive CPU usage

Operation Result

  • After startup, the serial port prints initialization status (paired with 01_lr2021_tx):

03_lr2021_pingpong​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, implements LoRa automatic ping‑pong (question‑answer) two‑way communication.
  • Uses the hardware SPI1 port with custom SPI pins (SCK=10, MOSI=11, MISO=12).
  • Configures LR2021 pins:
    • NSS=13, IRQ(DIO0)=15, RESET=5, BUSY=14
  • Supports interrupt callbacks, triggered when a transmission or reception is complete.
  • Automatically switches between transmit and receive states without manual intervention.
  • The first transmission is controlled by the #define INITIATING_NODE macro; the other module automatically enters receive mode.
  • Supports sending and receiving string data continuously, and prints RSSI/SNR.

Code Analysis

  • PicoHal* hal = new PicoHal(SPI_PORT, SPI_MISO, SPI_MOSI, SPI_SCK): Creates a Pico hardware abstraction layer instance and binds the SPI port.
  • LR2021 radio = new Module(hal, RFM_NSS, RFM_IRQ, RFM_RST, RFM_BUSY): Initializes the LR2021 module object.
  • radio.irqDioNum = 11: Configures the interrupt mapping pin.
  • radio.XTAL = true: Enables the external crystal oscillator for better frequency accuracy.
  • radio.begin(): Initializes the module and returns an error code.
  • radio.setPacketSentAction(setFlag): Binds the transmit/receive complete callback function.
  • The macro INITIATING_NODE determines whether the node first sends data.
  • Main loop for(;;):
    1. Check the operationDone flag.
    2. If transmission is complete:
      • Print transmission status
      • Switch to receive mode radio.startReceive()
    3. If reception is complete:
      • Read the packet radio.readData(rxBuffer, rxLen)
      • Print the received string, RSSI, SNR
      • Delay 1 second, then send again
    4. Delay 5 ms at the end of each iteration to avoid high CPU usage

Operation Result

  • Two modules are flashed separately; one defines INITIATING_NODE.
  • After power‑up, modules automatically send and receive to each other:

04_lr2021_tx_cw​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, implements LoRa continuous wave (CW) / direct transmit.
  • Uses the hardware SPI1 port with custom SPI pins (SCK=10, MOSI=11, MISO=12).
  • Configures LR2021 pins:
    • NSS=13, IRQ(DIO0)=15, RESET=5, BUSY=14
  • Outputs a fixed‑frequency carrier signal without packet formatting, used for band testing, signal detection, and instrument calibration.
  • Fixed frequency 868 MHz, transmit power 22 dBm.
  • Upon power‑up, the module transmits continuously with no additional logic.

Code Analysis

  • PicoHal* hal = new PicoHal(SPI_PORT, SPI_MISO, SPI_MOSI, SPI_SCK): Creates a Pico hardware abstraction layer instance and binds the SPI port.
  • LR2021 radio = new Module(hal, RFM_NSS, RFM_IRQ, RFM_RST, RFM_BUSY): Initializes the LR2021 module object.
  • radio.irqDioNum = 11: Configures the interrupt mapping pin.
  • radio.XTAL = true: Enables the external crystal oscillator for better frequency accuracy.
  • radio.begin(): Initializes the module and returns an error code.
  • radio.setOutputPower(22): Sets the transmit power to 22 dBm.
  • radio.transmitDirect(OUT_HZ): Enters continuous direct transmission mode, outputting a fixed‑frequency carrier.
  • The main loop has no business logic; the carrier continues to transmit without program intervention.

Operation Result

  • After flashing, the module immediately outputs a fixed‑frequency carrier signal.

  • The serial port prints initialization and transmission start status; a spectrum analyzer or receiving module can detect the continuous RF signal, as shown below:

05_lr2021_LoRaWAN​

Example Description

  • Based on the Raspberry Pi Pico + Core2021-XF module, implements LoRaWAN OTAA join and uplink/downlink communication.
  • Uses the hardware SPI1 port with custom SPI pins (SCK=10, MOSI=11, MISO=12).
  • Supports EEPROM emulation storage, allowing fast reconnection after power‑off reboot.
  • Periodically sends uplink data (random 3‑byte payload, default period uplinkIntervalSeconds).
  • Automatically receives server downlink messages and prints the data in HEX/ASCII.
  • Supports continuous uplink/downlink and automatically saves LoRaWAN session state to prevent DevNonce reuse.

Code Analysis

  • PicoHal* hal = new PicoHal(SPI_PORT, SPI_MISO, SPI_MOSI, SPI_SCK): Creates a Pico hardware abstraction layer instance and binds the SPI port.
  • LR2021 radio = new Module(hal, RFM_NSS, RFM_IRQ, RFM_RST, RFM_BUSY): Initializes the LR2021 module object.
  • LoRaWANNode node(&radio, &Region, subBand): Creates a LoRaWAN node instance.
  • Flash EEPROM emulation:
    • FLASH_TARGET_OFFSET: storage offset
    • FLASH_EMULATE_EEPROM_SIZE: emulation size
    • saveLoRaWANState() / restoreLoRaWANState(): saves/restores LoRaWAN session state
  • node.beginOTAA(joinEUI, devEUI, nwkKey, appKey): Initializes OTAA parameters.
  • joinLoRaWAN(restored): Attempts to join the network and saves DevNonce/Session.
  • Uplink/downlink transmission:
    • node.sendReceive(tx, sizeof(tx), 1, rx, &rxLen): Sends uplink data and receives downlink.
    • After successful transmission, saves the session to prevent counter rollback.
    • Downlink data is printed in HEX/ASCII.
  • Loop logic:
    1. Send a random payload.
    2. Check if a downlink message is received.
    3. Save the state.
    4. Delay for uplinkIntervalSeconds seconds before the next transmission.

Operation Result

  • After flashing, the module automatically completes OTAA join, periodically reports data, and listens for downlink messages.

  • The serial port prints join status, uplink/downlink data, signal quality, etc., as shown below:
