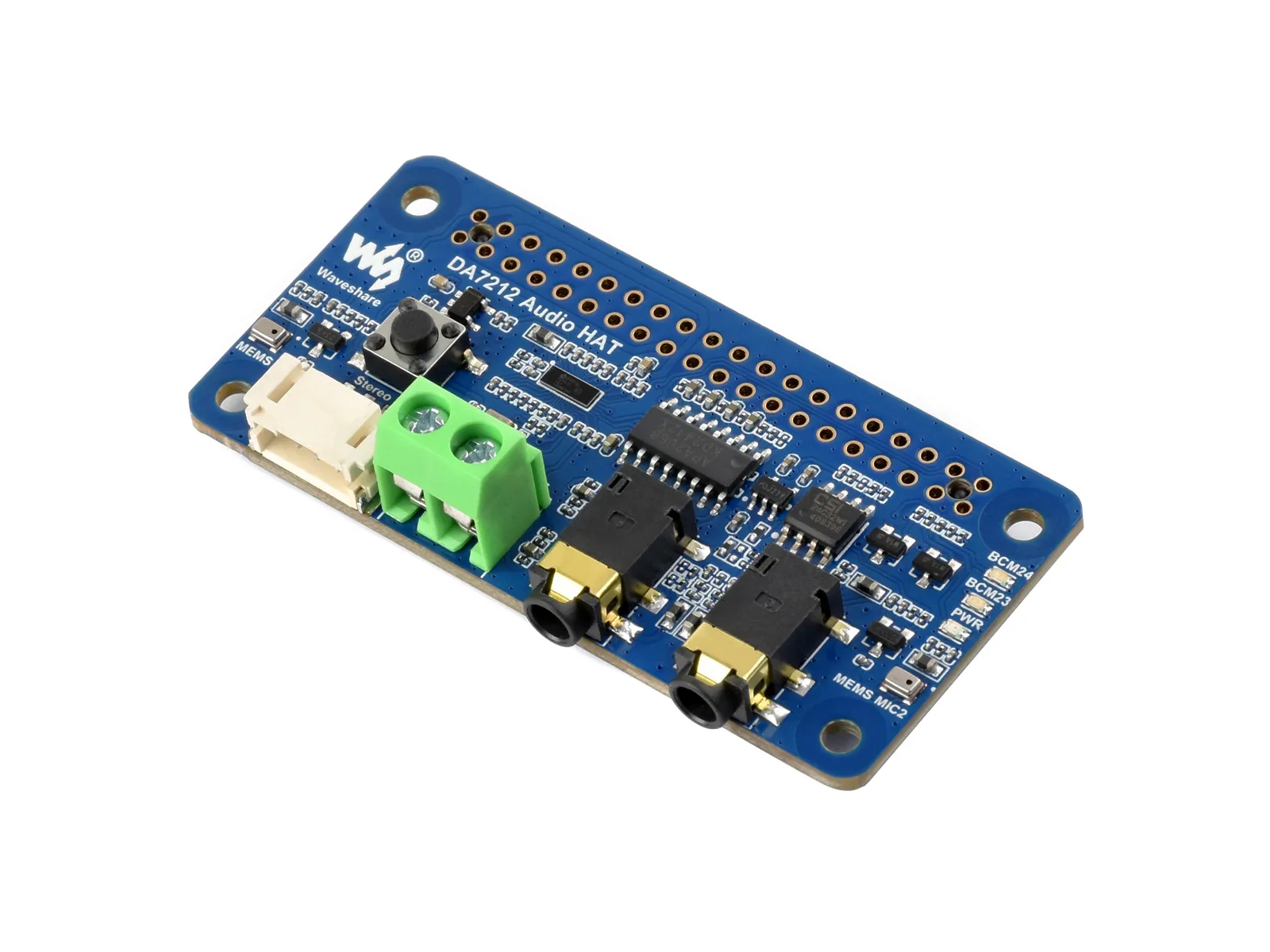

DA7212 Audio Board (A)

DA7212 Audio Board (A)

The DA7212 Audio Board (A) is an expansion board for the Raspberry Pi. It features a DA7212 stereo codec chip, supporting sampling frequencies up to 96 kHz and resolutions up to 24‑bit. The board includes a standard 3.5mm headphone jack, a 3.5mm AUX input jack, a microphone, and multiple types of speaker connectors for user convenience.

SKUProduct
34213DA7212 Audio Board (A)

Features​

  • Do not plug or unplug any device interfaces other than the audio interface while powered on
  • Uses the DA7212 professional stereo codec chip, controlled via I2C interface and transmitting audio via I2S
  • Onboard standard 3.5mm headphone jack for playing music with external headphones
  • Onboard AUX input interface for easy connection to other devices
  • Onboard speaker screw terminal and a PH2.0 dual‑channel speaker connector, offering multiple interface types for a wider range of usage scenarios
  • Onboard dual microphones for recording without additional external devices
  • Onboard programmable button and indicators for custom functions
  • Supports sampling frequency up to 96KHz
  • Supports up to 24-bit resolution audio data

Dimensions​

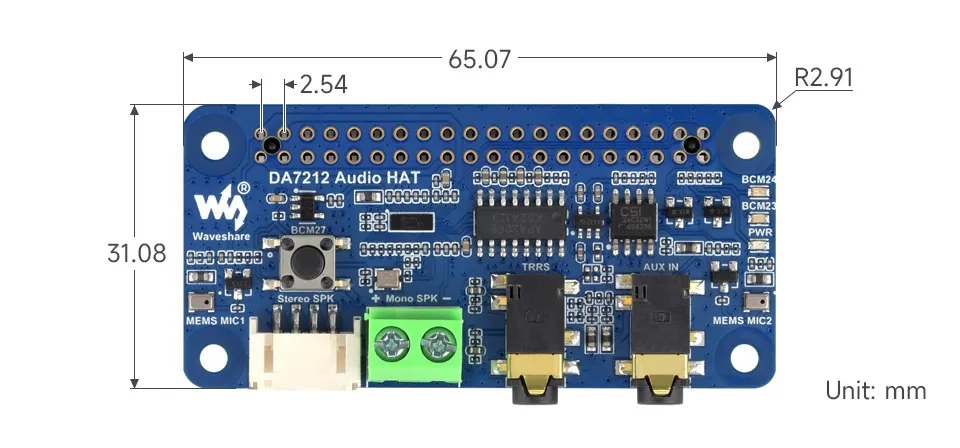

DA7212 Audio Board (A) Product Dimensions

EEPROM​

  • The product's EEPROM uses I2C0, with I2C address 0x50.
  • It is pre-configured with the firmware for the DA7212 Audio Board (A).

Audio Interface​

danger

The module must be connected before powering on to be properly recognized.

warning
  • The audio function of the product uses I2C1, with I2C address 0x1A.
  • When headphones are connected, the 4PIN speaker connector (PH2.0) and the 2PIN speaker connector (green terminal) are muted, and the audio signal will be output through the headphone jack.
