ESP32-C5-LCD-1.47

ESP32-C5-LCD-1.47

ESP32-C5-LCD-1.47-M (With pre-soldered headers)

Note

When soldering pin headers, you do not need to remove the screen. Simply tilt the soldering iron and solder directly.

Overview

The ESP32-C5-LCD-1.47 is a microcontroller development board that supports 2.4 GHz / 5 GHz Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4. It features an onboard 1.47inch LCD, TF card slot, RGB LED, and common peripheral interfaces, making it suitable for ESP32-C5 HMI, wireless communication, and embedded display applications.

SKU	Product
34961	ESP32-C5-LCD-1.47
34960	ESP32-C5-LCD-1.47-M

Features

• Equipped with ESP32-C5FH4, RISC-V 32-bit processor running at up to 240 MHz, with a low-power processor running at up to 48 MHz
• Supports 2.4 GHz / 5 GHz Wi-Fi 6, Bluetooth 5 (LE), Zigbee 3.0 and Thread 1.4
• Onboard 320 KB ROM, 384 KB HP SRAM, 16 KB LP SRAM, and 4 MB Flash
• Onboard 1.47inch LCD screen, 172 × 320 resolution, 262K colors
• Onboard USB-C port supporting native ESP32-C5 USB download, debugging, and serial communication, depending on firmware configuration
• Onboard TF card slot for external TF card storage of images or files
• Onboard WS2812 RGB LED
• Adapting multiple GPIO pins via an 18PIN header

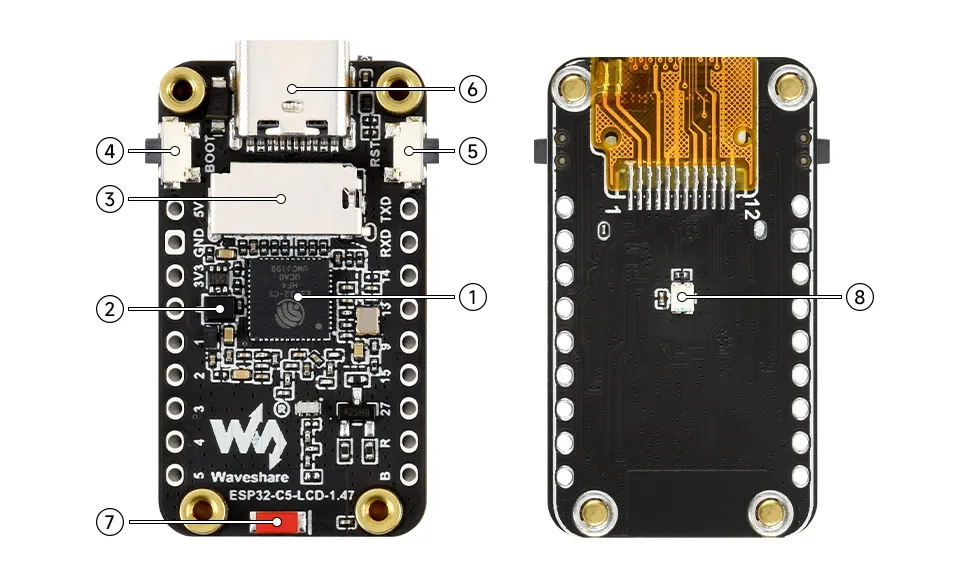

Onboard Resources

1. ESP32-C5FH4
2. MP1605GTF Step-down DC-DC converter, 1A output (Max.)
3. TF card slot
4. BOOT button
5. RESET button
6. USB Type-C
7. Onboard ceramic antenna
8. WS2812 RGB LED

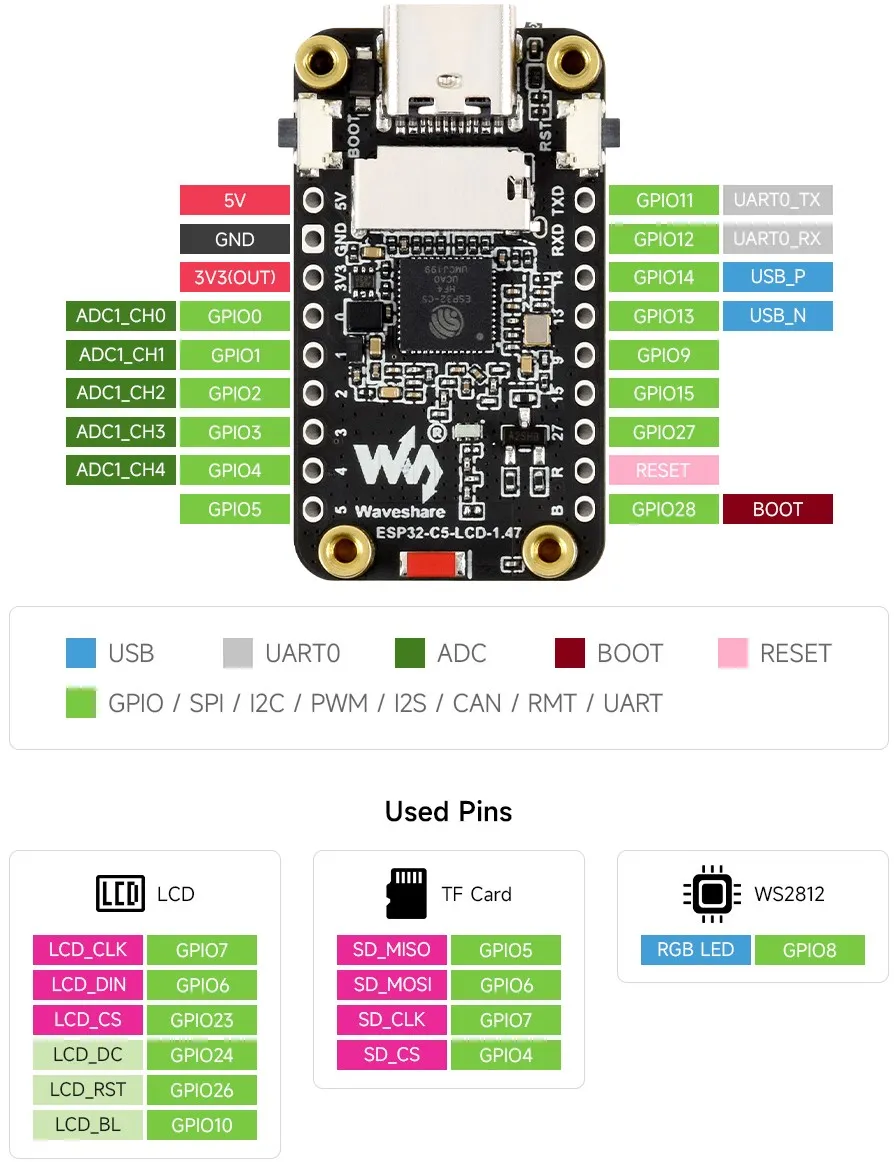

Interface Overview

• LCD

  LCD Pin	ESP32-C5
  LCD_CLK	GPIO7
  LCD_DIN	GPIO6
  LCD_CS	GPIO23
  LCD_DC	GPIO24
  LCD_RST	GPIO26
  LCD_BL	GPIO10

• RGB LED

  RGB LED	ESP32-C5
  WS2812	GPIO8

• TF Card

  TF Card	ESP32-C5
  MISO	GPIO5
  MOSI	GPIO6
  CLK	GPIO7
  CS	GPIO4

• UART0

  UART0	ESP32-C5
  TX	GPIO11
  RX	GPIO12

• USB

  USB	ESP32-C5
  D+	GPIO14
  D-	GPIO13

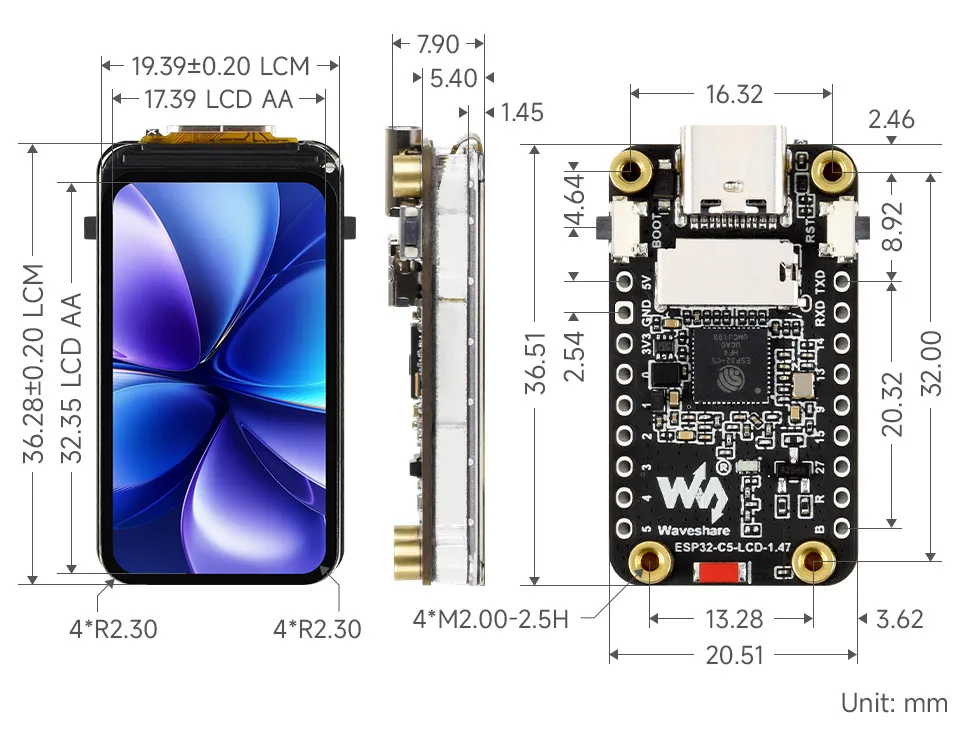

Product Dimensions

Product Specifications

Parameter	Value
Interface	USB Type-C
Main Chip	ESP32-C5FH4
Flash	4 MB
Screen Type	TFT
Screen Size	1.47 inches
Screen Resolution	172 × 320
Screen Interface	SPI
Screen Controller	ST7789
Touch	None
Onboard Devices	TF, WS2812 RGB LED
Broken-out Interface	18PIN header

Development Approaches

The ESP32-C5-LCD-1.47 supports two development frameworks: Arduino IDE and ESP-IDF. Arduino IDE is suitable for prototyping and running examples; ESP-IDF provides Espressif's official toolchain, components, and configuration system, making it suitable for application development that requires fine-grained configuration.

• Arduino IDE: Refer to Arduino Development to set up the development environment and run the example programs.
• ESP-IDF: Refer to ESP-IDF Development to set up the development environment and run the example programs.
