ESP32-C6-DEV-KIT-NX

Product Overview​

The ESP32-C6-DEV-KIT-NX is a compact microcontroller development board equipped with multiple digital interfaces.

Hardware-wise, it uses the ESP32-C6-WROOM-1 module, which integrates a RISC-V 32-bit single-core processor supporting clock frequencies up to 160 MHz, with built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM. The board also features CH343 and CH334 chips, allowing both USB and UART development through a single USB-C interface. Its pinout is compatible with the ESP32-C6-DevKitC-1 board, enabling expansion with various peripherals for greater convenience.

Software-wise, you can choose the ESP-IDF development environment or Arduino IDE for development, making it easy to get started quickly and integrate into your products.

SKUProduct

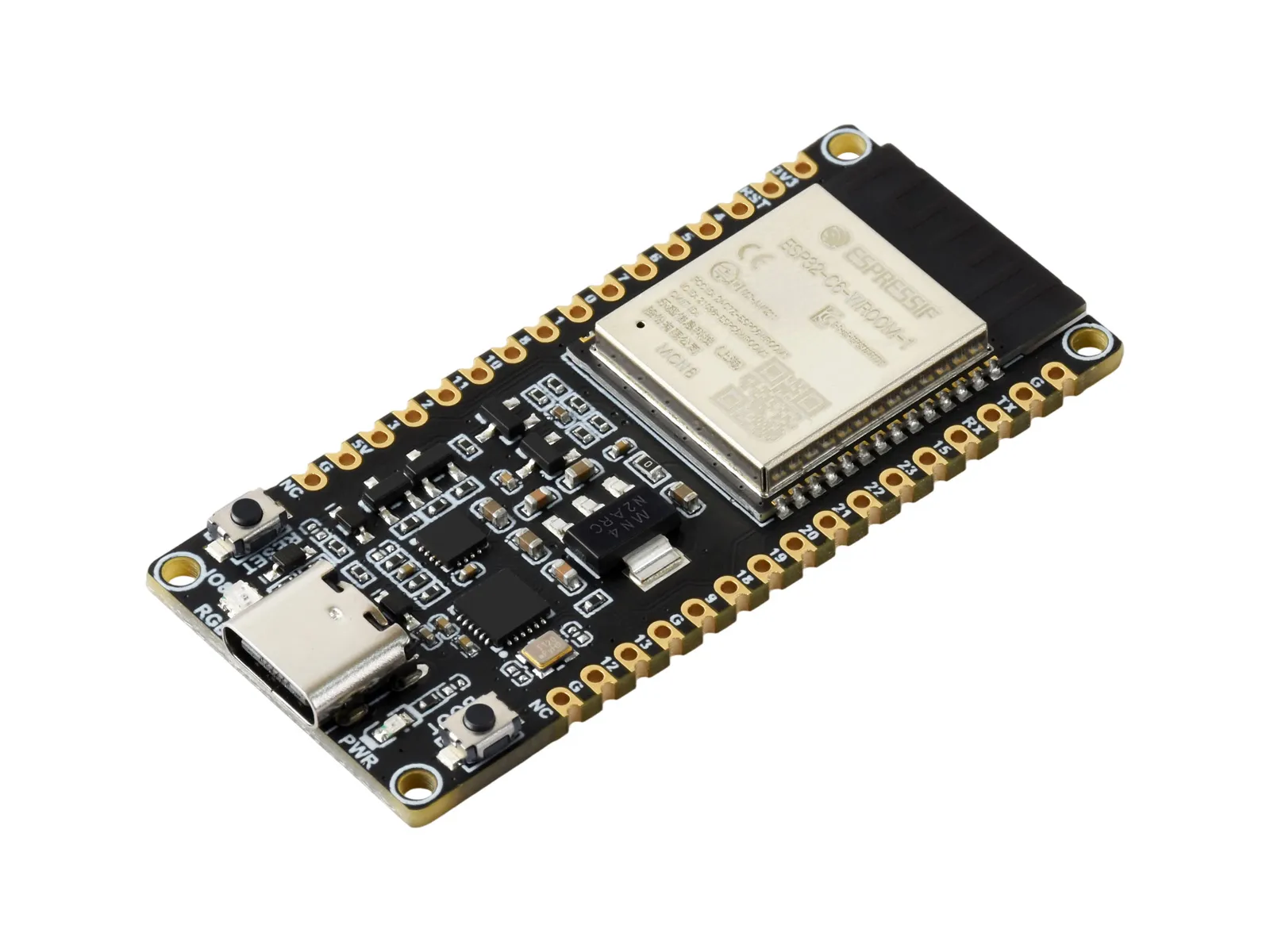

25723ESP32-C6-DEV-KIT-N8

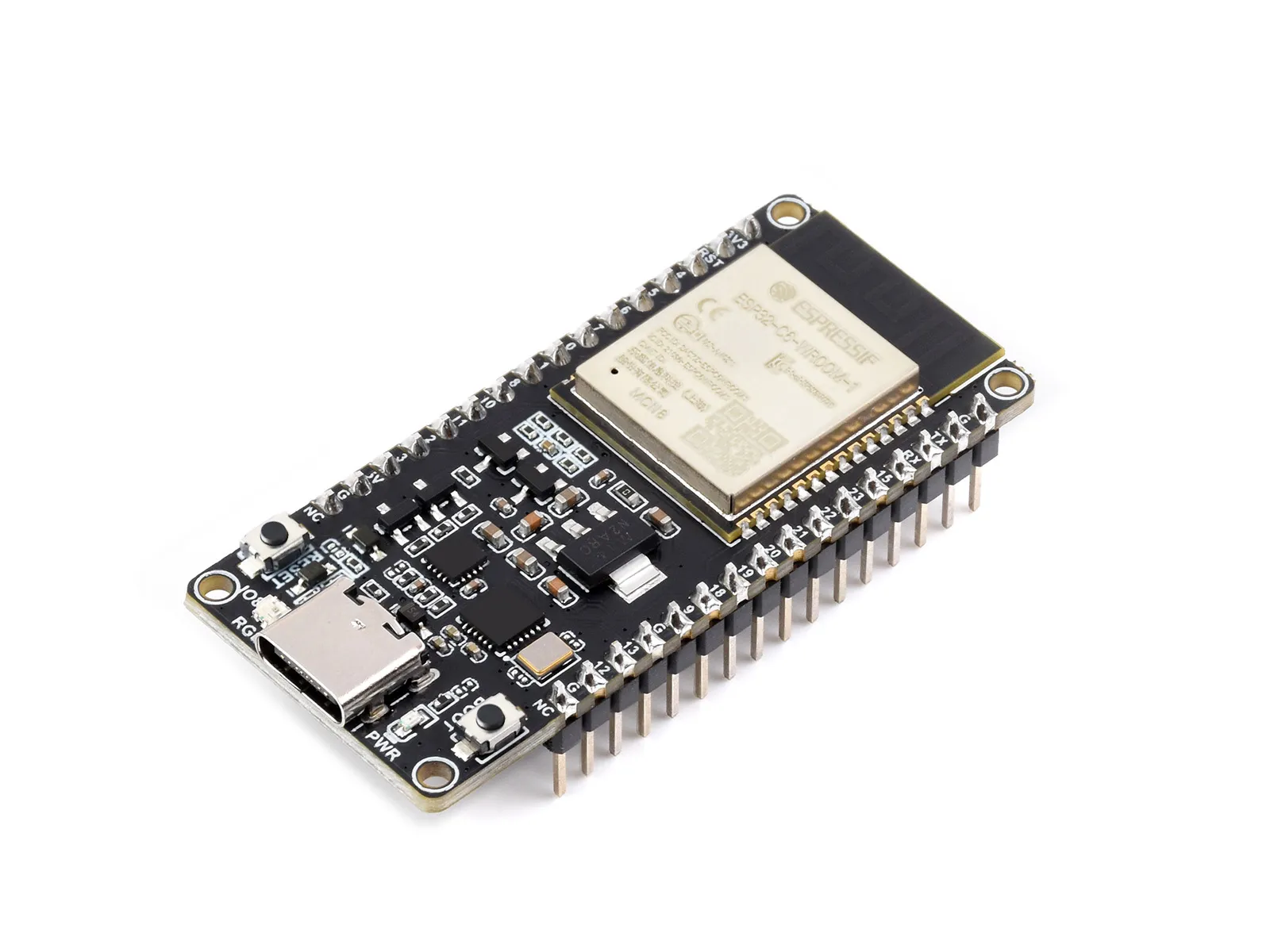

25563ESP32-C6-DEV-KIT-N8-M

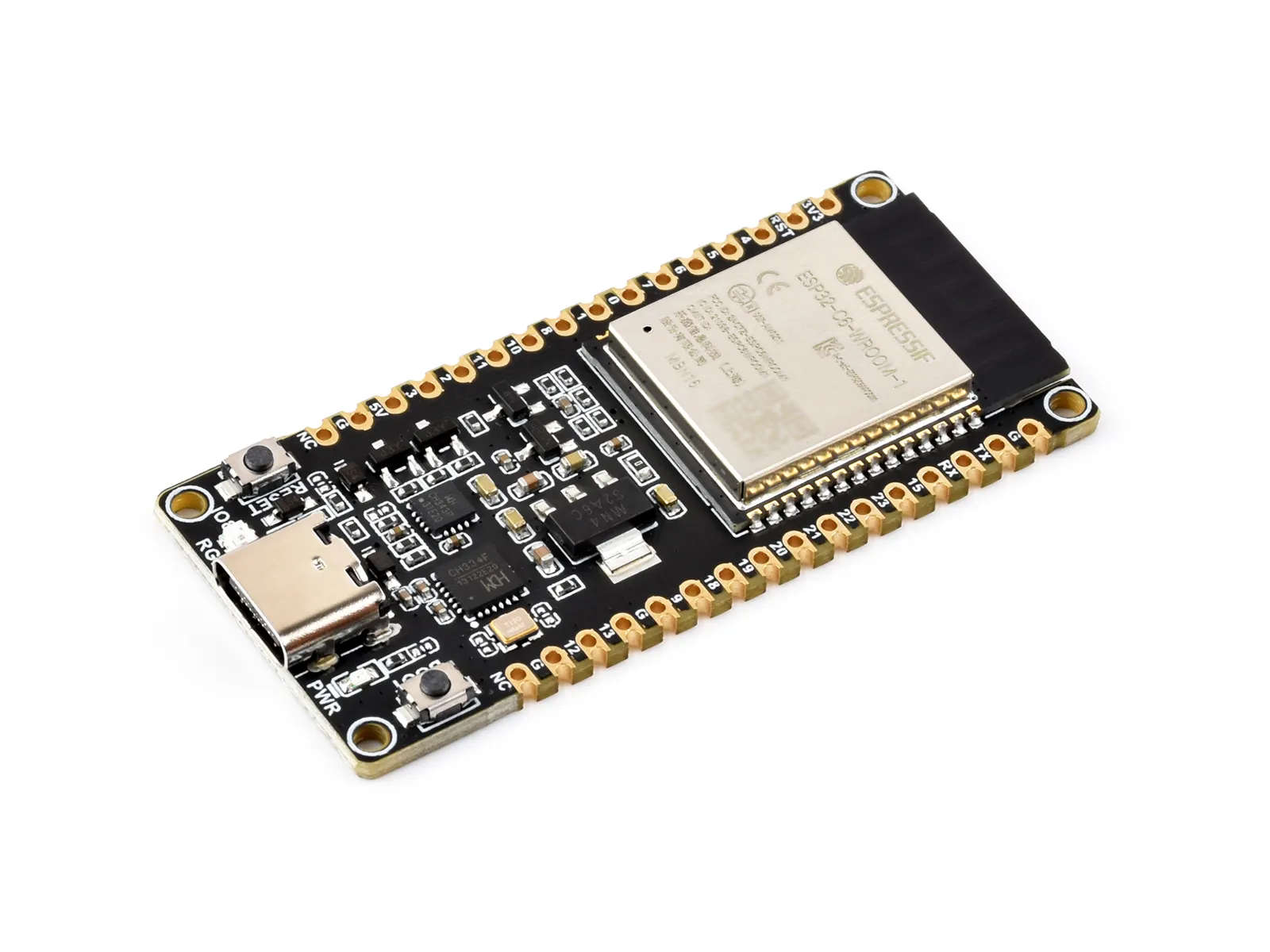

30951ESP32-C6-DEV-KIT-N16

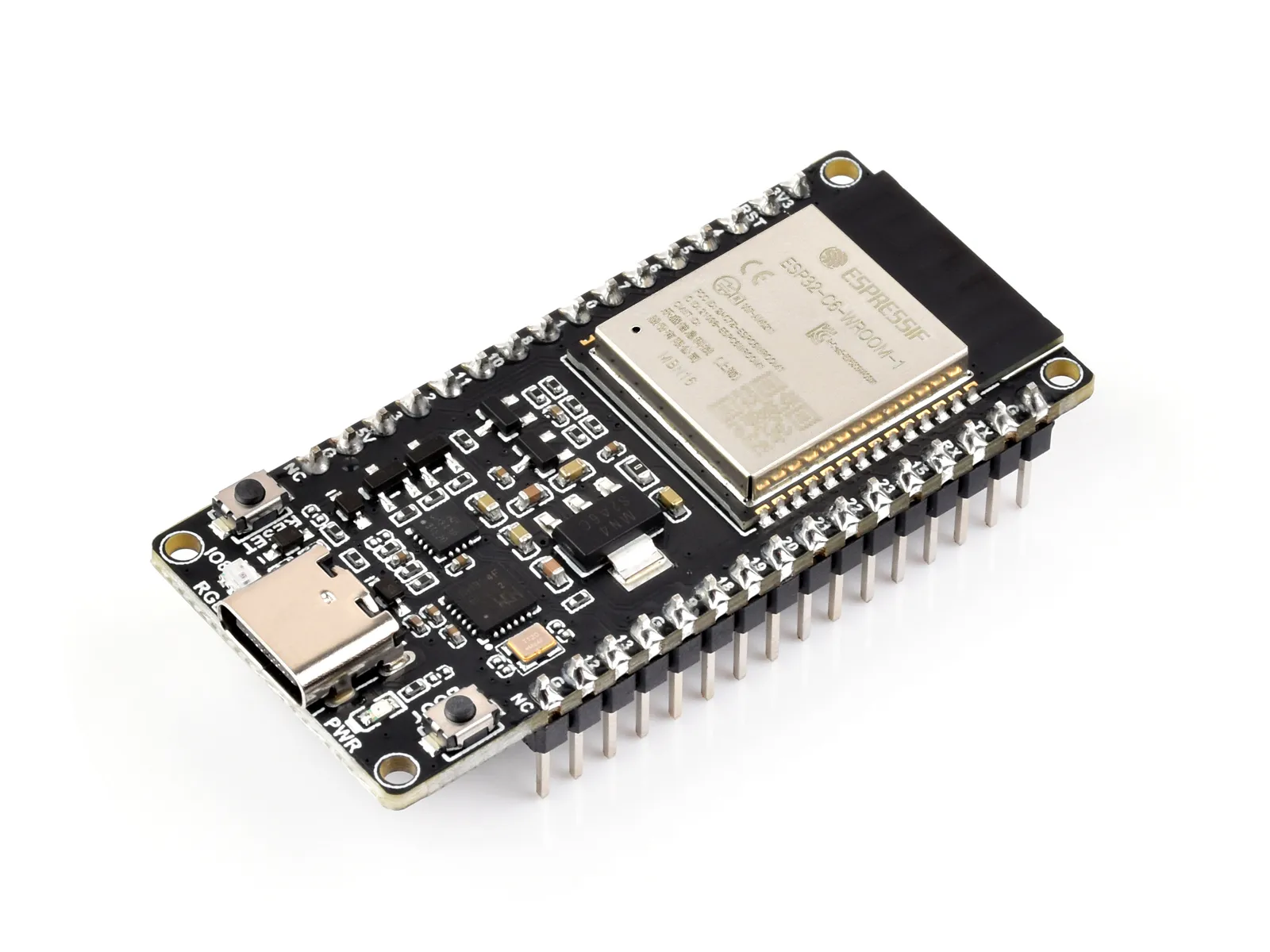

30547ESP32-C6-DEV-KIT-N16-M

Features​

  • ESP32-C6-WROOM-1 module with RISC-V 32-bit single-core processor supporting clock frequencies up to 160 MHz
  • Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 8MB or 16MB Flash
  • Integrated 2.4 GHz Wi-Fi 6 and Bluetooth LE dual-mode wireless communication with excellent RF performance
  • USB Type-C interface, eliminating concerns about plug orientation
  • Onboard CH343 and CH334 chips, meeting USB and UART development needs through a single Type-C port
  • Rich peripheral interfaces brought out; pin-compatible with the ESP32-C6-DevKitC-1 board for strong compatibility and expandability
  • Castellated module design allows direct soldering and integration onto user-designed carrier boards
  • Supports multiple low-power operating states, balancing communication distance, data rate, and power consumption to meet the power needs of various application scenarios

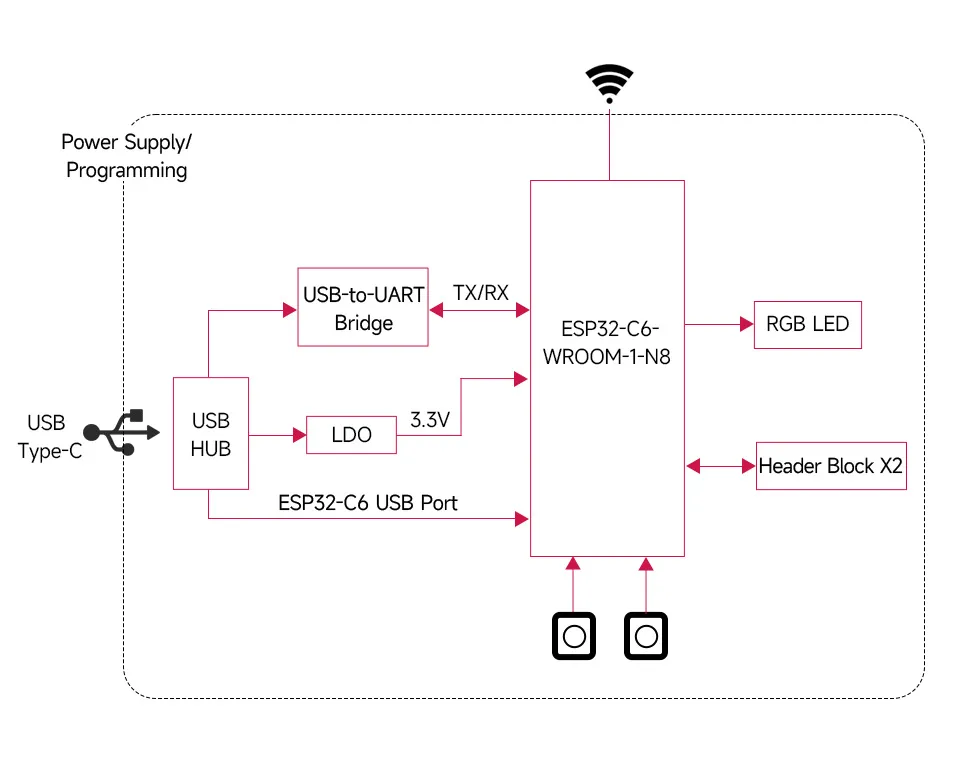

Functional Block Diagram​

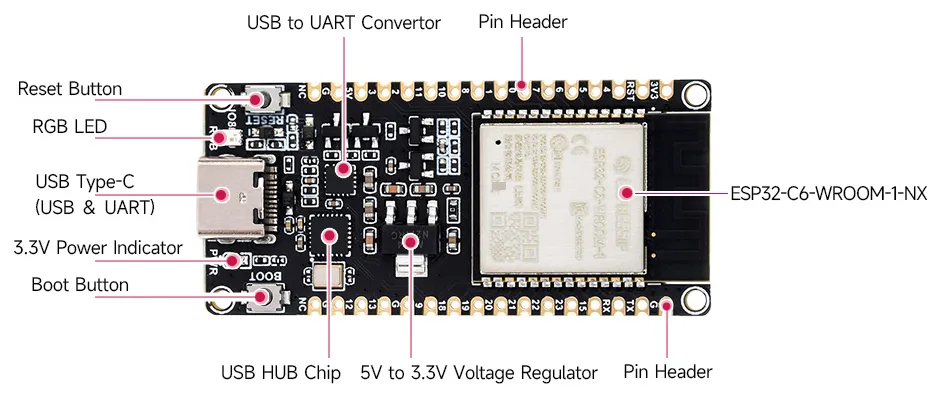

Resource Interfaces​

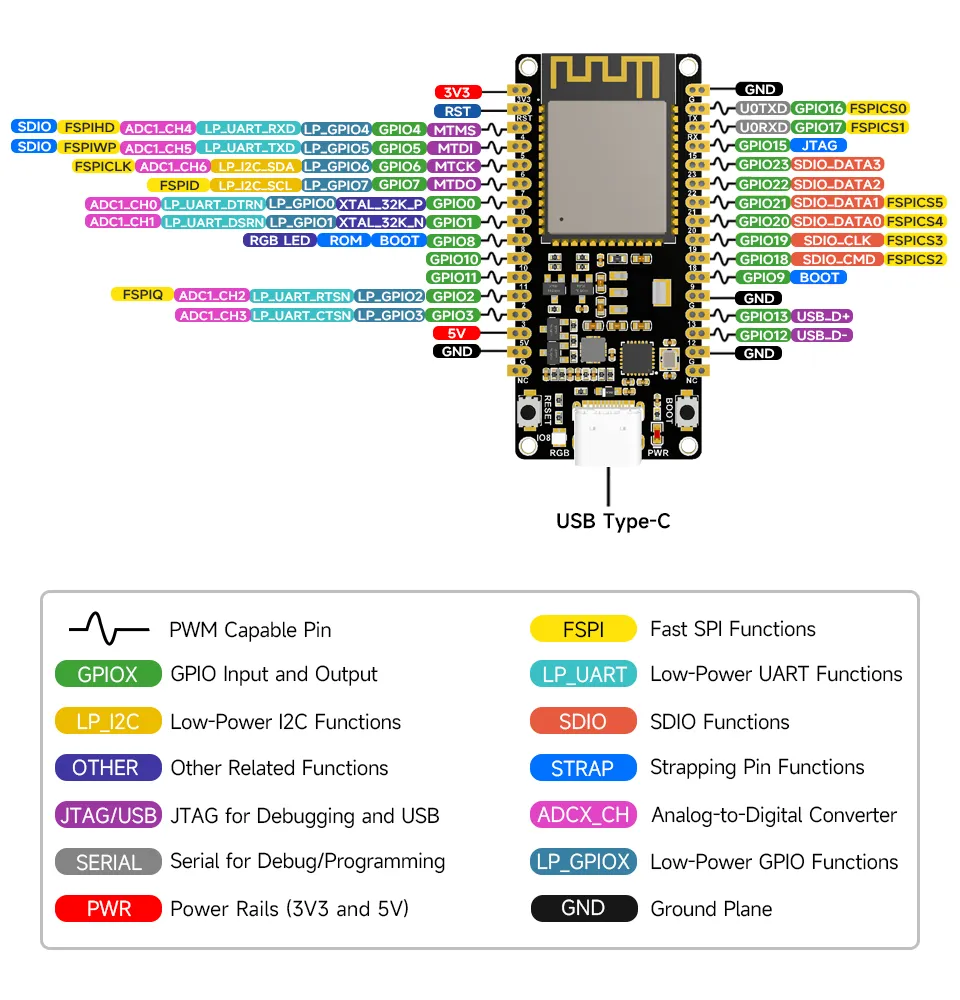

Pinout Definition​

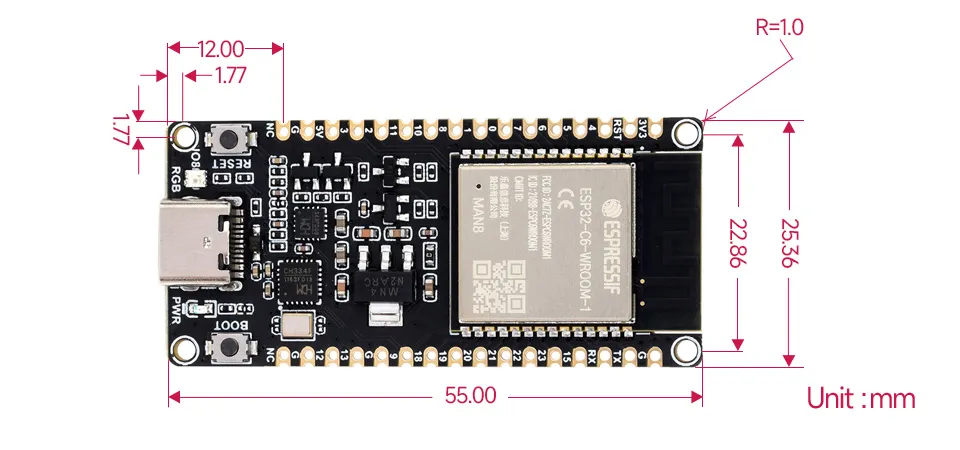

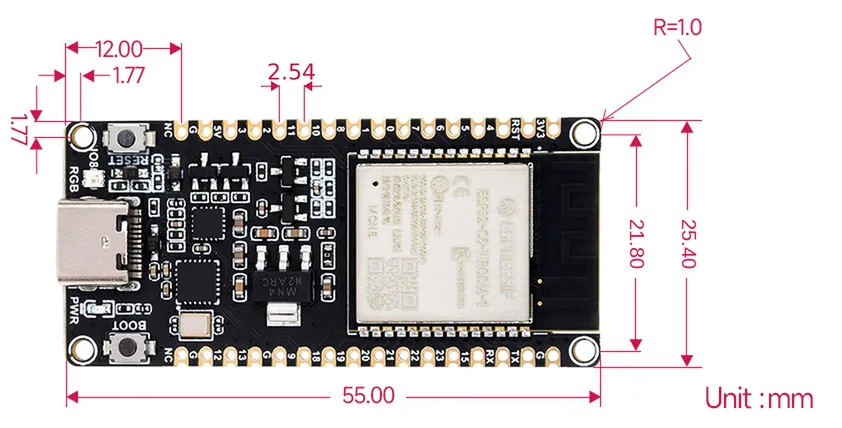

Dimensions​
