Working with Arduino

This chapter contains the following sections. Please read as needed:

Arduino Getting Started
Setting Up the Development Environment
Example

Arduino Getting Started

New to Arduino ESP32 development and looking for a quick start? We have prepared a comprehensive Getting Started Tutorial for you.

Note: This tutorial uses the ESP32-S3-Zero as a reference example, and all hardware code is based on its pinout. Before you start, we recommend checking the pinout of your development board to ensure the pin configuration is correct.

Setting Up the Development Environment

1. Installing and Configuring the Arduino IDE

Please refer to the tutorial Installing and Configuring Arduino IDE to download and install the Arduino IDE and add ESP32 support.

2. Installing Libraries

To run the example, you need to install the corresponding library.

The example program package for the ESP32-C6-LCD-1.69 development board can be downloaded from here. The arduino\libraries directory within the package already includes all the library files required for this tutorial.

Library/File Name	Description	Version	Installation Method
lvgl	LVGL graphics library	v8.4.0	Online or manual installation
GFX_Library_for_Arduino	GFX graphics library	v1.6.0	Online or manual installation
U8g2	Graphics display library	v2.35.30	Online or manual installation
SensorLib	Sensor library	v0.3.1	Online or manual installation
OneButton	Button library	v2.6.1	Online or manual installation

Version Compatibility Notes

There are strong dependencies between versions of LVGL and its driver libraries. For example, a driver written for LVGL v8 may not be compatible with LVGL v9. To ensure that the examples can be reproduced reliably, it is recommended to use the specific versions listed in the table above. Mixing different versions of libraries may lead to compilation failures or runtime errors.

Installation Steps:

Navigate to the downloaded example package.
Copy all folders (such as lvgl and lv_conf.h) from the arduino\libraries directory to the Arduino libraries folder.

info
The path to the Arduino libraries folder is typically: c:\Users\<username>\Documents\Arduino\libraries.
You can also locate it in the Arduino IDE by going to File > Preferences and checking the "Sketchbook location". The libraries folder is the libraries subfolder within this path.
For other installation methods, please refer to: Arduino Library Management Tutorial.

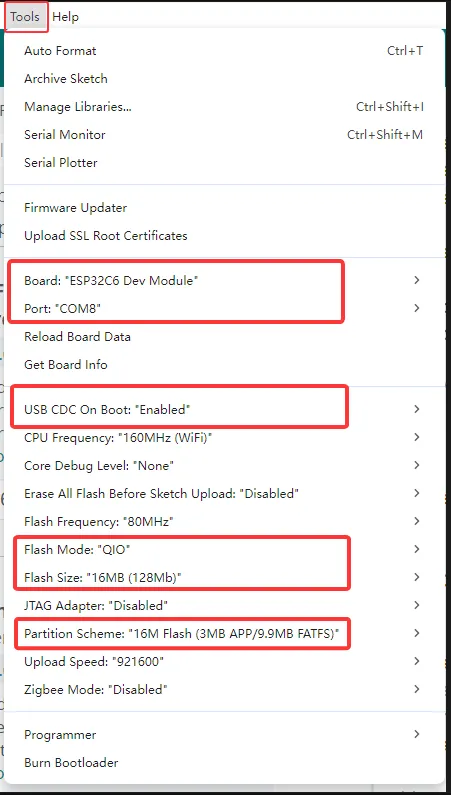

3. Arduino Project Parameter Settings

[ ESP32-C6-LCD-1.69 ]

Example

Arduino example

Example	Basic Description	Dependency Library
01_audio_out	Play PCM audio data via I2S interface	-
02_button_example	Display battery voltage on the screen	OneButton
03_battery_example	BOOT button single click, double click, long press, etc.	OneButton
04_es8311_example	Real‑time playback of microphone audio through speaker	-
05_gfx_helloworld	Display HelloWorld on the screen	GFX_Library_for_Arduino
06_gfx_pdq_graphicstest	Graphics performance test and score display	GFX_Library_for_Arduino
07_gfx_clock	Display an analog clock face on the screen	GFX_Library_for_Arduino
08_gfx_u8g2_font	Load font libraries to display multilingual text	GFX_Library_for_Arduino, U8g2
09_gfx_image	Display an image on the screen	GFX_Library_for_Arduino
10_esp_wifi_analyzer	Display Wi‑Fi band signal strength on the screen	GFX_Library_for_Arduino
11_pcf85063_example	Display RTC time on the screen	GFX_Library_for_Arduino, SensorLib
12_qmi8658_example	Display IMU data on the screen	GFX_Library_for_Arduino, SensorLib
13_lvgl_arduino_v8	LVGL v8 example program	lvgl (v8.4.0), GFX_Library_for_Arduino, SensorLib
14_lvgl_arduino_v9	LVGL v9 example program	lvgl (v9.3.0), GFX_Library_for_Arduino, SensorLib

01_audio_out

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 playing PCM audio data.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

The device will play auido directly without showing content on the screen

02_button_example

Example Description

This example demonstrates how to use the OneButton library to read single‑click, double‑click, and long‑press states of the BOOT and PWM buttons, and prints them to the serial port.

Hardware Connection

Connect the board to the computer using a USB cable.

Code Analysis

Bind callback functions

button1.attachClick(click1);
button1.attachDoubleClick(doubleclick1);
button1.attachLongPressStart(longPressStart1);
button1.attachLongPressStop(longPressStop1);
button1.attachDuringLongPress(longPress1);

Operation Result

Open the serial monitor

03_battery_example

Example Description

This example demonstrates that ESP32-C6-LCD-1.69 displays the battery voltage in real time on the screen.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

Open the serial monitor

04_es8311_example

Example Description

This example demonstrates using the ESP32-C6-LCD-1.69 to drive the ES8311 audio codec, enabling real‑time playback of microphone audio through the speaker.

Hardware Connection

Connect the board to the computer using a USB cable.

Code Analysis

After receiving a start signal, continuously read audio data and play it; upon receiving a stop signal, stop playback and wait for the next start.

void es8311_test_task(void *arg)
{
const int limit_size_max = 1600;
uint8_t data[limit_size_max];
while (1)
{
    if (xSemaphoreTake(es8311_recording_BinarySemaphore, portMAX_DELAY) == pdTRUE)
    {
      while (1)
      {
        i2s.readBytes((char *)data, limit_size_max);
        i2s.write(data, limit_size_max);
        if (xSemaphoreTake(es8311_stop_BinarySemaphore, 0) == pdTRUE)
          break;
      }
    }
  }
}

Operation Result

The screen shows no output
Press and hold the BOOT button; the speaker plays the microphone audio in real time.

05_gfx_helloworld

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 using the GFX_Library_for_Arduino library to drive the screen and display "HelloWorld".

Hardware Connection

Connect the board to the computer using a USB cable.

Code Analysis

Configure the screen interface and resolution, etc.

Arduino_DataBus *bus = new Arduino_HWSPI(LCD_DC, LCD_CS, LCD_SCK, LCD_DIN);
Arduino_GFX *gfx = new Arduino_ST7789(
bus, LCD_RST, 0 /* rotation */, true /* IPS */,
240 /* width */, 280 /* height */,
0 /* col offset 1 */, 20 /* row offset 1 */,
0 /* col offset 2 */, 20 /* row offset 2 */);

Operation Result

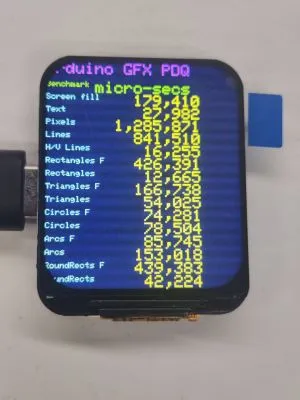

06_gfx_pdq_graphicstest

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 using the GFX_Library_for_Arduino library to run a graphics test and display a score.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

07_gfx_clock

This example demonstrates that the ESP32-C6-LCD-1.69 uses the GFX_Library_for_Arduino library to display an analog clock dial

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

08_gfx_u8g2_font

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 using the GFX_Library_for_Arduino library to load font libraries and display multilingual text.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

09_gfx_image

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 using the GFX_Library_for_Arduino library to display an image on the screen.

Hardware Connection

Connect the board to the computer using a USB cable.

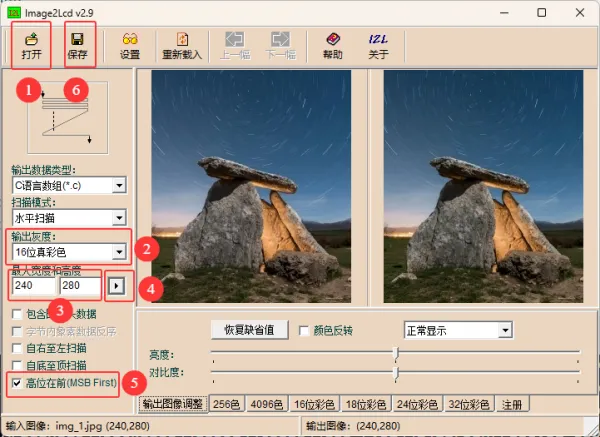

Preparation

Open the Chinese Character Conversion Software.
Import the image images/image_1.jpg and convert it; this will generate the image_1.h file.

Copy image_1.h to this project.
Specify the image to be displayed.

Code Analysis

Load and display the image

gfx->draw16bitBeRGBBitmap(0, 0, (uint16_t *)gImage_img, 240, 280);

Operation Result

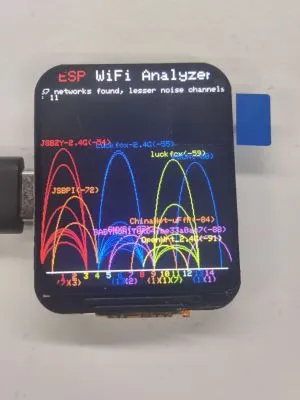

10_esp_wifi_analyzer

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 using the GFX_Library_for_Arduino library to display Wi‑Fi band signal strength.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

11_pcf85063_example

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 obtaining the time and date from the PCF85063 and displaying them on the screen.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

12_qmi8658_example

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 obtaining Accel, Gyro, and temperature data from the QMI8658 and displaying them on the screen.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

13_lvgl_arduino_v8

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 running the LVGL v8 example.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result

14_lvgl_arduino_v9

Example Description

This example demonstrates the ESP32-C6-LCD-1.69 running the LVGL v9 example.

Hardware Connection

Connect the board to the computer using a USB cable.

Operation Result
