ESP-IDF

This chapter contains the following sections. Please read as needed:

ESP-IDF Getting Started​

New to ESP32 ESP-IDF development and looking to get started quickly? We have prepared a general Getting Started Tutorial for you.

Please Note: This tutorial uses the ESP32-S3-Zero as a teaching example, and all hardware code is based on its pinout. Before you start, it is recommended that you check the pinout of your development board to ensure the pin configuration is correct.

Setting Up the Development Environment​

info

For the ESP32-S3-LCD-1.69 development board, ESP-IDF version V5.5.0 or above is required.

note

The following guide uses Windows as an example, demonstrating development using VS Code + the ESP-IDF extension. macOS and Linux users should refer to the official documentation.

Version Selection

The screenshots in this section use ESP-IDF V5.5.2 as an example. When installing, please select the ESP-IDF version that matches your board's example.

Install the ESP-IDF Development Environment​

  1. Download the installation manager from the ESP-IDF Installation Manager page. This is Espressif's latest cross-platform installer. The following steps demonstrate how to use its offline installation feature.

    Click the Offline Installer tab on the page, then select Windows as the operating system and the ESP-IDF version you need (the version shown in the screenshot is for reference only — choose the version that fits your actual needs).

    Download EIM and offline package

    After confirming your selection, click the download button. The browser will automatically download two files: the ESP-IDF Offline Package (.zst) and the ESP-IDF Installer (.exe).

    Download EIM and offline package 2

    Please wait for both files to finish downloading.

  2. Once the download is complete, double-click to run the ESP-IDF Installer (eim-gui-windows-x64.exe).

    The installer will automatically detect if the offline package exists in the same directory. Click Install from archive.

    Auto-detect offline package

    Next, select the installation path. We recommend using the default path. If you need to customize it, ensure the path does not contain Chinese characters or spaces. Click Start installation to proceed.

    Select installation path

  3. When you see the following screen, the ESP-IDF installation is successful.

    Installation successful

  4. We recommend installing the drivers as well. Click Finish installation, then select Install driver.

    Install drivers via ESP-IDF Installation Manager

Install Visual Studio Code and the ESP-IDF Extension​

  1. Download and install Visual Studio Code.

  2. During installation, it is recommended to check Add "Open with Code" action to Windows Explorer file context menu to facilitate opening project folders quickly.

  3. In VS Code, click the Extensions icon Extensions Icon in the Activity Bar on the side (or use the shortcut Ctrl + Shift + X) to open the Extensions view.

  4. Enter ESP-IDF in the search box, locate the ESP-IDF extension, and click Install.

    Search and install ESP-IDF extension in VS Code

  5. For ESP-IDF extension versions ≥ 2.0, the extension will automatically detect and recognize the ESP-IDF environment installed in the previous steps, requiring no manual configuration.

Example​

IDF example

ExampleBasic DescriptionDependency Library
01_factoryComprehensive example program-
02_lvgl_example_v8LVGL v8 example program-
03_lvgl_example_v9LVGL v9 example program-
04_qmi8658_examplePrint IMU data over serial-
05_pcf85063_examplePrint RTC data over serial-
06_lvgl_image_v8Display image using LVGL v8-
07_lvgl_image_v9Display image using LVGL v9-

01_factory​

Example Description

  • This example is a comprehensive example for the ESP32-C6-LCD-1.69, and it is also the factory default flashed example.

Hardware Connection

  • Connect the board to the computer using a USB cable.

Operation Result

  • Press and hold the BOOT button: the speaker plays the microphone audio in real time.
  • Short‑press and release the BOOT button: the screen switches pages.

02_lvgl_example_v8​

Example Description

  • This example demonstrates the ESP32-C6-LCD-1.69 running the LVGL v8 example.

Hardware Connection

  • Connect the board to the computer using a USB cable.

Operation Result

  • Open the serial monitor

03_lvgl_example_v9​

Example Description

  • This example demonstrates the ESP32-C6-LCD-1.69 running the LVGL v9 example.

Hardware Connection

  • Connect the board to the computer using a USB cable.

Operation Result

  • Open the serial monitor

04_qmi8658_example​

Example Description

  • This example drives the QMI8658 on the ESP32-C6-LCD-1.69, obtaining and printing Accel, Gyro, and Angle data.

Hardware Connection

  • Connect the board to the computer using a USB cable.

Code Analysis

  • Initialize and start the test program

    i2c_master_bus_handle_t i2c_bus_handle;
    bsp_pwr_init();
    i2c_bus_handle = bsp_i2c_init(); // I2C initialization
    bsp_qmi8658_init(i2c_bus_handle); // QMI8658 initialization
    bsp_qmi8658_test(); // QMI8658 test

Operation Result

  • The screen shows no output

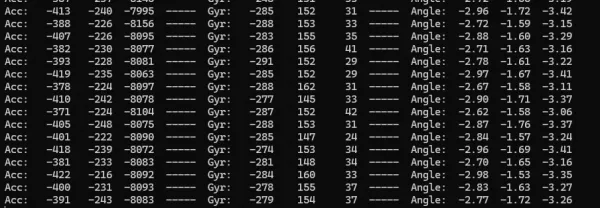

  • Open the serial monitor

05_pcf85063_example​

Example Description

  • This example drives the PCF85063 on the ESP32-C6-LCD-1.69, setting the time/date and reading the time.

Hardware Connection

  • Connect the board to the computer using a USB cable.

Code Analysis

  • Initialize and start the test program

    i2c_master_bus_handle_t i2c_bus_handle;
    bsp_pwr_init();
    i2c_bus_handle = bsp_i2c_init(); // I2C initialization
    bsp_pcf85063_init(i2c_bus_handle); // PCF85063 initialization
    bsp_pcf85063_test(); // PCF85063 test

Operation Result

  • The screen shows no output

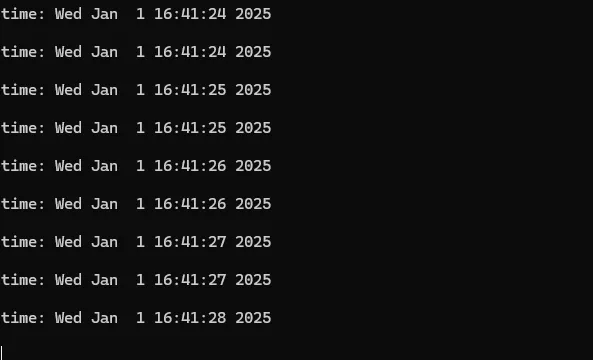

  • Open the serial monitor

06_lvgl_image_v8​

Example Description

  • This example runs the LVGL v8 image display example on the ESP32-C6-LCD-1.69.

Hardware Connection

  • Connect the board to the computer using a USB cable.

Preparation​

  • Copy image_1.h to this project.
  • Add image_1.c to the CMakeLists.txt in the main folder
  idf_component_register(SRCS "main.cpp" "image_1.c"INCLUDE_DIRS ".")

Code Analysis

  • In main.c, add the following code to declare the image

    LV_IMG_DECLARE(image_1);

  • Specify the image to be displayed.

    lv_img_set_src(img, &image_1);

Operation Result

07_lvgl_image_v9​

Example Description

  • This example runs the LVGL v9 image display example on the ESP32-C6-LCD-1.69.

Hardware Connection

  • Connect the board to the computer using a USB cable.

Preparation​

  • Copy image_1.h to this project.
  • Add image_1.c to the CMakeLists.txt in the main folder
  idf_component_register(SRCS "main.cpp" "image_1.c"INCLUDE_DIRS ".")

Code Analysis

  • In main.c, add the following code to declare the image

    LV_IMG_DECLARE(image_1);

  • Specify the image to be displayed.

    lv_img_set_src(img, &image_1);

Operation Result
