ESP-IDF

This chapter contains the following sections. Please read as needed:

• ESP-IDF Getting Started
• Setting Up Development Environment
• Demo

ESP-IDF Getting Started

New to ESP32 ESP-IDF development and looking to get started quickly? We have prepared a general Getting Started Tutorial for you.

• Section 1: Environment Setup
• Section 2: Running Examples
• Section 3: Creating a Project
• Section 4: Using Components
• Section 5: Debugging
• Section 6: FreeRTOS
• Section 7: Peripherals
• Section 8: Wi-Fi Programming
• Section 9: BLE Programming

Please Note: This tutorial uses the ESP32-S3-Zero as a teaching example, and all hardware code is based on its pinout. Before you start, it is recommended that you check the pinout of your development board to ensure the pin configuration is correct.

Setting Up Development Environment

info

For the ESP32-C6-ePaper-1.54 development board, ESP-IDF version V5.5.0 or above is required.

note

The following guide uses Windows as an example, demonstrating development using VS Code + the ESP-IDF extension. macOS and Linux users should refer to the official documentation.

Install the ESP-IDF Development Environment

1. Download the installation manager from the ESP-IDF Installation Manager page. This is Espressif's latest cross-platform installer. The following steps demonstrate how to use its offline installation feature.

   Click the Offline Installer tab on the page, then select Windows as the operating system and choose your desired version from the filter bar.



   After confirming your selection, click the download button. The browser will automatically download two files: the ESP-IDF Offline Package (.zst) and the ESP-IDF Installer (.exe).



   Please wait for both files to finish downloading.

2. Once the download is complete, double-click to run the ESP-IDF Installer (eim-gui-windows-x64.exe).

   The installer will automatically detect if the offline package exists in the same directory. Click Install from archive.



   Next, select the installation path. We recommend using the default path. If you need to customize it, ensure the path does not contain Chinese characters or spaces. Click Start installation to proceed.



3. When you see the following screen, the ESP-IDF installation is successful.



4. We recommend installing the drivers as well. Click Finish installation, then select Install driver.



Install Visual Studio Code and the ESP-IDF Extension

1. Download and install Visual Studio Code.

2. During installation, it is recommended to check Add "Open with Code" action to Windows Explorer file context menu to facilitate opening project folders quickly.

3. In VS Code, click the Extensions icon in the Activity Bar on the side (or use the shortcut Ctrl + Shift + X) to open the Extensions view.

4. Enter ESP-IDF in the search box, locate the ESP-IDF extension, and click Install.



5. For ESP-IDF extension versions ≥ 2.0, the extension will automatically detect and recognize the ESP-IDF environment installed in the previous steps, requiring no manual configuration.

Demo

The ESP-IDF demos are located in the ESP-IDF directory of the demo package.

Demo	Basic Program Description	Dependency Library
01_ADC_Test	Get the voltage value of the lithium battery	-
02_I2C_PCF85063	Print real-time time from the RTC chip	-
03_I2C_STHC3	Get data from SHTC3 temperature & humidity sensor	-
04_SD_Card	Load and display TF card information	-
05_WIFI_AP	Set to AP mode to obtain the IP address of the access device	-
06_WIFI_STA	Set to STA mode to connect to Wi-Fi and obtain an IP address	-
07_BATT_PWR_Test	When powered by a lithium battery alone, control power via the PWR button	LVGL V9.5.0
08_Audio_Test	Play the sound recorded by the microphone through the speaker	LVGL V9.5.0
09_LVGL_V8_Test	LVGLV8 demo	LVGL V8.3.11
10_LVGL_V9_Test	LVGLV9 demo	LVGL V9.5.0
11_FactoryProgram	Comprehensive demo	LVGL V9.5.0

01_ADC_Test

Demo Description

• The analog voltage connected through the GPIO is converted to digital by the ADC, and then the actual lithium battery voltage is calculated and printed to the terminal.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

i2c_bus = I2cMasterBus::requestInstance(ESP32_I2C_SCL_PIN,ESP32_I2C_SDA_PIN,ESP32_I2C_DEV_NUM); // Initialize I2C
assert(i2c_bus);
ESP_ERROR_CHECK(esp_io_expander_new_i2c_tca9554(i2c_bus->Get_I2cBusHandle(), ESP_IO_EXPANDER_I2C_TCA9554_ADDRESS_000, &io_expander)); // Initialize IO expander
ESP_ERROR_CHECK(esp_io_expander_gpio_wrapper_append_handler(io_expander, GPIO_NUM_MAX));  // I/O expander GPIO wrapper initialization
BoardPower_Init(); // Power initialization
BoardPower_EPD_ON(); // Enable e-Paper power
BoardPower_Audio_ON(); // Enable audio power
BoardPower_VBAT_ON(); // Enable VBAT power
BoardAdc_Init(); // Initialize ADC

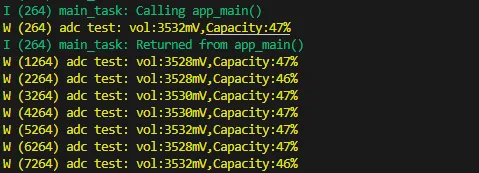

Operation Result

• After the program is compiled and uploaded, open the serial monitor to see the printed voltage and battery capacity, as shown below:



02_I2C_PCF85063

Demo Description

• Through the I2C protocol, initialize the PCF85063 chip, set the time, and then periodically read the time and print it to the terminal

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

pcf85063a_init(&pcf85063, i2c_bus->Get_I2cBusHandle(), PCF85063A_ADDRESS); // Initialize RTC chip
pcf85063a_set_time_date(&pcf85063, datatime); // Set time
pcf85063a_get_time_date(&pcf85063, &current_time); // Get time

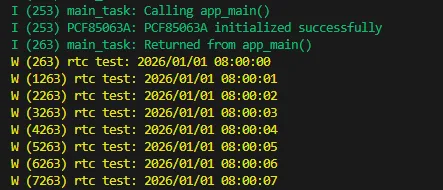

Operation Result

• After the program is compiled and downloaded, open the serial port monitoring to see the RTC time of the printout, as shown in the following figure:




03_I2C_STHC3

Demo Description

• Uses the I2C protocol to initialize and configure the SHTC3 chip, then reads and prints temperature and humidity information to the terminal every second.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

Shtc3_Init(i2c_bus); // Initialize temperature and humidity sensor
Shtc3_ReadTempHumi(&t,&h); // Get temperature and humidity from the sensor

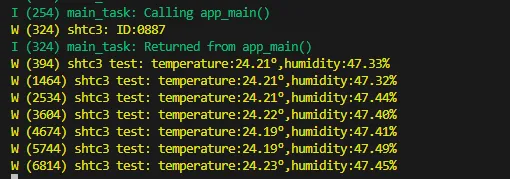

Operation Result

• Open the serial port monitor, you can see the printed temperature and humidity data, as shown in the figure below:



04_SD_Card

Demo Description

• Drive the TF card via SDSPI mode. After successful mounting, print the TF card information to the terminal.

Hardware Connection

• Install a FatFs-formatted into the board before powering on

Code Analysis

sdcardinitflag = Sdcard_Init(); // Initialize TF card
Sdcard_WriteFile("/sdcard/sdcard.txt",sdcard_test1);  // Write data to TF card
Sdcard_ReadFile("/sdcard/sdcard.txt",sdcard_test2,NULL); // Read data from TF card

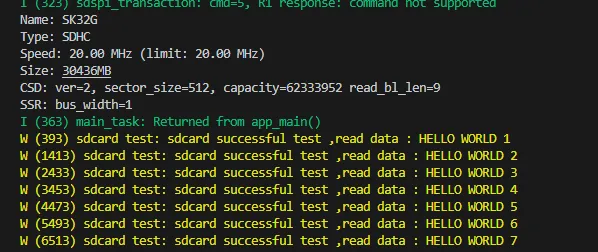

Operation Result

• Open the serial monitor to see the TF card information and read/write test output, as shown:



05_WIFI_AP

Demo Description

• This demo can set the development board as a hotspot, allowing phones or other devices in STA mode to connect to the development board.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

• Locate SSID and PASSWORD in the main.c file. A phone or other STA‑mode device can then use this SSID and PASSWORD to connect to the board.

  #define EXAMPLE_ESP_WIFI_SSID      "waveshare_esp32"
  #define EXAMPLE_ESP_WIFI_PASSWORD      "wav123456"

Operation Result

• After flashing the program, open the serial terminal, if the device is successfully connected to the hotspot, the MAC address and IP address of the device will be output, as shown in the figure:



06_WIFI_STA

Demo Description

• This example configures the development board as a STA device to connect to a router, thereby accessing the system network.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

• In the file esp_wifi_bsp.c, find ssid and password, then modify them to the SSID and Password of an available router in your current environment.

  wifi_config_t wifi_config = {
    .sta = {
      .ssid = "PDCN",
      .password = "1234567890",
    },
  };

Operation Result

• After flashing the program, open the Serial Terminal. If the device successfully connects to the hotspot, the obtained IP address will be output, as shown in the figure:



07_BATT_PWR_Test

Demo Description

• Demonstrates how to control the system power via the PWR button when powered by the lithium battery.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

boot_button = new Button(BOOT_BUTTON_PIN); // Initialize the corresponding button
power_button = new Button(PWR_BUTTON_PIN); // Initialize the corresponding button
PortLvgl_Start_Init();    // Initialize the display
  InitializeButtons();   // Initialize button events
Lvgl_PortInit(Lvgl_flush_cb); // LVGL initialization

Operation Result

• After the program is flashed, disconnect the USB power supply and connect the lithium battery. Power on by pressing and holding the PWR button, as shown in the figure:



  tip

  1. Press and hold the PWR button, then release to power on. After startup, the screen will display "ON".
  2. Press and hold the PWR button again. Wait for the screen to display "OFF", indicating successful power shutdown, then release the button.

08_Audio_Test

Demo Description

• Demonstrates how to get data from the microphone and then play it through the speaker

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

PortLvgl_Start_Init(); // Initialize the screen
  InitializeButtons();   // Initialize button events
Lvgl_PortInit(Lvgl_flush_cb); // Initialize LVGL interface
  Codec_StartInit();     // Initialize audio codec IC
  ESP_ERROR_CHECK(gpio_set_direction(EXIO_NUM_3, GPIO_MODE_OUTPUT)); // Enable amplifier
gpio_set_level(EXIO_NUM_3,1);

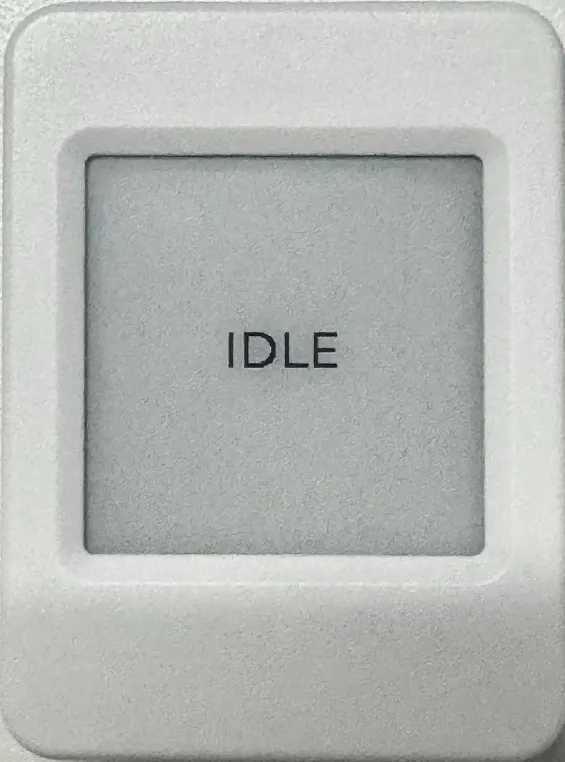

Operation Result

• After the program is flashed, as shown in the figure:



  tip

  1. Press the BOOT button once to start recording. Speak into the MIC, and the recording will automatically play back after 2 seconds.
  2. Double-click the PWR button to play a piece of music
  3. Click the PWR button to interrupt music playback

09_LVGL_V8_Test

Demo Description

• Helps users quickly implement UI design by porting LVGL V8.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

PortLvgl_Start_Init(); // Initialize the screen
Lvgl_PortInit(Lvgl_flush_cb);   // Initialize LVGL V8
  xTaskCreatePinnedToCore(Lvgl_LoopTask, "Lvgl_LoopTask", 4 * 1024, NULL, 4, NULL,0); // LVGL test task

Operation Result

• After the program is flashed, the device operation result is as follows:



10_LVGL_V9_Test

Demo Description

• Helps users quickly implement UI design by porting LVGL V9.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

PortLvgl_Start_Init(); // Initialize the screen
Lvgl_PortInit(Lvgl_flush_cb);   // Initialize LVGL V9
  xTaskCreatePinnedToCore(Lvgl_LoopTask, "Lvgl_LoopTask", 4 * 1024, NULL, 4, NULL,0); // LVGL test task

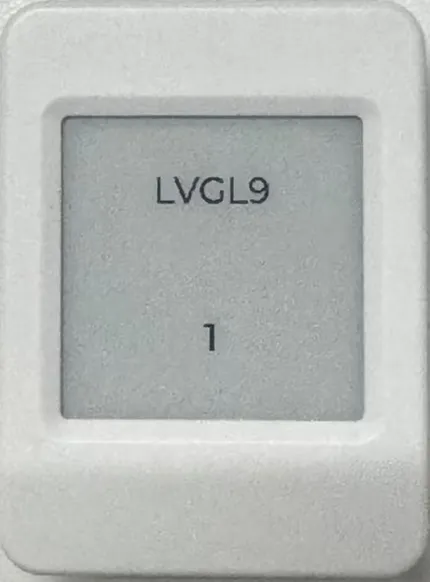

Operation Result

• After the program is flashed, the device operation result is as follows:



11_FactoryProgram

Demo Description

• Comprehensive project, you can simply test the onboard hardware functions, or directly use the BIN firmware we provide for flashing.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

i2c_bus = I2cMasterBus::requestInstance(ESP32_I2C_SCL_PIN, ESP32_I2C_SDA_PIN, ESP32_I2C_DEV_NUM); // I2C initialization
assert(i2c_bus);
FacTestEventGroup = xEventGroupCreate(); // Event group handle initialization
ESP_ERROR_CHECK(esp_io_expander_new_i2c_tca9554(i2c_bus->Get_I2cBusHandle(), ESP_IO_EXPANDER_I2C_TCA9554_ADDRESS_000, &io_expander)); // I/O expander initialization
ESP_ERROR_CHECK(esp_io_expander_gpio_wrapper_append_handler(io_expander, GPIO_NUM_MAX));
BoardPower_Init(); // Power initialization
BoardPower_EPD_ON(); // Enable e-Paper power
BoardPower_Audio_ON(); // Enable audio power
BoardPower_VBAT_ON();   // Enable battery power
PortDisplay_Init();     // Initialize local UI
esp_err_t ret = pcf85063a_init(&pcf85063, i2c_bus->Get_I2cBusHandle(), PCF85063A_ADDRESS); // Initialize RTC
boot_button = new Button(BOOT_BUTTON_PIN); // Initialize button
power_button = new Button(PWR_BUTTON_PIN); // Initialize button
while(0 == gpio_get_level(PWR_BUTTON_PIN)) { // Wait for the power button to be released
  vTaskDelay(pdMS_TO_TICKS(100));
}
BoardAdc_Init(); // Initialize ADC
Shtc3_Init(i2c_bus); // Initialize temperature and humidity sensor
sdcardinitflag = Sdcard_Init(); // Initialize TF card
PortLvgl_Start_Init(); // Initialize LVGL
InitializeButtons();   // Initialize button events
ESP_ERROR_CHECK(gpio_set_direction(EXIO_NUM_3, GPIO_MODE_OUTPUT));
gpio_set_level(EXIO_NUM_3,1); // Enable amplifier
Codec_StartInit(); // Initialize codec

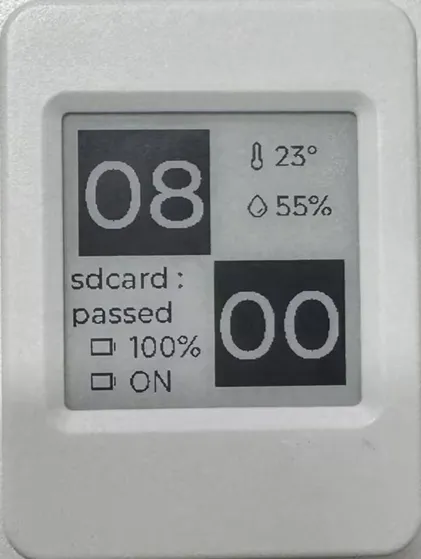

Operation Result

• After the program is flashed, the device operation result is as follows:



  tip

  1. Use the main interface to determine whether the onboard hardware is functioning properly.
  2. Click the PWR button to navigate to the music interface. Refer to the source code for related settings.
