Clock Tree

Important Note: Development Board Compatibility

The core logic of this tutorial applies to all ESP32 boards, but all the operation steps are explained using the example of the Waveshare ESP32-S3-Zero mini development board. If you are using a development board of another model, please modify the corresponding settings according to the actual situation.

1. Clock Tree Overview​

An SoC like the ESP32 does not rely on just a single crystal oscillator. Multiple clock sources (with different frequencies, accuracies, and power consumption) and multiple clock consumers (CPU, Wi-Fi, various peripherals, low-power modules) coexist inside the chip, connected through a clock tree: high-frequency clocks are divided down to produce lower-frequency clocks, and clock selectors can switch a given module to different clock sources.

Understanding the clock tree explains many everyday development phenomena — why the UART baud rate doesn't need adjustment after changing the CPU frequency from 240 MHz to 80 MHz; why the CPU cannot drop too low when Wi-Fi is active; why LEDC can continue outputting PWM in low-power mode when using RC_FAST as its clock source; and why the actual I2C frequency always deviates from the configured value. The root cause of all these behaviors lies in the connections between clock sources and clock dividers.

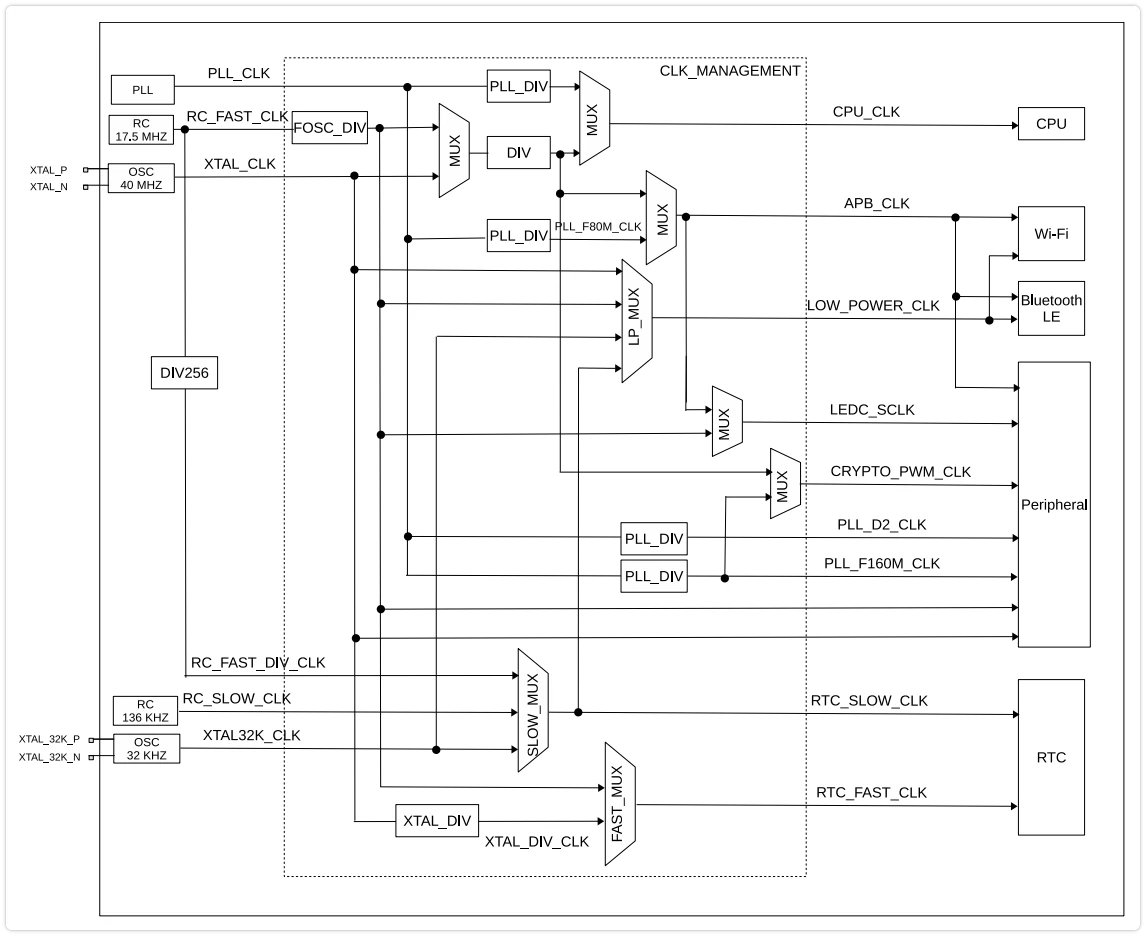

ESP32-S3 System Clock Structure Diagram

ESP32-S3 System Clock Structure Diagram (Source: ESP32-S3 Technical Reference Manual, Figure 7.2-1)

2. Root Clocks of ESP32-S3​

Root clocks are the most upstream sources in the clock tree, directly generated by physical circuits (crystal oscillators / RC oscillators / PLLs). ESP32-S3 has 4 types of root clocks:

Root ClockFrequencySourceCharacteristics
XTAL40 MHzExternal crystalHigh accuracy (typical ±10 ppm), default CPU clock
PLL320 / 480 MHzInternal PLL, multiplied from XTALHigh speed; must be enabled when Wi-Fi / BLE is active
RC_FAST~17.5 MHzInternal RC oscillatorAvailable in low-power mode; poor accuracy, frequency drifts with temperature
XTAL32K32.768 kHzExternal 32.768 kHz crystal (optional)RTC clock source, maintains time accuracy during long sleep periods

There is also RC_SLOW (~136 kHz, internal low-power RC), used for the RTC slow clock.

note

Root clocks are not directly usable by peripherals. They must pass through dividers, selectors, and gating stages to become the module clocks that actually drive the CPU and peripherals.

3. CPU Clock and APB Clock​

CPU_CLK​

The ESP32-S3's main CPU clock CPU_CLK can be switched among three root clock sources:

CPU_CLK SourceCPU Frequency
XTAL40 MHz / 20 MHz / 10 MHz... (divided)
PLL80 MHz / 160 MHz / 240 MHz
RC_FAST17.5 MHz / lower (divided)

Running at higher frequencies (160 MHz / 240 MHz) requires PLL as the clock source. ESP-IDF defaults to 160 MHz after application startup, controlled by CONFIG_ESP_DEFAULT_CPU_FREQ_MHZ.

APB_CLK​

APB_CLK is the working clock for most digital peripherals. Its frequency is entirely determined by the CPU_CLK source:

CPU_CLK SourceAPB_CLK Frequency
PLL80 MHz (fixed, does not change with CPU frequency)
XTAL= CPU_CLK
RC_FAST= CPU_CLK

Key point: When the CPU uses PLL as its clock source, regardless of whether the CPU frequency is 80, 160, or 240 MHz, APB_CLK always stays at 80 MHz. This is the fundamental reason why "adjusting CPU frequency doesn't affect peripheral baud rates" — peripherals depend on APB_CLK, not CPU_CLK.

Only when the CPU switches to XTAL or RC_FAST (which typically happens when dynamic frequency scaling drops to the lowest tier or when preparing to enter low-power mode) does APB_CLK drop to the same low frequency.

4. Peripheral Clock Source Selection​

Different peripherals can select different clock sources, controlled by the driver's clk_source field:

PeripheralAvailable Clock SourcesNotes
UARTXTAL / APB / RC_FASTChoosing XTAL keeps baud rate unaffected by CPU frequency changes
I2CXTAL / RC_FASTXTAL provides higher accuracy
SPIXTAL / APBHigh-speed SPI needs APB
LEDCXTAL / APB / RC_FASTRC_FAST enables PWM output to continue in low-power mode
RMTXTAL / APB / RC_FASTXTAL decouples resolution from CPU frequency
I2SPLL_F160M / PLL_D2 / XTALAudio applications typically use PLL-derived clocks for precise division

In ESP-IDF peripheral drivers, the clock source field is usually called clk_source. Passing ..._CLK_SRC_DEFAULT lets the driver select the most commonly used source (usually APB). The UART_SCLK_DEFAULT, I2C_CLK_SRC_DEFAULT, SPI_CLK_SRC_DEFAULT, etc. seen in example code all mean the same thing.

Two Effects of Clock Source on Peripherals​

  • Accuracy and stability: XTAL and PLL-derived clocks are high-accuracy and temperature-independent; RC_FAST has lower accuracy and its frequency drifts with temperature. Choose XTAL when precise baud rates or I2C frequencies are needed.
  • Low-power interaction: In low-power modes like Light-sleep, PLL and APB_CLK are shut down. If a peripheral uses the APB clock source, it stops when entering sleep; peripherals using XTAL / RC_FAST may continue to operate (whether they actually can depends on the specific peripheral's support).

5. Configuration in menuconfig​

The most commonly used clock-related configuration is the CPU frequency:

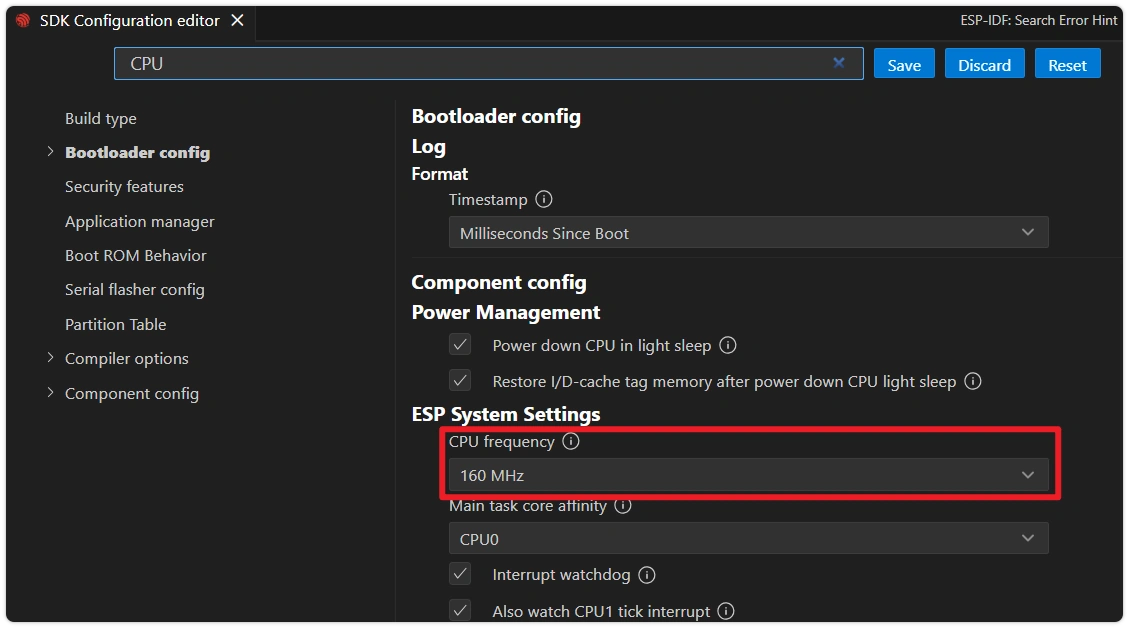

  1. Click VS Code SDK Configuration Editor Icon to open the SDK Configuration Editor. Search for "CPU frequency" and find Component config → ESP System Settings → CPU frequency:

    CPU Frequency Configuration

  2. The dropdown menu offers 80 MHz / 160 MHz / 240 MHz. This option corresponds to the Kconfig option CONFIG_ESP_DEFAULT_CPU_FREQ_MHZ, which determines the CPU frequency at application startup.

When power management is enabled (CONFIG_PM_ENABLE), the CPU frequency dynamically switches between the configured maximum and minimum values, controlled by "power management locks" held by various drivers. See ESP-IDF Programming Guide - Power Management for details.

Peripheral clock sources are generally not changed in menuconfig — they are specified via the clk_source field in the initialization struct. Some components expose Kconfig options (e.g., CONFIG_RMT_ENABLE_DEBUG_LOG), but the clock source itself is typically controlled by code.

6. Querying Actual Values at Runtime​

If you need to confirm the current actual frequency of a module clock at runtime (e.g., for timing calculations), you can call:

#include "esp_clk_tree.h"

uint32_t freq_hz = 0;
esp_clk_tree_src_get_freq_hz(
    SOC_MOD_CLK_APB,                            // Module clock to query
    ESP_CLK_TREE_SRC_FREQ_PRECISION_CACHED,     // Precision level (cached/calibrated)
    &freq_hz);

The soc_module_clk_t enum contains all queryable module clocks. The calibrated precision mode triggers an internal measurement, suitable for scenarios sensitive to runtime frequency drift, but with slightly higher overhead.
