Working with ESP-IDF

This chapter covers:

• ESP-IDF Getting Started
• Setting Up the ESP-IDF Development Environment
• ESP32-P4 Platform Example Repository
  • Supported Boards
  • Quick Start
  • ESP32-P4 Chip Revision Configuration
  • ESP-IDF Example Index
  • Example Code and Configuration Entry Points
  • Compatibility Reference
  • Build and Run Notes

ESP-IDF Getting Started

New to ESP32 ESP-IDF development and looking to get started quickly? We have prepared a general Getting Started Tutorial for you.

• Section 1: Environment Setup
• Section 2: Running Examples
• Section 3: Creating a Project
• Section 4: Using Components
• Section 5: Debugging
• Section 6: FreeRTOS
• Section 7: Peripherals
• Section 8: Wi-Fi Programming
• Section 9: BLE Programming

Please Note: This tutorial uses the ESP32-S3-Zero as a teaching example, and all hardware code is based on its pinout. Before you start, it is recommended that you check the pinout of your development board to ensure the pin configuration is correct.

Setting Up the ESP-IDF Development Environment

info

The ESP32-P4 Platform examples target ESP-IDF release/v5.4 and later. ESP-IDF v5.5.4 is recommended. For individual advanced UI examples, check the example directory README for specific version requirements.

note

The following guide uses Windows as an example, demonstrating development using VS Code + the ESP-IDF extension. macOS and Linux users should refer to the official documentation.

Version Selection

The screenshots in this section use ESP-IDF V5.5.2 as an example. When installing, please select the ESP-IDF version that matches your board's example.

Install the ESP-IDF Development Environment

1. Download the installation manager from the ESP-IDF Installation Manager page. This is Espressif's latest cross-platform installer. The following steps demonstrate how to use its offline installation feature.

   Click the Offline Installer tab on the page, then select Windows as the operating system and the ESP-IDF version you need (the version shown in the screenshot is for reference only — choose the version that fits your actual needs).



   After confirming your selection, click the download button. The browser will automatically download two files: the ESP-IDF Offline Package (.zst) and the ESP-IDF Installer (.exe).



   Please wait for both files to finish downloading.

2. Once the download is complete, double-click to run the ESP-IDF Installer (eim-gui-windows-x64.exe).

   The installer will automatically detect if the offline package exists in the same directory. Click Install from archive.



   Next, select the installation path. We recommend using the default path. If you need to customize it, ensure the path does not contain Chinese characters or spaces. Click Start installation to proceed.



3. When you see the following screen, the ESP-IDF installation is successful.



4. We recommend installing the drivers as well. Click Finish installation, then select Install driver.



Install Visual Studio Code and the ESP-IDF Extension

1. Download and install Visual Studio Code.

2. During installation, it is recommended to check Add "Open with Code" action to Windows Explorer file context menu to facilitate opening project folders quickly.

3. In VS Code, click the Extensions icon in the Activity Bar on the side (or use the shortcut Ctrl + Shift + X) to open the Extensions view.

4. Enter ESP-IDF in the search box, locate the ESP-IDF extension, and click Install.



5. For ESP-IDF extension versions ≥ 2.0, the extension will automatically detect and recognize the ESP-IDF environment installed in the previous steps, requiring no manual configuration.

ESP32-P4 Platform Example Repository

The ESP-IDF examples for ESP32-P4 series base boards are maintained in a single repository: ESP32-P4-Platform. The examples/esp-idf/ directory contains standalone ESP-IDF projects, the config/ directory provides ESP32-P4 chip revision configuration override files, and the docs/ directory includes guidance on example selection, chip revision configuration, and troubleshooting.

Examples are numbered from board verification to more integrated applications. When getting started, run 00_board_check first to verify flashing, serial monitor, PSRAM, and runtime logs are functioning correctly, then proceed to peripheral-specific examples based on your setup.

Supported Boards

The following boards use the examples from the ESP32-P4-Platform repository. Images link to the corresponding product pages.

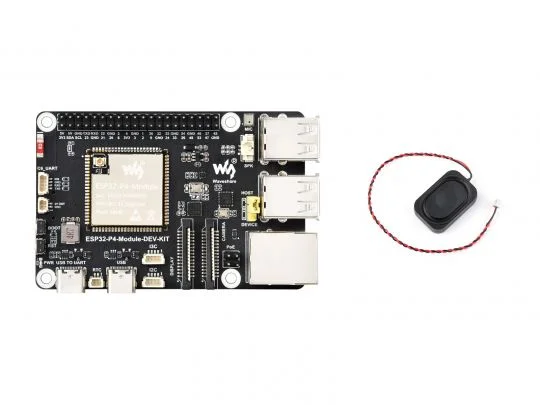

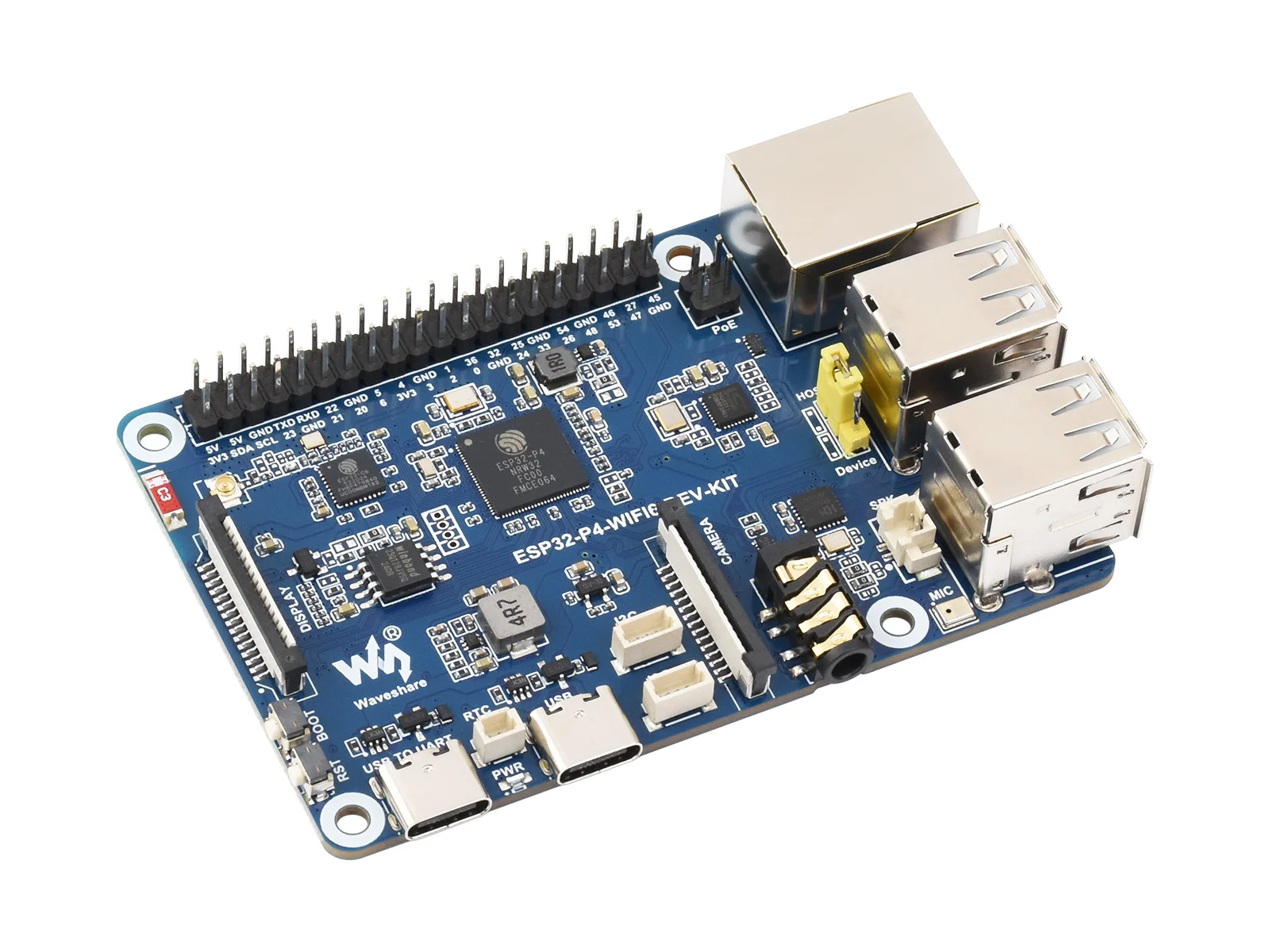

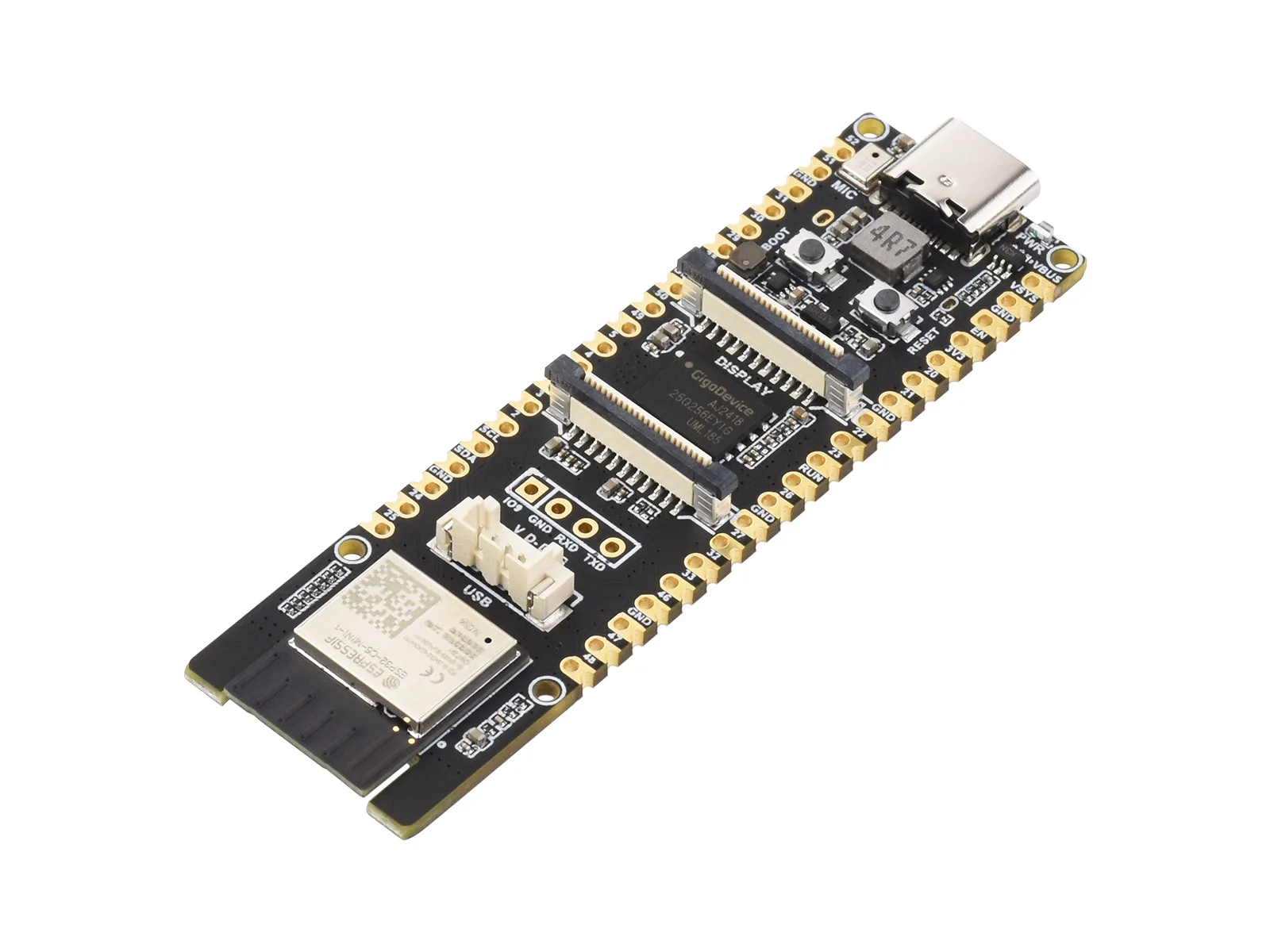

ESP32-P4-NANO	ESP32-P4-Module-DEV-KIT	ESP32-P4-WIFI6-DEV-KIT	ESP32-P4-WIFI6
Product Page	Product Page	Product Page	Product Page

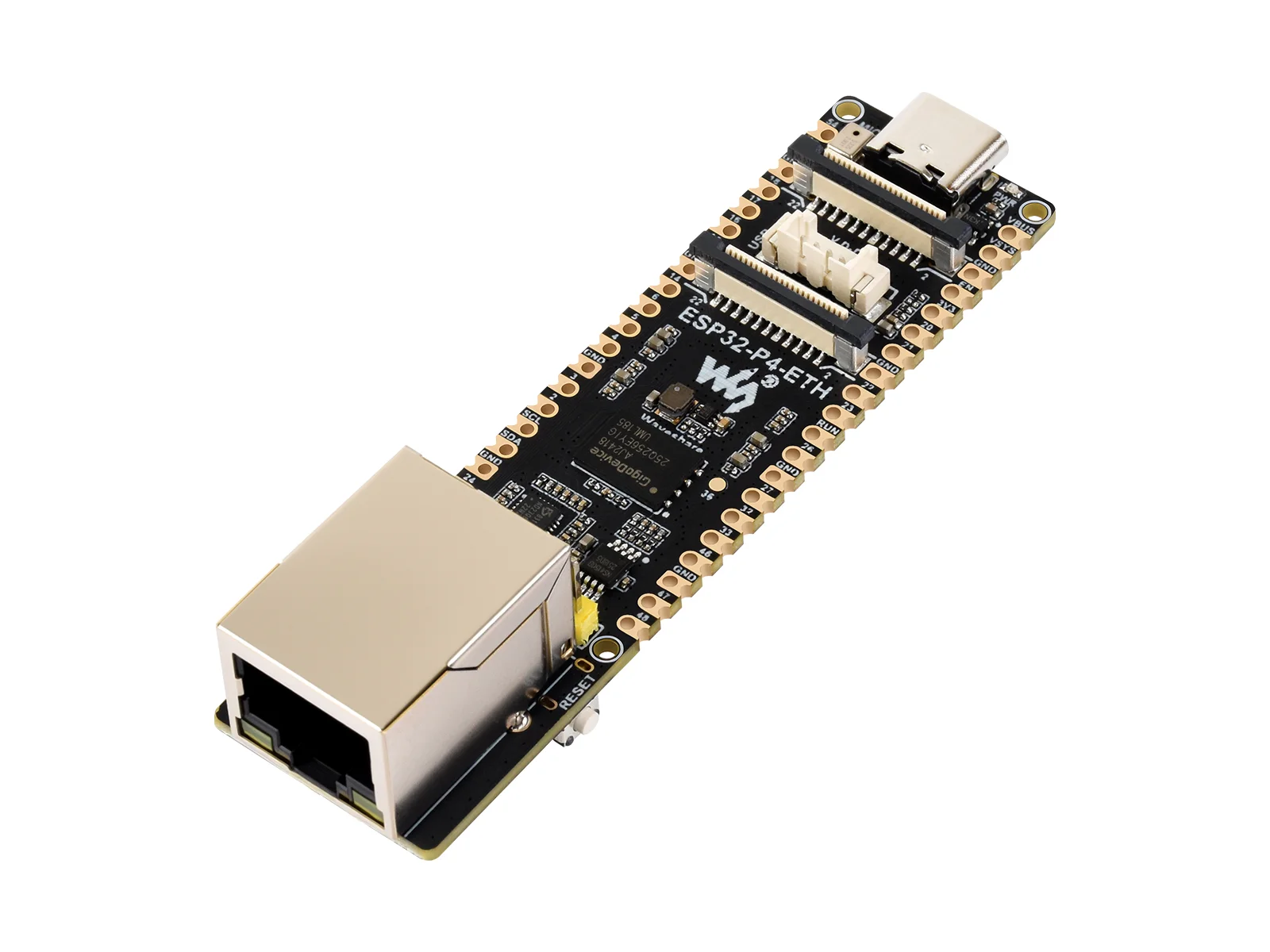

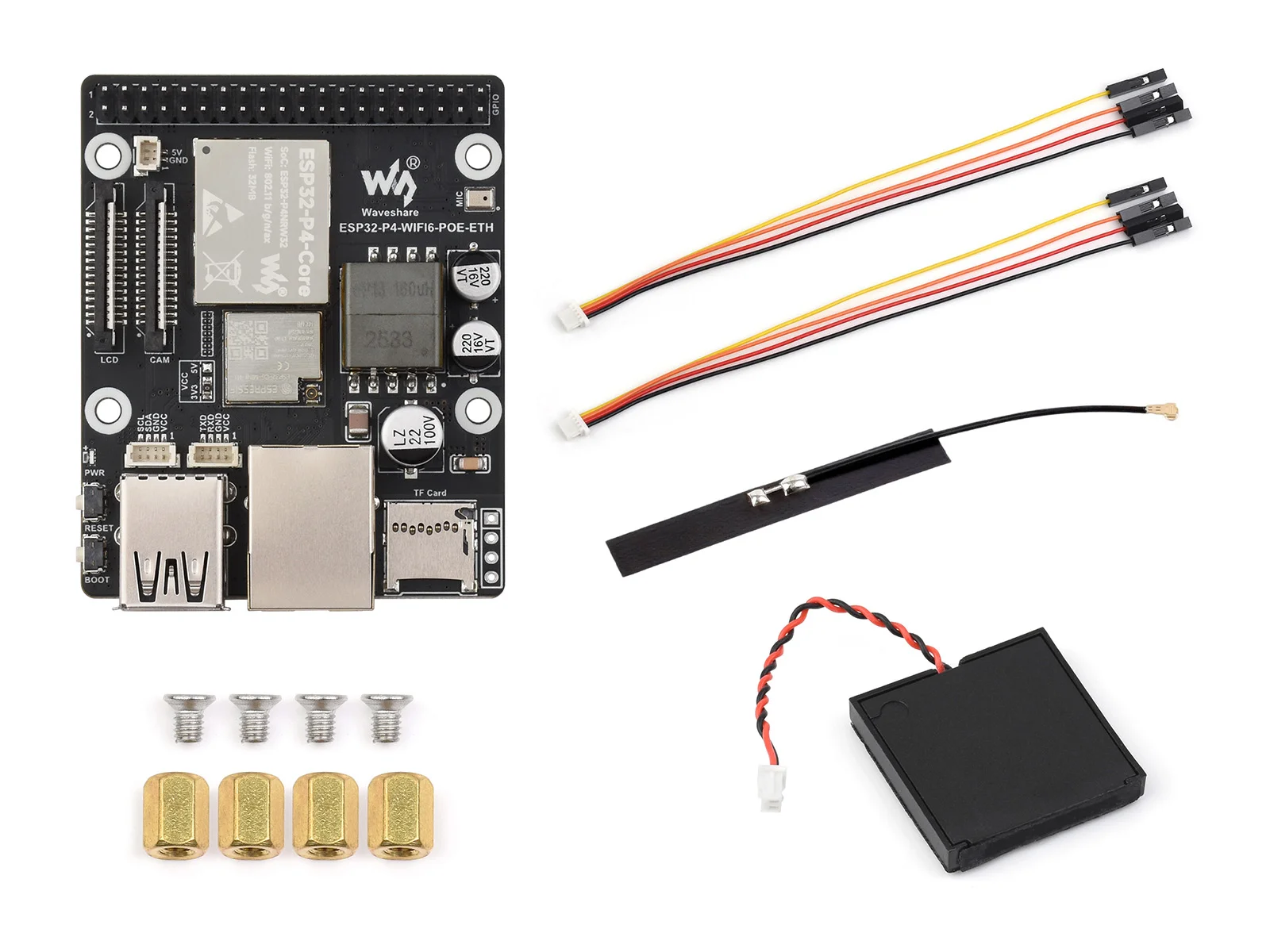

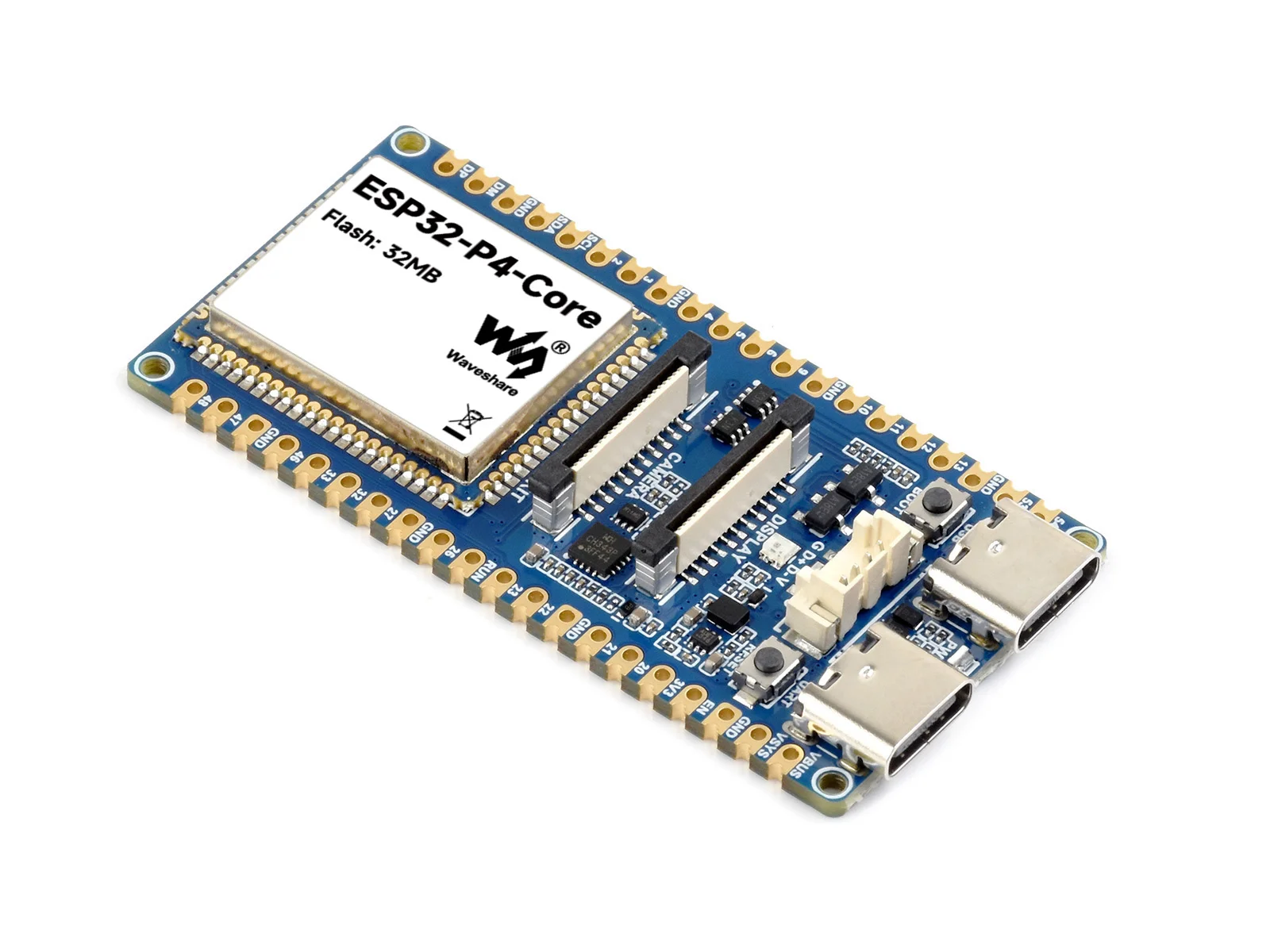

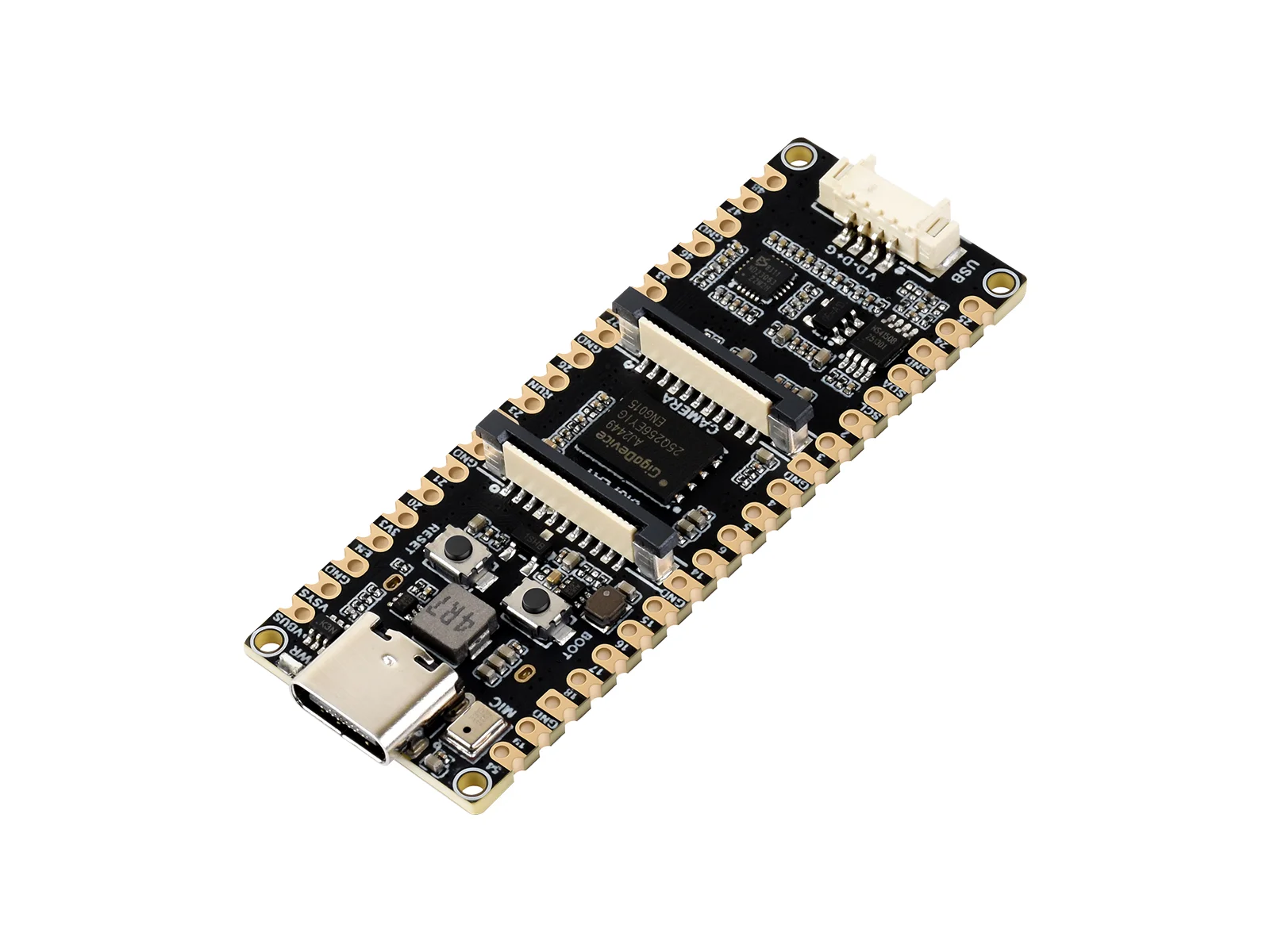

ESP32-P4-ETH	ESP32-P4-Pico	ESP32-P4-WIFI6-POE-ETH	ESP32-P4-Core-DEV-KIT
Product Page	Product Page	Product Page	Product Page

Quick Start

The following commands use 00_board_check as an example. Replace PORT with your actual serial port — for example COM5 on Windows.

git clone https://github.com/waveshareteam/ESP32-P4-Platform.git
cd ESP32-P4-Platform/examples/esp-idf/00_board_check
idf.py set-target esp32p4
idf.py build
idf.py -p PORT flash monitor

You must build before flashing any ESP-IDF example. idf.py build generates the flashable firmware; idf.py -p PORT flash monitor flashes the firmware and opens the serial monitor. If you modify menuconfig or source files, rebuild before flashing.

Some examples require pin configuration, Wi-Fi credentials, Ethernet PHY settings, display parameters, camera setup, or other example-specific options. Before building these examples, review the example README, your board's schematic, and your actual wiring, then run:

idf.py menuconfig

ESP32-P4 Chip Revision Configuration

ESP32-P4 engineering samples from before rev v3.0 and production chips from rev v3.0 onwards use different build configurations in ESP-IDF. If you see an error like requires chip revision in range [v3.1 - v3.99] (this chip is revision v1.3) during flashing or startup, do not use --force to skip the check — rebuild with the correct chip revision configuration instead.

Run one of the following commands in the example directory:

Chip Revision	Config File	Build Command
rev v3.1 or later	../../../config/esp32p4_rev_v3_1.defaults	idf.py -D SDKCONFIG_DEFAULTS="sdkconfig.defaults;../../../config/esp32p4_rev_v3_1.defaults" set-target esp32p4 build
rev v3.0 or later	../../../config/esp32p4_rev_v3_0.defaults	idf.py -D SDKCONFIG_DEFAULTS="sdkconfig.defaults;../../../config/esp32p4_rev_v3_0.defaults" set-target esp32p4 build
rev v0.x / v1.x engineering sample	../../../config/esp32p4_rev_pre_v3.defaults	idf.py -D SDKCONFIG_DEFAULTS="sdkconfig.defaults;../../../config/esp32p4_rev_pre_v3.defaults" set-target esp32p4 build

After switching chip revision configurations, it's recommended to delete the sdkconfig file in the example directory, or use a separate SDKCONFIG file for each chip revision. An existing sdkconfig will override the defaults in sdkconfig.defaults.

ESP-IDF Example Index

#	Example Directory	Purpose	Notes
00	00_board_check	Board, flash, serial, PSRAM, and heap memory check	No external hardware required
01	01_HowToCreateProject	Minimal ESP-IDF project structure	Useful for studying project layout
02	02_HelloWorld	Basic logging, chip info, and restart countdown	Basic environment check
03	03_nvs_counter	Persist boot count using NVS	No external hardware required
04	04_freertos_tasks	FreeRTOS tasks and queues	No external hardware required
05	05_gpio_io	GPIO input and output	Optional: jumper wires or LEDs
06	06_gpio_interrupt	GPIO interrupts and debouncing	Suggested: push button or jumper wires
07	07_uart_loopback	UART transmit and loopback receive	Suggested: TX/RX jumper wire
08	08_i2c_tools	I2C scan and command-line debugging	Useful for checking I2C device addresses
09	09_sdmmc	SD card mount and read/write test	Requires SD card and compatible slot/wiring
10	10_wifistation	Wi-Fi STA connection	Requires a board with Wi-Fi support
11	11_ethernetbasic	Ethernet link and DHCP IP acquisition	Requires Ethernet PHY and RJ45 port
12	12_I2SCodec	I2S Codec audio playback or echo mode	Requires audio codec / speaker / microphone support
13	13_Displaycolorbar	LCD color bar display	For verifying display output
14	14_lvgl_demo_v9	LVGL v9 GUI demo	Requires display and PSRAM
15	15_eth2ap	Ethernet-to-Wi-Fi AP bridging	Requires both Ethernet and Wi-Fi paths
16	16_video_lcd_display	Camera preview on LCD	Requires camera, display, and PSRAM
17	17_simple_video_server	HTTP camera video streaming	Requires camera and network connectivity
18	18_esp_brookesia_phone	ESP-Brookesia Phone UI	Requires matching display, touch, and board-level config
19	19_system_monitor	Serial diagnostics and runtime status monitor	No external hardware required

Example Code and Configuration Entry Points

Most examples have their application logic in main/, with configurable options in main/Kconfig.projbuild, sdkconfig.defaults, or the component's Kconfig. When adjusting pins, network settings, display parameters, camera, or audio options, use idf.py menuconfig first. To persist changes in the repository, save them to the example's default config files.

Example	Primary Code Entry Point	Configuration Entry	Pre-Run Checks
00_board_check	main/board_check_main.c	sdkconfig.defaults	Check serial log for chip info, PSRAM, heap memory, and periodic alive output.
01_HowToCreateProject	main/main.c	Root and main/CMakeLists.txt	Good template for copying project structure; update CMakeLists.txt when adding components.
02_HelloWorld	main/hello_world_main.c	sdkconfig.defaults	Verify ESP-IDF environment, serial output, and restart flow.
03_nvs_counter	main/nvs_counter_main.c	sdkconfig.defaults	Writes boot count to NVS; erasing flash resets the counter.
04_freertos_tasks	main/freertos_tasks_main.c	sdkconfig.defaults	Observe task, queue, and periodic log output; no external hardware needed.
05_gpio_io	main/gpio_io_main.c	main/Kconfig.projbuild: EXAMPLE_GPIO_OUTPUT, EXAMPLE_GPIO_INPUT, EXAMPLE_GPIO_INPUT_PULLUP	Confirm GPIO pins are not used by onboard peripherals (check schematic).
06_gpio_interrupt	main/gpio_interrupt_main.c	main/Kconfig.projbuild: EXAMPLE_GPIO_INPUT, EXAMPLE_GPIO_INPUT_PULLUP, EXAMPLE_DEBOUNCE_MS	Input pin suggested to connect a button or jumper; set pull-up and debounce time based on button circuit.
07_uart_loopback	main/uart_loopback_main.c	main/Kconfig.projbuild: EXAMPLE_UART_PORT_NUM, EXAMPLE_UART_TX_GPIO, EXAMPLE_UART_RX_GPIO, EXAMPLE_UART_BAUD_RATE	Connect TX to RX before running; avoid occupying the download serial port.
08_i2c_tools	main/i2ctools_example_main.c, main/cmd_i2ctools.c	main/Kconfig.projbuild: EXAMPLE_I2C_MASTER_SCL, EXAMPLE_I2C_MASTER_SDA, EXAMPLE_STORE_HISTORY	ESP32-P4 default SCL = GPIO8, SDA = GPIO7; verify voltage levels and pull-ups before connecting peripherals.
09_sdmmc	main/sd_card_example_main.c, components/sd_card/sd_test_io.c	main/Kconfig.projbuild: bus width, EXAMPLE_PIN_CMD, EXAMPLE_PIN_CLK, EXAMPLE_PIN_D0 through EXAMPLE_PIN_D3, format options, LDO IO	ESP32-P4 default CMD/CLK/D0/D1/D2/D3 = GPIO44/43/39/40/41/42; enabling format option will erase SD card data.
10_wifistation	main/station_example_main.c	main/Kconfig.projbuild: ESP_WIFI_SSID, ESP_WIFI_PASSWORD, auth threshold, retry count	ESP32-P4 has no integrated Wi-Fi; requires a board with ESP32-C6 or equivalent Wi-Fi companion.
11_ethernetbasic	main/ethernet_example_main.c, components/ethernet_init/ethernet_init.c	main/Kconfig.projbuild, components/ethernet_init/Kconfig.projbuild: PHY model, PHY address, MDC, MDIO, reset pin, internal EMAC or SPI Ethernet	ESP32-P4 internal EMAC default MDC = GPIO31, MDIO = GPIO52, PHY Reset = GPIO51; adjust per board schematic.
12_I2SCodec	main/i2s_es8311_example.c, main/example_config.h, main/canon.pcm	main/Kconfig.projbuild: playback / echo mode, MIC gain, volume, EXAMPLE_BSP; BSP dependencies in main/idf_component.yml	Echo mode requires microphone input; confirm selected BSP component matches hardware before enabling.
13_Displaycolorbar	main/test_esp_lcd_jd9365.c	main/idf_component.yml, sdkconfig.defaults, sdkconfig.defaults.esp32p4	First step for display bring-up; if log is normal but screen stays blank, check backlight, reset, power, and panel model.
14_lvgl_demo_v9	main/main.c, components/bsp_extra/src/bsp_board_extra.c	main/idf_component.yml, components/bsp_extra/idf_component.yml, components/bsp_extra/Kconfig, sdkconfig.defaults	Run 13_Displaycolorbar first; then check LVGL buffer, resolution, touch controller, and PSRAM.
15_eth2ap	main/ethernet_example_main.c	main/Kconfig.projbuild: EXAMPLE_WIFI_SSID, EXAMPLE_WIFI_PASSWORD, EXAMPLE_WIFI_CHANNEL, EXAMPLE_MAX_STA_CONN	Requires both Ethernet and Wi-Fi paths; verify Ethernet link and AP parameters before running.
16_video_lcd_display	main/main.c, main/app_video.c	sdkconfig.defaults: MIPI-CSI SCCB SCL/SDA, OV5647, LVGL, PSRAM, CONFIG_BSP_LCD_DPI_BUFFER_NUMS; camera sensor selected under Component config	Default SCCB SCL = GPIO8, SDA = GPIO7; requires MIPI-CSI camera and LCD connected.
17_simple_video_server	main/simple_video_server_example.c, components/example_video_common/, frontend/	main/Kconfig.projbuild: video buffer, JPEG quality, mDNS; components/example_video_common/Kconfig.projbuild: network, board, camera interface, SCCB I2C, JPEG encoder	Requires camera and network; after flashing, access the web interface at the IP shown in the serial log, or use http://esp-web.local on mDNS-enabled networks. Frontend source requires Node.js 20+; pre-built web assets are included, so standard firmware builds do not require building the frontend first.
18_esp_brookesia_phone	main/main.cpp, components/esp32_p4_platform/, components/brookesia_*	components/esp32_p4_platform/Kconfig: Board Support Package(ESP32-P4) > Display > Select LCD type, color format, I2C, I2S, SD, SPIFFS	Example README uses 1024 x 600 UI style as prototype; when porting to other Waveshare DSI displays, select the correct LCD type and color format first.
19_system_monitor	main/system_monitor_main.c	sdkconfig.defaults	Serial console provides help, info, heap, period <ms> commands; period writes to NVS.

Compatibility Reference

✅ indicates the example is expected to run on the corresponding board. ❌ means the board either lacks the required peripheral or the example has not yet been verified on that board path. Always adjust menuconfig based on your actual hardware before running.

#	Example	ESP32-P4-NANO	ESP32-P4-Module-DEV-KIT	ESP32-P4-WIFI6-DEV-KIT	ESP32-P4-WIFI6	ESP32-P4-ETH	ESP32-P4-Pico	ESP32-P4-WIFI6-POE-ETH	ESP32-P4-Core-DEV-KIT
00	board_check	✅	✅	✅	✅	✅	✅	✅	✅
01	HowToCreateProject	✅	✅	✅	✅	✅	✅	✅	✅
02	HelloWorld	✅	✅	✅	✅	✅	✅	✅	✅
03	nvs_counter	✅	✅	✅	✅	✅	✅	✅	✅
04	freertos_tasks	✅	✅	✅	✅	✅	✅	✅	✅
05	gpio_io	✅	✅	✅	✅	✅	✅	✅	✅
06	gpio_interrupt	✅	✅	✅	✅	✅	✅	✅	✅
07	uart_loopback	✅	✅	✅	✅	✅	✅	✅	✅
08	i2c_tools	✅	✅	✅	✅	✅	✅	✅	✅
09	sdmmc	✅	✅	✅	✅	✅	✅	✅	❌
10	wifistation	✅	✅	✅	✅	❌	❌	✅	❌
11	ethernetbasic	✅	✅	✅	❌	✅	❌	✅	❌
12	I2SCodec	✅	✅	✅	✅	✅	✅	✅	❌
13	Displaycolorbar	✅	✅	✅	✅	✅	✅	✅	✅
14	lvgl_demo_v9	✅	✅	✅	✅	✅	✅	✅	✅
15	eth2ap	✅	✅	✅	❌	❌	❌	✅	❌
16	video_lcd_display	✅	✅	✅	✅	✅	✅	✅	✅
17	simple_video_server	✅	✅	✅	✅	✅(Ethernet)	❌	✅	❌
18	esp_brookesia_phone	✅	✅	✅	✅	✅	✅	✅	✅
19	system_monitor	✅	✅	✅	✅	✅	✅	✅	✅

Build and Run Notes

• The ESP32-P4 chip itself does not have integrated Wi-Fi or Bluetooth. Wi-Fi examples require an onboard ESP32-C6 or another configured Wi-Fi companion solution.
• Ethernet examples require an onboard or external Ethernet PHY. If the RJ45 port, PHY model, PHY address, MDC/MDIO GPIO pins, or reset GPIO differ from the example defaults, adjust them in menuconfig.
• The ESP32-P4-Core-DEV-KIT does not cover SDMMC, Wi-Fi, Ethernet, I2S Codec, eth2ap, or simple_video_server in the Platform compatibility matrix. To verify these peripherals, you'll need external hardware and must adjust the example configuration to match the board schematic.
• Display, LVGL, camera, and ESP-Brookesia examples typically require PSRAM. Run 00_board_check first to confirm PSRAM initializes correctly.
• Some examples download ESP-IDF managed components via idf_component.yml. If the build stalls at the component download stage, check your network, Git proxy settings, and ESP-IDF component manager configuration.
• Basic interface examples like 05_gpio_io, 06_gpio_interrupt, and 07_uart_loopback may conflict with GPIO pins occupied by onboard peripherals. Always verify pin assignments against the schematic before running.
