FAQ

Q: Which screens are supported by the development board?

A: Please first check the component documentation to confirm compatible screen types: esp32_p4_platform

If you have requirements for adapting other screens or wish to inquire about support for specific screens, you can submit an issue via Waveshare's official after-sales support or the following address:

Request Support

We will follow up and respond to your requests promptly.

Q: How to check the ESP32-P4 chip version?

A: You can use Espressif's official Flash Download Tool to read the ESP32-P4 chip version. On a Windows PC, connect the ESP32-P4 download interface following the product hardware wiring to put the ESP32-P4 into download mode, and close the serial monitor occupying the corresponding port.

  1. Download and extract Espressif Flash Download Tool.
  2. Run the extracted .exe file. Select "ESP32-P4" for "ChipType". Choose the remaining options according to your actual download interface, then click "OK". Select ESP32-P4 Chip Type in Flash Download Tool
  3. Switch to the "chipInfoDump" tab. In the "Device" section, select the port number corresponding to the ESP32-P4 under "port", and set "baudrate" to 115200. COM9 shown in the figure is only an example; use the port recognized by your PC.
  4. Click "Chip Info". Check the log below for Chip is ESP32-P4 (revision vX.X). The value after revision is the chip version. The figure shows v3.2 as the read result; your actual version depends on the device reading. Select Port, Click Chip Info and Read ESP32-P4 Chip Version in chipInfoDump

For tool operation instructions, see Espressif Flash Download Tool User Guide.

The ESP32-P4 Platform examples provide build configurations for chips rev v3.0 and later, rev v3.1 and later, and engineering samples of rev v0.x / v1.x. Confirm that the firmware configuration matches your actual chip version before flashing.

Q: Can USB Type-C and PoE be used to power the development board at the same time?

A: Yes, this does not affect power supply.

Q: Which ESP-IDF version is recommended for ESP32-P4?

A: ESP-IDF v5.5.1 - v5.5.4 is recommended. The ESP32-P4 Platform examples are primarily maintained for ESP-IDF release/v5.4 and later versions. Some advanced UI examples may retain compatibility notes for release/v5.3; please refer to the README in each example directory.

Q: I get a chip revision mismatch error when flashing. How do I fix it?

A: This message means the firmware's ESP32-P4 chip revision configuration doesn't match the chip on your board. Do not use --force to skip the check — rebuild with the correct chip revision instead.

The ESP32-P4 Platform repository provides shared configuration files:

  • rev v3.1 or later: config/esp32p4_rev_v3_1.defaults
  • rev v3.0 or later: config/esp32p4_rev_v3_0.defaults
  • rev v0.x / v1.x engineering sample: config/esp32p4_rev_pre_v3.defaults

Specify the matching config in the example directory via SDKCONFIG_DEFAULTS. See the detailed instructions under ESP-IDF examples.

Q: How to flash firmware onto the ESP32-C6?
warning

The ESP32-C6 ships with factory firmware. Typically you do not need to flash the ESP32-C6 separately. If an upgrade is necessary, please verify the firmware source, version, and recovery method first.

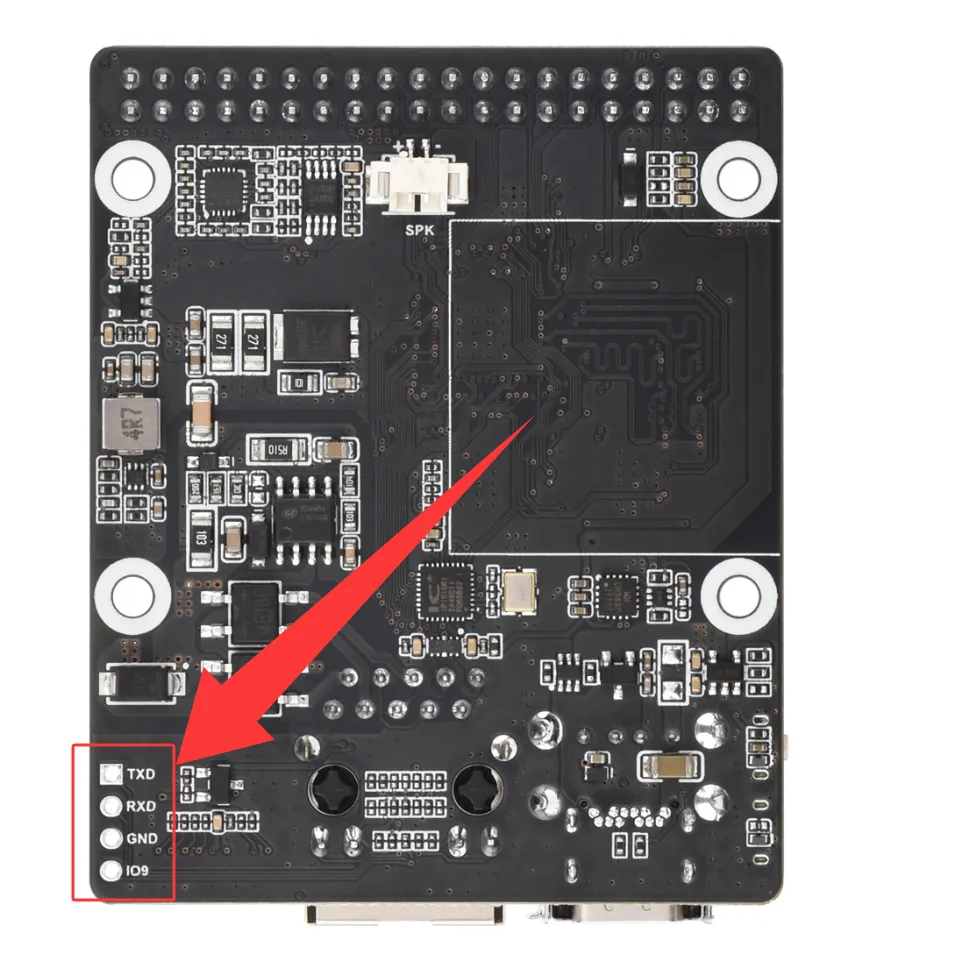

A: 1. Before power-on, short the C6 programming port IO9 to GND. 2. Connect a TTL to the C6 programming port: TX -> RXD (TTL), RX -> TXD (TTL). 3. Before powering on the whole system, press and hold the BOOT button to prevent the ESP32-P4 from controlling the C6 reset. 4. After performing the above steps, you can flash the C6 firmware normally.

Q: Are there example codes for other application scenarios?

A:

  1. During functionality testing, we have validated several features. Some applications, like using a Cat-4 module for network access or using P4's MIPI-DSI to expand the host screen, are progressing but not yet stable enough to release. Once these functionalities are refined, we will add examples to the wiki.
  2. If you have ideas or partially validated application scenarios, feel free to share them with us for feasibility assessment.
Q: Can I develop using PlatformIO or MicroPython?

A:

  1. Due to stability requirements, in order for PlatformIO to support ESP32-P4, it is also necessary for the PlatformIO community to support the Arduino-esp32 SDK V3.1x version
  2. During development, we tested MPY firmware for ESP32-P4, which can run some basic commands. However, this is just a preliminary verification; actual interface and peripheral applications are not yet adapted. Once fully adapted and stable, we will release ESP32-P4 usage examples in MicroPython.
Q: What is the maximum camera pixel resolution supported by the ESP32-P4?

A: The ESP32-P4's built-in ISP can process images up to 1920 × 1080 (approximately 2 megapixels), and its H.264 hardware encoding performance can reach 1080p@30fps. When using a higher-resolution camera, the output resolution still needs to be reduced under this processing and encoding mode, and it cannot utilize the camera's full pixel capability. Additionally, the interface and driver compatibility must be confirmed.
