Working with Arduino

This chapter contains the following sections. Please read as needed:

Arduino Getting Started​

New to Arduino ESP32 development and looking for a quick start? We have prepared a comprehensive Getting Started Tutorial for you.

Note: This tutorial uses the ESP32-S3-Zero as a reference example, and all hardware code is based on its pinout. Before you start, we recommend checking the pinout of your development board to ensure the pin configuration is correct.

Setting Up the Development Environment​

1. Installing and Configuring the Arduino IDE​

Please refer to the tutorial Installing and Configuring Arduino IDE to download and install the Arduino IDE and add ESP32 support.

Board NameBoard Installation RequirementVersion Requirement
esp32 by Espressif Systems"Offline Installation" / "Online Installation"3.2.0

2. Installing Libraries​

  • When installing Arduino libraries, there are typically two methods: online installation and offline installation. If the library installation requires offline installation, you must use the provided library files.
  • For most libraries, users can easily search for and install them via the Arduino IDE's online Library Manager. However, some open-source or custom libraries are not synchronized to the Arduino Library Manager and therefore cannot be found through online search. In this case, users can only install these libraries manually via offline methods.
  • The sample program package for the ESP32-S3-DualEye-LCD-1.28 development board can be downloaded from here. The Arduino\libraries directory within the package already contains all the library files required for this tutorial.
Library/File NameDescriptionVersionInstallation Method
LVGLGraphics Libraryv8.3.10"Offline Installation"
ESP32-audioI2S-masterAudio Decoding Libraryv2.0.0"Offline Installation"
es7210Audio Decoding Libraryxxx"Offline Installation"
es8311Audio Decoding Libraryxxx"Offline Installation"
Version Compatibility Notes

There are strong dependencies between versions of LVGL and its driver libraries. For example, a driver written for LVGL v8 may not be compatible with LVGL v9. To ensure that the examples can be reproduced reliably, it is recommended to use the specific versions listed in the table above. Mixing different versions of libraries may lead to compilation failures or runtime errors.

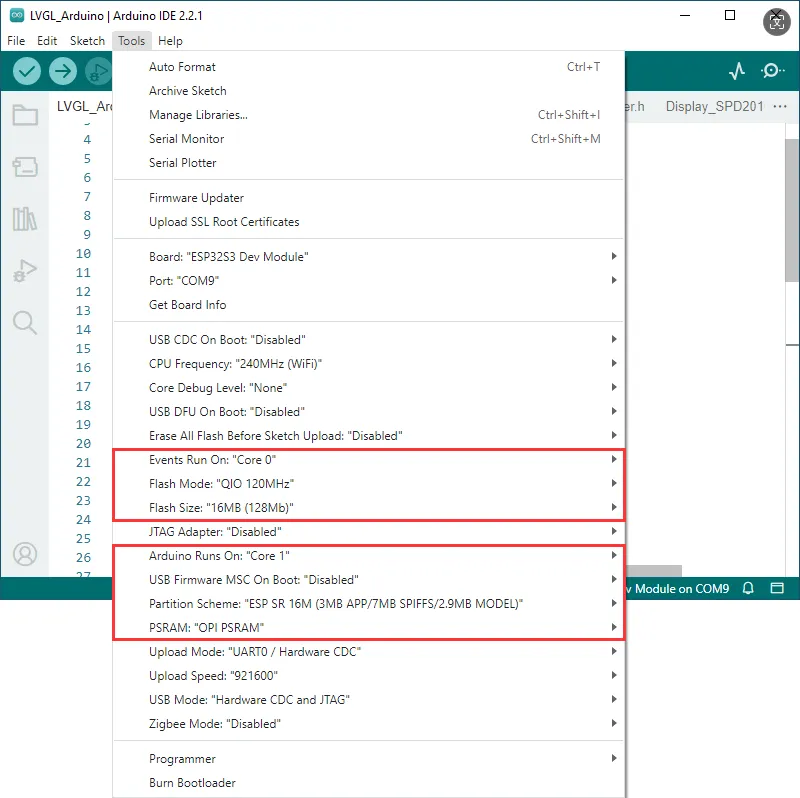

3. Arduino Project Parameter Settings​

  • If the example being flashed contains a speech recognition model, select "ESP SR 16M (3MB APP/7MB SPIFFS/2.9MB MODEL)" for the Partition Scheme.
  • If the example being flashed does not contain a speech recognition model, select "16M Flash (3MB APP/9.9MB FATFS)" or another appropriate scheme.

Example​

The Arduino examples are located in the Arduino/examples directory of the example package.

ExampleBasic Program DescriptionDependency Library
01_LCD_DriverDisplay driver exampleLVGL
02_Mic_testMicrophone capture and audio playback examplees8311, es7210
03_SD_testRead BMP images from TF card and display on screenLVGL
04_LVGL_ArduinoComprehensive examplees7210,es8311, ESP32-audioI2S-master, LVGL

01_LCD_Driver​

Example Description​

  • This example demonstrates display driver, LVGL graphics library initialization, and basic graphics and number display functionality.

Hardware Connection​

  • Connect the development board to the computer.

Code Analysis

  • setup(): Display initialization, peripheral configuration, etc.
    • Display initialization: LCD_INIT()
    • GUI Initialization: Calls Lvgl_Init() to initialize LVGL (Light and Versatile Graphics Library), a widely used graphics library for embedded systems. Lvgl_Example1() is an example program used to demonstrate how to render a graphical interface on the display.

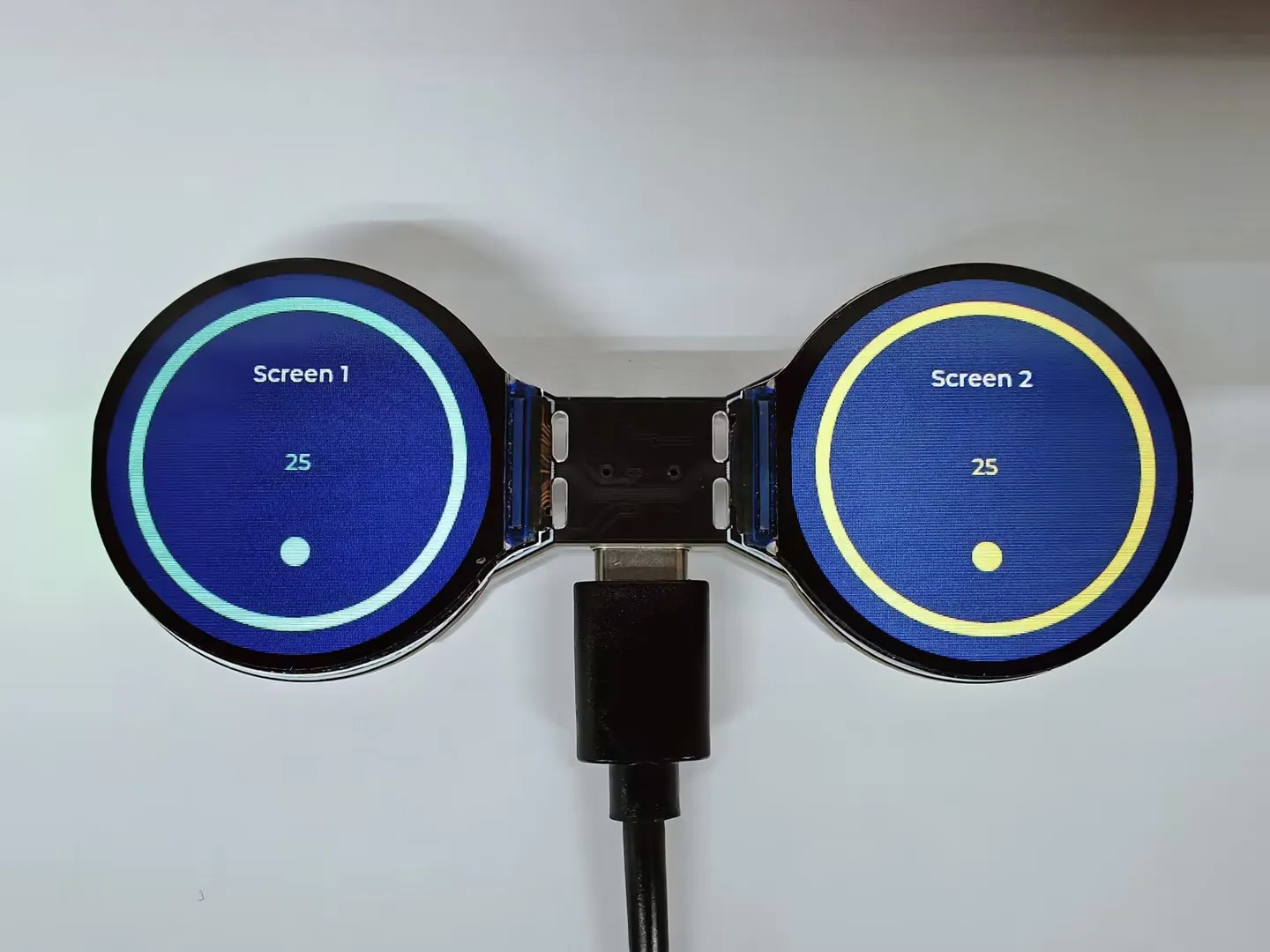

Operation Result​

  • Displays graphics and cycles through two-digit numbers from 00 to 99.

02_Mic_test​

Example Description​

  • This example demonstrates microphone audio capture and audio playback functionality.

Hardware Connection​

  • Connect the development board to the computer.

Code Analysis

  • Audio_Test_Init(): Audio example function.
  • Audio_Init: Initialization function for the ES8311 audio codec.
  • MIC_Init: Initialization function for the ES7210.

Operation Result​

  • The screen has no display.
  • Single press the BOOT button to play/pause the built-in audio data.
  • Long press the BOOT button to capture microphone audio; after 5 seconds or when the button is released, the captured audio will be played back.

03_SD_test​

Example Description​

  • This example demonstrates reading BMP images from the root directory of a TF card and displaying them on the screen.

Hardware Connection​

  • Copy the BMP images from the BMP folder in the example directory to the root directory of the TF card.
  • Insert the TF card into the development board.
  • Connect the development board to the computer.

Code Analysis

  • setup(): Display initialization, peripheral configuration, etc.

    • Display initialization: LCD_INIT()
    • GUI Initialization: Calls Lvgl_Init() to initialize LVGL (Light and Versatile Graphics Library), a widely used graphics library for embedded systems. Lvgl_BMP_Example() is an example program that shows how to display BMP images on the screen.
    • You can modify the BMP image paths in LVGL_Example.cpp to display different BMP images on the dual screens.
      static const char * BMP_FILE_PATH_LEFT = "/test1.bmp";  // Left LCD
      static const char * BMP_FILE_PATH_RIGHT = "/test2.bmp"; // Right LCD

Operation Result​

  • The screen displays images:

04_LVGL_Arduino​

Example Description​

  • This example demonstrates the functionality of the onboard devices. Screen 2 displays parameters such as TF Card and Flash Size, while Screen 1 is the music playback interface. Additionally, this example adds speech recognition functionality.

Hardware Connection​

  • Insert the TF card into the development board.
  • Connect the development board to the computer.

Code Analysis

  • setup(): Hardware initialization, peripheral configuration, etc.

    • Hardware initialization: Inside setup(), multiple initialization functions are executed to configure and initialize hardware components connected to the Arduino, such as the LCD display, TF card, audio module, and microphone. These initializations ensure the hardware operates correctly.
    • GUI Initialization: Calls Lvgl_Init() to initialize LVGL (Light and Versatile Graphics Library), a widely used graphics library for embedded systems. Lvgl_Example1() is an example program used to demonstrate how to render a graphical interface on the display.

  • loop(): Adds a delay to prevent triggering the watchdog timer.

Operation Result​

  • LCD Screen Display

  • LCD Screen Display Parameter Description

    ParameterFunctionDescription
    SD CardDisplays the TF card sizeConnect a TF card. If recognition fails, please format the TF card to FAT32 (if initial recognition fails, wait a moment and then reset to check again)
    Flash SizeDisplays the Flash sizeOnboard 16MB Flash
    Battery VoltageBattery voltageBattery voltage can be detected when a battery is connected

  • Screen 1 is the UI page for playing MP3 audio files stored in the root directory of the TF card.

  • The BOOT button controls the UI: short press to switch the selected item, double-press to confirm, long press to switch screen focus.

  • This program enables voice recognition by default. The wake word is "hi esp". After waking up, the backlight dims, and you can speak the command (if the backlight does not dim, it means it was not woken up; recognition requires standard pronunciation and a slower speaking pace)

  • Several MIC test audio formats are provided below (Note: if the "hi esp" wake-up fails, please reposition the audio to the point where the wake word is played and try again)

  • Please do not perform voice recognition while audio is being played through the speaker

  • The reason the test audio plays the wake word twice is that the current firmware version requires a focus step for the first wake-up (metaphorically), and the current firmware does not allow disabling this feature.

      // Commands
      Turn on the backlight
      Turn off the backlight
      Backlight is brightest
      Backlight is darkest

  • Note: In this example, speech recognition is only available before playing audio.

Switching Between Chinese/English Recognition Models​

The initial state of the environment defaults to the English recognition environment. Follow the steps below to switch to the Chinese recognition model or revert to the English recognition model.

Switching to Chinese Recognition Model

Setting Up the Chinese Recognition Environment

  • Download the provided program file Program using the Chinese model
  • Navigate to the path C:\Users\Waveshare\AppData\Local\Arduino15\packages\esp32\hardware\esp32\3.0.2\libraries\ESP_SR\src (where Waveshare is the computer username)
  • Replace the esp32-hal-sr.c file in this path with the downloaded file
  • Download the Chinese model Chinese Model - Wake Word 'hi lexin'
  • Navigate to the path C:\Users\Waveshare\AppData\Local\Arduino15\packages\esp32\tools\esp32-arduino-libs\idf-release_v5.1-bd2b9390ef\esp32s3\esp_sr (where Waveshare is the computer username)
  • Replace the srmodels.bin file in this path with the downloaded file
  • Modify the recognition commands in the program to Chinese commands (using Pinyin)
Switching to English Recognition Model

Switching to English Recognition Model

  • The initial state of the environment defaults to the English recognition environment. If it has not been switched to Chinese, do not perform the following modifications
  • If it was previously modified for Chinese recognition, download the provided program file Program Using English Model
  • Navigate to the path C:\Users\Waveshare\AppData\Local\Arduino15\packages\esp32\hardware\esp32\3.0.2\libraries\ESP_SR\src (where Waveshare is the computer username)
  • Replace the esp32-hal-sr.c file in this path with the downloaded file
  • Download the English model English Model - Wake Word 'hi esp'
  • Navigate to the path C:\Users\Waveshare\AppData\Local\Arduino15\packages\esp32\tools\esp32-arduino-libs\idf-release_v5.1-bd2b9390ef\esp32s3\esp_sr (where Waveshare is the computer username)
  • Replace the srmodels.bin file in this path with the downloaded file
  • Modify the recognition commands in the program to English commands (using phonemes)
