ESP32-S3-Touch-AMOLED-1.64

Version Compatibility Note: V1 and V2 example programs are not interchangeable. Please download the corresponding example program based on the PCB version.

The version can be identified by the silkscreen location on the PCB:

• V1: Version silkscreen is located at the top of the PCB.
• V2: Version silkscreen is located on the right side of the PCB, near the pin headers.

Key differences in V2 compared to V1:

• Battery constant current charging current set to 500 mA.
• LCD_CS and IMU_INT1 pins are swapped: V1 uses LCD_CS = GPIO9, IMU_INT1 = GPIO46; V2 uses LCD_CS = GPIO46, IMU_INT1 = GPIO9.
• QMI8658 interrupt pin connected to ESP32 GPIO via resistor, with new IMU_INT2 = GPIO17.
• BOOT button circuit now includes an RC circuit.
• Added reverse polarity protection circuit for the Lithium battery.
• Added TP_INT = GPIO18, TP_RESET, and LCD_TE = GPIO45 pins.

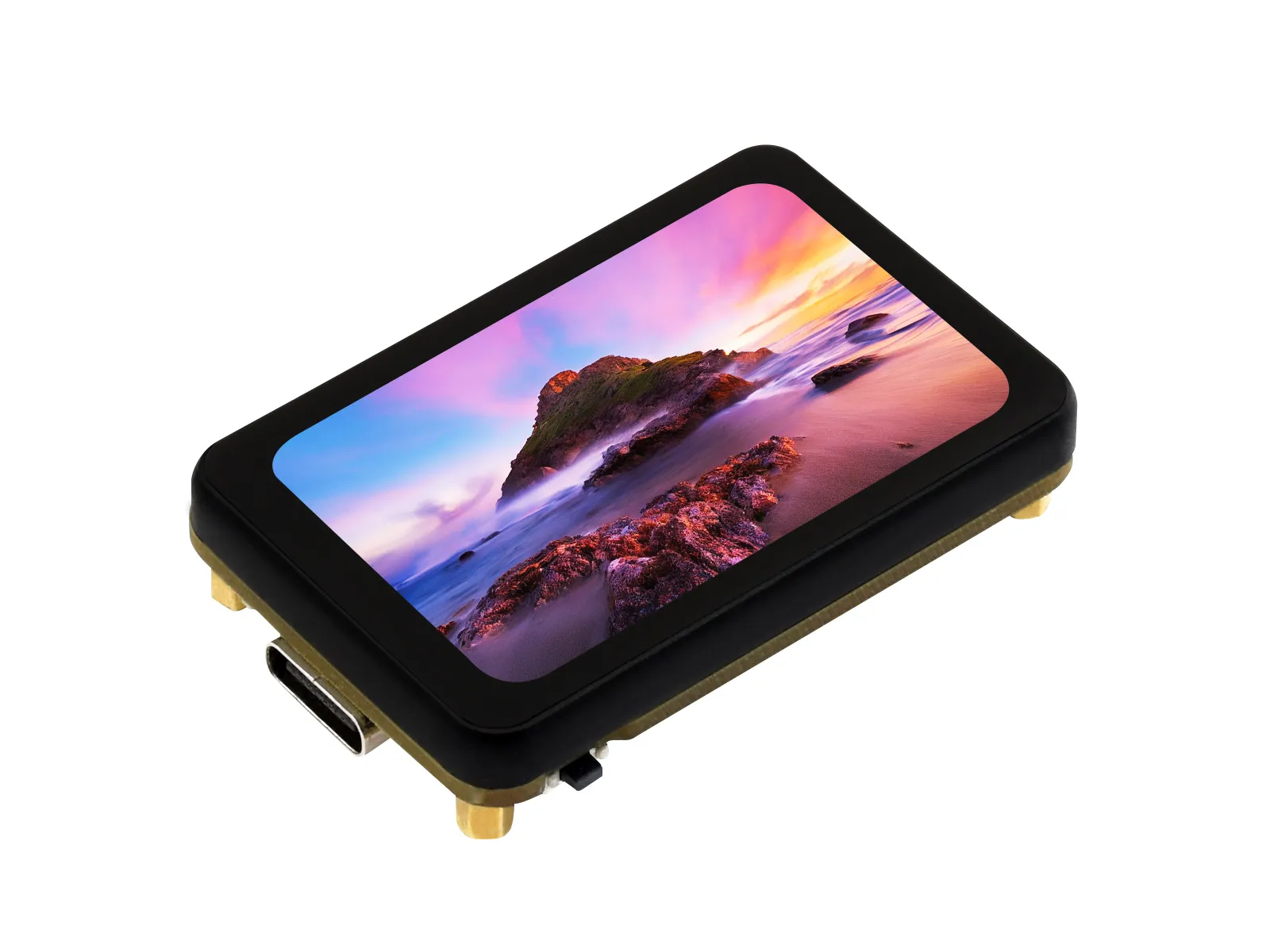

The ESP32-S3-Touch-AMOLED-1.64 is a low-cost, high-performance microcontroller development board designed by Waveshare. It is equipped with an ESP32-S3R8 dual-core LX7 processor (240 MHz), supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE), and features 512KB SRAM and 384KB ROM, with stacked 8MB PSRAM and 16MB Flash. The board includes a 1.64inch AMOLED capacitive touch display (280×456) with 16.7M color support, along with a 6-axis IMU, TF card slot, and Lithium battery charging functionality, making it ideal for rapid prototyping and embedded HMI applications.

If you are looking for:

• Accelerating development with AI tools: Share this page link with AI tools to help them accurately understand the board hardware and generate usable code.
• Developing with Arduino IDE: See Working with Arduino
• Developing with ESP-IDF: See Working with ESP-IDF
• Downloading schematics, datasheets, and example code: See Related Resources
• Having issues: See Product FAQ or contact Technical Support

SKU	Product
31197	ESP32-S3-Touch-AMOLED-1.64

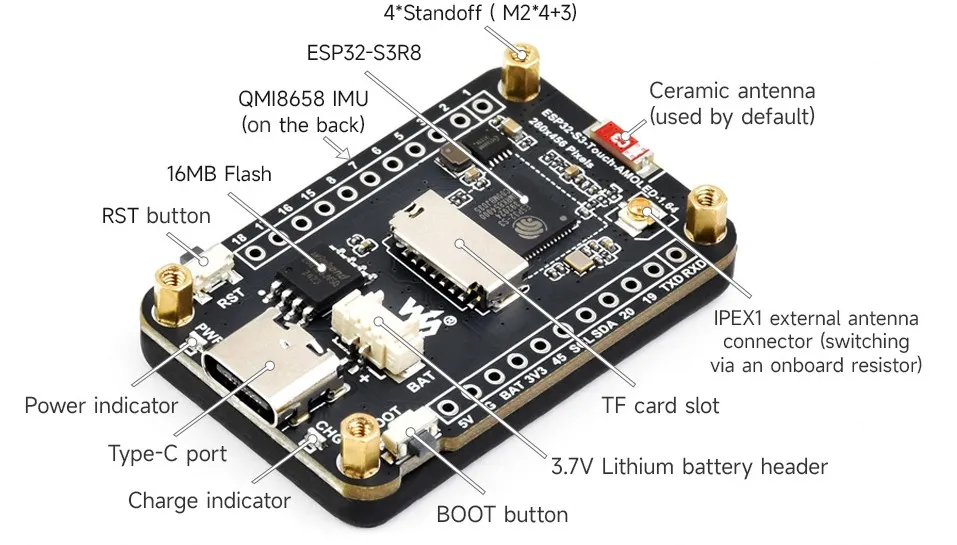

Onboard Resources

1. ESP32-S3R8 Wi-Fi and Bluetooth SoC, 240MHz operating frequency, stacked 8MB PSRAM
2. 16MB NOR-Flash large-capacity Flash storage
3. QMI8658 6-axis inertial measurement unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer
4. 1.64inch AMOLED Display 280×456 resolution, 16.7M colors, QSPI interface
5. FT3168 Capacitive touch controller, I2C interface
6. TF Card Slot For external TF card storage of images or files (supports capacity less than 64G)
7. MX1.25 Lithium Battery Header MX1.25 2P connector for connecting a 3.7V lithium battery, supports charging and discharging
8. Type-C Port ESP32-S3 USB port for programming and log printing
9. BOOT Button Supports custom button functions; press and hold to enter download mode
10. RESET Button

Peripheral Quick Reference

Module	Device / Function	Interface	Parameters	Description
AMOLED	CO5300	QSPI	280×456, 16.7M colors, RGB565	QSPI high-speed display interface
Touch	FT3168 Capacitive Touch	I2C	-	Touch operation
IMU	QMI8658C 6-axis Sensor	I2C	7-bit address 0x6B	3-axis accelerometer + 3-axis gyroscope
TF	TF Card Slot	SPI / SDMMC	Supports capacity < 64G	Storage expansion
Battery Sampling	Voltage divider to ADC	ADC	-	System voltage detection
USB Type-C	ESP32-S3 Native USB	USB	Programming, logging	Power and debugging
Charging Management	Lithium Battery Charging Circuit	Power	Single-cell Lithium 3.7V-4.2V	PH1.25 / MX1.25 battery connector
BOOT Button	Key / BOOT	GPIO	Download mode / custom button	Press and hold + reset to enter download mode
RST Button	Reset	Reset	-	System reset

Pin Definitions

When using the GPIO pins reserved on the ESP32-S3-Touch-AMOLED-1.64 board, pay attention to the wire colors and corresponding functions to avoid damaging the development board due to incorrect connections.

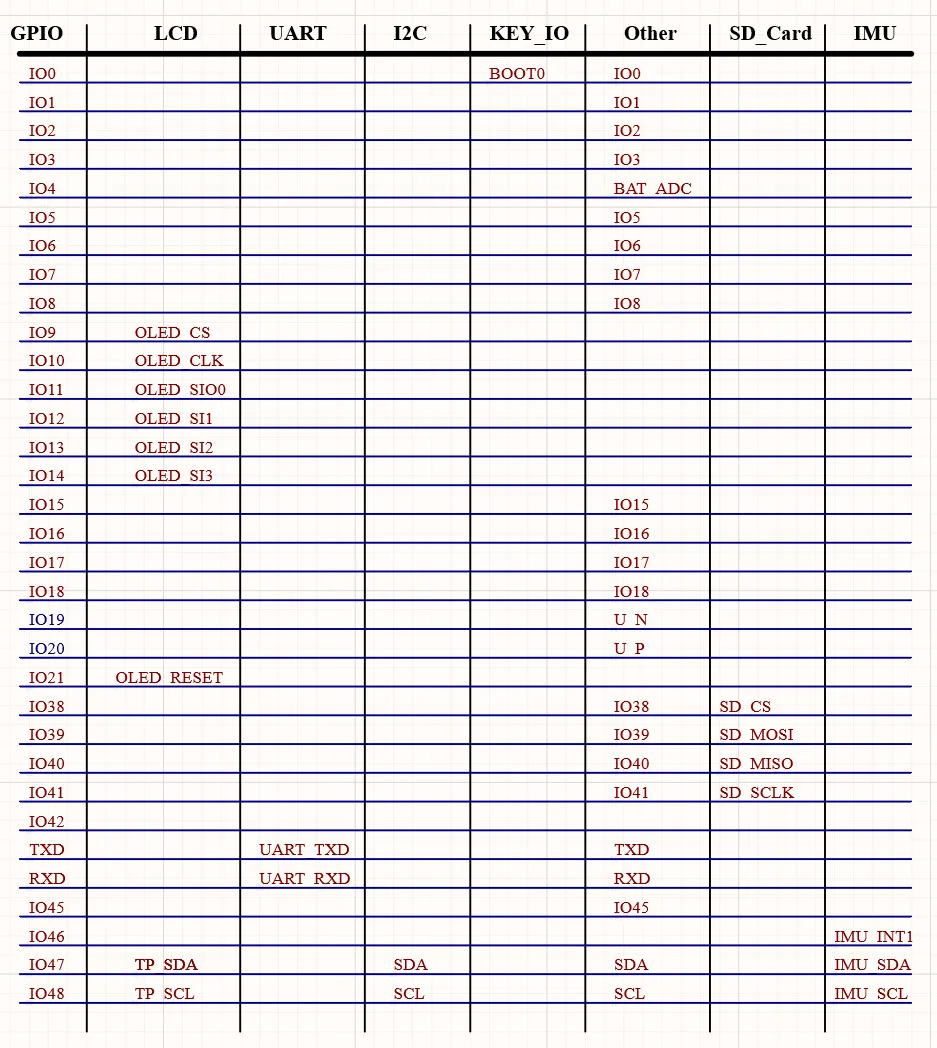

V1

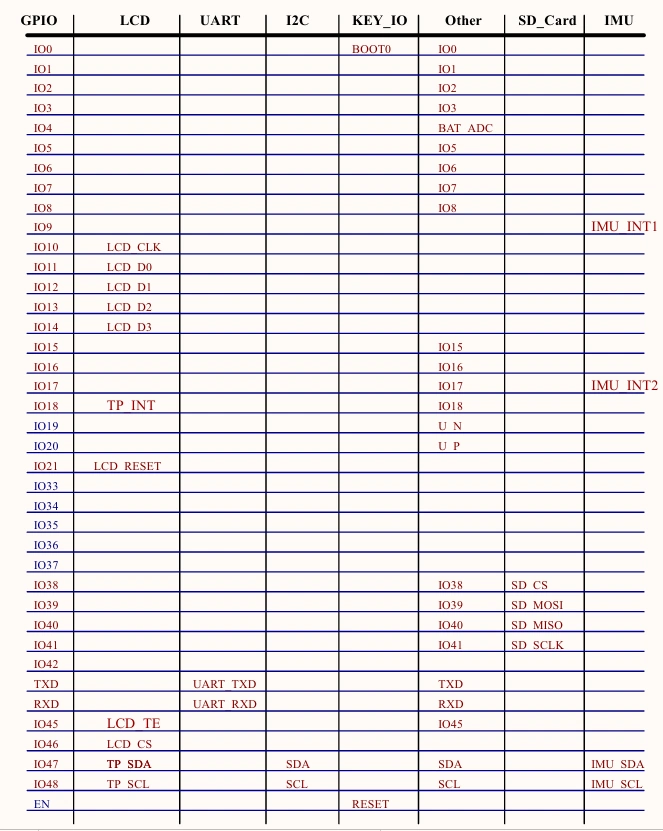

V2

Expansion Interface

Type	Signals
Power	5V / 3V3 / GND
I2C	SCL / SDA
UART	TX / RX
USB	USB_N / USB_P

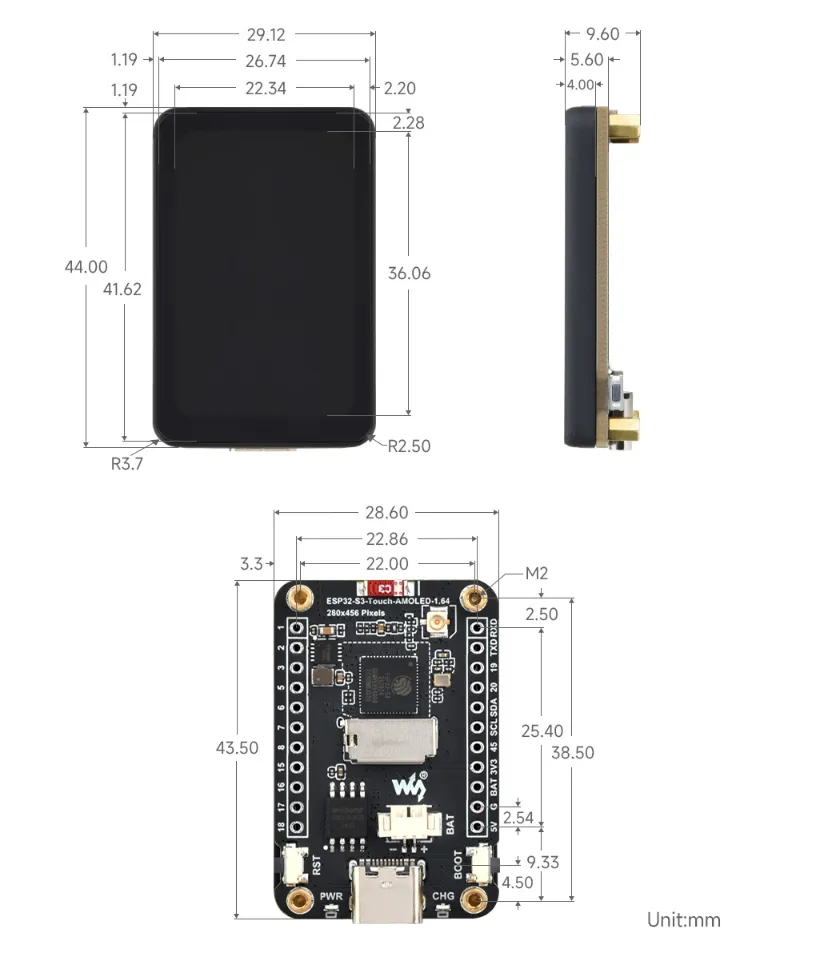

Dimensions

Development Methods

The ESP32-S3-Touch-AMOLED-1.64 supports both the Arduino IDE and ESP-IDF development frameworks, giving developers flexible options. You can choose the development tool that best suits your project needs and personal preferences.

Arduino is generally easier to get started with and more beginner-friendly for hobbyists. ESP-IDF offers a more complete development toolchain and finer-grained system control, making it suitable for complex projects or applications with higher performance requirements.

• Arduino IDE is a convenient, flexible, and easy-to-use open-source electronics prototyping platform. It requires minimal foundational knowledge, allowing for rapid development after a short learning period. Arduino has a huge global user community, providing a vast amount of open-source code, project examples, and tutorials, as well as a rich library ecosystem that encapsulates complex functions, enabling developers to implement various features rapidly. You can refer to the Working with Arduino to complete the initial setup, and the tutorial also provides related example programs for reference.

• ESP-IDF, short for Espressif IoT Development Framework, is a professional development framework launched by Espressif Systems for its ESP series of chips. It is based on C language development and includes compilers, debuggers, flashing tools, etc. It supports development via command line or integrated development environments (such as Visual Studio Code with the Espressif IDF plugin), which provides features like code navigation, project management, and debugging. We recommend using VS Code for development. For the specific configuration process, please refer to the Working with ESP-IDF. The tutorial also provides relevant example programs for reference.
