Working with Arduino

This chapter introduces setting up the Arduino environment, including the Arduino IDE, management of ESP32 boards, installation of related libraries, program compilation and downloading, as well as testing examples. It aims to help users master the development board and facilitate secondary development. Arduino-flow-04

Environment Setup

Download and Install Arduino IDE

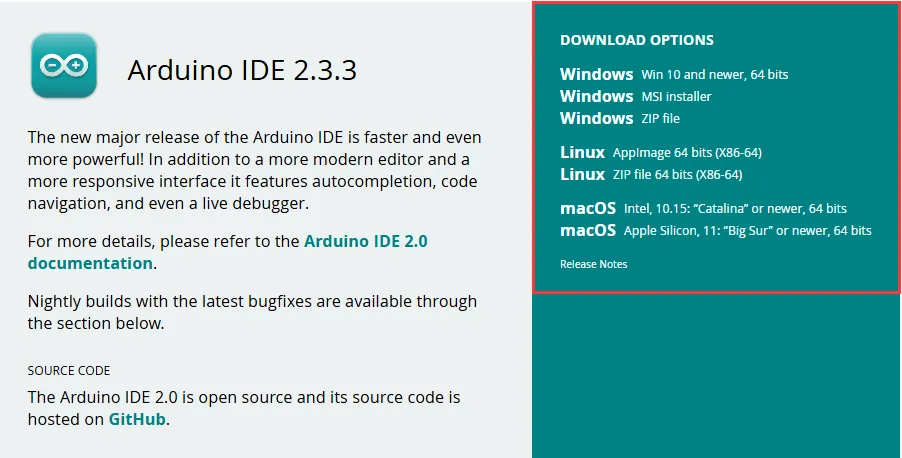

Visit the Arduino official website, select the corresponding system and system architecture to download.
Run the installer and proceed with the default installation options.

The environment setup is performed on Windows 10. Linux and Mac users can refer to Arduino-esp32 environment setup for guidance.

Install ESP32 Development Board

To use ESP32-related boards in the Arduino IDE, you must first install the "esp32 by Espressif Systems" board package.
Follow the Board Installation Requirements for installation. Generally, Online Installation is recommended. If online installation fails, use Offline Installation.
For the installation tutorial, please refer to Arduino Board Management Tutorial
Board installation instructions for the ESP32-S3-Touch-AMOLED-1.64

Board Name	Board Installation Requirements	Version Requirement
esp32 by Espressif Systems	"Offline" Installation / "Online" Installation	≥3.1.0

Install Libraries

When installing Arduino libraries, there are typically two options: Online Installation and Offline Installation. If the library installation requirements specify offline installation, you must use the provided library files.
For most libraries, users can easily search and install them via the Arduino software's built-in Library Manager. However, some open-source or custom libraries are not synchronized to the Arduino Library Manager and therefore cannot be found through online search. In this case, users can only install these libraries manually via offline methods.
For library installation tutorial, please refer to Arduino Library Manager Tutorial

ESP32-S3-Touch-AMOLED-1.64 Library File Path:

../ESP32-S3-Touch-AMOLED-1.64-Demo/Arduino/libraries

ESP32-S3-Touch-AMOLED-1.64 Library Installation Instructions

Library Name	Description	Version	Library Installation Requirement
LVGL	Graphics Library	v8.4.0	"Offline" Installation

Running Your First Arduino Program

If you are new to ESP32 and Arduino and don't yet know how to create, compile, flash, and run an Arduino ESP32 program, please expand this section. We hope this helps you get started!

Create a New Project

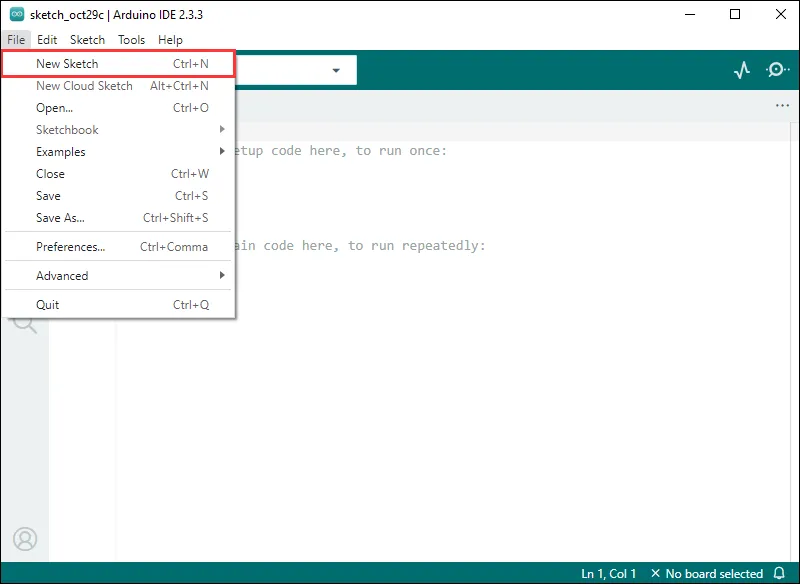

Run Arduino IDE and select **File** -> **New Sketch**.

Enter the code:

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
}

void loop() {
  // put your main code here, to run repeatedly:
  Serial.println("Hello, World!");
  delay(2000);
}

Save the code project by selecting **File** -> **Save As...**; in the pop-up menu, choose the project path and enter the project name, e.g., Hello_World, then click **Save**.

Compile and Flash the Program

Select the corresponding development board. Take the ESP32-S3 main board as an example:

①. Click the dropdown option "Select Other Board and Port";
②. Search for the required board model "esp32s3 dev module" and select it;
③. Select the COM port;
④. Save the selection.
ESP32-S3-AMOLED-1

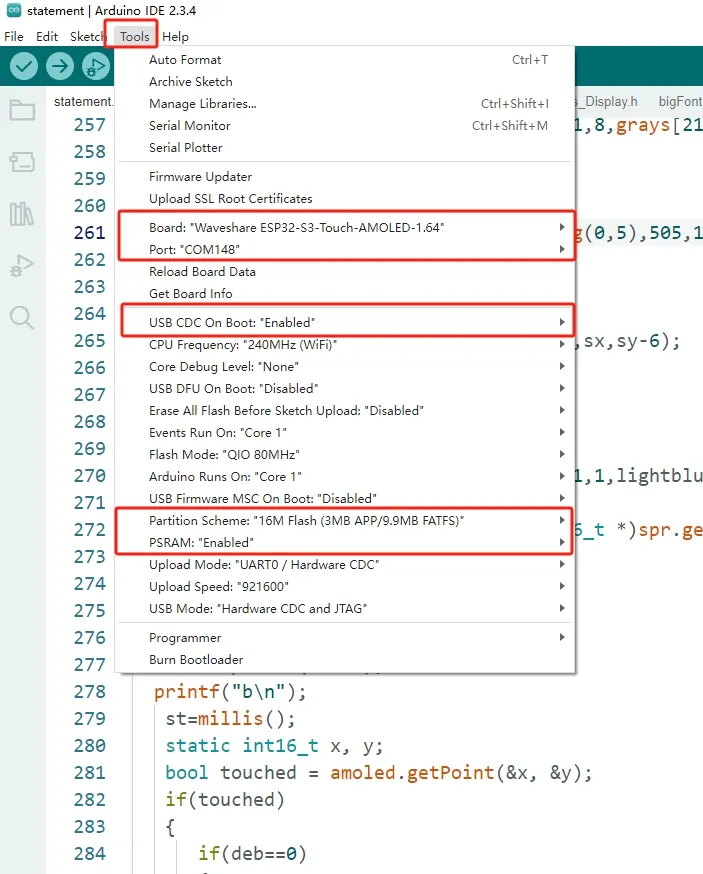

If the ESP32-S3 main board only has a USB port, you need to enable USB CDC, as shown below:

ESP32-S3-AMOLED-1

Compile and upload the program:

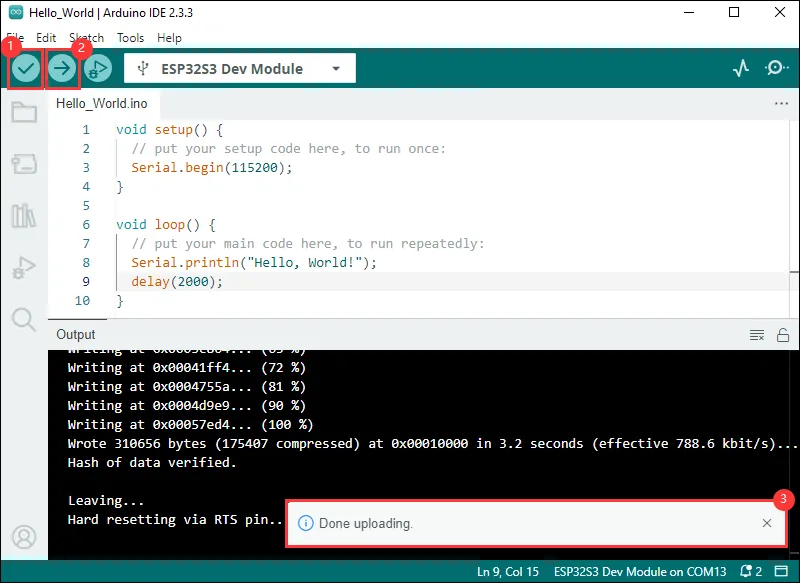

①. Compile the program; ②. Compile and upload the program; ③. Upload successful.
ESP32-S3-AMOLED-1

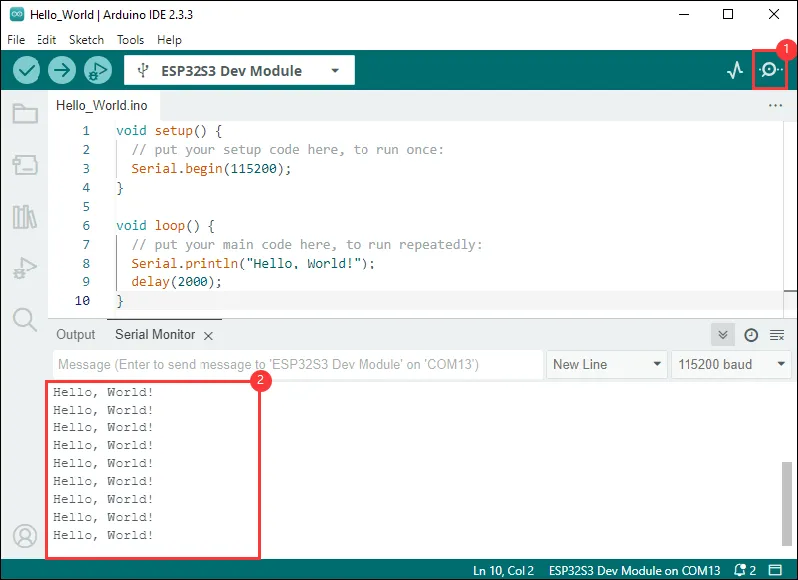

Open the Serial Monitor window. The program will print "Hello World!" every 2 seconds. The output is shown below:

ESP32-S3-AMOLED-1

Example

Demo-flow-01

ESP32-S3-Touch-AMOLED-1.64 Example Programs

Example	Basic Description	Dependency Library
01_ADC_Test	Read the current system voltage value	-
02_I2C_QMI8658	Print raw data from the IMU	-
03_SD_Card	Load and display TF card information	-
04_WIFI_AP	Set to AP mode to obtain MAC addresses of connected devices	-
05_WIFI_STA	Set to STA mode to connect to Wi-Fi and obtain an IP address	-
06_LVGL_Test	LVGL example	LVGL

Arduino Project Settings

ESP32-S3-Touch-AMOLED-1

01_ADC_Test

Example Description

The analog voltage connected via GPIO is converted to a digital value by the ADC. The actual system voltage is then calculated and printed to the terminal.

Hardware Connection

Connect the board to the computer using a USB cable.

ESP32-S3-Touch-AMOLED-1

Code Analysis

adc_bsp_init(void): Initializes ADC1, including creating an ADC one-shot trigger unit and configuring Channel 3 of ADC1.
adc_get_value(float *value,int *data): Reads the value from Channel 3 of ADC1, calculates the corresponding voltage based on the reference voltage and resolution, and stores it at the location pointed to by the passed pointer. Stores 0 if the read fails.
adc_example(void parameter): After initializing ADC1, creates an ADC task that reads the ADC value every 1 second and calculates the system voltage from the raw ADC value.

Operation Result

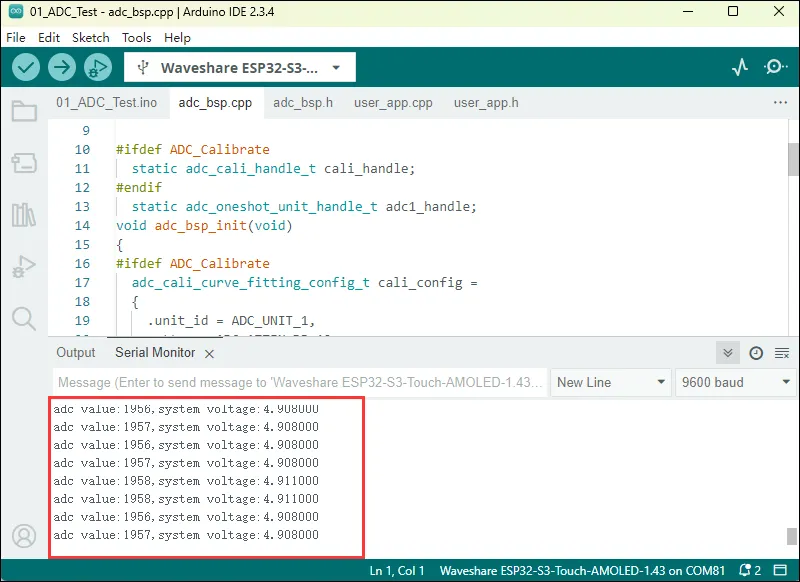

After the program is compiled and downloaded, you can view the printed ADC values and voltage output by opening the Serial Monitor, as shown in the following image:

ESP32-S3-Touch-AMOLED-1

The ADC sampling value is around 1900, and the system voltage is about 4.9V. For detailed analysis, refer to the schematic.

02_I2C_QMI8658

Example Description

The QMI8658 chip is initialized via the I2C protocol, and then the corresponding attitude information is read and printed to the terminal every 1 second.

Hardware Connection

Connect the board to the computer using a USB cable (refer to Example 01).

Code Analysis

qmi8658c_example(void parameter): This function initializes the QMI8658 device and, in an infinite loop, reads and prints accelerometer, gyroscope, and temperature data every 1 second. As the board rotates, the gyroscope data increases with rotation speed, and the accelerometer calculates the corresponding acceleration based on the current position.

Operation Result

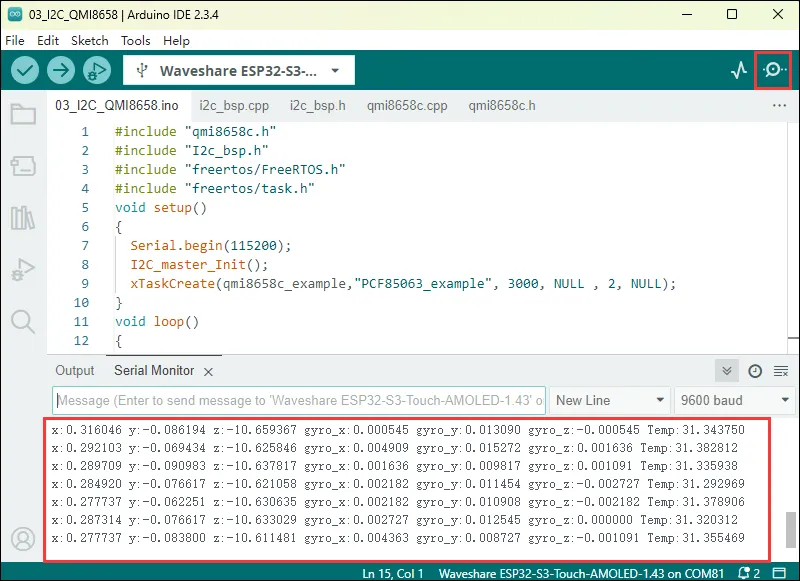

Open the serial monitor to view the raw data output from the IMU (Euler angles require conversion), as shown in the figure below:

ESP32-S3-Touch-AMOLED-1

Data is output every 1 second. For modifications or reference, you can directly access the qmi source file.

03_SD_Card

Example Description

The TF card is driven via SPI or SDMMC, selected by macro definition. After successfully mounting the TF card, its information is printed to the terminal.

Hardware Connection

Insert a TF card (must be smaller than 64GB) into the board, then connect the board to the computer using a USB cable (refer to Example 01).

Code Analysis

The communication protocol for the TF card can be selected by the user. In the sd_card_bsp.cpp source file, find the #define SDMMC_U macro definition and uncomment it to use SDMMC mode to drive the TF card.
```
//#define SDMMC_U
```

Operation Result

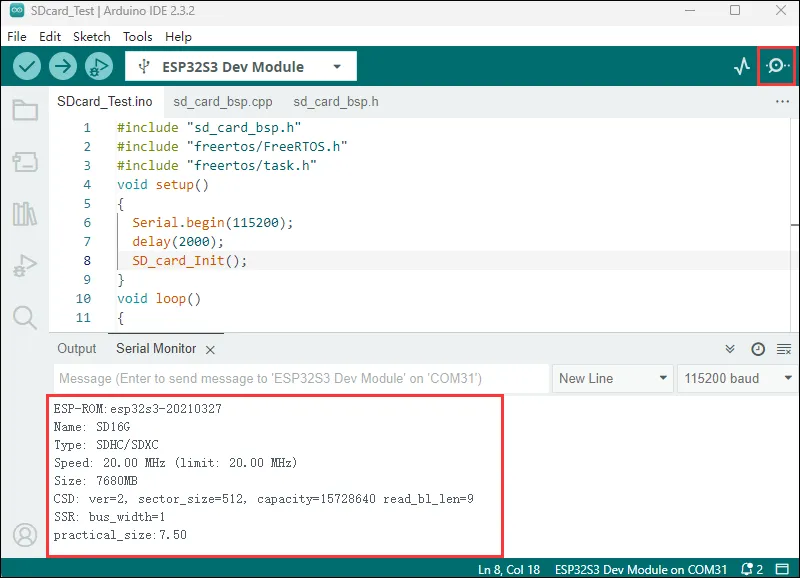

Click to open the Serial Monitor device. You can see the output TF card information; practical_size indicates the actual capacity of the TF card, as shown below:

ESP32-S3-AMOLED-1

Want to learn more about using TF cards with the Arduino ESP32 library? Please refer to Arduino ESP32 TF Library Usage

04_WIFI_AP

Example Description

This example can set the development board as a hotspot, allowing phones or other devices in STA mode to connect to the development board.

Hardware Connection

Connect the board to the computer using a USB cable (refer to Example 01).

Code Analysis

In the 05_WIFI_AP.ino file, locate ssid and password. Phones or other STA-mode devices can then connect to the board using this SSID and password.
```
const char *ssid = "ESP32_AP";
const char *password = "12345678";
```

Operation Result

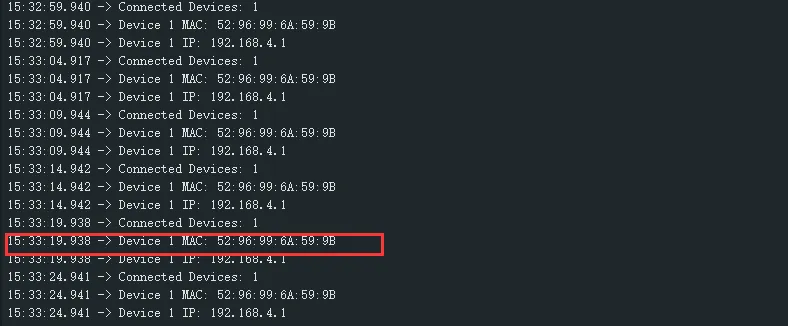

After flashing the program, open the serial terminal, if the device is successfully connected to the hotspot, the MAC address of the device will be output, as shown in the figure: ESP32-S3-LCD-1

05_WIFI_STA

Example Description

This example sets the development board as a station, allowing it to connect to an available AP. After successful connection, it prints the obtained IP information to the terminal.

Hardware Connection

Connect the board to the computer using a USB cable (refer to Example 01).

Code Modification

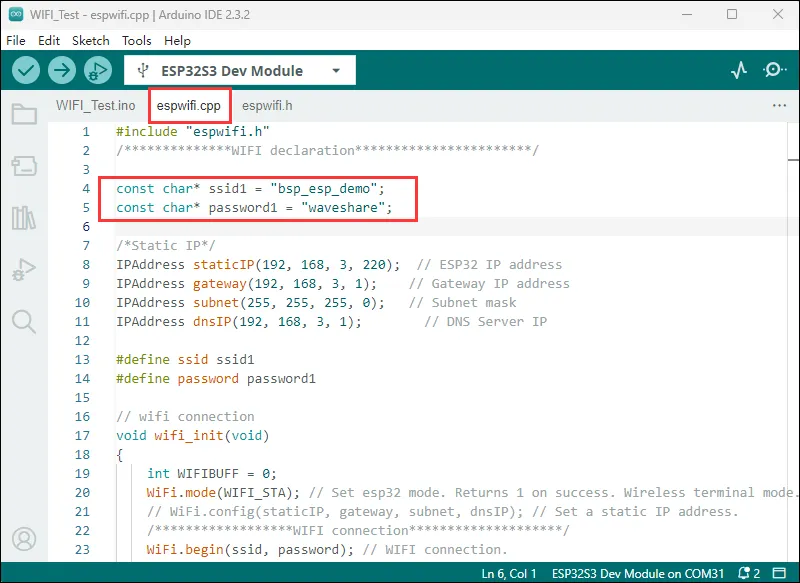

This project configures the chip in STA mode to connect to Wi-Fi and obtain an IP address. Before compiling and downloading the firmware, some code modifications are required. You must change the Wi-Fi router name and password to those available in your environment.
ESP32-S3-AMOLED-1

Code Analysis

wifi_init(void): This function initializes the Wi-Fi connection for the ESP32. It sets the ESP32 to Wi-Fi station mode and attempts to connect to the specified Wi-Fi network (via ssid and password). If successful, it prints the local IP address; if it fails to connect within a certain period (20 * 500 ms), it prints a connection failure message. The function can also enable auto-connect and auto-reconnect features.

Operation Result

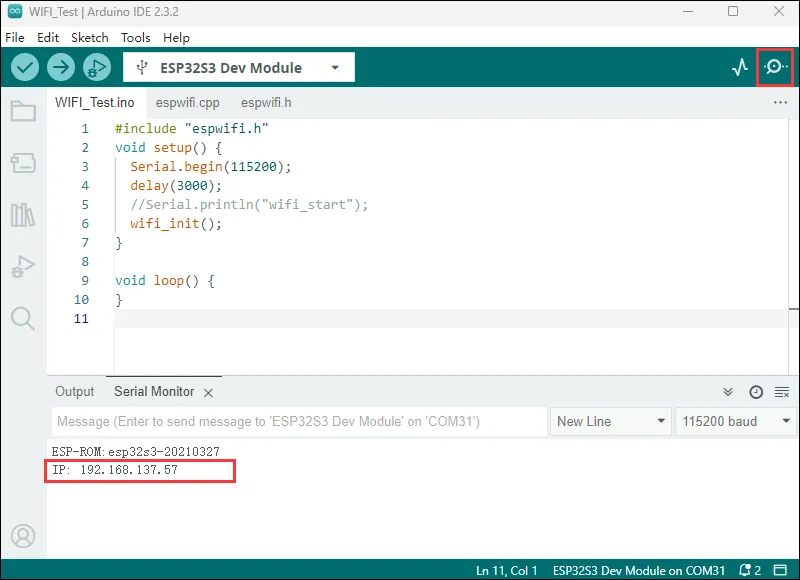

The chip successfully connects to Wi-Fi in STA mode, and after clicking on the Serial Monitor, you can see the obtained IP address, as shown in the figure.

ESP32-S3-AMOLED-1

06_LVGL_Test

Example Description

Implements multifunctional GUI interfaces on the screen by porting LVGL.

Hardware Connection

Connect the board to the computer using a USB cable (refer to Example 01).

Code Analysis

For LVGL, lvgl_conf.h is its configuration file. Some common settings are described below. LVGL examples and file systems can also be configured in the conf file.

/*Color depth: 1 (1 byte per pixel), 8 (RGB332), 16 (RGB565), 32 (ARGB8888)*/
#define LV_COLOR_DEPTH 16//Color depth, a macro definition that must be concerned with porting LVGL


#define LV_MEM_CUSTOM 0
#if LV_MEM_CUSTOM == 0
    /*Size of the memory available for `lv_mem_alloc()` in bytes (>= 2kB)*/
    #define LV_MEM_SIZE (48U * 1024U)          /*[bytes]*/

    /*Set an address for the memory pool instead of allocating it as a normal array. Can be in external SRAM too.*/
    #define LV_MEM_ADR 0     /*0: unused*/
    /*Instead of an address give a memory allocator that will be called to get a memory pool for LVGL. E.g. my_malloc*/
    #if LV_MEM_ADR == 0
        #undef LV_MEM_POOL_INCLUDE
        #undef LV_MEM_POOL_ALLOC
    #endif

#else       /*LV_MEM_CUSTOM*/
    #define LV_MEM_CUSTOM_INCLUDE <stdlib.h>   /*Header for the dynamic memory function*/
    #define LV_MEM_CUSTOM_ALLOC   malloc
    #define LV_MEM_CUSTOM_FREE    free
    #define LV_MEM_CUSTOM_REALLOC realloc
#endif     /*LV_MEM_CUSTOM*/
//The above section is mainly for LVGL memory allocation,
//which defaults to lv_mem_alloc() versus lv_mem_free().

Code Modification

The display chip itself does not support hardware rotation. If rotation is needed, it can be implemented in software. In the lcd_bsp.c file, find the #define EXAMPLE_Rotate_90 macro definition and uncomment it to enable software rotation. Note that software rotation performance is inferior to hardware rotation.
```
//#define EXAMPLE_Rotate_90
```

Operation Result

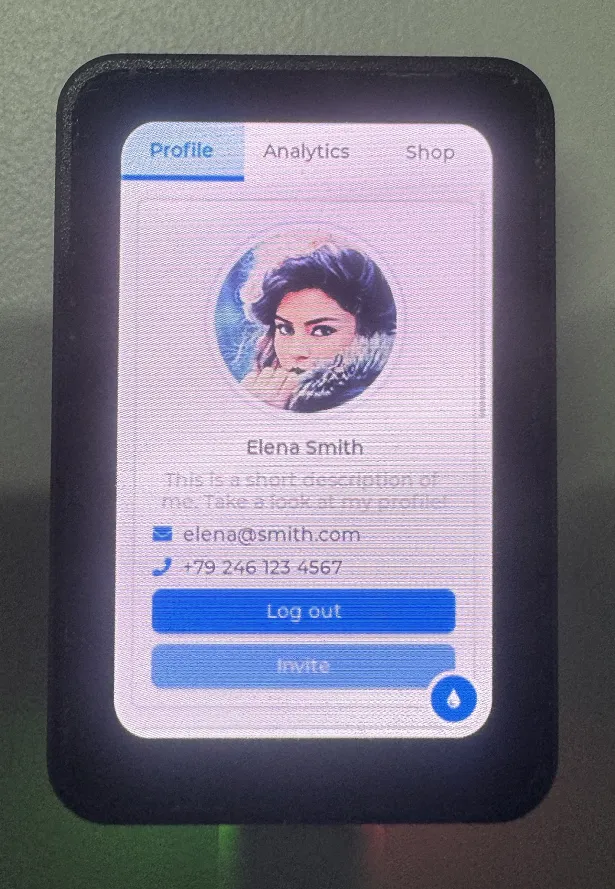

The LVGL example has relatively high requirements for RAM and ROM, so the program must be configured according to the environment setup requirements. After flashing, the device's operation effect is as follows:

ESP32-S3-Touch-AMOLED-1

For more learning and usage of LVGL, refer to the LVGL official documentation
