Working with Raspberry Pi Pico

This chapter contains the following sections. Please read as needed:

• Setting Up Development Environment
• Example

Setting Up Development Environment

1. Installation and Configuration

• For setting up the Raspberry Pi Pico environment and basic usage, please refer to the following links:
  • Arduino Pico
  • Micropython
• After setting up the environment, connect the sensor and download the example package.

Example

Hardware Connection

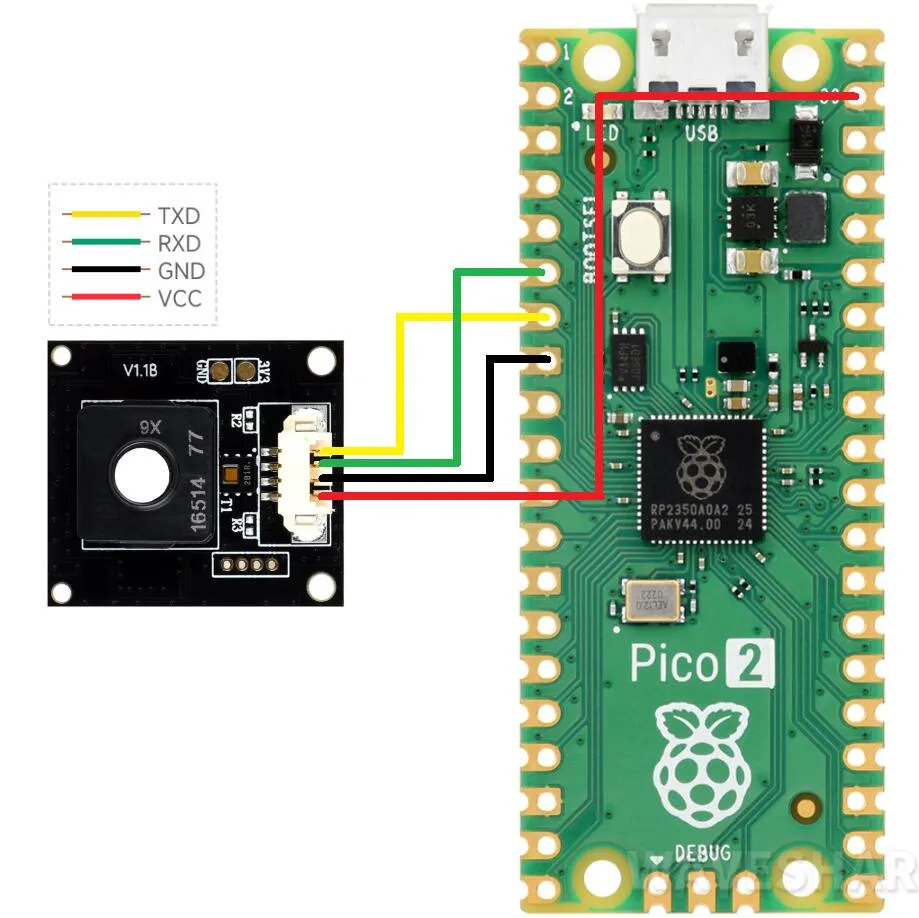

Refer to the following diagrams for connection

Run Arduino Pico Demo

• Navigate to Environment-X6-Sensor\examples\pico\arduino\environment_x6_sensor_test and double-click environment_x6_sensor_test.ino to open the project.

• Select the chip model and port.



• After uploading, open the serial port monitor, and the relevant information will be output.

Run MicroPython Demo

• First flash the Raspberry Pi Pico with MicroPython firmware.

• Navigate to Environment-X6-Sensor\examples\pico\micropython and double-click the environment_x6_sensor_test.py file.

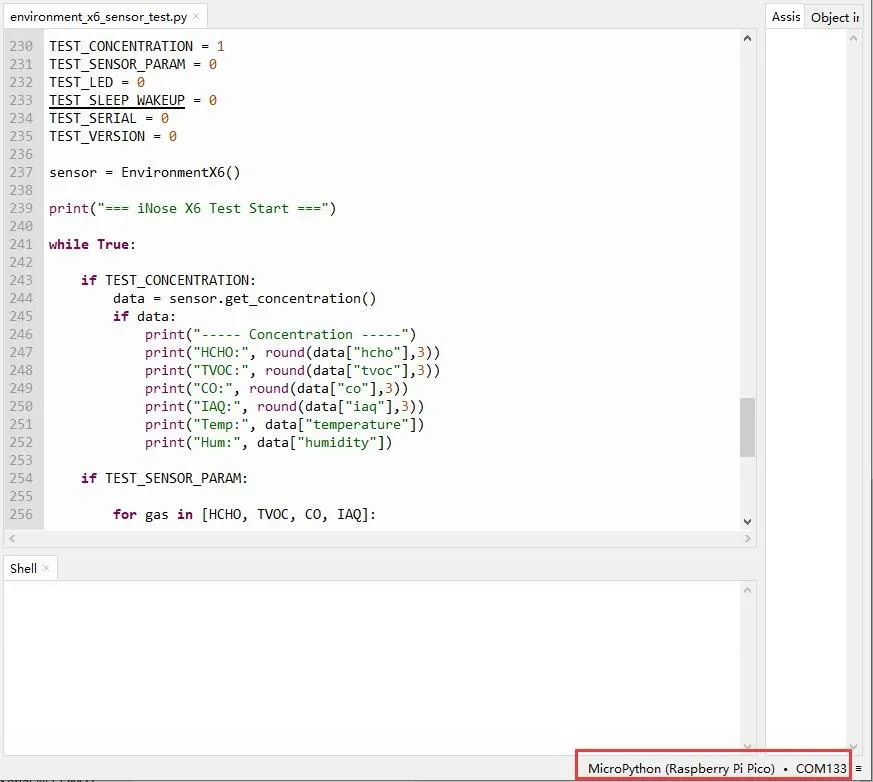

• Select the development board.



• Select the port for the Raspberry Pi Pico, then run the program.

• The relevant information will be output in the Shell.
