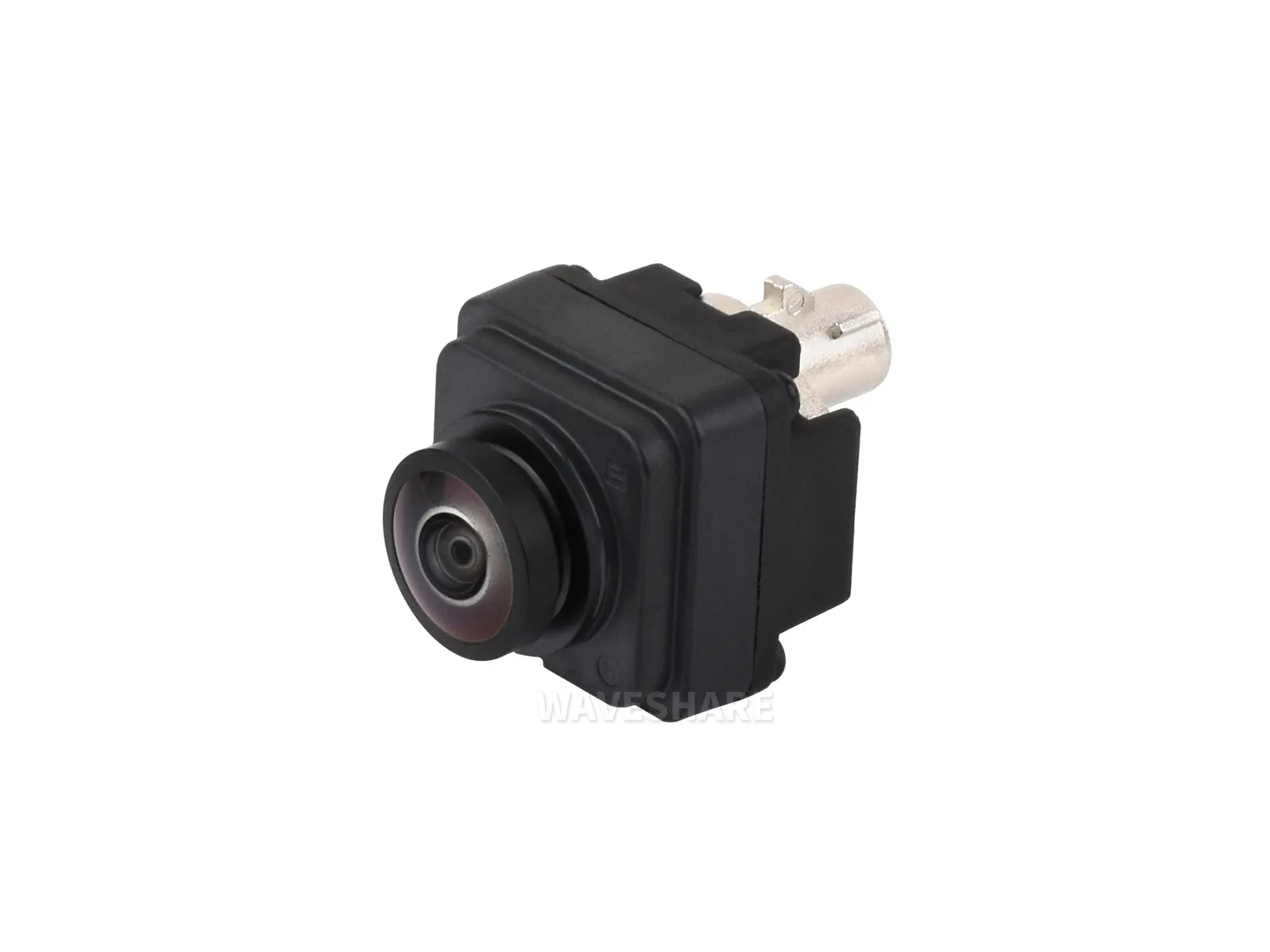

GMSL-1MP-Camera-A
The GMSL-1MP-Camera-A camera module uses a 1‑megapixel automotive‑grade CMOS image sensor, integrates a MAXIM MAX96701 GMSL serializer, and features a professionally tuned Image Signal Processor (ISP) for clear and stable imaging. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.
| SKU | Product |
|---|---|
| 34552 | GMSL-1MP-Camera-A |
Specifications
| Sensor | Model | 1.3MP RGGB |
| Resolution | 1280× 960 | |
| CMOS Size | 1/3.55inch | |
| Pixel Size | 3.0um × 3.0um | |
| Lens | Field of View (H × V) | 196° × 151° |
| Core Performance | ISP | Built‑in |
| Frame Rate | 1280 × 960@30fps | |
| Output Format | YUV422@8bit | |
| Serializer | Model | MAXIM MAX96701 |
| I2C Address | 0x80 (8‑bit address) | |
| Interface & Environment | Camera Interface | GMSL (Fakra Z‑type connector) |
| Operating Voltage | 9 ~ 12V PoC | |
| Operating Current | ＜150mA@12V | |
| Operating Temperature | -40℃ ~ 85℃ | |
| Protection Rating | IP67 |
Hardware Specifications

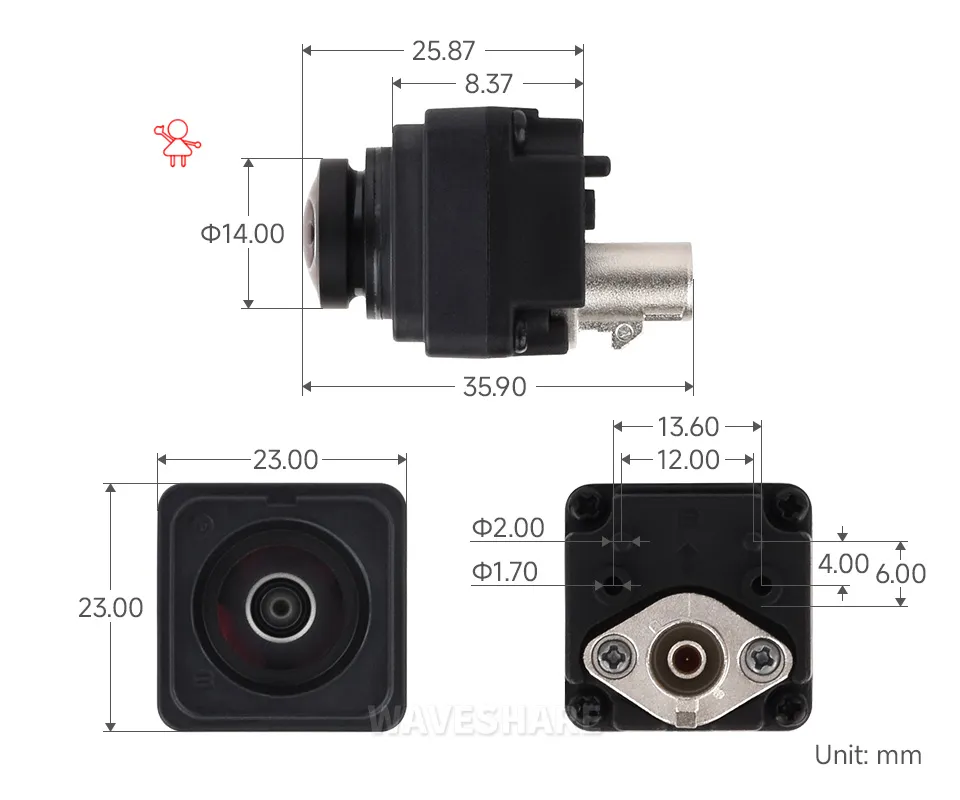

Dimensions
