MAX9296-GMSL-Deser-Module

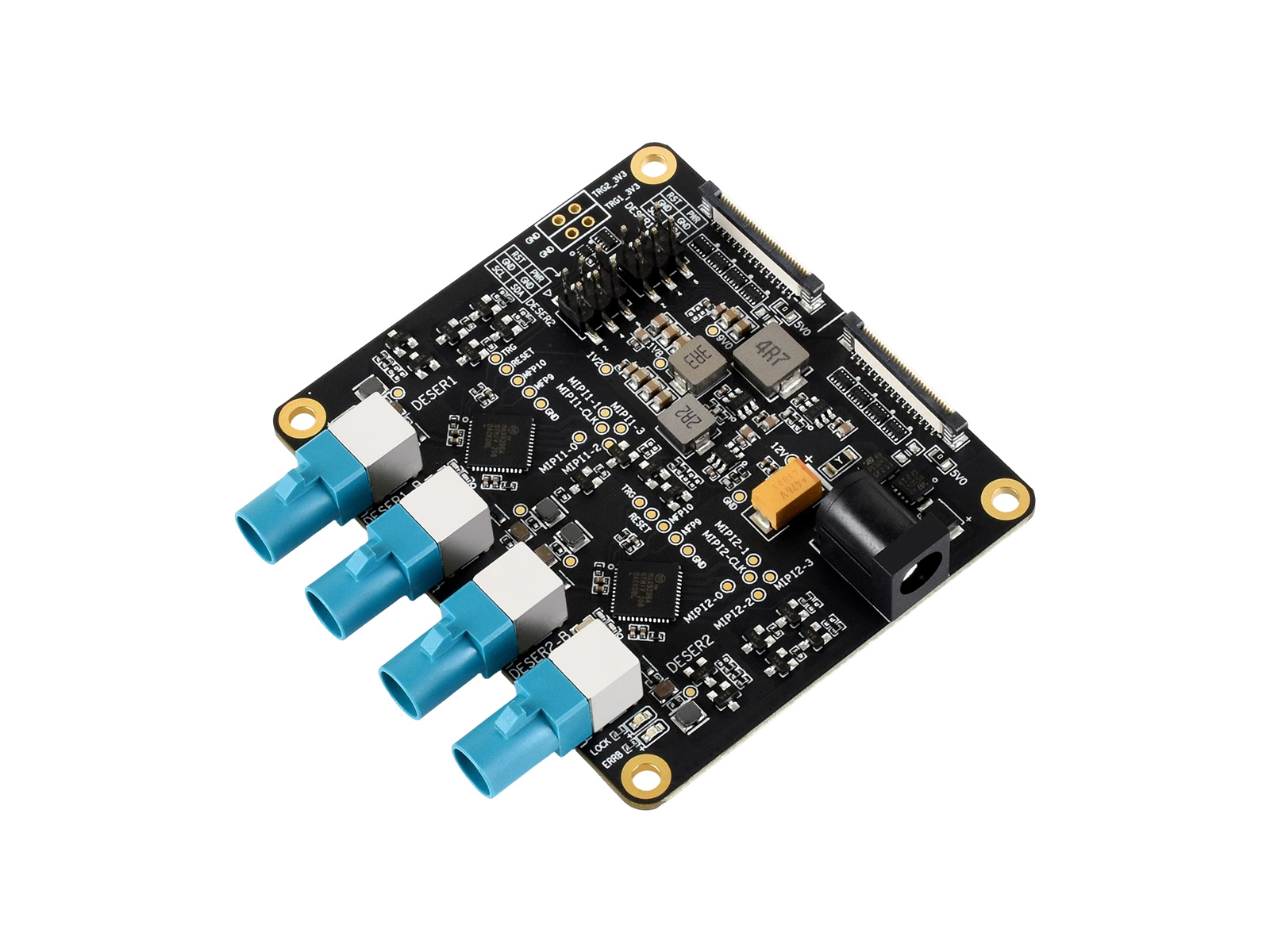

The GMSL-Module-Board-4CH-A is a GMSL camera expansion board that supports connecting up to four GMSL cameras simultaneously to a Raspberry Pi 5 mainboard. It is compatible with both GMSL1 and GMSL2 protocol interfaces, uses the MAX9296 chip, and is designed for applications requiring high-bandwidth, low-latency video transmission. It is suitable for fields such as autonomous driving, machine vision, and intelligent security.
| SKU | Product |
|---|---|
| 34128 | GMSL-Module-Board-4CH-A |
| 34371 | GMSL-Module-Board-4CH-A (EU) |
| 34372 | GMSL-Module-Board-4CH-A (UK) |
Specifications
| Type | Parameter |
|---|---|
| Deserializer | MAXIM (ADI) MAX9296 |
| Supported Mainboard | Raspberry Pi 5 |
| Compatible Serializers | MAX9295, MAX96717, MAX96705, etc. |
| Input | GMSL 1/2 (FAKRA Z connectors × 4) |
| Output | MIPI CSI (22PIN CSI connectors × 2) |
| Supported GMSL Cameras | ISX031, etc. |
| Power Supply | 12V/1A (5.5mm × 2.1mm) |
| Operating Temperature | -20°C ~ 65°C |
Hardware Specifications

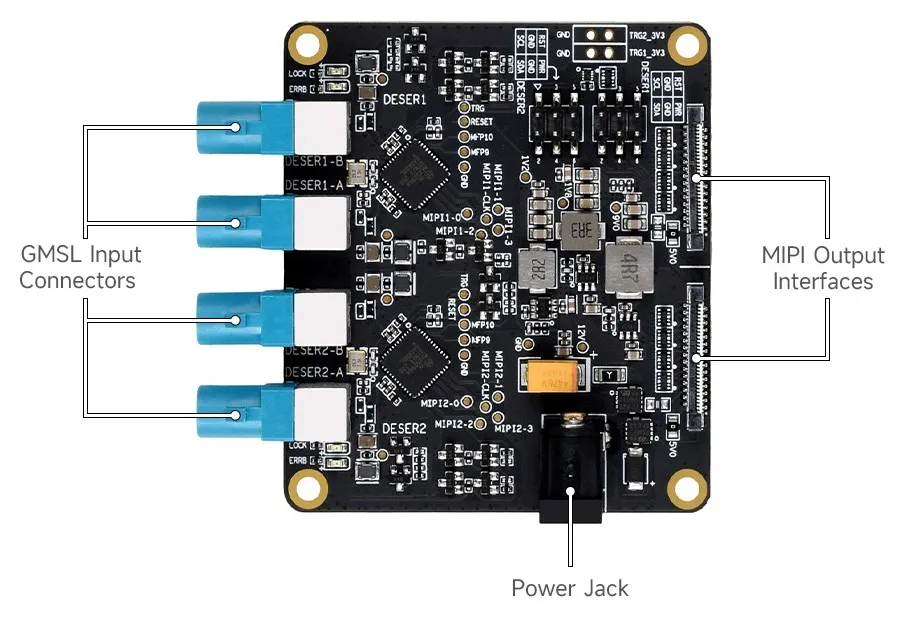

Interfaces
- MIPI Output Ports x2: 2 × MIPI 4‑lane 22PIN FPC connectors for connecting to the Raspberry Pi 5 mainboard.
- GMSL Input Ports x4: For connecting up to 4 GMSL cameras (FAKRA Z‑type), also provide PoC 12V power to the cameras.
- Power Connector: 12V input, powers the expansion board and the cameras.

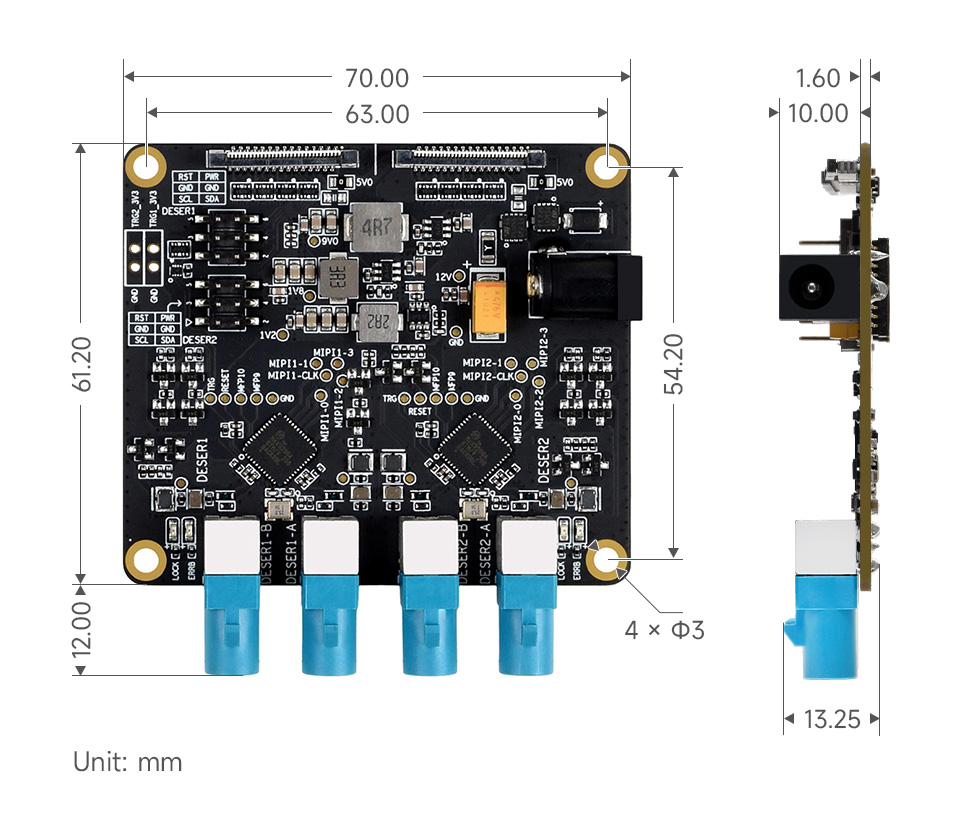

Dimensions
Supported Camera Models
| Camera Model | Serializer |
|---|---|
| ISX031-GMSL-Camera-H60 | Max96717 |
| ISX031-GMSL-Camera-H100 | Max96717 |
| ISX031-GMSL-Camera-H120 | Max96717 |
| ISX031-GMSL-Camera-H190 | Max96717 |
