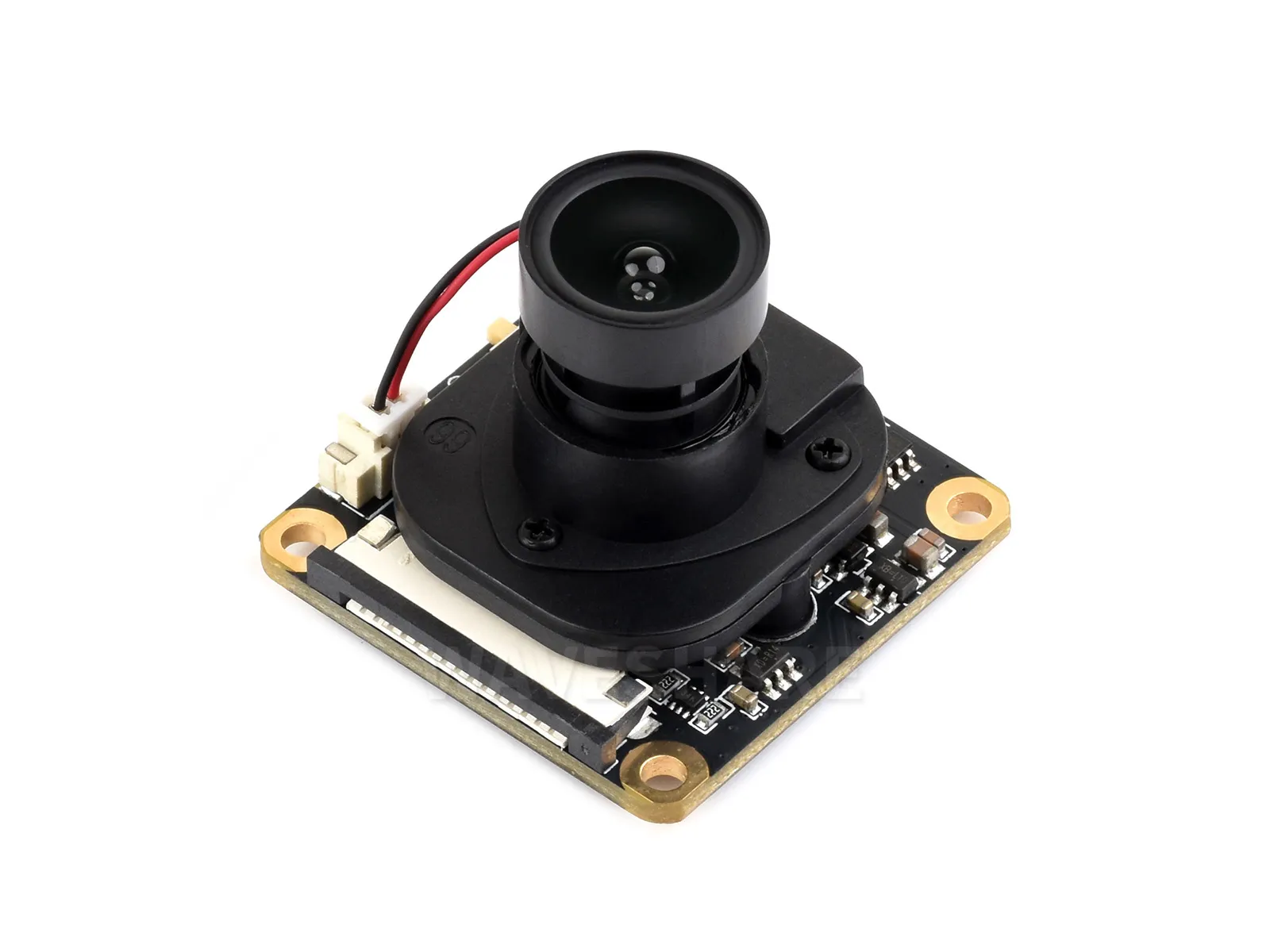

IMX291-83_IR-CUT_Camera
The IMX291-83 IR-CUT Camera features a Sony IMX291 starlight-class image sensor and is compatible with all Raspberry Pi mainboards and Compute Modules. It comes with a standard 83° lens and delivers 2-megapixel high-definition images. The onboard IR-CUT dual-filter switcher allows you to toggle between daytime full-color mode and nighttime infrared night vision mode with a single DIP switch, ensuring clear and stable imaging day and night.
| SKU | Product |
|---|---|
| 34494 | IMX291-83 IR-CUT Camera |
Specifications
| Category | Parameter |
|---|---|
| Sensor | Sony IMX291 |
| Pixel | 2MP (1920 x 1080) |
| Focus Type | Fixed focus |
| CMOS Size | 1/2.8inch |
| Aperture | F2.0 |
| Distortion | < 33% |
| Focal Length | 3.95mm |
| Diagonal Field of View (FoV) | 83° |
| IR Cut Filter | IR-CUT |
| Operating Temperature | 0°C ~ 50°C |
| Supported Devices | Compatible with all Raspberry Pi motherboards |

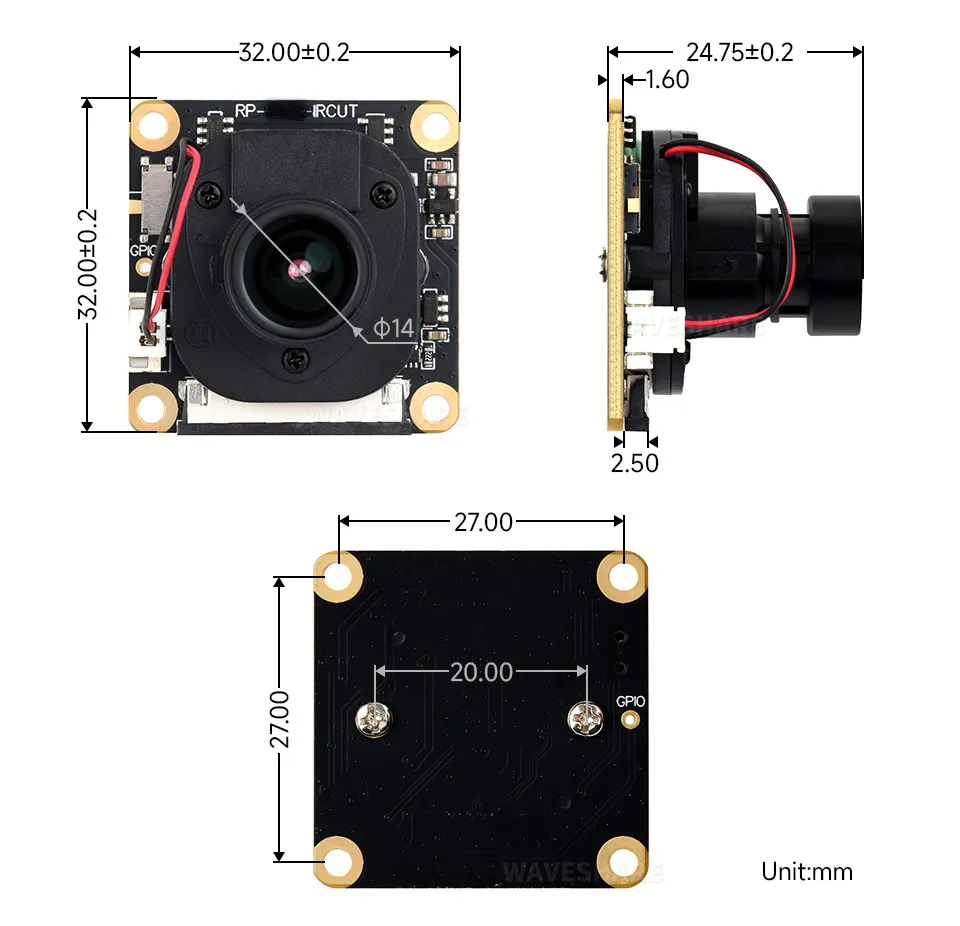

Dimensions
