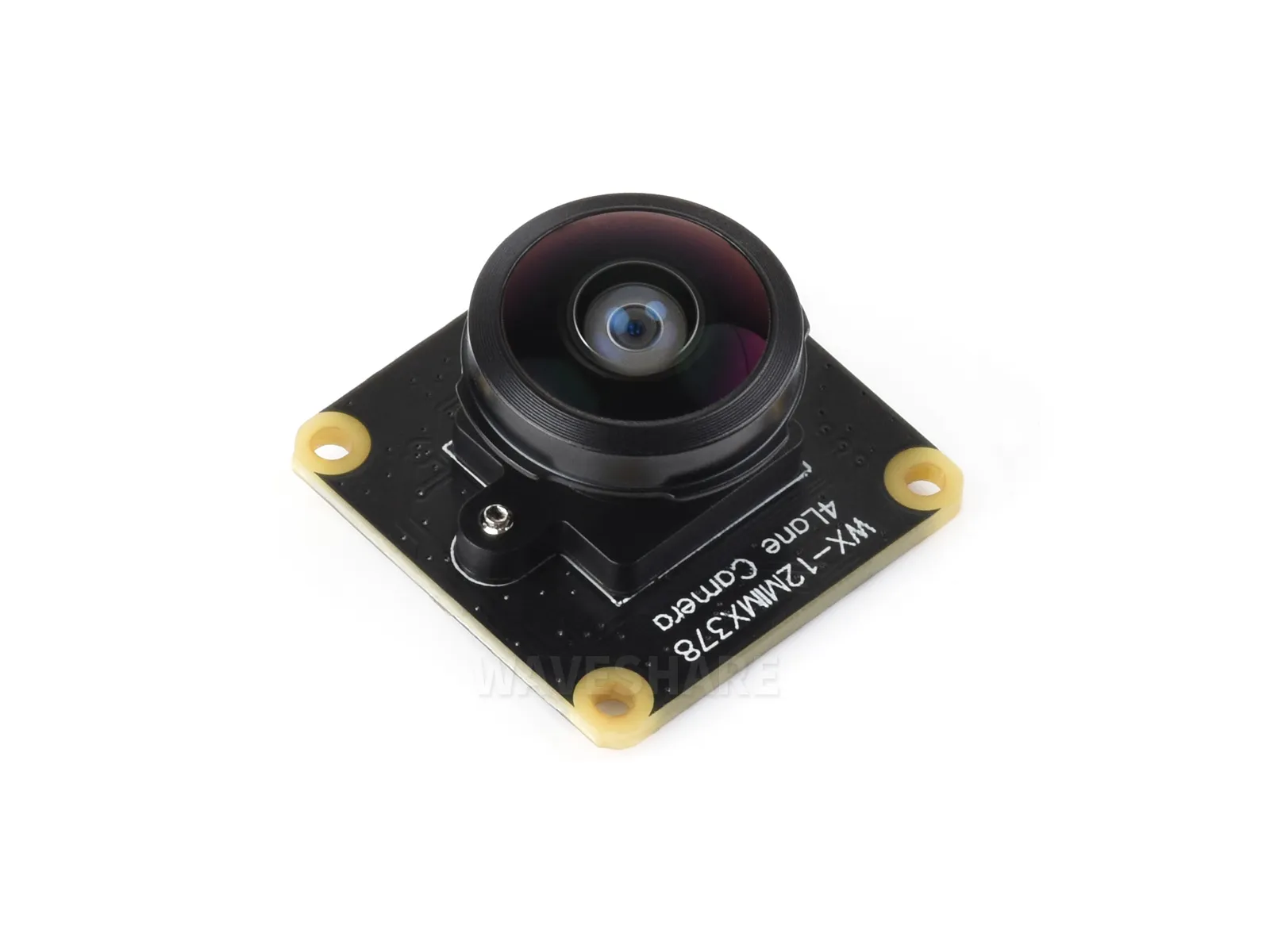

IMX378-190 12.3MP Camera (B)
The IMX378-190 12.3MP Camera (B) features the Sony IMX378 back-illuminated CMOS image sensor and is compatible with all Raspberry Pi boards and Compute Modules. It is equipped with a 190° fisheye lens, which delivers 12.3 megapixel high-definition image quality.
| SKU | Product |
|---|---|
| 34709 | IMX378-190 12.3MP Camera (B) |
Specifications
| Category | Parameter |
|---|---|
| Sensor | Sony IMX378 |
| Resolution | 12.3MP (4056 × 3040) |
| Focus Type | Fixed focus |
| CMOS Size | 1/2.3inch |
| Aperture | F2.4 |
| Distortion | < 58% |
| Focal Length | 6.5mm |
| Diagonal Field of View (DFoV) | 190° |
| Shutter Type | Rolling Shutter |
| IR-cut Filter | 650 nm |
| Operating Temperature | 0°C ~ 50°C |
| Supported Devices | Compatible with all Raspberry Pi motherboards |

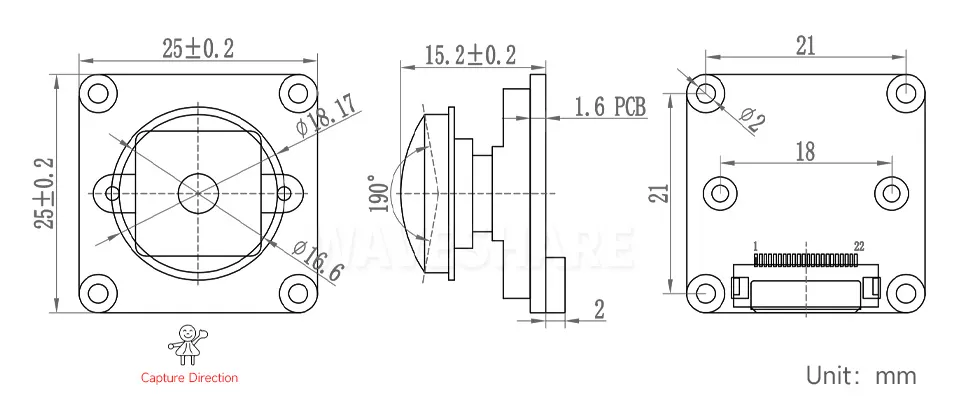

Dimensions
