IMX415-8MP-USB-Camera-A

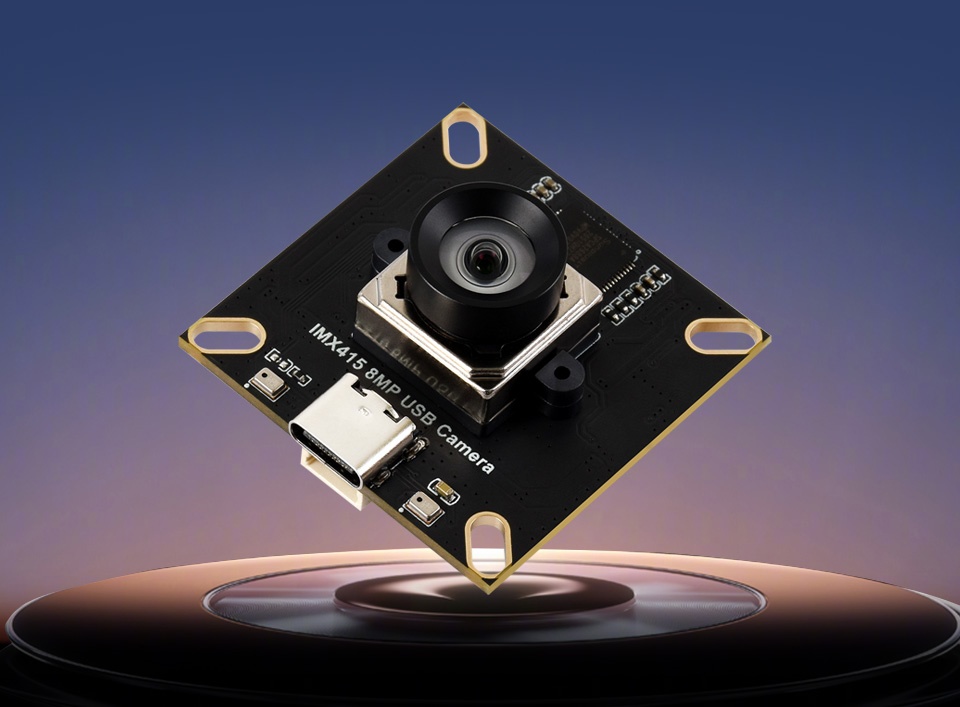

The IMX415 8MP USB Camera module is equipped with an IMX415 8MP sensor chip. The module features a 95.5° wide-angle, distortion-free lens with autofocus, dual microphones for USB audio recording. It is equipped with a USB2.0 Type-C port, convenient and easy to connect.

Specifications

Type	Specification
Pixel	8MP
Sensor Chip	IMX415
Interface Type	USB2.0 Type-C
Camera Specifications	Sensor Size	1/2.8inch
	Aperture (FNO)	2.4
	Focal Length (EFL)	2.88mm
	Diagonal Field of View	95.5°
	Focus Type	Autofocus
Image Capability	Supported Format	MJPG
	Still Image Resolution	3840× 2160
	Video Frame Rate	30 FPS 3840 × 2160 30 FPS 2880 × 2160 30 FPS 2048 × 1536 60 FPS 1920 × 1080
Audio	Onboard Dual Microphones
Operating Voltage	5V ± 5%
Operating Temperature	0°C ~ 50°C
Module Dimensions	38.00 × 38.00 mm

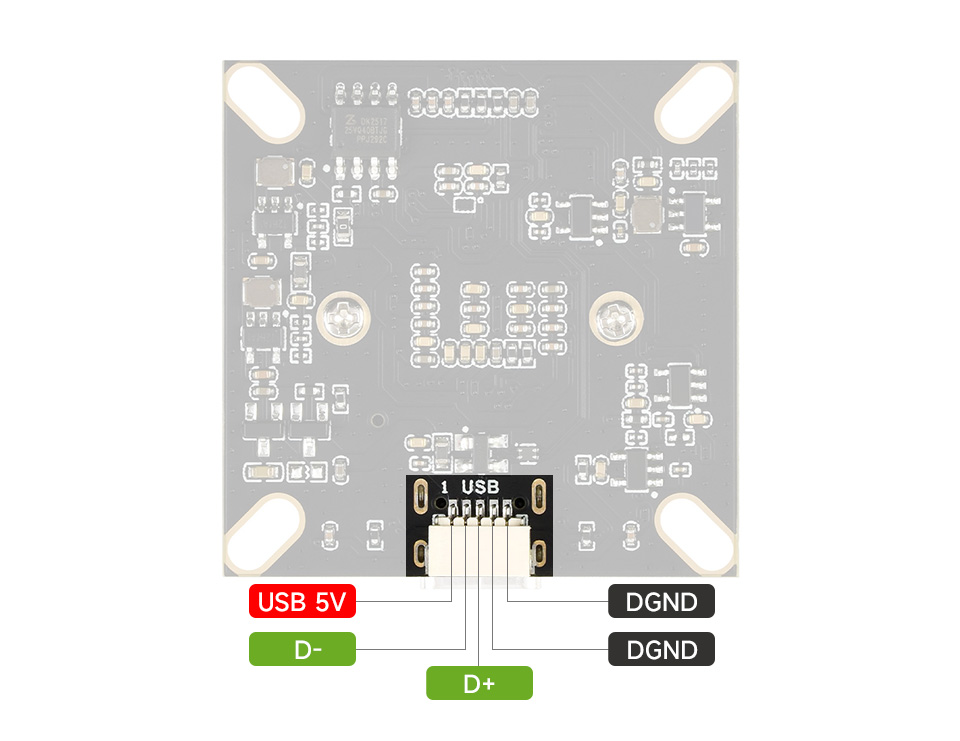

Pinout Definition

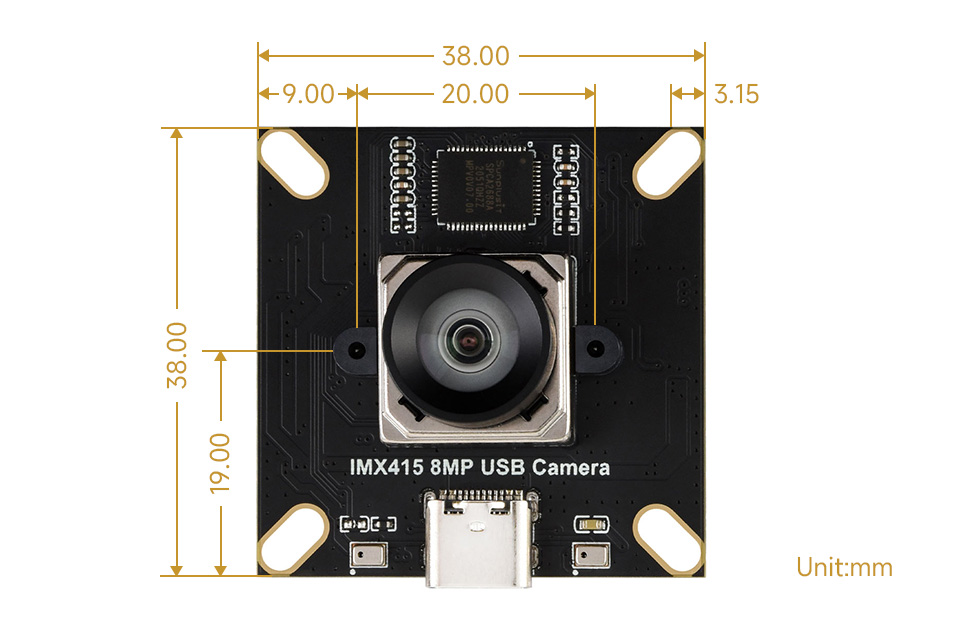

Dimensions
