IMX415-8MP-USB-Camera-B

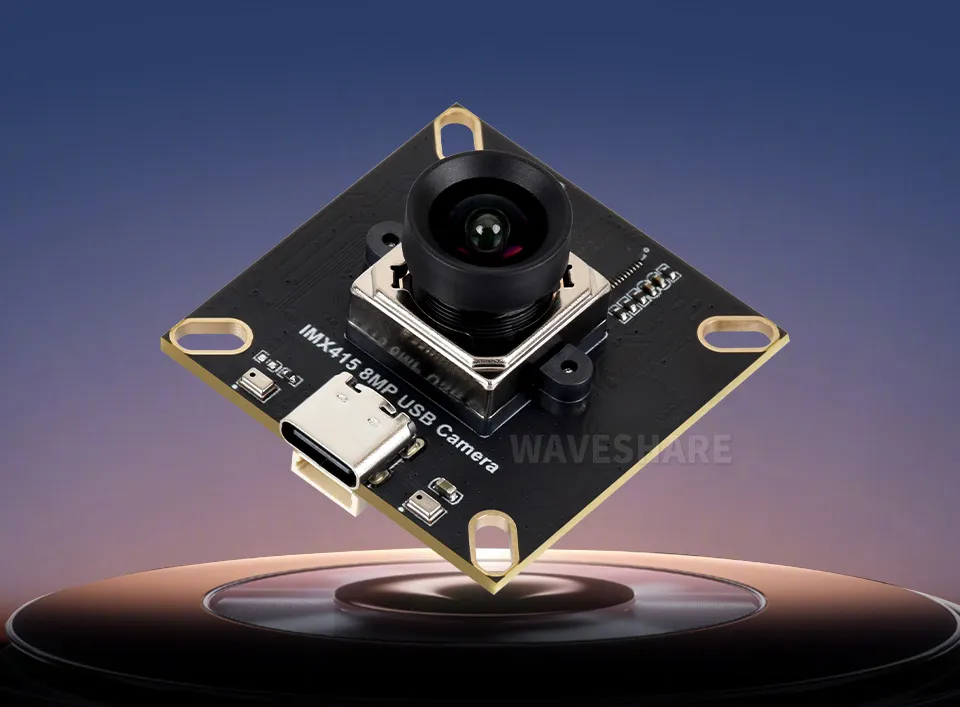

The IMX415 8MP USB Camera (B) module features the IMX415 8-megapixel image sensor chip. The module is equipped with a 93.5° wide-angle distortion-free lens (distortion -0.4%), supports autofocus, and has dual onboard microphones for USB audio recording. It uses a USB2.0 Type-C port and reserves a 1.0 mm pitch 5PIN terminal connector.
| SKU | Product |
|---|---|
| 35834 | IMX415 8MP USB Camera (B) |
Specifications
| Type | Parameter | |
|---|---|---|
| Pixels | 8MP | |
| Sensor Chip | IMX415 | |
| Interface Type | USB2.0 Type-C | |
| Camera Specifications | Sensor Size | 1/2.8inch |
| Aperture (FNO) | 2.2 | |
| Focal Length (EFL) | 3.3 mm | |
| Field of View (FoV) | 93.5°(D) × 85.2°(H) × 55.5°(V) | |
| TV Distortion | -0.4% | |
| Focus Type | Autofocus | |
| Image Capability | Supported Format | MJPG |
| Still Image Resolution | 3840× 2160 | |
| Video Frame Rate | 30 FPS 3840 × 2160 30 FPS 2880 × 2160 30 FPS 2048 × 1536 60 FPS 1920 × 1080 | |
| Audio | Onboard Dual Microphones | |
| Operating Voltage | 5V ± 5% | |
| Operating Temperature | 0°C - 50°C | |
| Module Dimensions | 38.00 × 38.00 mm | |

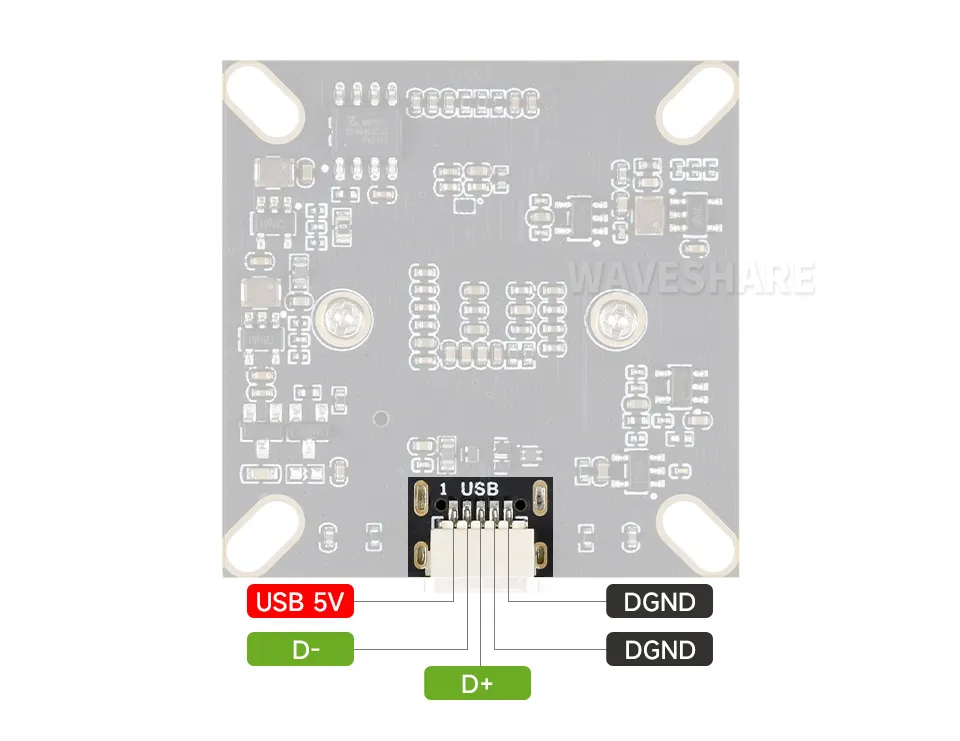

Pinout Definition

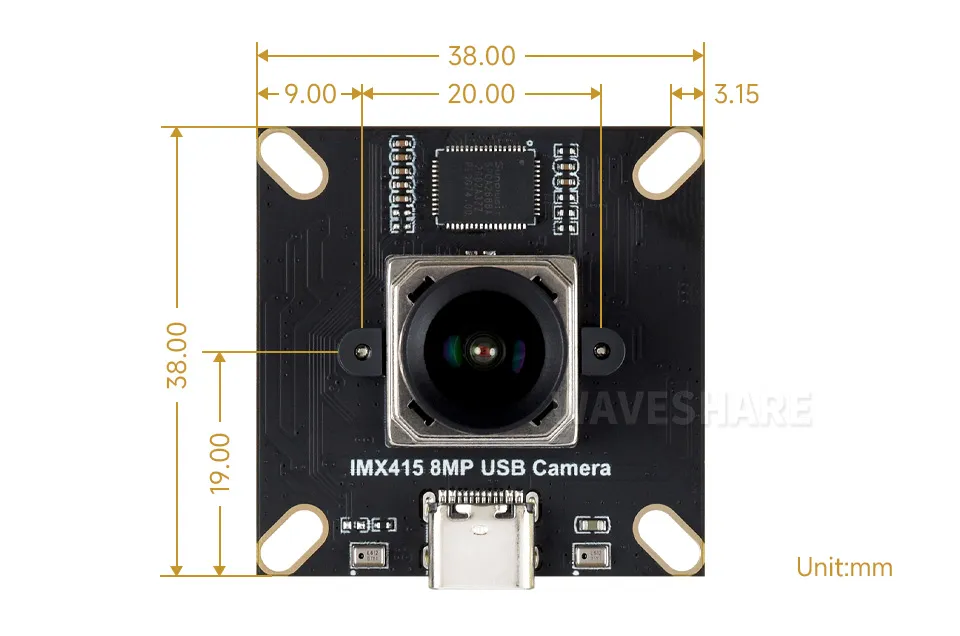

Dimensions
