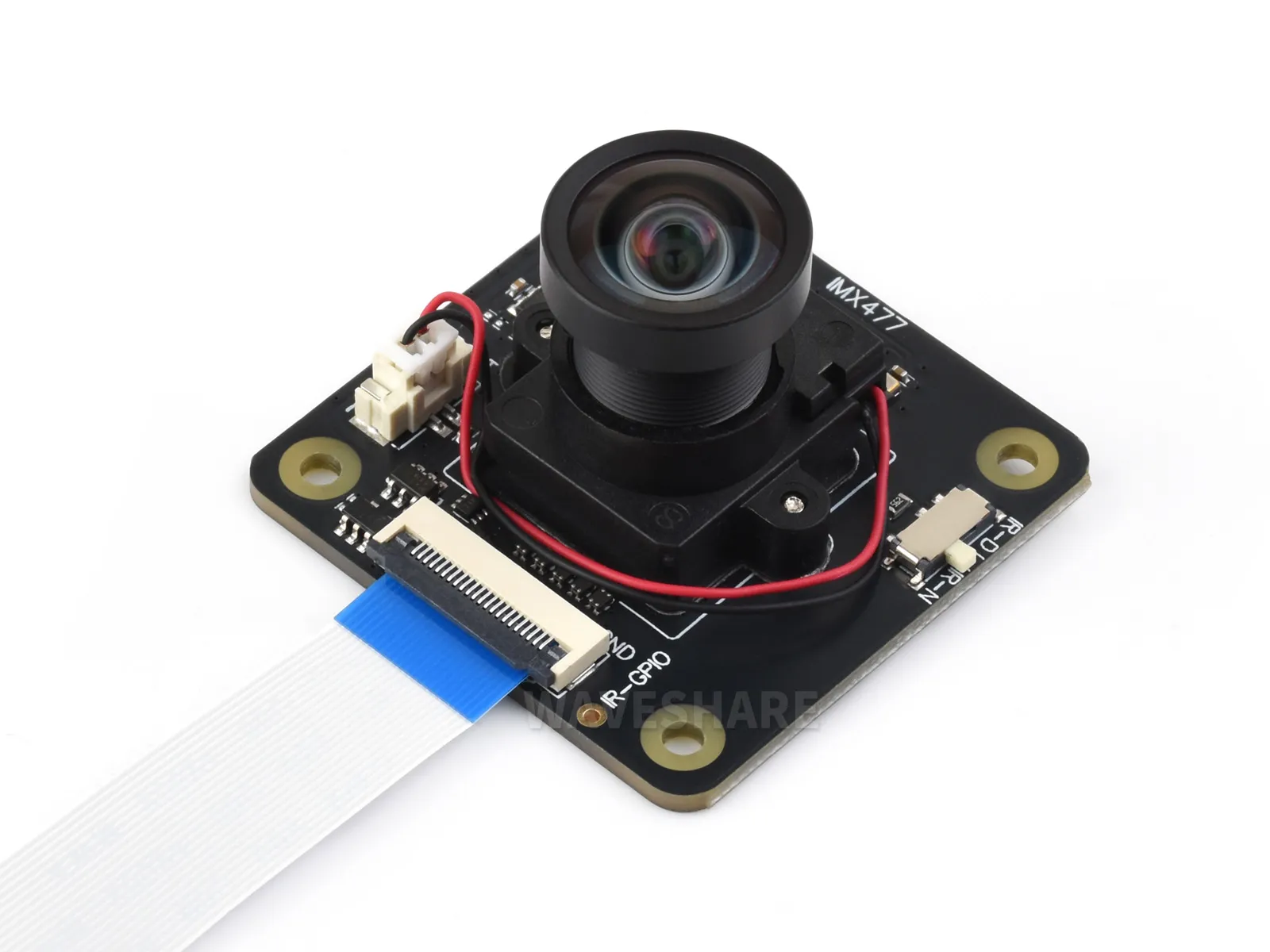

IMX477 IR-CUT Camera (B)
The IMX477 IR-CUT Camera (B) features the Sony IMX477 image sensor and is compatible with Raspberry Pi series boards and Compute Modules, Jetson series boards, and RDK series boards. Equipped with a 113° D-FOV wide-angle lens and 12.3-megapixel high-definition resolution, it includes an onboard IR-CUT dual-bandpass filter switch that can be toggled according to the application scenario, enabling full-color mode during the day and infrared night vision mode at night, delivering clear and stable imaging around the clock.
| SKU | Product |
|---|---|
| 34816 | IMX477 IR-CUT Camera (B) |
Specifications
| Category | Parameter |
|---|---|
| Sensor | Sony IMX477 |
| Resolution | 12.3MP (4056 × 3040) |
| CMOS Size | 7.9mm |
| Pixel Size | 1.55µm (H) × 1.55µm (V) |
| Shutter Type | Rolling Shutter |
| Aperture | F2.8 |
| Distortion | < -1.5% |
| Focal Length | 2.7mm |
| Field of View (FoV) | 113°(D) |
| IR Cut Filter | IR-CUT |

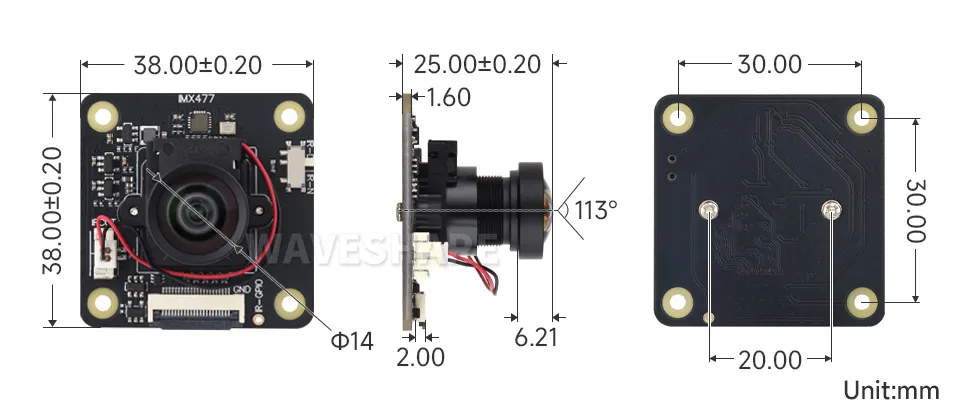

Dimensions
