IMX563-12MP-OIS-Camera-Module

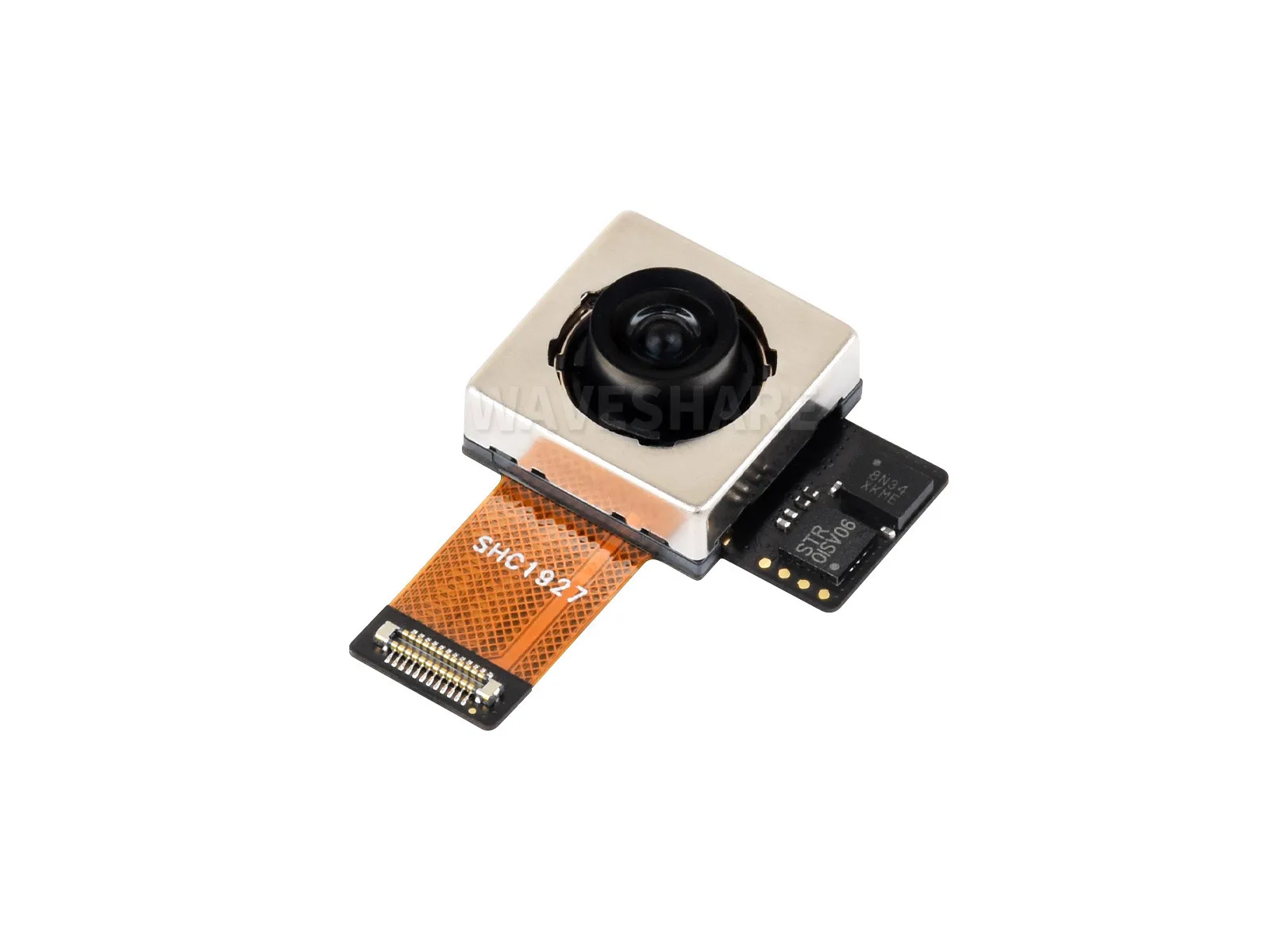

The IMX563 12MP OIS Camera Module features the Sony IMX563 12-megapixel image sensor. The module is equipped with a 122° ultra-wide-angle autofocus lens, supports dual-axis OIS (Optical Image Stabilization), and exposes a MIPI CSI-2 4-lane interface through a 24PIN board-to-board connector. Before use, you need to design a compatible carrier board circuit and develop the corresponding software driver.
| SKU | Product |
|---|---|
| 35215 | IMX563 12MP OIS Camera Module |
Specifications
| Category | Parameter |
|---|---|
| Image Sensor | Sony IMX563 |
| Resolution | 12MP (4032 × 3024) |
| CMOS Size | 1/2.55 inch |
| Pixel Size | 1.4 × 1.4 μm |
| Aperture | F2.2 |
| Focal Length | 2.17 mm |
| FOV (D×H×V) | 122° × 107.2° × 90.1° |
| Depth of Field | 10 cm to ∞ |
| Distortion | < 5.6% |
| Focus Mode | Autofocus |
| Optical Filter | Built-in 650 nm optical filter |
| Image Stabilization | OIS optical image stabilization (stabilization angle ±3°, greater than 25 dB) |
| VCM Driver IC | Focus DW9800V, OIS AKM7323 |
| Output Format | RAW 10/8 bit |
| Frame Rate | 120fps@Full resolution / 240fps@4K2K / 960fps@1080p |
| Interface | MIPI CSI-2 4 Lane, 24PIN board-to-board connector |
| Operating temperature | -20°C to 70°C |

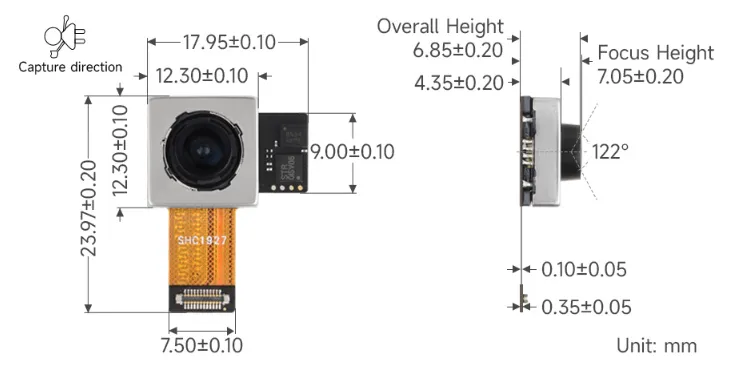

Dimensions
