IMX563-12MP-OIS-USB-Camera-A

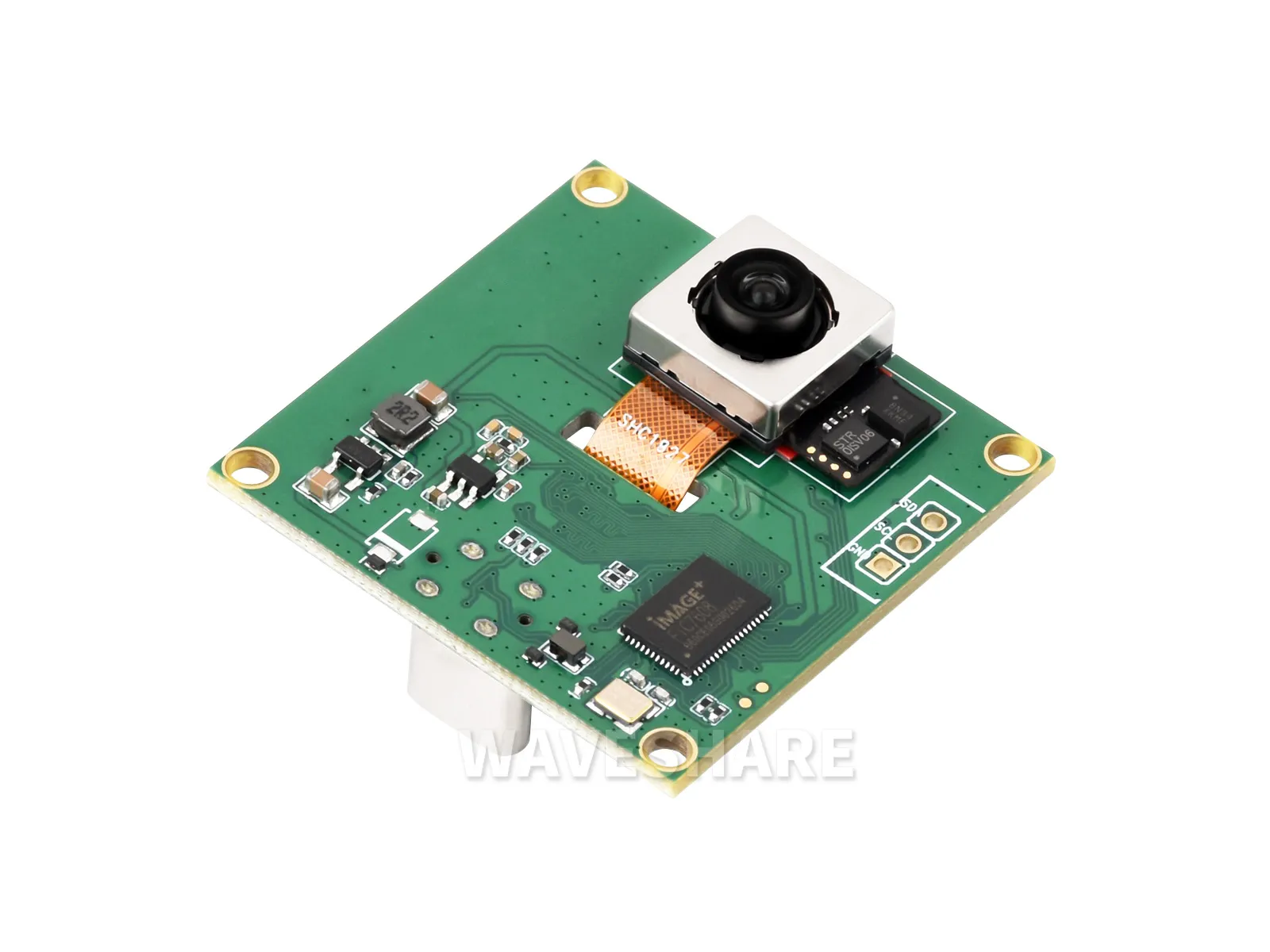

The IMX563 12MP OIS USB Camera (A) module features the Sony IMX563 12-megapixel image sensor. The module is equipped with a 122° ultra-wide-angle autofocus lens, supports dual-axis OIS (Optical Image Stabilization), and uses a USB 2.0 Type-C interface.
| SKU | Product |
|---|---|
| 35687 | IMX563 12MP OIS USB Camera (A) |
Specifications
| Type | Parameter | |
|---|---|---|
| Pixels | 12MP | |
| Sensor Chip | Sony IMX563 | |
| Interface Type | USB2.0 Type-C | |
| Camera Specifications | Sensor Size | 1/2.55 inch |
| Pixel Size | 1.4 × 1.4 μm | |
| Shutter Type | Rolling Shutter | |
| Aperture (F.No) | 2.2 | |
| Focal Length (EFL) | 2.17 mm | |
| Field of View (FOV) | 122°(D) × 107.2°(H) × 90.1°(V) | |
| Depth of Field | 10 cm to ∞ | |
| Distortion | < 5.6% | |
| Focus Type | Autofocus | |
| Filter | Built-in 650 nm filter | |
| Image Stabilization | OIS (stabilization angle ±3°, greater than 25 dB) | |
| VCM Driver IC | Focus DW9800V, OIS AKM7323 | |
| Image Capability | Supported Format | MJPEG |
| Resolution | 4032 × 3024 (12 MP) | |
| Frame Rate | 120fps@Full resolution / 240fps@4K2K / 960fps@1080p | |
| Operating Temperature | -20°C to 70°C | |
| Module Dimensions | 38.00 × 38.00 mm | |

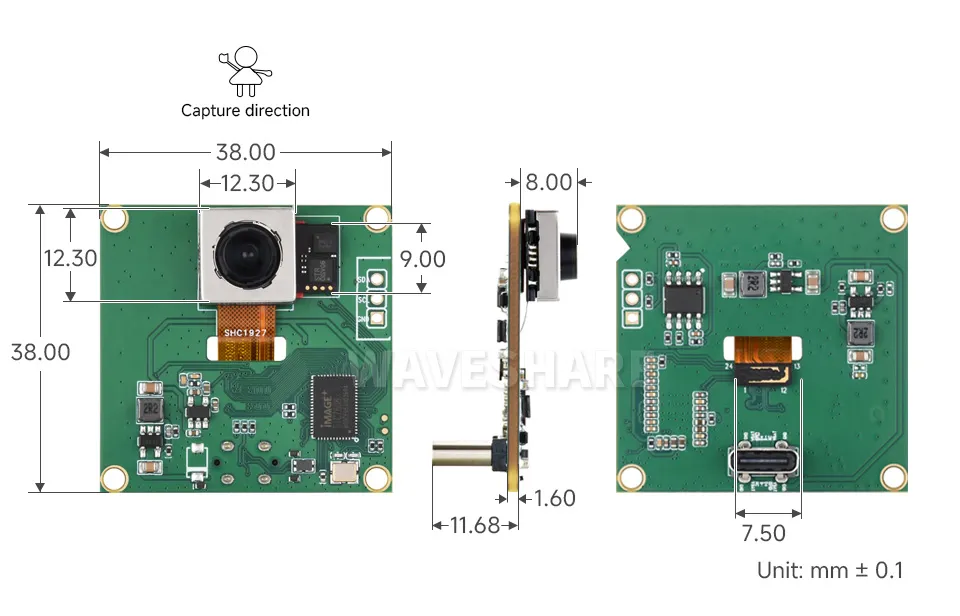

Dimensions
