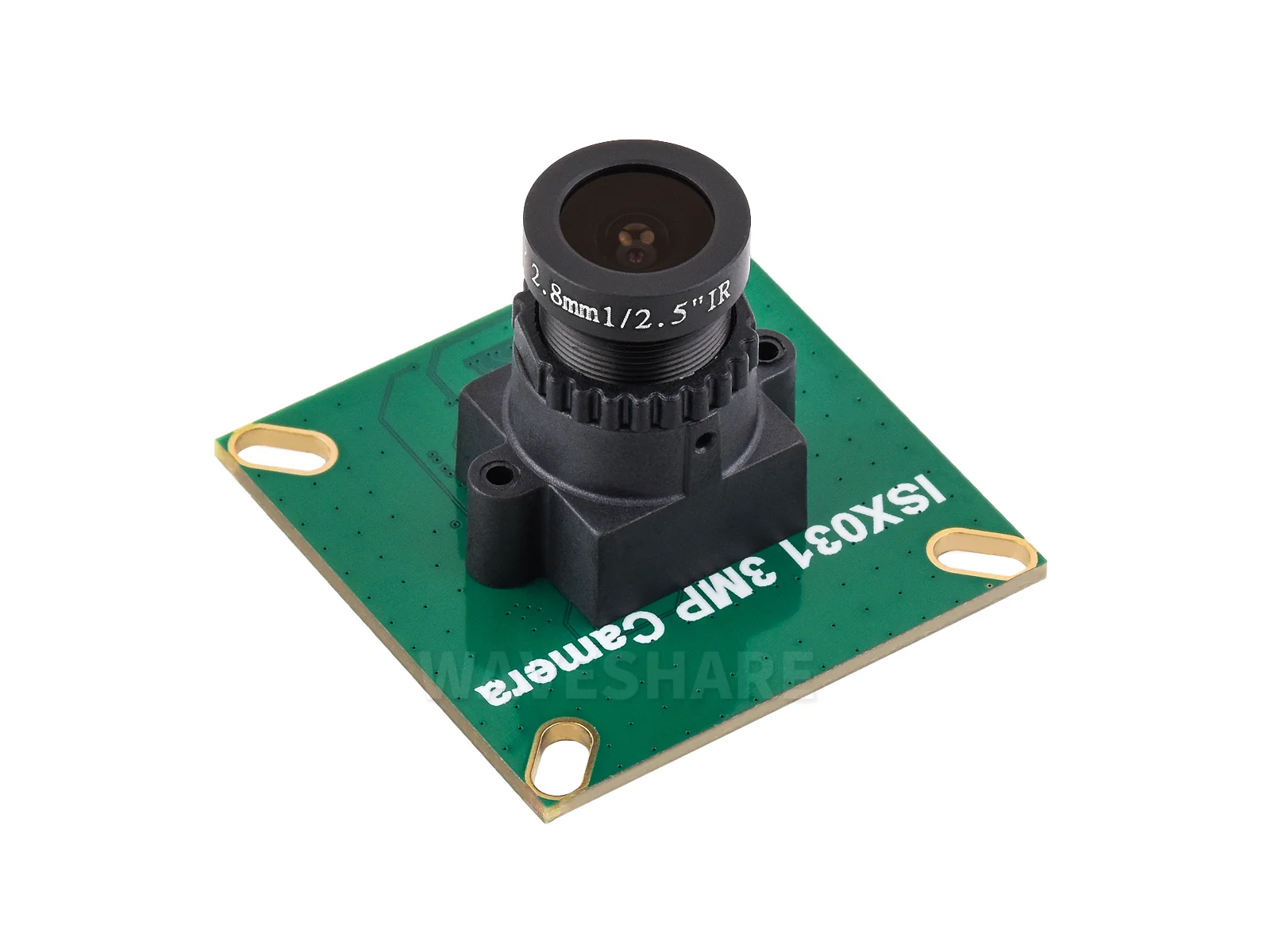

ISX031 3MP Camera
The ISX031 3MP Camera features the Sony ISX031 image sensor with a built-in ISP (Image Signal Processor), supporting approximately 3-megapixel (1920 × 1536) image output. It is equipped with a 123° DFOV wide-angle lens, F2.0 large aperture, full-color imaging, and fixed focus. It is compatible with Raspberry Pi series motherboards and mainstream Jetson boards (such as Jetson Orin Nano and Orin NX), making it suitable for AI intelligent applications such as facial recognition, road lane recognition, and license plate recognition.
| SKU | Product |
|---|---|
| 35301 | ISX031 3MP Camera |
Specifications
| Category | Parameter |
|---|---|
| Image Sensor | Sony ISX031 |
| Resolution | Approx. 3MP (1920 × 1536) |
| CMOS Size | 1/2.42 inch |
| Diagonal Size | 7.38mm |
| Pixel Size | 3.0µm × 3.0µm |
| Aperture | F2.0 |
| Focal Length | 2.8mm |
| Shutter Type | Rolling Shutter |
| IR Cut Filter | Built-in |
| FOV (D×H×V) | 123° × 98° × 75° |
| Focus Type | Fixed focus |
| Output Format | YUV (built-in ISP) |
| Max Frame Rate | 1920 × 1536@30fps |
| Application | AI intelligent applications such as facial recognition, road lane recognition, and license plate recognition |

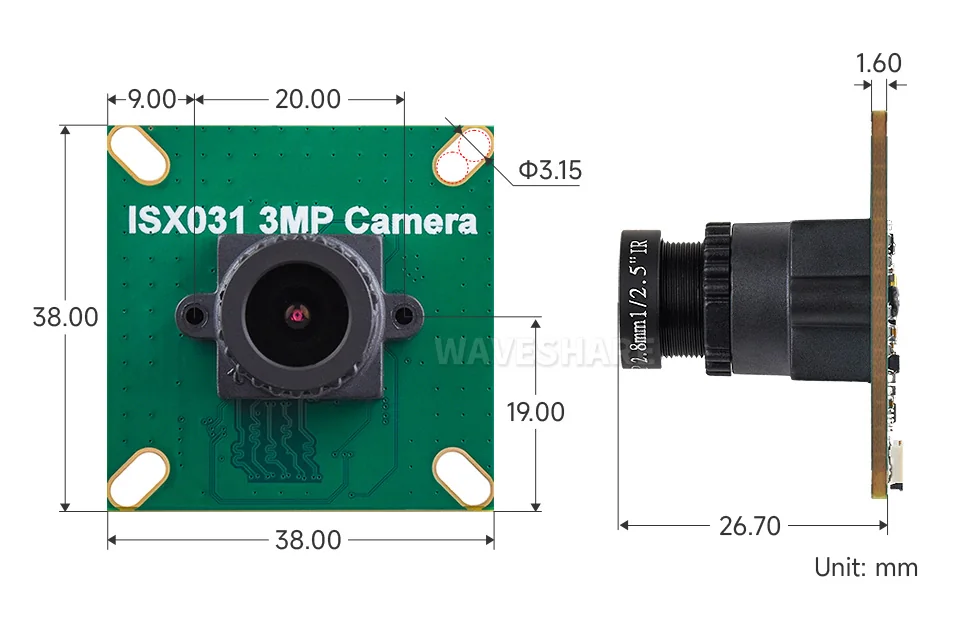

Dimensions
