OS05A20-5MP-USB-Camera

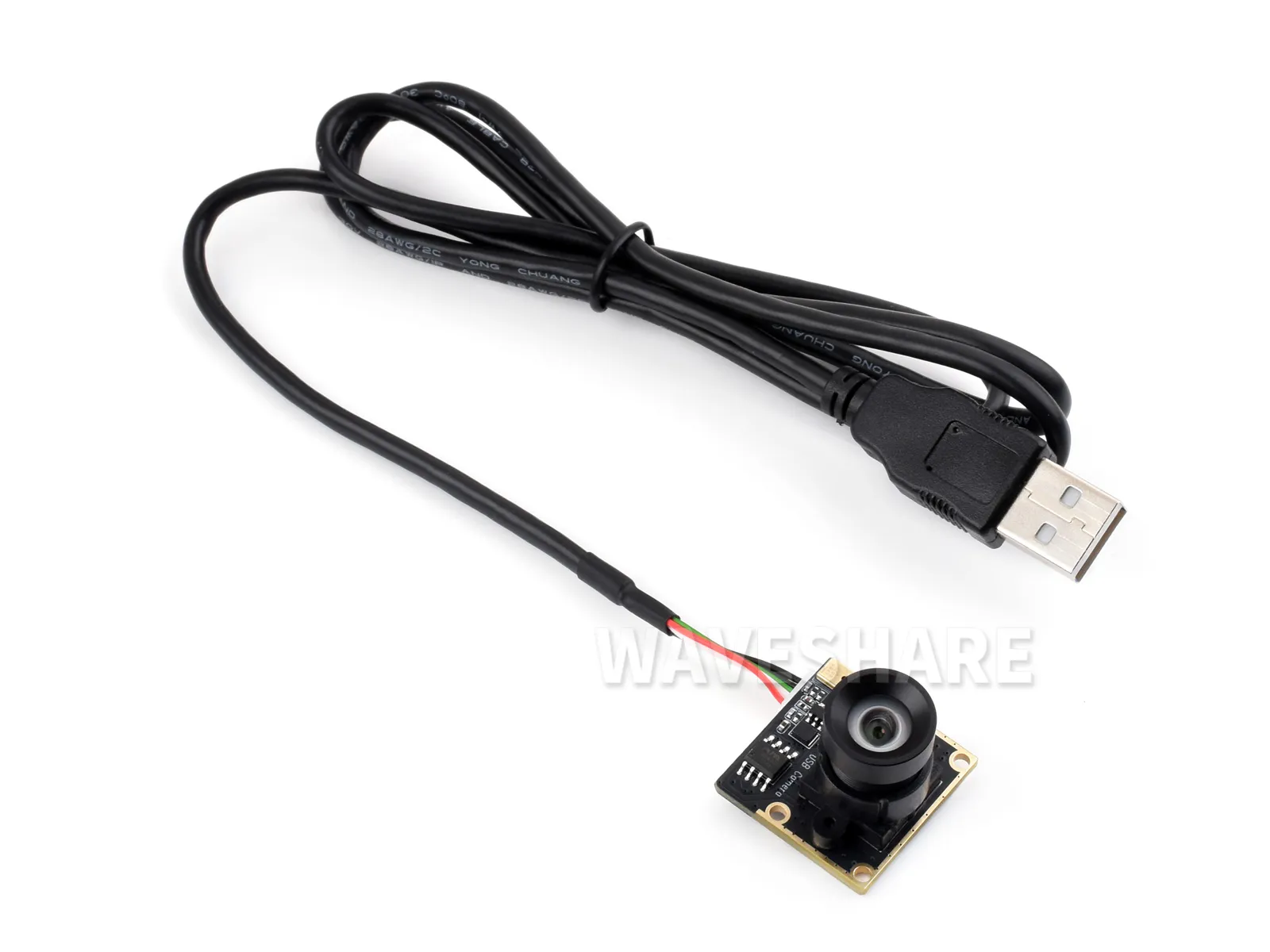

- OS05A20 5MP USB Camera (C)

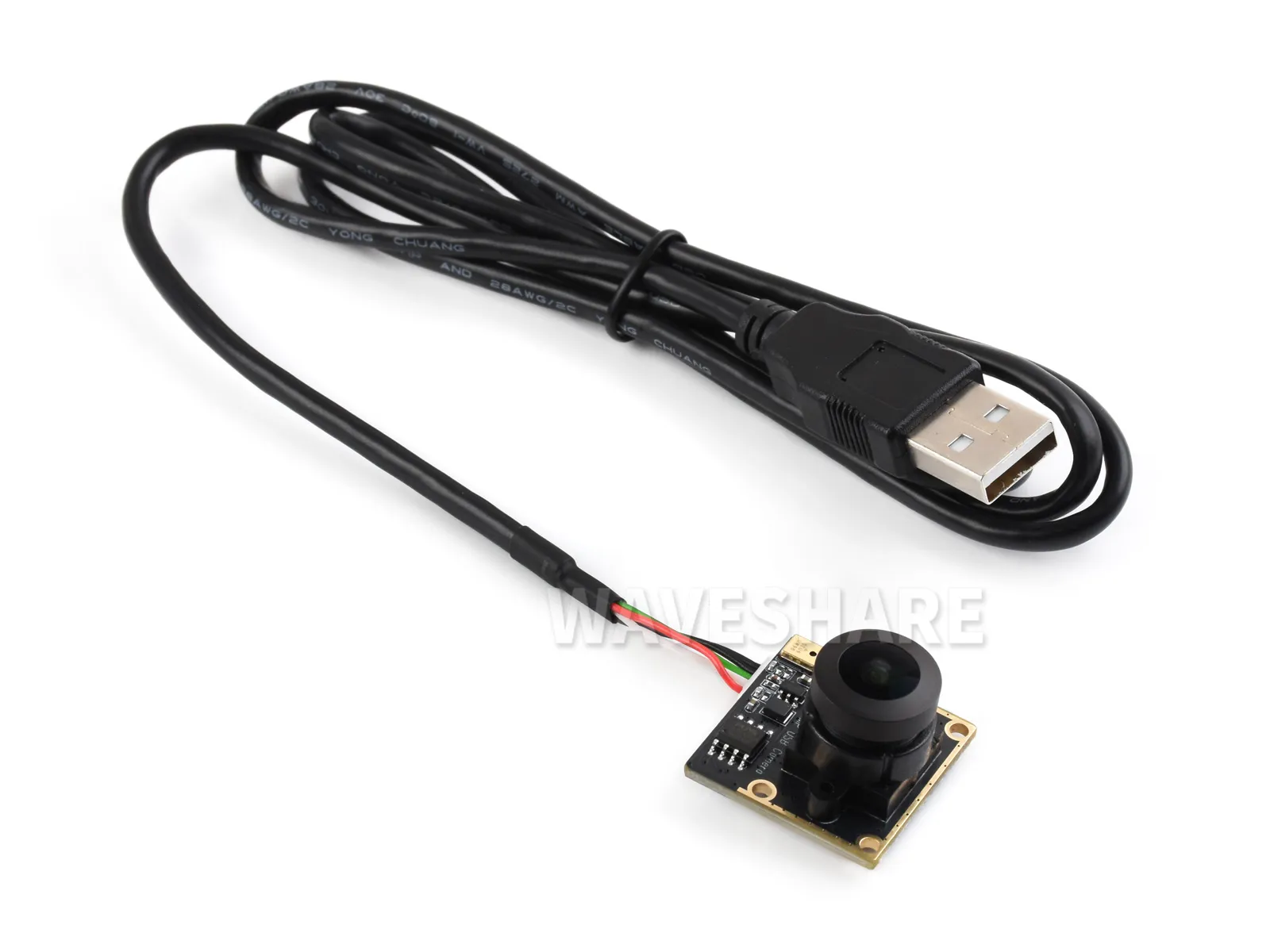

- OS05A20 5MP USB Camera (B)
The OS05A20 5MP USB Camera module features a 5-megapixel OS05A20 image sensor. The module adopts a USB 2.0 Type-C interface, is plug-and-play, and supports MJPG format output at 30 fps. It offers different lens options, where the B model is equipped with a 175° ultra-wide-angle lens, capturing large scenes in full; the C model is equipped with a 91.7° non-distortion lens, providing images that are not easily deformed. It supports dual-exposure on-chip HDR, maintaining image details even in low-light environments. An onboard single microphone supports USB audio recording.
| SKU | Product |
|---|---|
| 35565 | OS05A20 5MP USB Camera (C) |
| 35566 | OS05A20 5MP USB Camera (B) |
Specifications
| Type | Parameter | OS05A20 5MP USB Camera (B) | OS05A20 5MP USB Camera (C) |
|---|---|---|---|
| Pixels | 5MP | ||
| Sensor Chip | OS05A20 | ||
| Interface Type | USB2.0 Type-C | ||
| Camera Specifications | Sensor Size | 1/2.7 inch | |
| Aperture (F) | 2.0 | 2.4 | |
| Focal Length (EFL) | 3.65mm | 3.25mm | |
| Field of View (FOV) | 175°(D) × 151.9°(H) × 83.6°(V) | 91.7°(D) × 83.4°(H) × 52.8°(V) | |
| Distortion | < -32% | < -1.22% | |
| Focus Type | Fixed Focus | Fixed Focus | |
| Lens Thread | M12 | M12 | |
| Shutter Type | Rolling Shutter | ||
| Image Capability | Supported Format | MJPG | |
| Still Image Resolution | 2592 × 1944 | ||
| Video Frame Rate | 30 FPS 2592 × 1944 | ||
| Audio | Onboard Single Microphone | ||
| Signal-to-Noise Ratio | 74dB | ||
| Operating Voltage | 5V ± 5% | ||
| Operating Temperature | -10°C ~ 60°C | ||
| Module Dimensions | 25 × 24 (mm) | ||

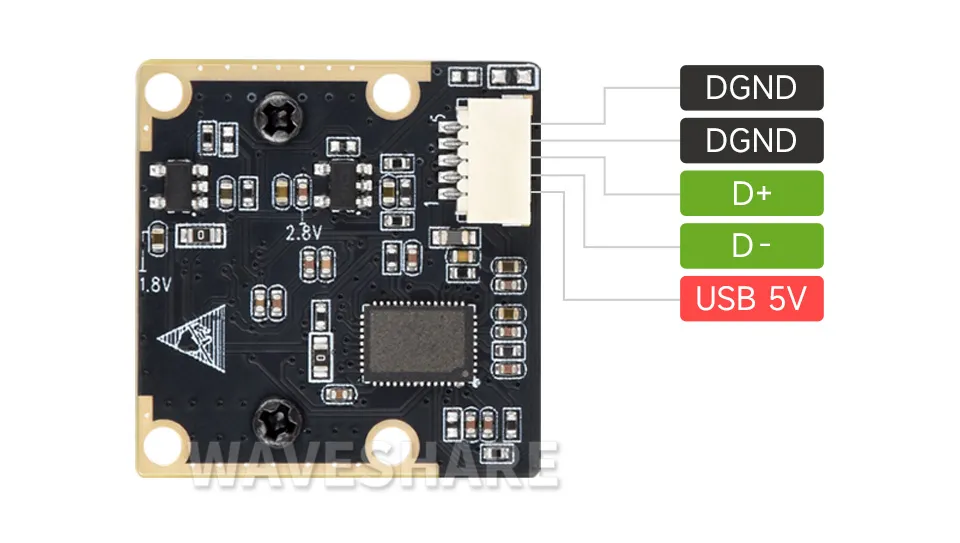

Interface Definition
Dimensions

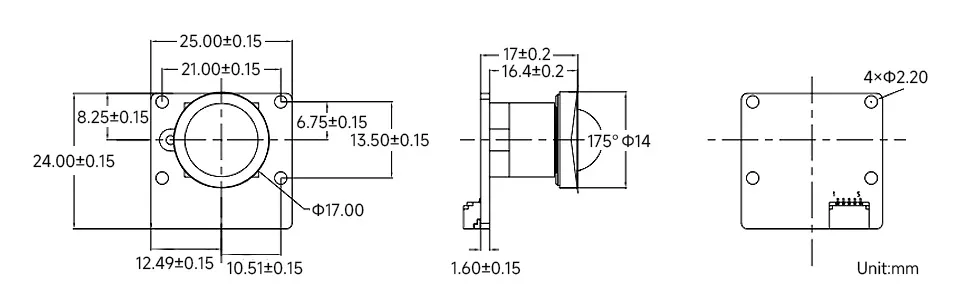

OS05A20 5MP USB Camera (B)

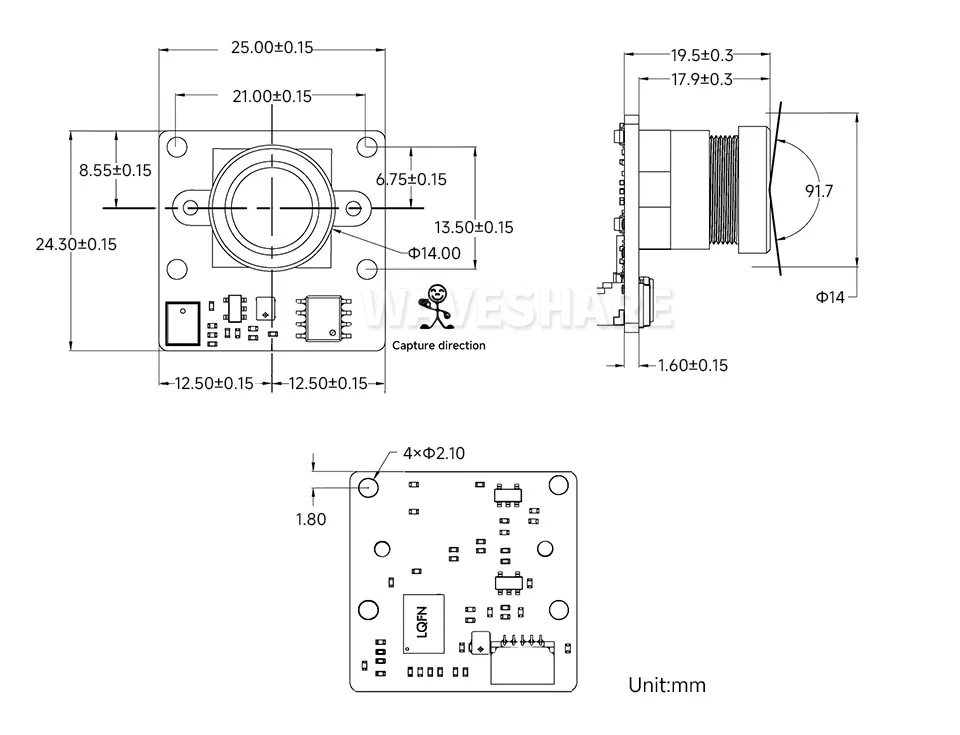

OS05A20 5MP USB Camera (C)
