OV4689-4MP-USB-Camera-A

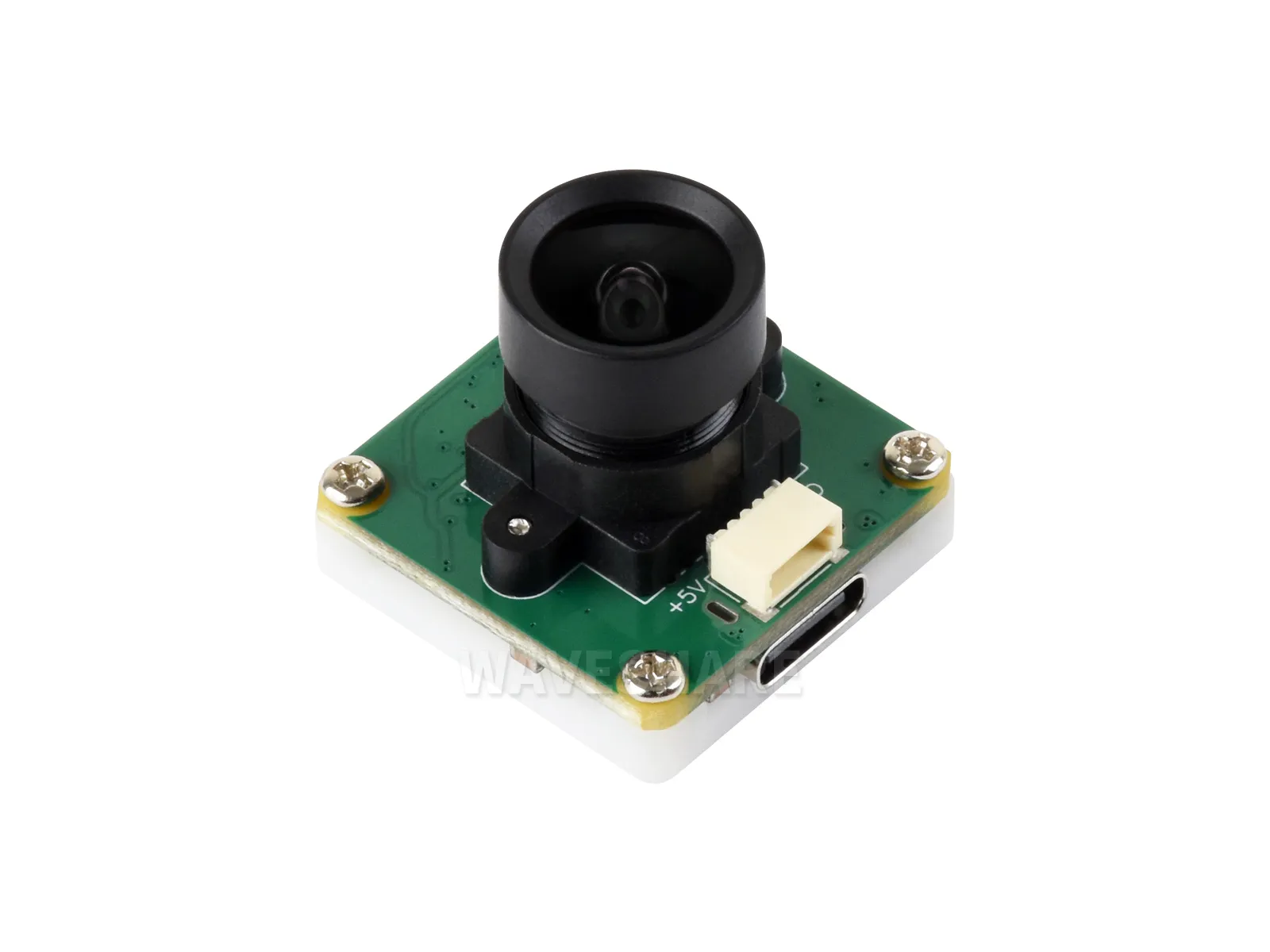

OV4689 4MP USB Camera (A) Product Image

The OV4689 4MP USB Camera (A) camera module features the OV4689 4‑megapixel image sensor. It comes with a 92° wide‑angle low‑distortion lens and uses a USB 2.0 Type‑C interface.

SKUProduct
34767OV4689 4MP USB Camera (A)

Specifications​

TypeParameter
Pixels4MP
Sensor ChipOV4689
Interface TypeUSB2.0 Type-C
SH1.0 4P header
Camera SpecificationsSensor Size1/3 inch
Aperture (FNO)2.7
Focal Length (EFL)2.88mm
Diagonal Field of View92°
Focus TypeFixed Focus
Image CapabilitySupported FormatMJPG
Still Image Resolution2688× 1520
Video Frame Rate

MJPG:
30 FPS 2688 × 1520
30 FPS 2560 × 1440
60 FPS 1920 × 1080
60 FPS 1280 × 720
60 FPS 640 × 480
YUY2:
2 FPS 2688 × 1520
2 FPS 2560 × 1440
5 FPS 1920 × 1080
10 FPS 1280 × 720
30 FPS 640 × 480

Operating Voltage5V ± 5%
Operating Temperature-10°C ~ 60°C
Module Dimensions25.00 × 25.00 mm

Pinout Definition​

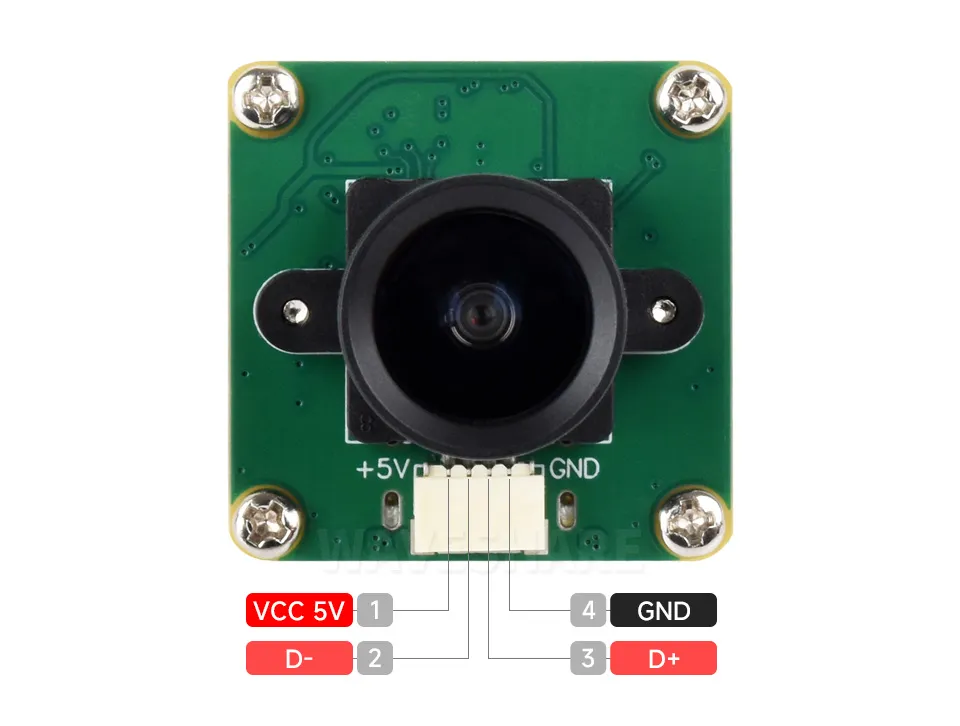

4PIN Connector Pinout

Dimensions​

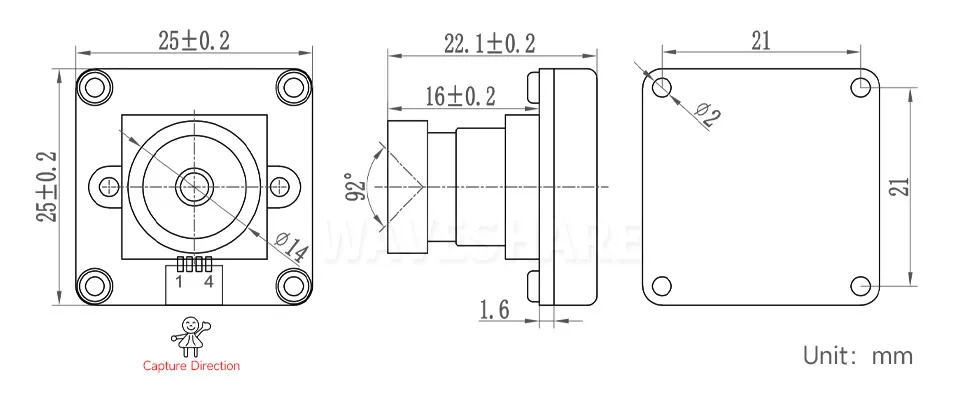

Product Dimensions
