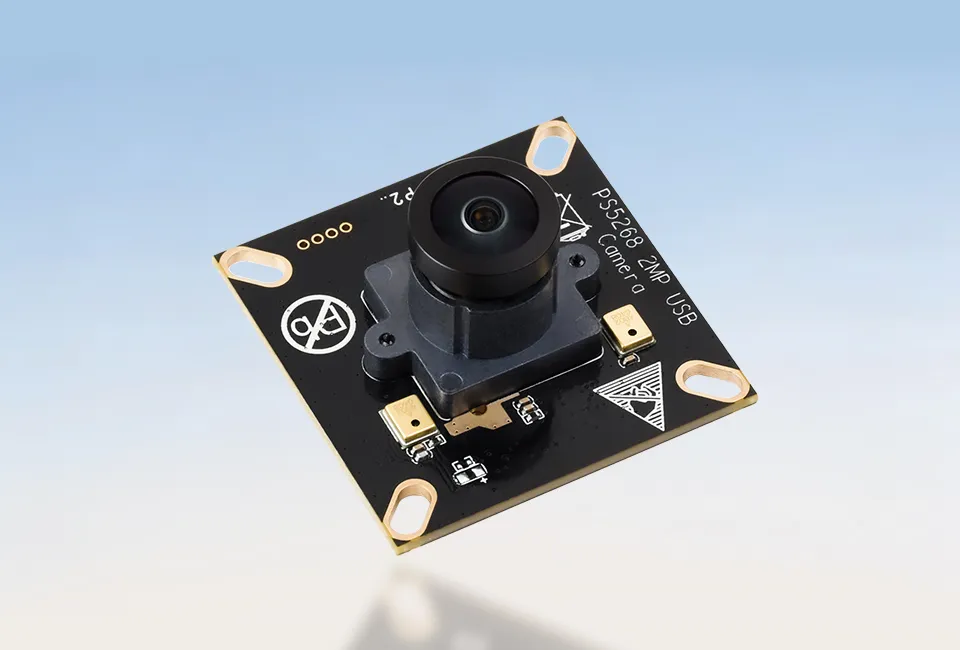

PS5268-2MP-USB-Camera-B
The PS5268-2MP-USB-Camera-B camera module uses the PixArt PS5268 image sensor, delivers 2 megapixels, and supports both MJPG and YUY2 output formats. The module uses an M12 lens and features an onboard USB 2.0 interface and dual microphones. It is driver-free and can be connected to USB hosts such as a PC.
| SKU | Product |
|---|---|
| 35496 | PS5268-2MP-USB-Camera-B |
Specifications
| Type | Parameter | |
|---|---|---|
| Pixels | 2MP | |
| Sensor Chip | PS5268 | |
| Interface Type | USB 2.0 | |
| Camera Specifications | Sensor Size | 1/2.7 inch |
| Aperture (F) | 2.2 | |
| Focal Length (EFL) | 2.28mm | |
| Field of View (FOV) | 187.4°(D) × 156.7°(H) × 93.4°(V) | |
| Distortion | < -31% | |
| Focus Type | Fixed Focus | |
| Lens Thread | M12 | |
| Shutter Type | Rolling Shutter | |
| Dynamic Range | 85dB | |
| Filter | 650nm | |
| Image Capability | Supported Format | MJPG, YUY2 |
| Still Image Resolution | 1920× 1080 | |
| MJPG Frame Rate | 30FPS: 640 × 360, 640 × 480, 960 × 544, 1280 × 720, 1920 × 1080 | |
| YUY2 Frame Rate | 10FPS at 640 × 360 and 640 × 480; 5FPS at 960 × 544, 1280 × 720, and 1920 × 1080 | |
| Audio | Onboard Dual Microphones | |
| Operating Voltage | 5V ± 5% | |
| Module Dimensions | 38.00 × 38.00 × 19.20 (mm) | |

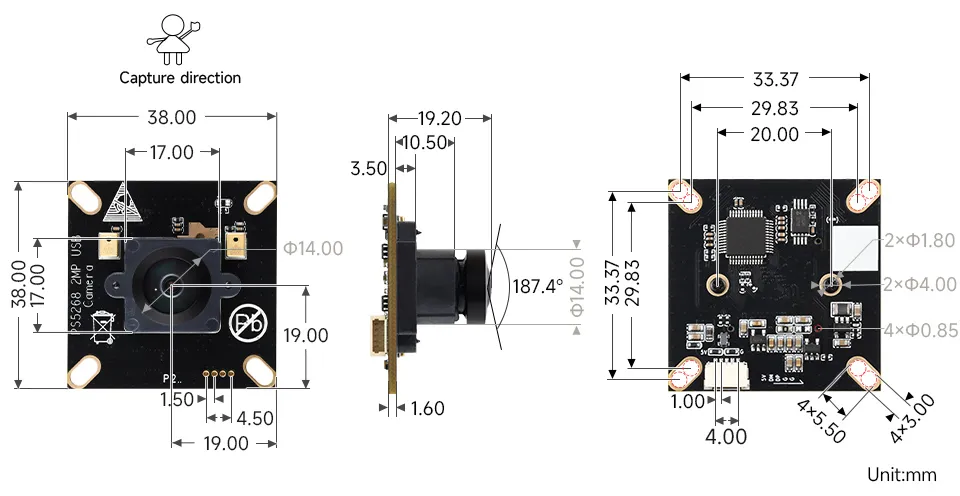

Dimensions
