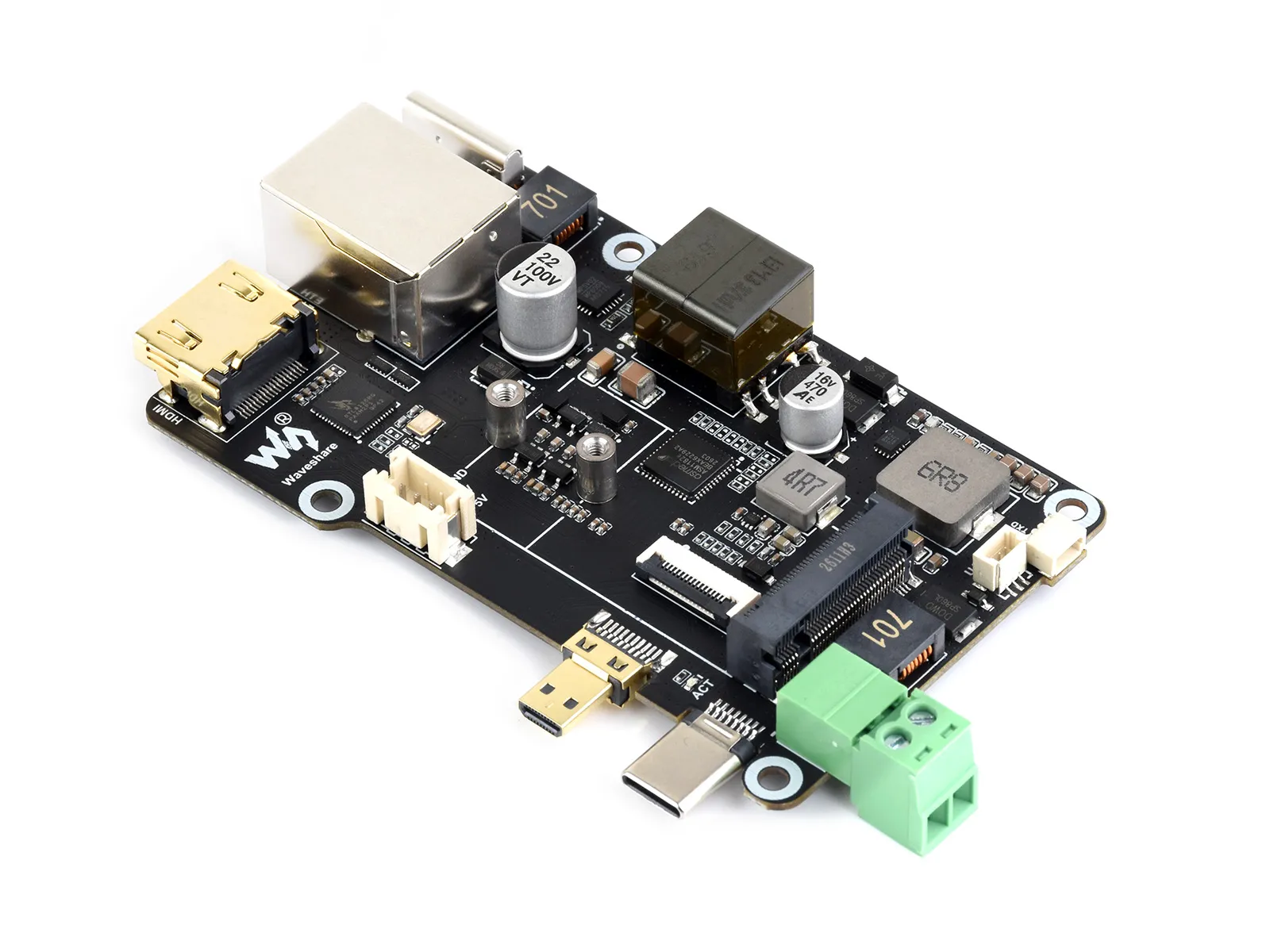

Pi5 Connector Adapter (F)
The Pi5 Connector Adapter (F) is an expansion board for the Raspberry Pi. It features a 2.5G Ethernet port and an M.2 M KEY interface, and is plug‑and‑play with Raspberry Pi OS without requiring additional drivers, making it easy to expand functionality.
| SKU | Product |
|---|---|
| 35254 | Pi5 Connector Adapter (F) |
Features
- Ethernet port status LEDs: green light flashes, yellow light stays solid
- Equipped with the Realtek RTL8125 (2.5G) high-performance original controller chip

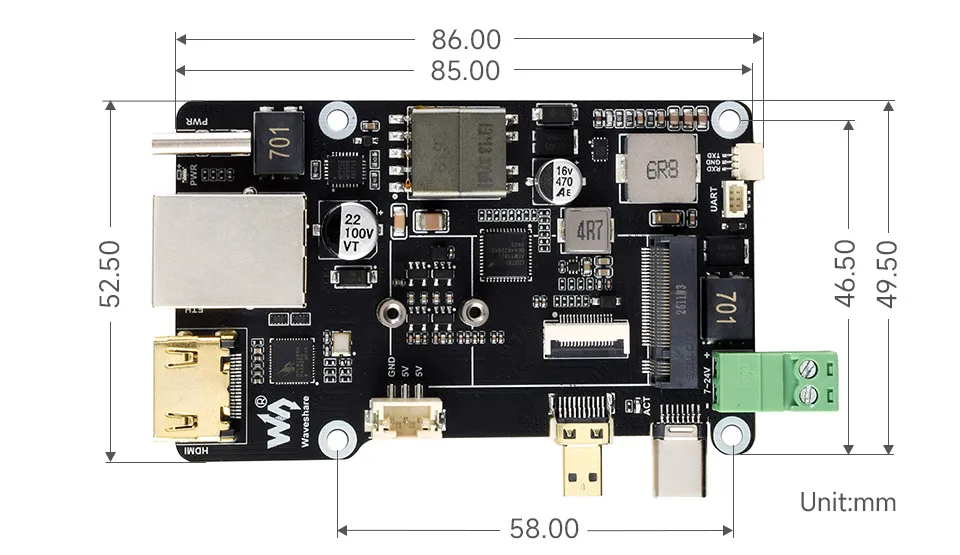

Dimensions
Development Resources
NVMe(M.2 M KEY)
- The product supports all features in this tutorial: NVMe Usage Tutorial
- Includes: Formatting the Hard Drive | Hard Drive Partitioning | Manual Mounting | Auto-mount on Boot | Read/Write Test
NVMe SSD Boot
- Boot the Raspberry Pi from the TF card first, then mount and test the NVMe drive to confirm that the hardware is working correctly
- NVMe SSD Boot: Boot Configuration Tutorial
PCIe Ethernet Card
- This product supports all features covered in the following tutorial: PCIe Ethernet Card Tutorial
