PocketTerm35

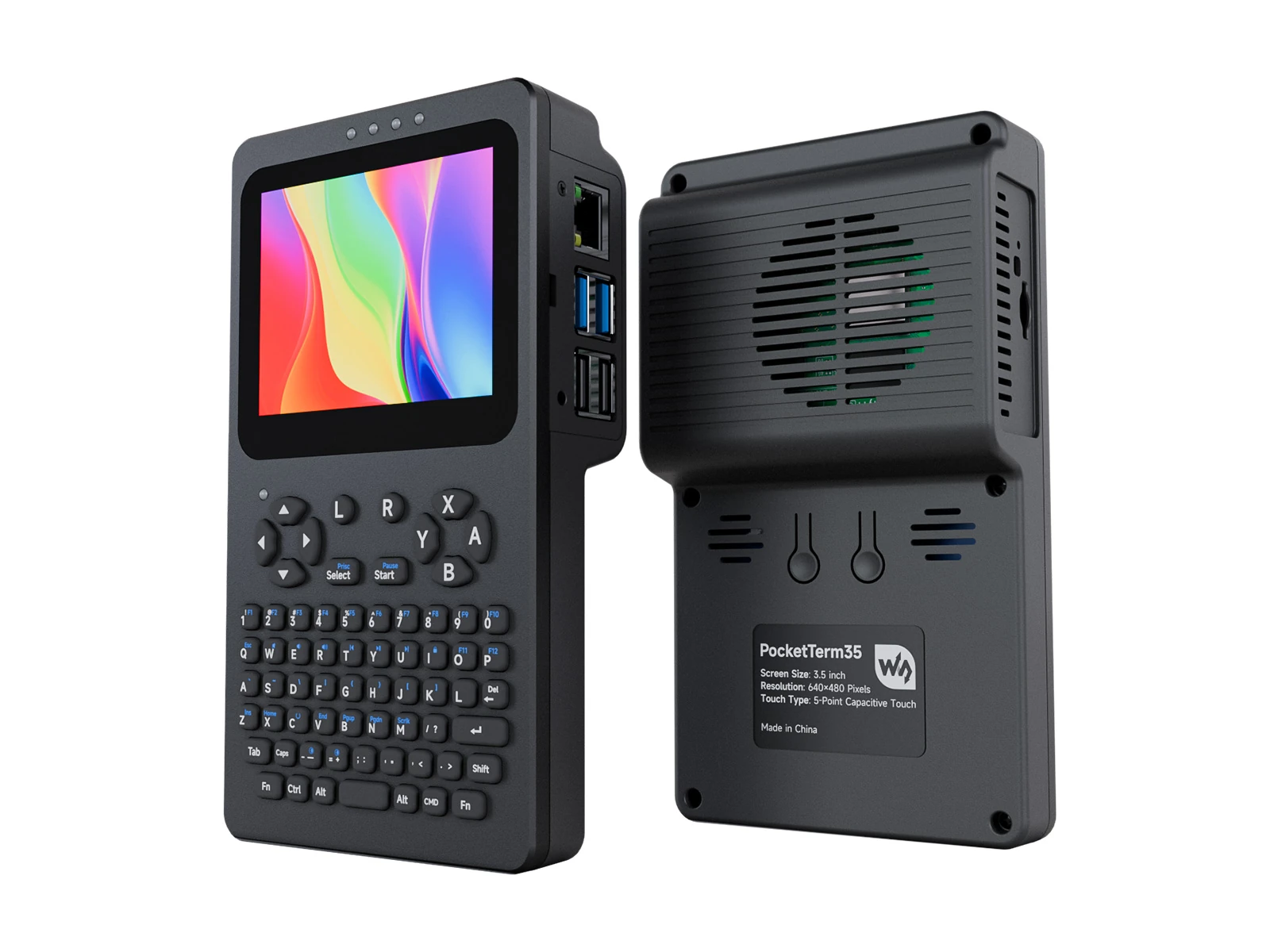

PocketTerm35 is a handheld computer designed specifically for Raspberry Pi 4B and Pi 5. It delivers a full Linux desktop experience, allowing you to type commands, run development tools, or perform daily computing tasks at any time in the terminal. With a compact body of 93.5 × 168.5 × 37 (mm) and a 3.5inch 640 × 480 optical bonding touchscreen, it is portable, lightweight, and an ideal tool for geeks, developers, and electronics enthusiasts.
| SKU | Product |
|---|---|
| 34459 | PocketTerm35-Pi4 (US) |
| 34460 | PocketTerm35-Pi4 (EU) |
| 34461 | PocketTerm35-Pi4 (UK) |
| 34462 | PocketTerm35-Pi5 (US) |
| 34463 | PocketTerm35-Pi5 (EU) |
| 34464 | PocketTerm35-Pi5 (UK) |
| 34031 | PocketTerm35-RPI-ACCE-EN |
| 34032 | PocketTerm35-RPI-ACCE |
Features
- 💻 Handheld Linux terminal (based on Raspberry Pi 4 / 5)
- ⌨ Dual input methods: physical keyboard + touchscreen
- 📺 3.5inch IPS display (640 × 480)
- 🔋 Built-in UPS power management system (supports charging and discharging simultaneously)
- 🧩 Supports Raspberry Pi 4B / 5
- 🎮 Supports RetroPie retro gaming system
- 🛠 Suitable for development, debugging, and IoT control

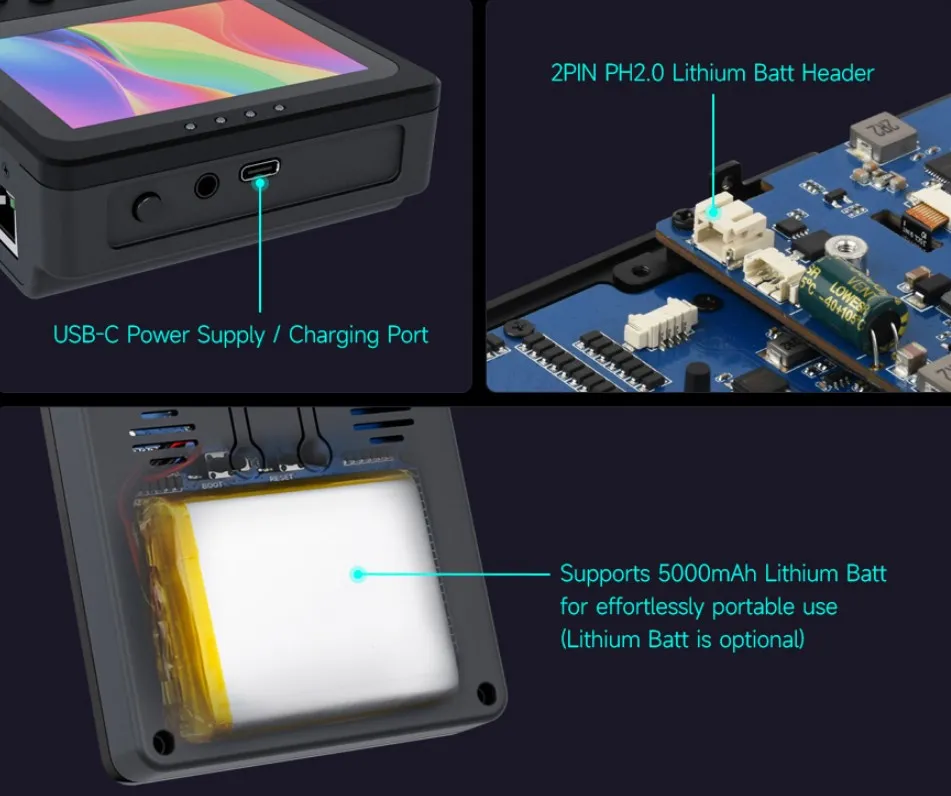

Interface Description

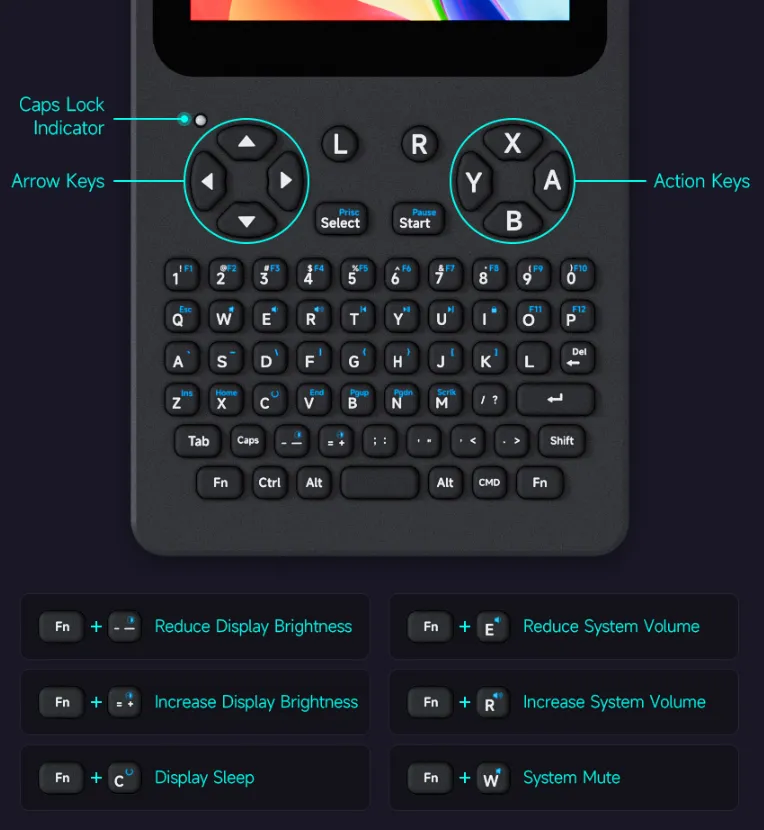

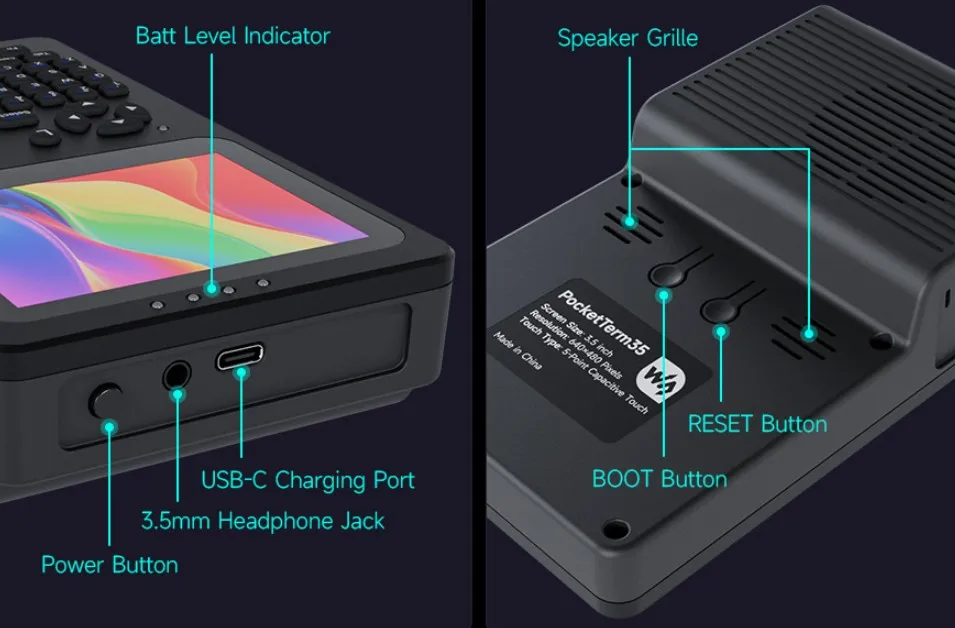

Button Description

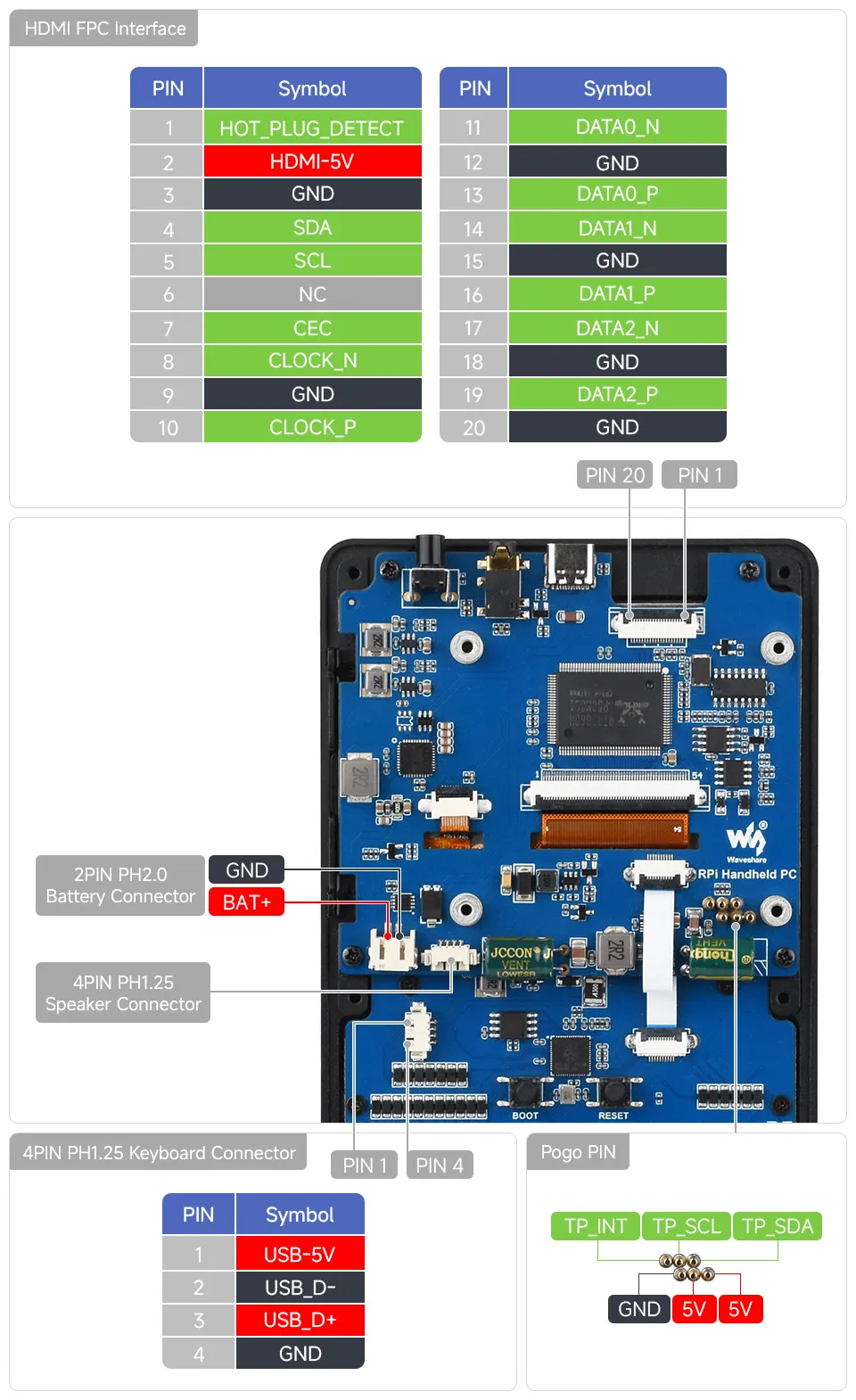

Internal Interface Description
Internal Space Description
The space above the Raspberry Pi main board is quite limited. The height of any add‑on board must be within 2.5 mm above the tallest component on the Raspberry Pi.
M.2 Storage Expansion Solution
To use M.2 storage, it is recommended to use the PCIe TO M.2 Board (E)
This solution expands M.2 SSD via the Raspberry Pi PCIe interface while taking structural space and cooling into consideration.
Although other SSD solutions may be dimensionally compatible, they generally cannot accommodate a fan at the same time. It is not recommended to use other SSD solutions with this product's structure.

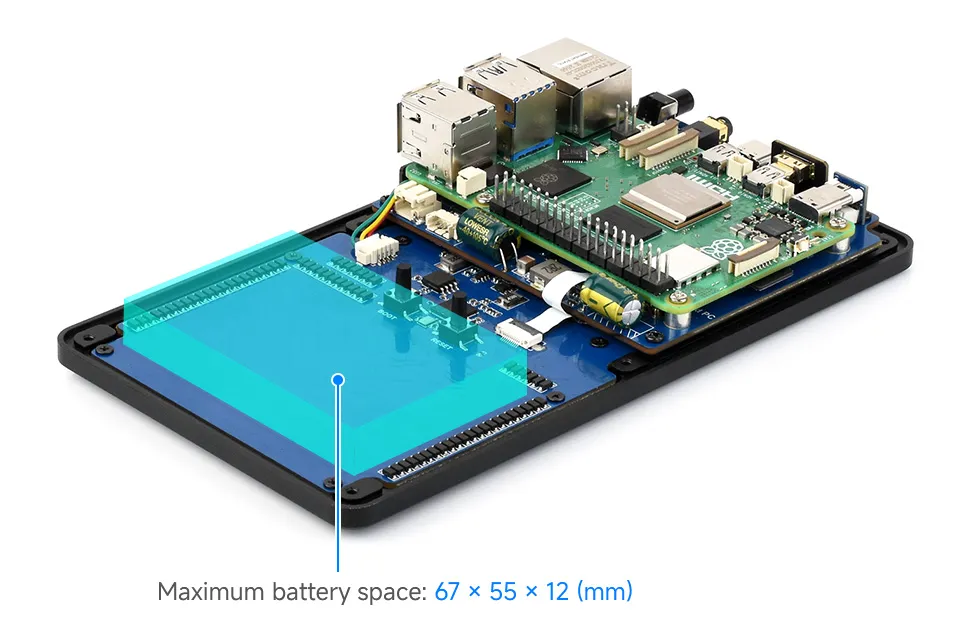

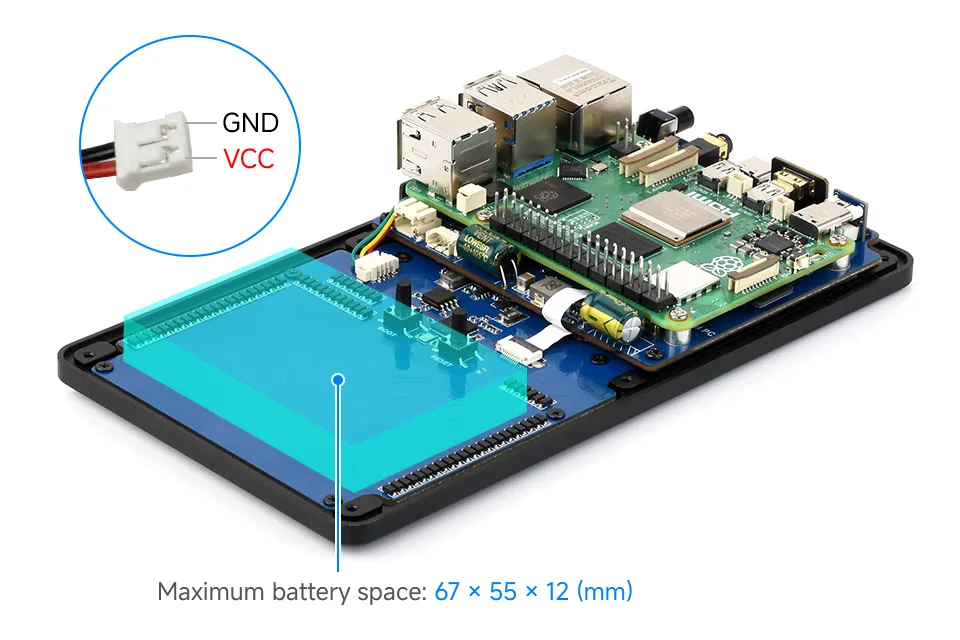

Battery Space
A battery with dimensions of 67 × 55 × 12 mm is recommended. This is the best fit for the current structure, ensuring installation stability.
Other batteries with similar dimensions that respect the internal space constraints may also be used, provided they do not interfere with structural components or internal component layout.

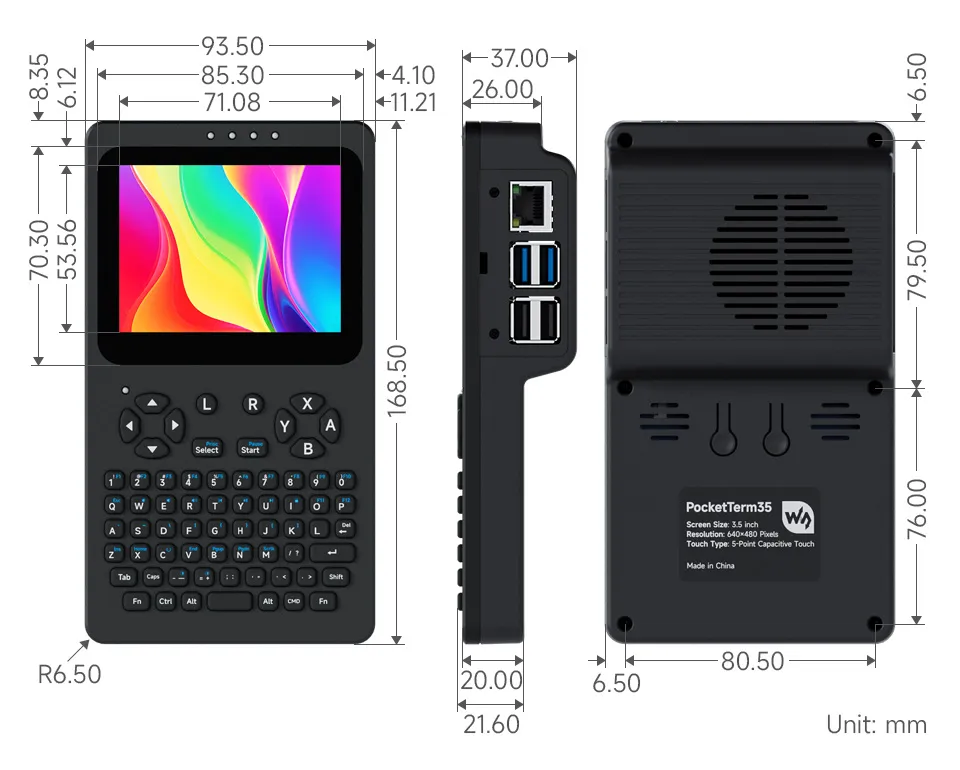

Dimensions
Selection Guide
| Kit Model | Kit Type | Differences |
|---|---|---|
| PocketTerm35-Pi4 | Includes Pi 4B-2GB | Pre‑loaded with a 64GB system TF card, PI4-HEATSINK-SET heatsink, and 5000mAh battery – ready to use out of the box |
| PocketTerm35-Pi5 | Includes Pi 5-1GB | Pre‑loaded with a 64GB system TF card, Pi5-Active-Cooler-B heatsink, and 5000mAh battery – ready to use out of the box |
| PocketTerm35-RPI-ACCE | Accessory Kit B | Does not include Raspberry Pi board, heatsink, or TF card, includes 5000mAh lithium battery |
| PocketTerm35-RPI-ACCE-EN | Accessory Kit A | Does not include Raspberry Pi board, heatsink, battery, or TF card |
Package Contents
After opening the package, please verify that all accessories listed below are included. If any are missing or damaged, contact your point of purchase for after-sales support.
| No. | Image | Accessory Name | No. | Image | Accessory Name |
|---|---|---|---|---|---|

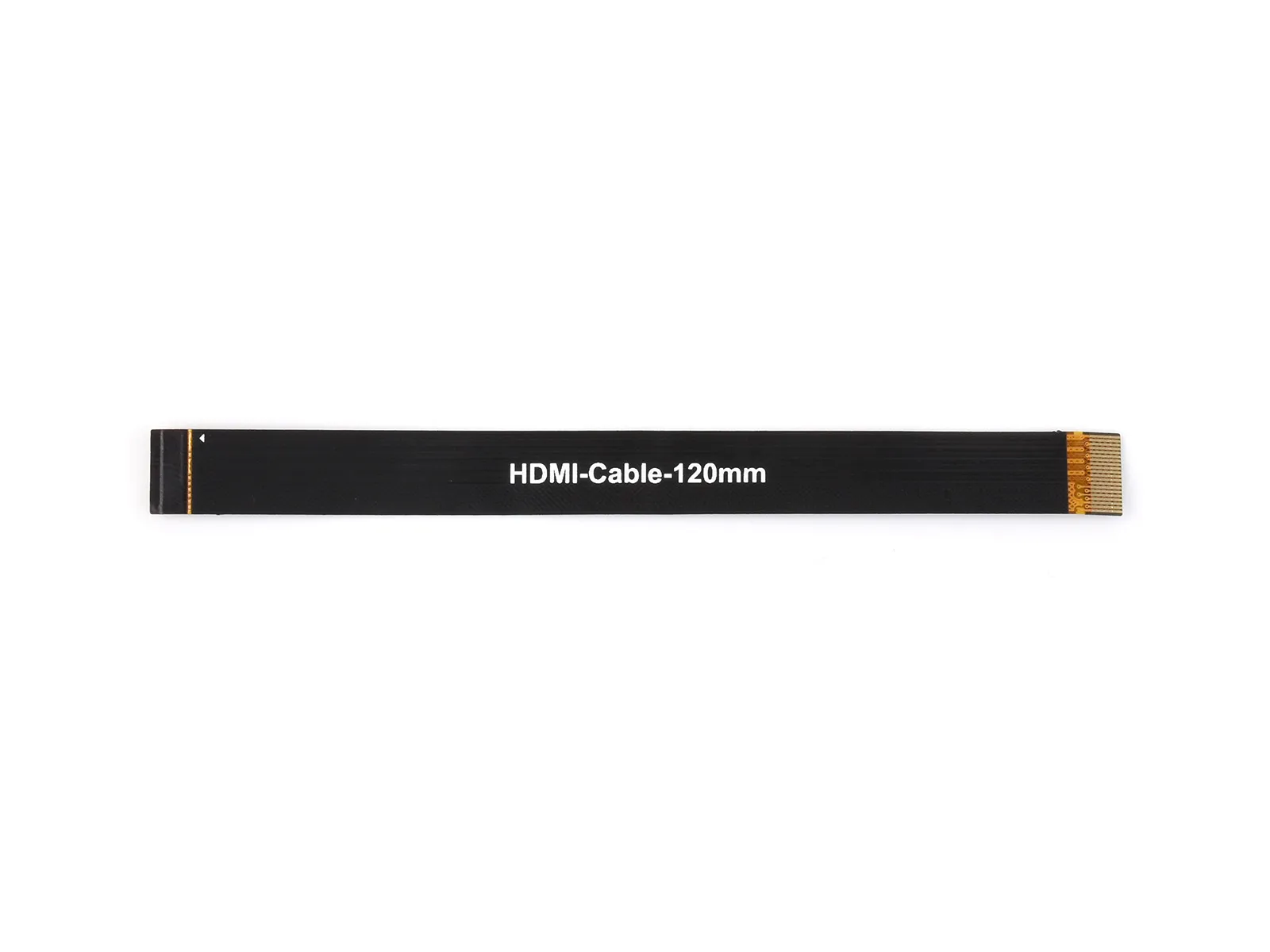

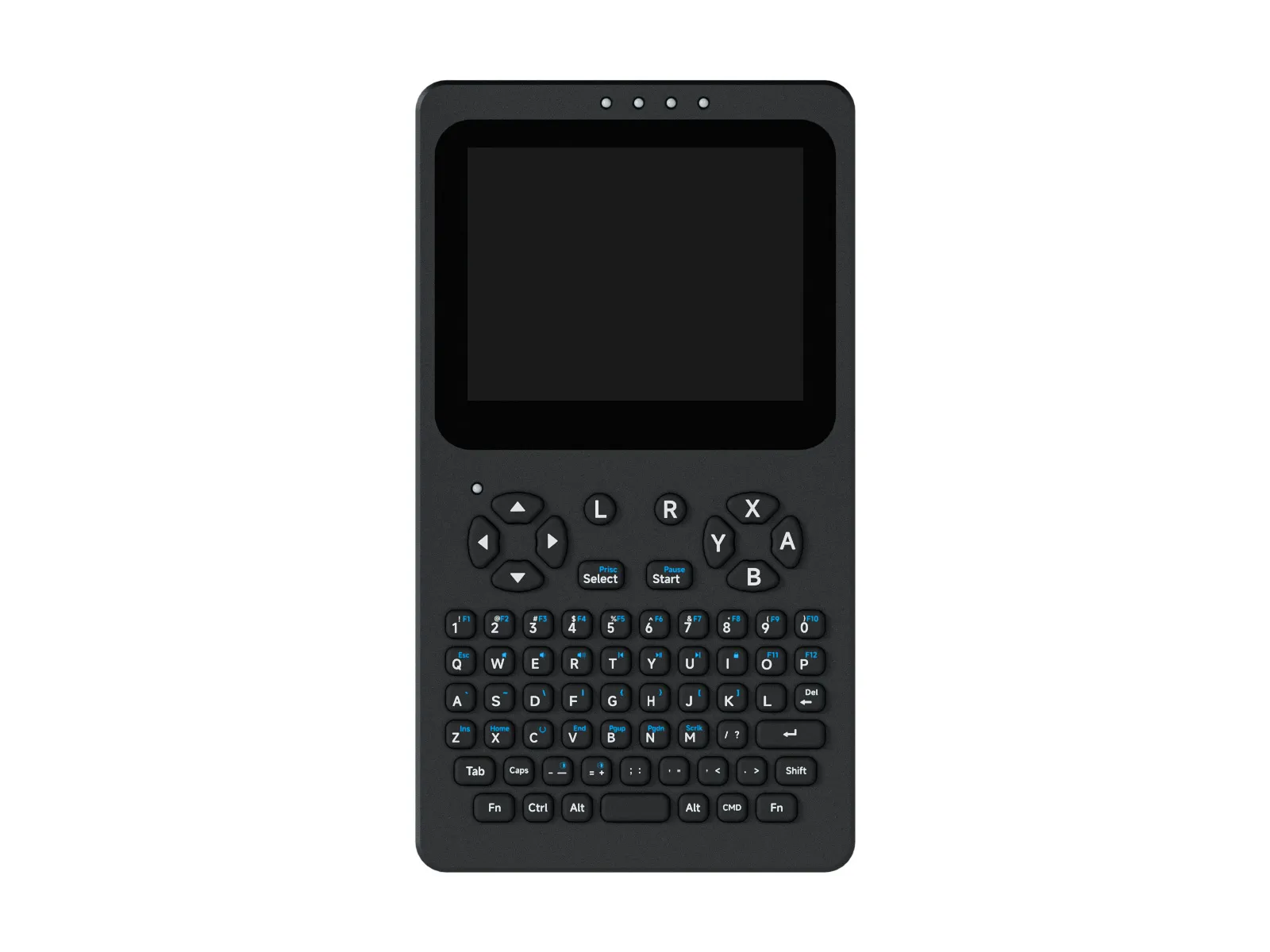

| 1 |  | PocketTerm35 Main Unit | 7 |  | 120mm HDMI Cable |

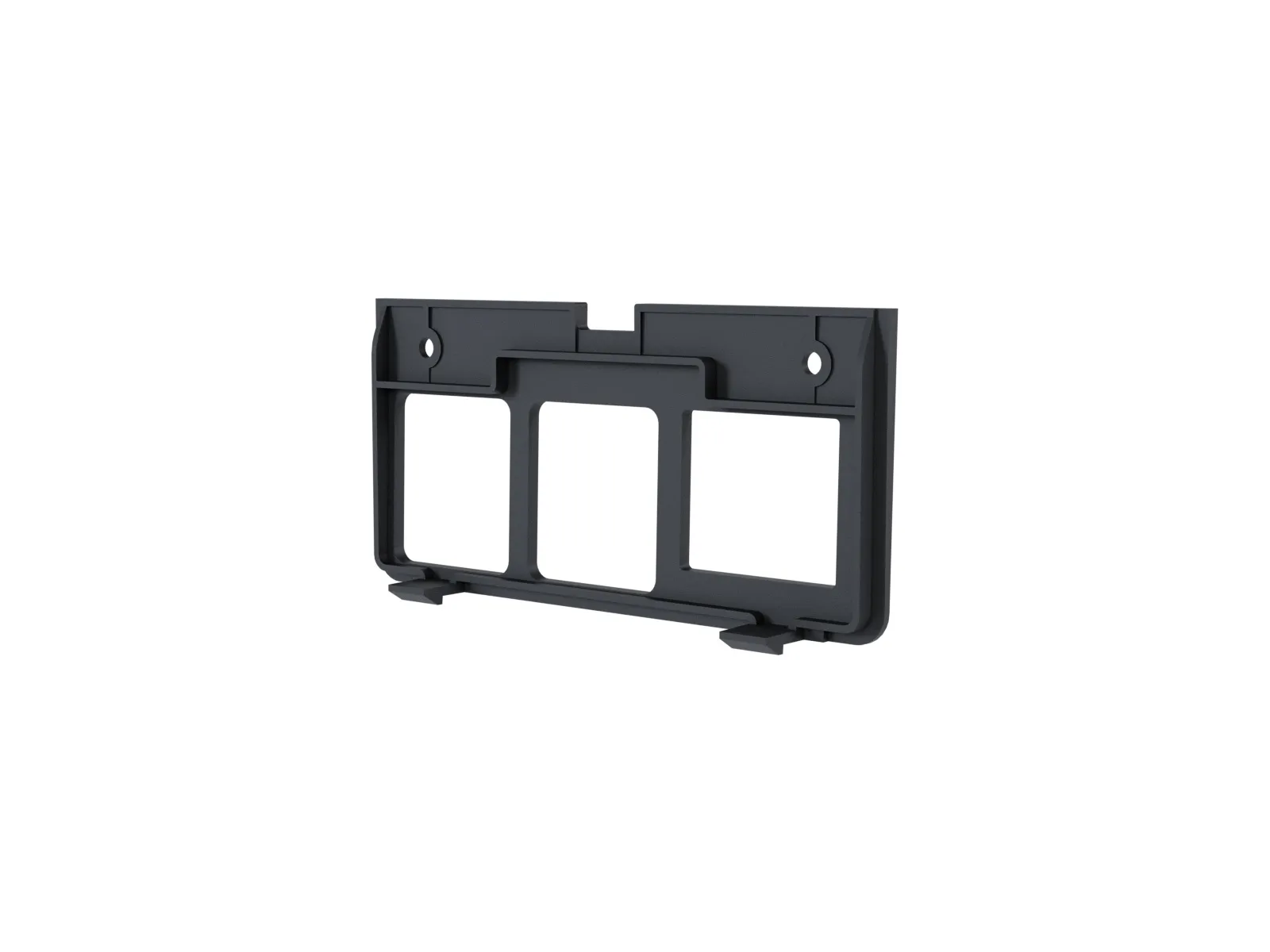

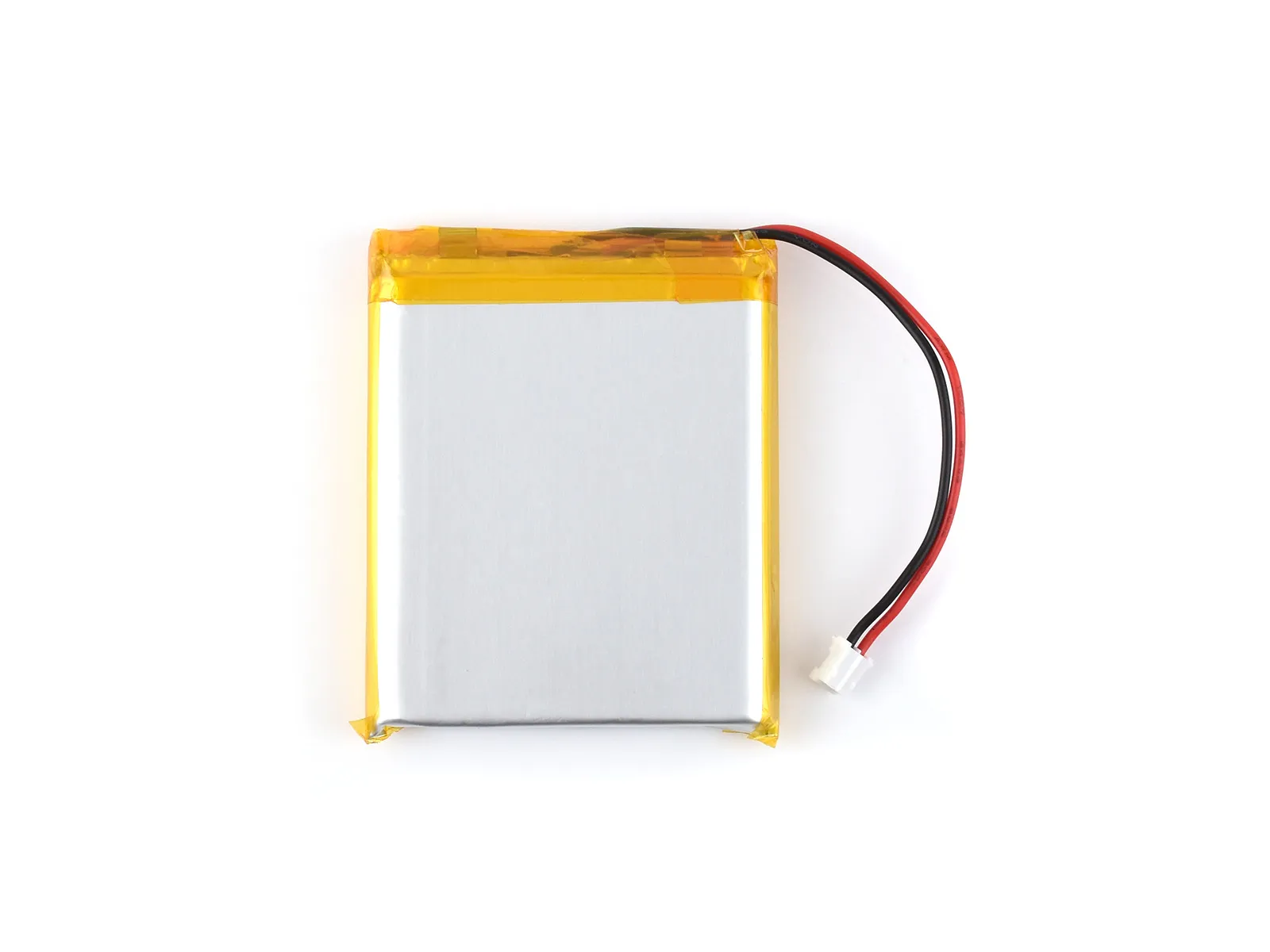

| 2 |  | Pi4 Bracket | 8 |  | 3.7V 5000mAh Polymer Lithium Battery with Cable (optional) |

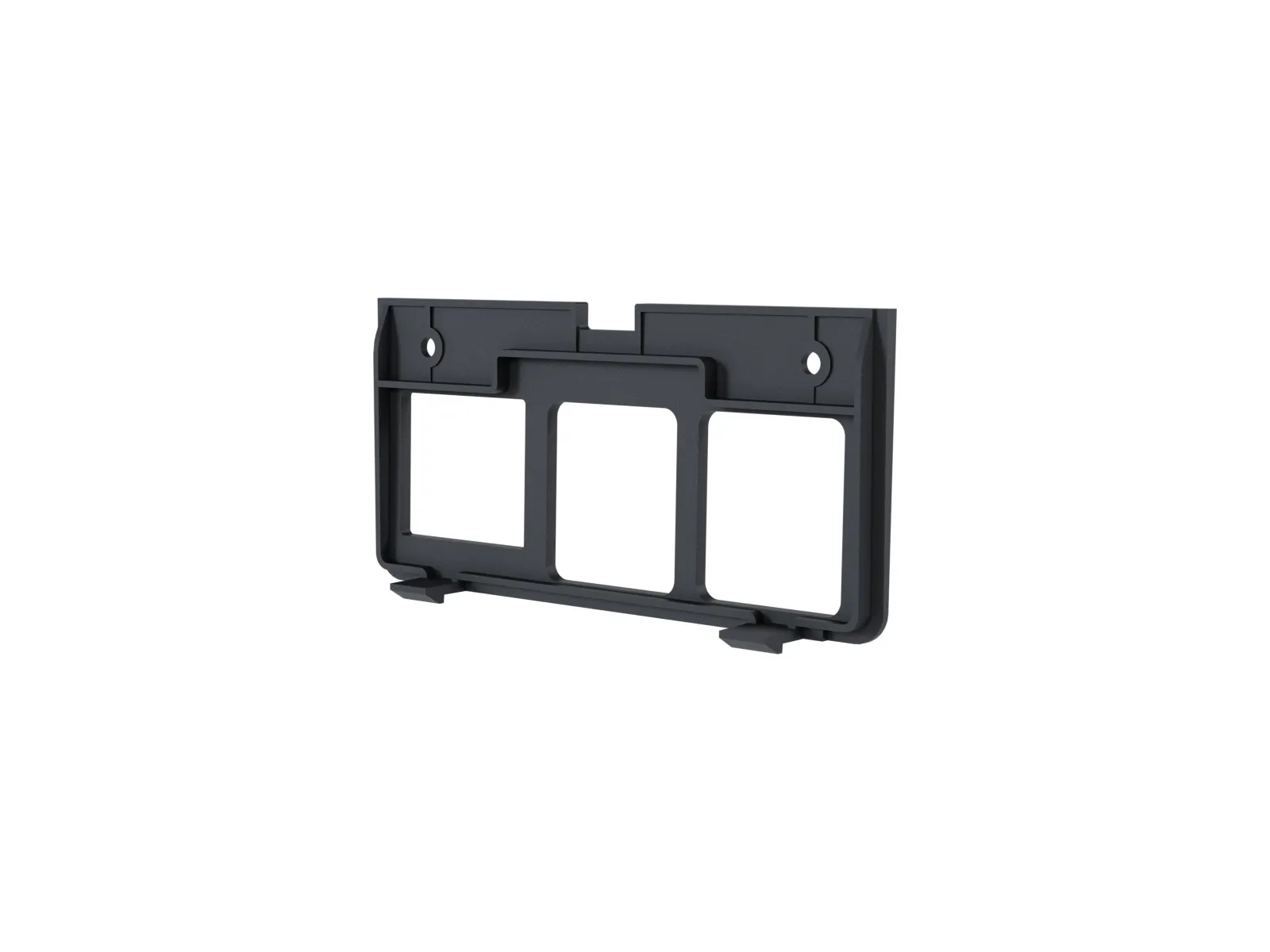

| 3 |  | Pi5 Bracket | 9 |  | Screw Kit |

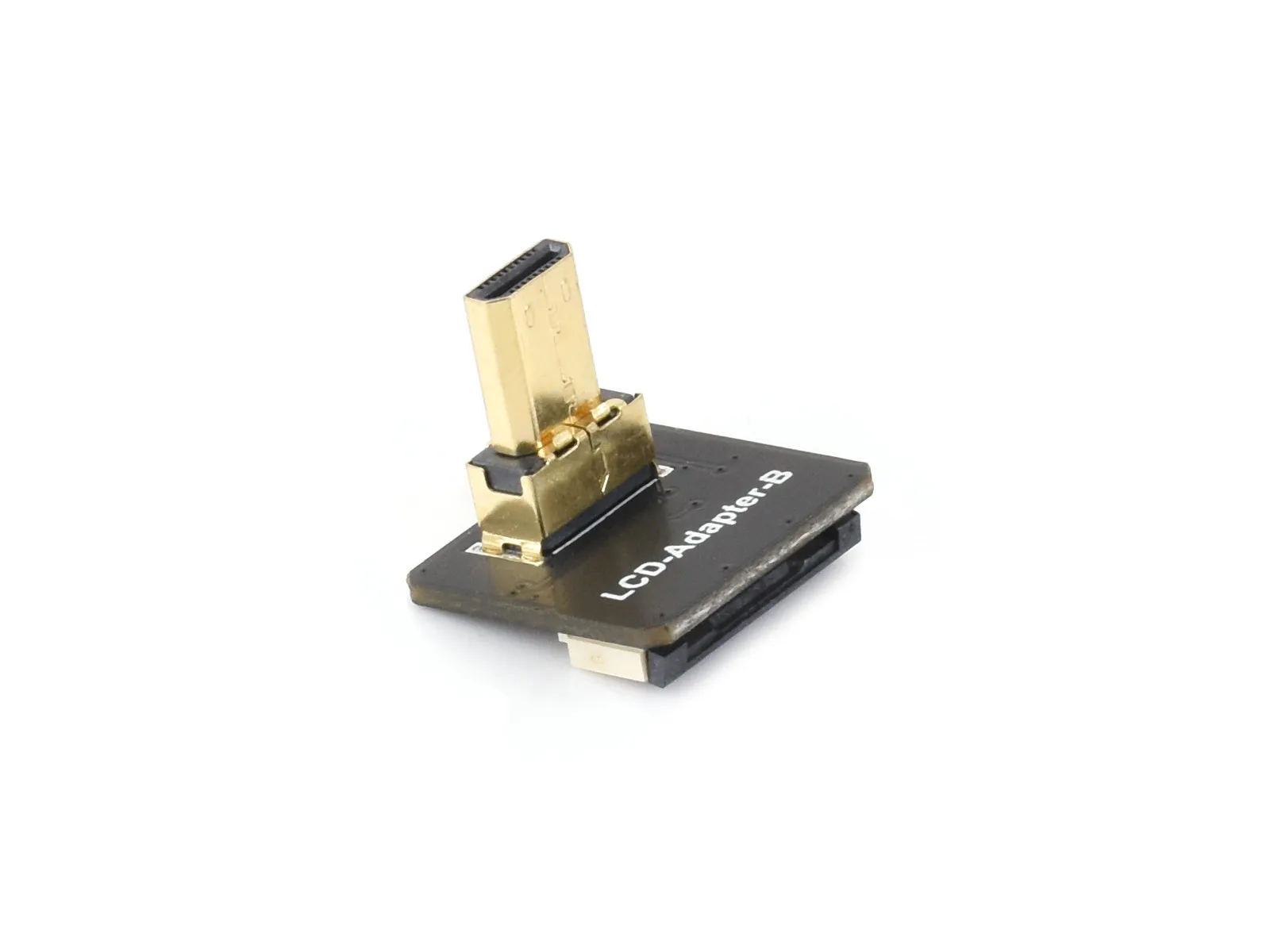

| 4 |  | Micro HDMI Adapter | 10 |  | Screwdriver |

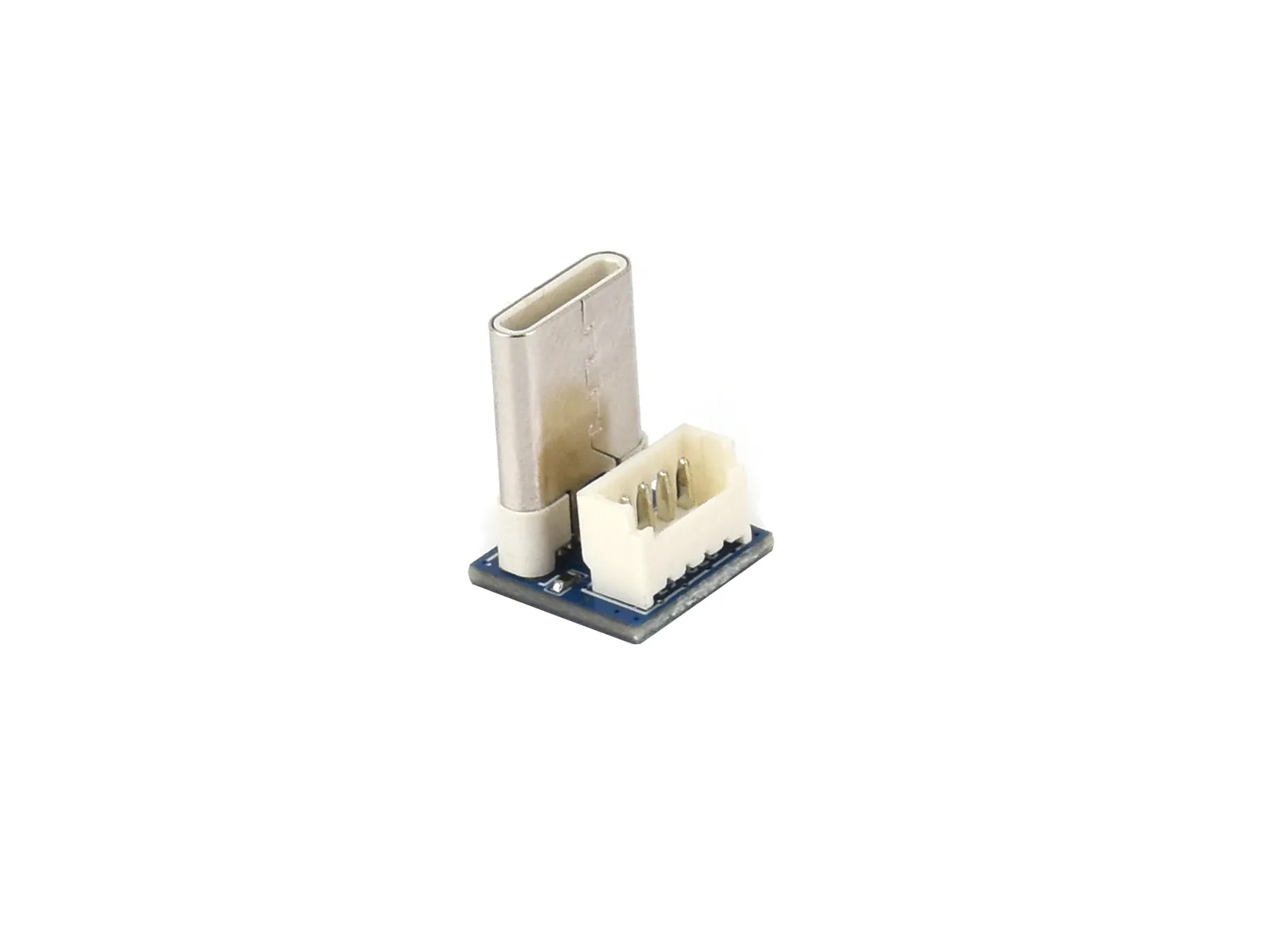

| 5 |  | Type-C Male to 4PIN PH1.25 Female Adapter | 11 |  | Silicone Button |
| 6 |  | 1.27H 4PIN Reverse 15cm Dual‑Ended Cable |
