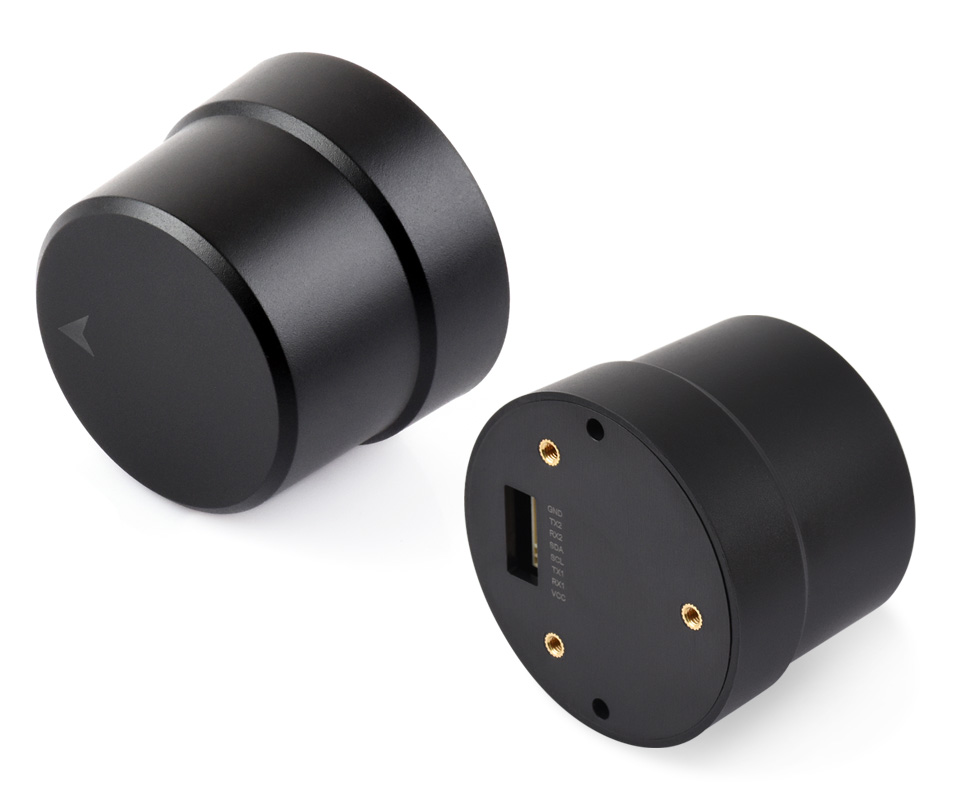

Q43 NEO-F9P GNSS Helical RTK Module
The Q43 NEO-F9P GNSS Helical RTK Module is an integrated RTK smart positioning antenna module based on the u-blox NEO-F9P-15B, combining a high-precision RTK positioning engine, a helical antenna, and a magnetometer in a compact form factor. The module supports multi-constellation, multi-frequency GNSS signal reception across GPS, BeiDou, GLONASS, Galileo, and QZSS, delivering centimeter-level dual-frequency RTK positioning. It provides stable and reliable high-precision positioning for applications such as intelligent robotics, shared mobility, precision agriculture, engineering surveying, handheld terminals, and automotive navigation.
| SKU | Product |
|---|---|
| 35110 | Q43 NEO-F9P GNSS Helical RTK Module |
Specifications
| Antenna Parameters | Frequency Bands | GPS: L1/L5 |
|---|---|---|
| Characteristic Impedance | 50Ω | |
| Polarization | RHCP (Right-Hand Circular Polarization) | |
| Coverage | 360° | |
| Peak Gain | 2.5dBi | |
| VSWR | ≤ 2 | |
| Axial Ratio | ≤3dB | |
| Amplifier Parameters | Gain | 23dB |
| Noise Figure | 1.5dB | |
| Output VSWR | ≤ 2 | |
| System Parameters | Positioning Module | NEO-F9P-15B |
| Magnetometer | QMC5883P | |
| Operating Voltage | 3.3V - 16V | |
| Power Consumption | 500mW (Typ.) | |
| PVT Single-Point Positioning Accuracy | Horizontal: 1.5m | |
| Vertical: 2.0m | ||
| SBAS Positioning Accuracy | Horizontal: 1.0m | |
| Vertical: 1.5m | ||
| RTK Accuracy | Horizontal: 1cm + 1ppm | |
| Vertical: 1cm + 1ppm | ||
| Time Accuracy (RMS) | 30ns | |
| Velocity Accuracy (RMS) | 0.05m/s | |
| Cold Start TTFF | <30s | |
| Initialization Time | <5s (typical) | |
| Initialization Reliability | > 99.9% | |
| Data Update Rate | 25Hz (Max) | |
| Data Format | RTCM 3.3; SPARTN 2.0.1 | |
| Other Parameters | Communication Interface | I2C, UART (9.6k - 921.6kbps def 38.4kbps) |
| Physical Interface | GH1.25 8PIN | |
| Operating Temperature Range | -40℃ - +85℃ | |
| Storage Temperature Range | ||
| Humidity | ≤ 95% | |
| Dimensions | 37.00 × Φ47.04 (mm) |

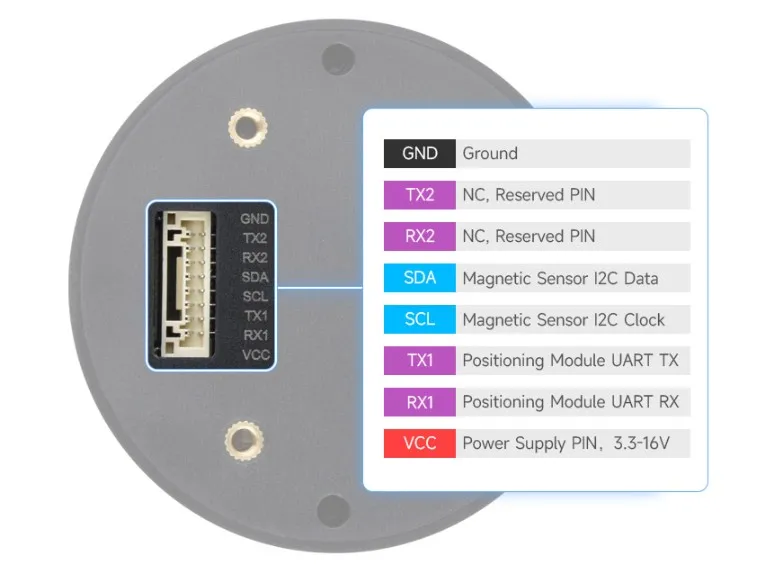

Pinout Definition
Dimensions
