RGB-Matrix-Px-64x64
- RGB-Matrix-P2-64x64
- RGB-Matrix-P2-64x64-B
- RGB-Matrix-P2.5-64x64
- RGB-Matrix-P3-64x64
- RGB-Matrix-P3-64x64-F

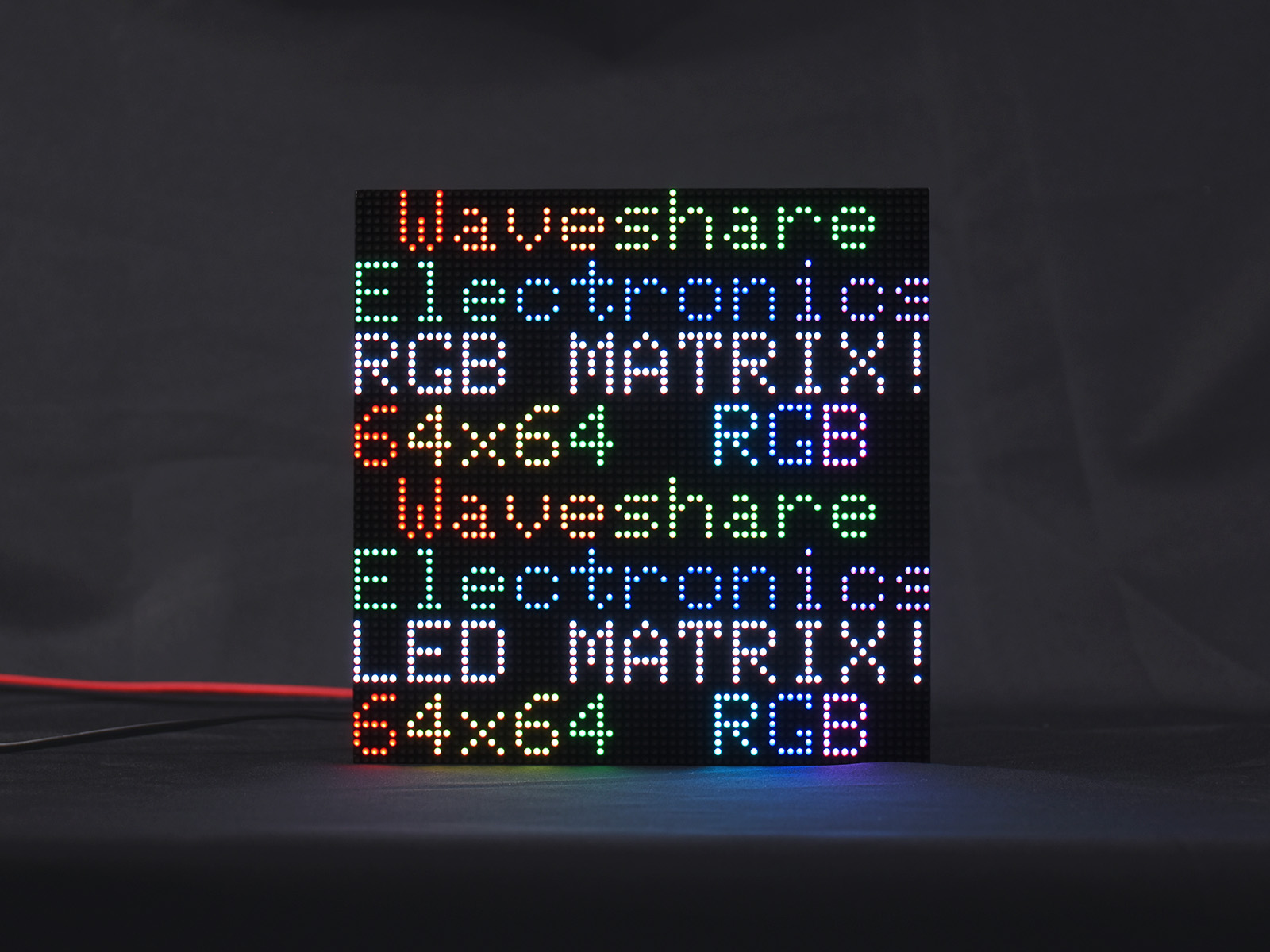

The RGB-Matrix-P2-64x64 is a 64×64 full‑color LED dot-matrix display featuring 4096 RGB LEDs with a 2mm pixel pitch. It supports platforms such as Raspberry Pi, Pi Pico, ESP32, and Arduino, and comes with open‑source example code and tutorials.

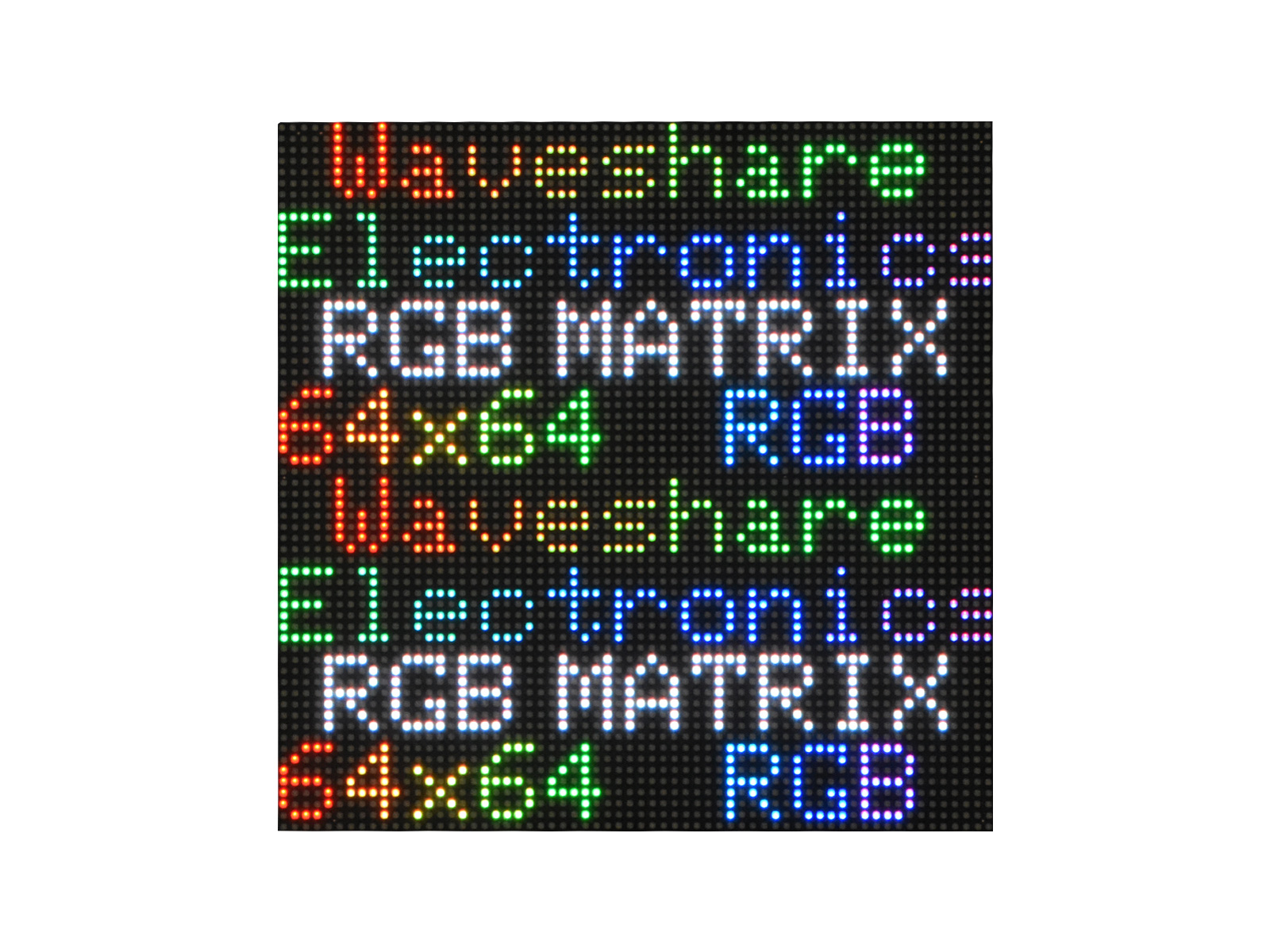

The RGB-Matrix-P2-64x64-B features a GOB (Glue On Board) coating process, which effectively improves the impact resistance of the LED screen and reduces the risk of LED damage during disassembly, transportation, and installation. It is especially suitable for fine‑pitch LED displays.

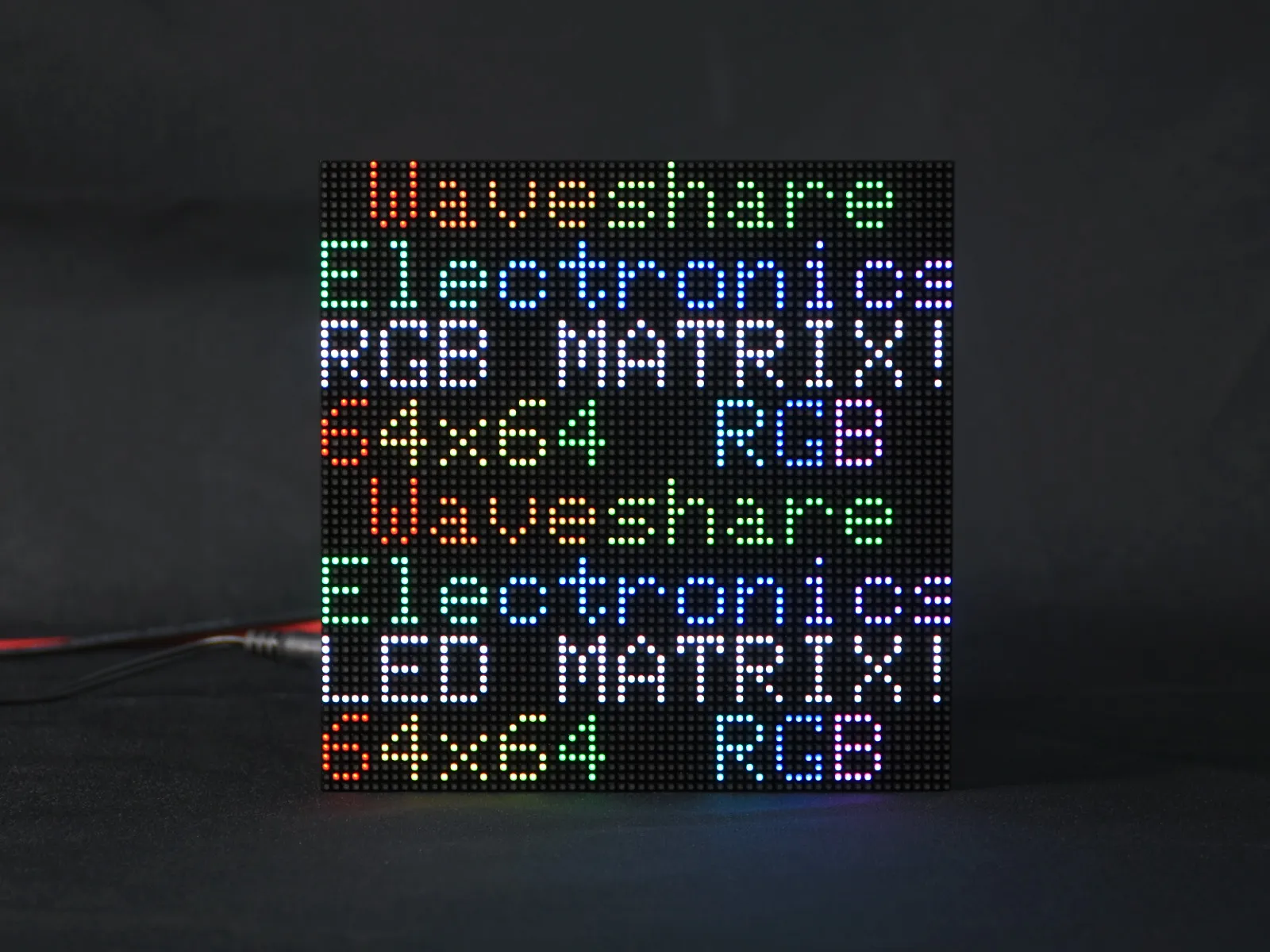

The RGB-Matrix-P2.5-64x64 is a 64×64 full‑color LED dot-matrix display featuring 4096 RGB LEDs with a 2.5mm pixel pitch. It supports platforms such as Raspberry Pi, Pi Pico, ESP32, and Arduino, and comes with open‑source example code and tutorials.

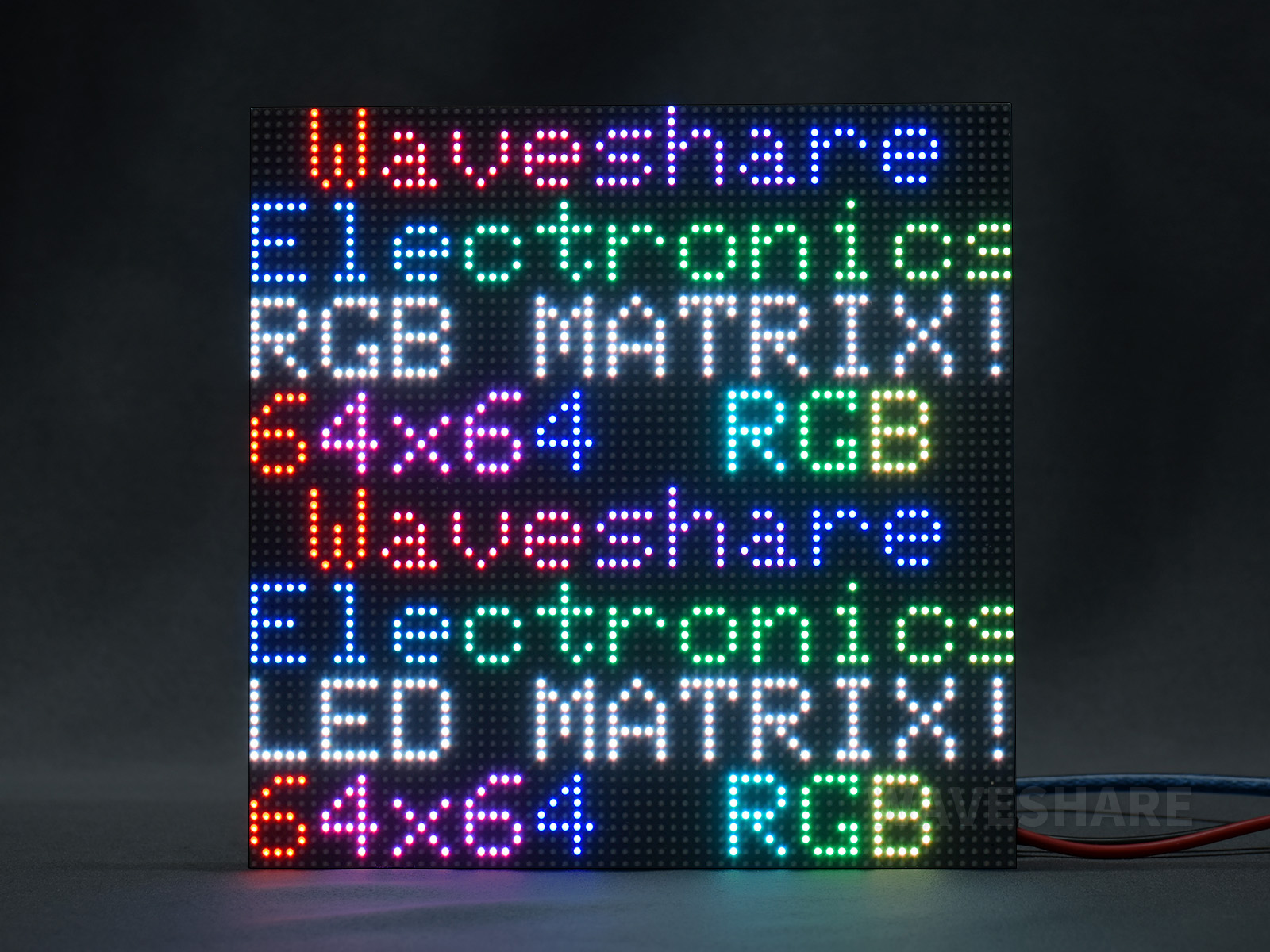

The RGB-Matrix-P3-64x64 is a 64×64 full‑color LED dot-matrix display featuring 4096 RGB LEDs with a 3mm pixel pitch. It supports platforms such as Raspberry Pi, Pi Pico, ESP32, and Arduino, and comes with open‑source example code and tutorials.

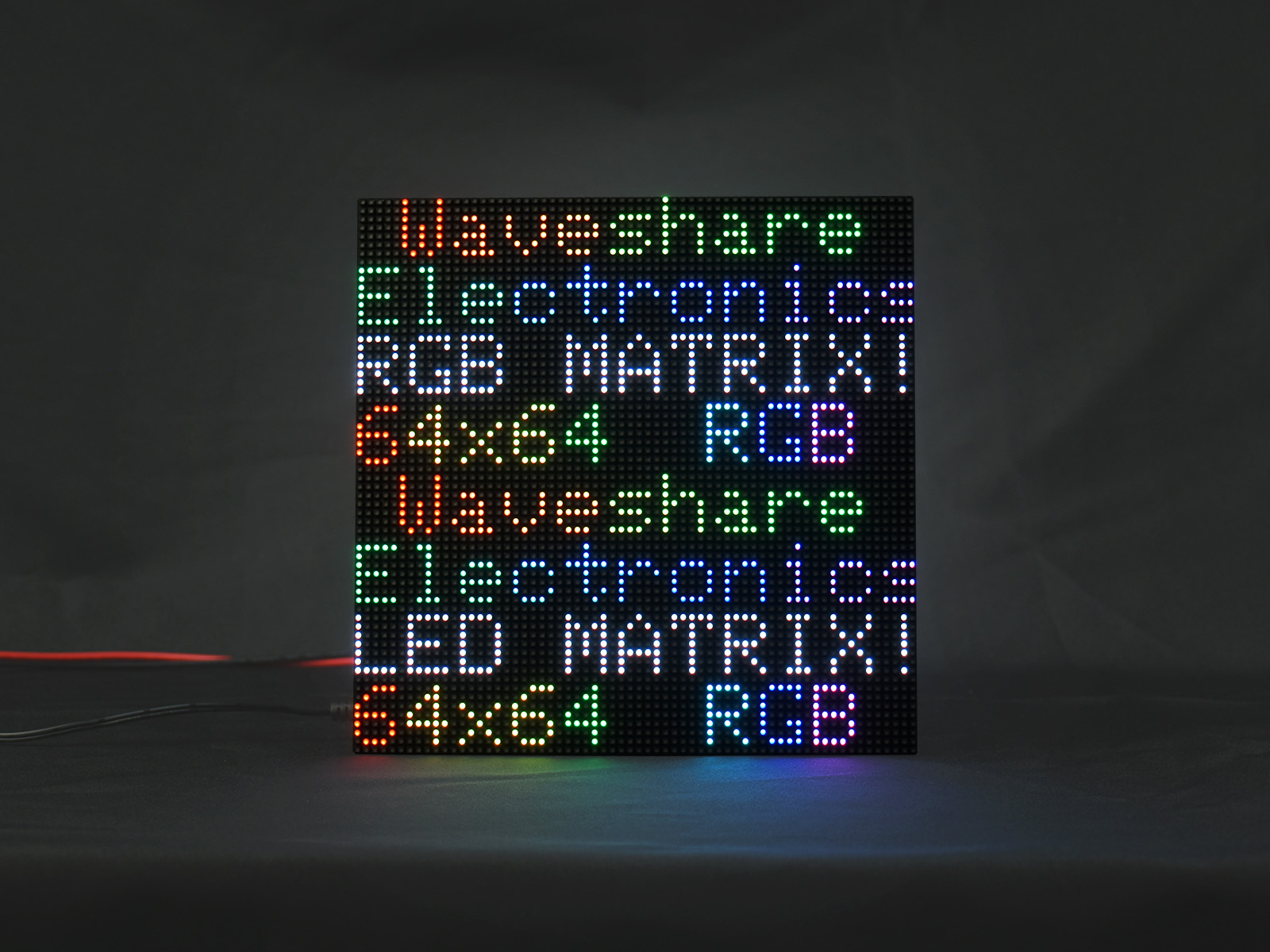

The RGB-Matrix-P3-64x64-F is a 64×64 full‑color flexible LED dot-matrix display made of flexible material, allowing moderate bending. It features 4096 RGB LEDs with a pixel pitch of 3mm, supports Raspberry Pi, Pi Pico, ESP32, Arduino, and other platforms, and includes open-source examples and tutorials.
| SKU | Product |
|---|---|
| 23706 | RGB-Matrix-P2-64x64 |
| 33838 | RGB-Matrix-P2-64x64-B |
| 23708 | RGB-Matrix-P2.5-64x64 |
| 22100 | RGB-Matrix-P3-64x64 |
| 23710 | RGB-Matrix-P3-64x64-F |
Features
- 4096 RGB LEDs for full‑color display with adjustable brightness
- 64×64 resolution, capable of displaying text, color images, or animations
- Moderate size, ideal for DIY desktop or wall‑mounted display applications
- Onboard two HUB75 interfaces: one input for connecting a controller, and one output for cascading multiple panels
- Open‑source documentation and tutorials available for development boards such as Raspberry Pi, Pico, ESP32, and Arduino
Specifications
- P2-64x64
- P2-64x64-B
- P3-64x64
- P3-64x64-F
| Item | Parameter |
|---|---|
| Product Dimensions | 128mm × 128mm |
| Resolution | 64×64 = 4096 DOTS |
| Pixel Pitch | 2mm |
| Pixel Composition | 1R1G1B |
| Viewing Angle | ≥140° |
| Control Method | Synchronous control |
| Driving Mode | 1/32 scan |
| Interface Type | HUB75 |
| Supply Voltage | 5V / 3A (via VH4 socket input) |
| Power Consumption | ≤15W |
| Item | Parameter |
|---|---|
| Product Dimensions | 128mm × 128mm |
| Resolution | 64×64 = 4096 DOTS |
| Pixel Pitch | 2mm |
| Pixel Composition | 1R1G1B |
| Viewing Angle | ≥140° |
| Control Method | Synchronous control |
| Driving Mode | 1/32 scan |
| Interface Type | HUB75 |
| Supply Voltage | 5V / 3A (via VH4 socket input) |
| Power Consumption | ≤15W |
| Protection | GOB coating process |
| Item | Parameter |
|---|---|
| Product Dimensions | 192mm × 192mm |
| Resolution | 64×64 = 4096 DOTS |
| Pixel Pitch | 3mm |
| Pixel Composition | 1R1G1B |
| Viewing Angle | ≥160° |
| Control Method | Synchronous control |
| Driving Mode | 1/32 scan |
| Interface Type | HUB75 |
| Supply Voltage | 5V / 4A (via VH4 socket input) |
| Power Consumption | ≤20W |
| Item | Parameter |
|---|---|
| Product Dimensions | 192mm × 192mm |
| Resolution | 64×64 = 4096 DOTS |
| Pixel Pitch | 3mm |
| Pixel Composition | 1R1G1B |
| Viewing Angle | ≥140° |
| Control Method | Synchronous control |
| Driving Mode | 1/32 scan |
| Interface Type | HUB75 |
| Supply Voltage | 5V / 4A (via VH4 socket input) |
| Power Consumption | ≤20W |
| Feature | Supports moderate bending |
Note: The display must be powered via its 5V supply pins (VCC and GND). Do not apply any other voltage, as this may damage the display.
Application Scenarios
-
Desktop or wall‑mounted information display for dynamic content such as time, weather, and schedule reminders
-
Part of maker projects to achieve simple animations, scrolling text, audio visualizations, etc.
-
Storefronts, exhibition booths, etc., to display promotional slogans or event information
-
By cascading multiple panels, you can build a large‑scale matrix wall for artistic or interactive installations
Development Board Compatibility
| Board Model | Development Platform |
|---|---|
| ESP32-S3-DEV-KIT-NXRX | Arduino IDE / Vscode (IDF) |
| R7FA4 PLUS A | Arduino IDE |
| Raspberry Pi Pico series | Vscode (Pico SDK) |
| Raspberry Pi 4B/5 | Raspberry Pi OS (64-bit) |
| STM32F103RBT6 | KEIL5 |
