RGB-Matrix-Px-80x40
- RGB-Matrix-P4-80x40

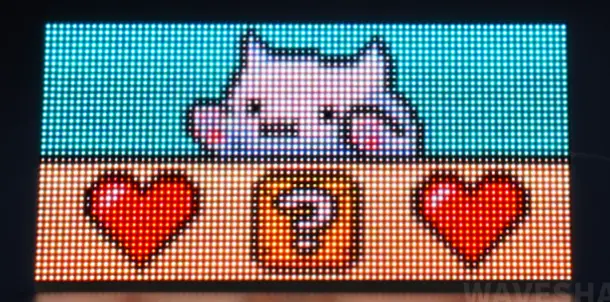

The RGB-Matrix-P4-80x40 is an 80×40 full-color LED dot matrix display featuring 3,200 RGB LEDs with a 4mm pixel pitch. It supports platforms such as Raspberry Pi, Pi Pico, ESP32, and Arduino, and comes with open-source example code and tutorials.
Precautions
Note

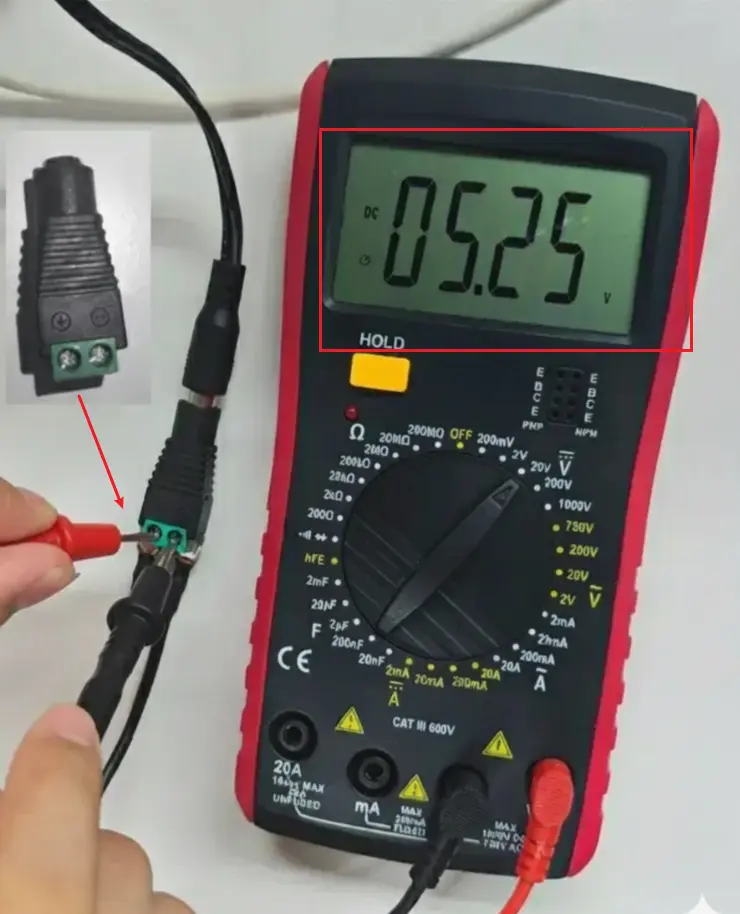

- Before connecting the display, it is recommended to measure the terminal output voltage as shown in the diagram below.
- If the measured voltage is -5V, the terminal polarity may be abnormal. Please contact customer service to replace the corresponding terminal.
- The display operates at 5V and requires an external 5V power supply. Do not connect any other voltage to avoid damaging the device.
| SKU | Product |
|---|---|
| 34431 | RGB-Matrix-P4-80x40 |
Features
- 3,200 RGB LEDs for full-color display with adjustable brightness
- 80×40 resolution, capable of displaying text, color images, or animations
- Moderate size, ideal for DIY desktop or wall-mounted display applications
- Onboard two HUB75 interfaces: one input for connecting a controller, and one output for cascading multiple panels
- Open-source documentation and tutorials available for development boards such as Raspberry Pi, Pico, ESP32, and Arduino
Specifications
- P4-80x40
| Item | Parameter |
|---|---|
| Product Dimensions | 320mm × 160mm |
| Resolution | 80×40 = 3200 DOTS |
| Pixel Pitch | 4mm |
| Pixel Composition | 1R1G1B |
| Viewing Angle | ≥140° |
| Control Method | Synchronous control |
| Driving Mode | 1/20 scan |
| Interface Type | HUB75 |
| Supply Voltage | 5V / 4A (via VH4 socket input) |
| Power Consumption | ≤20W |
Note: The display must be powered via its 5V supply pins (VCC and GND). Do not apply any other voltage, as this may damage the display.
Application Scenarios
- Desktop or wall-mounted information display for dynamic content such as time, weather, and schedule reminders
- Part of maker projects to achieve simple animations, scrolling text, audio visualizations, etc.
- Storefronts, exhibition booths, etc., to display promotional slogans or event information
- By cascading multiple panels, you can build a large-scale matrix wall for artistic or interactive installations
Development Board Compatibility
| Board Model | Development Platform |
|---|---|
| ESP32-S3-DEV-KIT-NXRX | Arduino IDE / Vscode (IDF) |
| R7FA4 PLUS A | Arduino IDE |
| Raspberry Pi Pico series | Vscode (Pico SDK) |
| Raspberry Pi 4B/5 | Raspberry Pi OS (64-bit) |
| STM32F103RBT6 | KEIL5 |
