RGB-Matrix-Px-96x48
- RGB-Matrix-P2.5-96x48-F

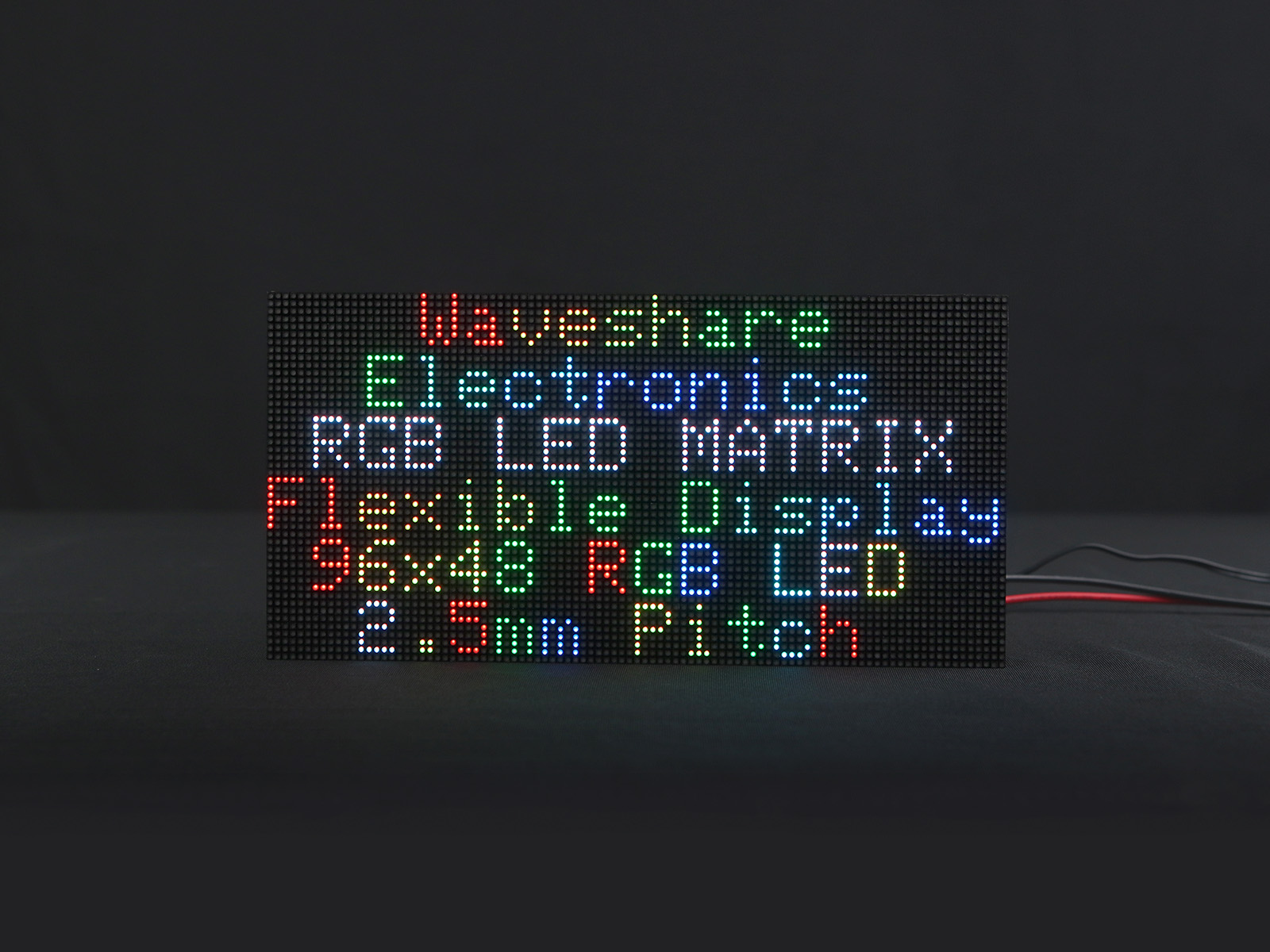

The RGB-Matrix-P2.5-96x48 is a 96×48 full-color LED dot-matrix display featuring 4,608 RGB LEDs with a 2.5mm pixel pitch. It supports platforms such as Raspberry Pi, Pi Pico, ESP32, and Arduino, with open-source example code and tutorials provided.
| SKU | Product |
|---|---|
| 23709 | RGB-Matrix-P2.5-96x48-F |
Precautions
Caution
- Before connecting the display, it is recommended to measure the terminal output voltage as shown in the diagram below.
- If the measured voltage is -5V, the terminal polarity may be abnormal. Please contact customer service to replace the corresponding terminal.
- The display operates at 5V and requires an external 5V power supply. Do not connect any other voltage to avoid damaging the device.
Version Identification

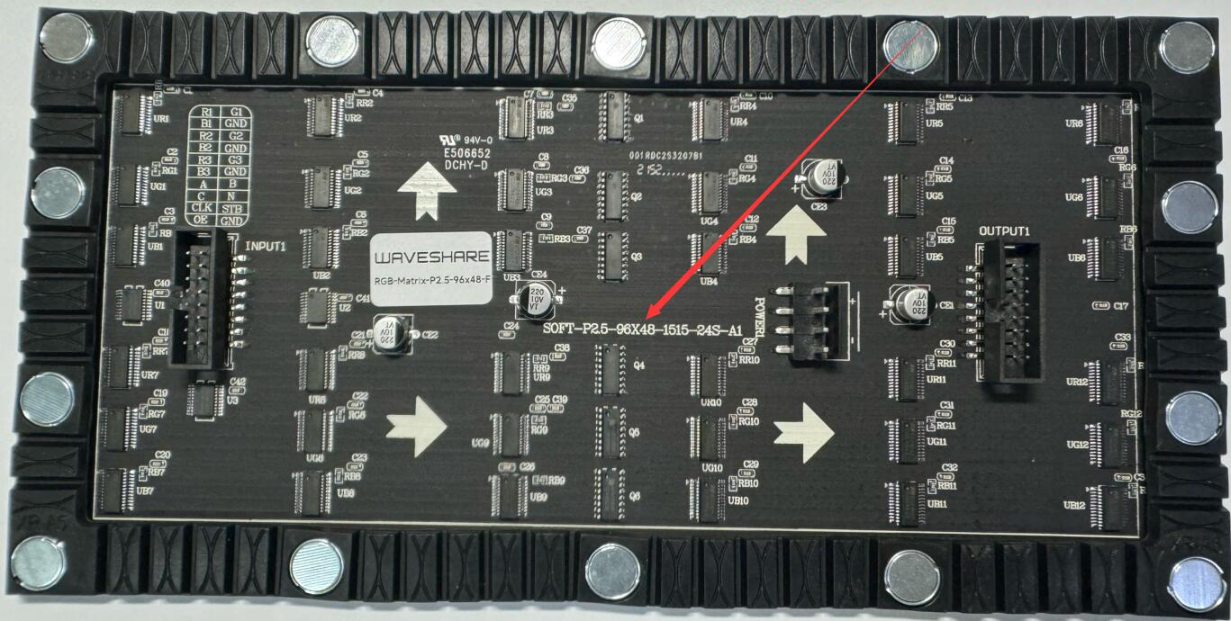

You can identify the version by the silkscreen on the back of the panel.
- Version number 24S-A2.1 indicates V1 version.
- Version number 24S-A1 indicates V2 version.
Features
- 4,608 RGB LEDs for full-color display with adjustable brightness
- 96×48 resolution, capable of displaying text, color images, or animations
- Moderate size, ideal for DIY desktop or wall-mounted display applications
- Onboard two HUB75 interfaces: one input for connecting a controller, and one output for cascading multiple panels
- Open-source documentation and tutorials available for development boards such as Raspberry Pi, Pico, ESP32, and Arduino
Specifications
- P2.5-96x48-F
| Item | Parameter |
|---|---|
| Product Dimensions | 240mm × 120mm |
| Resolution | 96×48 = 4608 DOTS |
| Pixel Pitch | 2.5mm |
| Pixel Composition | 1R1G1B |
| Viewing Angle | ≥140° |
| Control Method | Synchronous control |
| Driving Mode | 1/24 scan |
| Interface Type | HUB75 |
| Supply Voltage | 5V / 4A (via VH4 socket input) |
| Power Consumption | ≤20W |
| Feature | Supports moderate bending |
Note: The display must be powered via its 5V supply pins (VCC and GND). Do not apply any other voltage, as this may damage the display.
Application Scenarios
- Desktop or wall-mounted information display for dynamic content such as time, weather, and schedule reminders
- Part of maker projects for simple animations, scrolling text, audio visualization, and more
- Storefronts, exhibition booths, etc., to display promotional slogans or event information
- By cascading multiple panels, you can build a large-scale matrix wall for artistic or interactive installations
Development Board Compatibility
| Board Model | Development Platform |
|---|---|
| ESP32-S3-DEV-KIT-NXRX | Arduino IDE / VS Code (IDF) |
| R7FA4 PLUS A | Arduino IDE |
| Raspberry Pi Pico series | VS Code (Pico SDK) |
| Raspberry Pi 4B/5 | Raspberry Pi OS (64-bit) |
| STM32F103RBT6 | KEIL5 |
