RoArm-M2-GA
The RoArm-M2-GA is a 3+1 (gripper) DOF smart robotic arm designed for education, research, and lightweight automation. It is driven by bus servos with an ESP32 MCU as the main controller. The arm supports multiple control methods, providing flexible control interfaces and rich communication protocols, making it suitable for desktop-level experimental validation, integration with mobile robot platforms, and teaching scenarios.
With an innovative dual-drive structure, the shoulder joint torque is significantly increased, enhancing both the overall load capacity and structural reliability. Users can perform basic operations without complex setup, while also being able to deeply customize the arm through open interfaces.
| SKU | Product |
|---|---|
| 35143 | RoArm-M2-GA (EU) |
| 35144 | RoArm-M2-GA (UK) |
| 34899 | RoArm-M2-GA |
Key Features:
- Lightweight construction: Uses carbon fiber and 5052 aluminum alloy, making the arm light and easy to mount on various mobile platforms.
- Omnidirectional workspace: A 360° rotating base combined with flexible joint movements creates a workspace up to 1 m in diameter, enabling full-range motion.
- Multi-platform compatibility: Compatible with ROS2 and multiple host computers, supporting various wireless and wired communication methods, providing flexibility for different development and control needs.
- Open source code: All control code and communication interface documentation are open source, facilitating secondary development.
- Rich tutorial resources: Extensive illustrated tutorials covering various functions help users quickly learn and use the arm.
If you need a solution that balances flexibility, scalability, and ease of use, the RoArm-M2 is an excellent choice to help you achieve more innovations.
Specifications
| Model | RoArm-M2-S | RoArm-M2-Pro | |
|---|---|---|---|
| Mechanical Performance Specifications | Degrees of Freedom | 3+1 (gripper) | |
| Payload | 0.5 kg@0.5 m | ||
| Weight (without desktop clip) | 930±15g | ||
| Working Diameter | Horizontal diameter: 1017 mm (Max, 360° omnidirectional) Vertical range: 778 mm (Max) | ||
| Base Rotation Range | 360° | ||
| Unidirectional Repeatability | ≈±4 mm (same load) | ||
| Desktop Clip Weight | 290±10 g | ||
| Desktop Clip Max Thickness | ＜72 mm | ||
| Electrical Parameters | Operating Voltage Range | 7~12.6 V | |
| Recommended Power Supply | 12V 5A adapter (included), can also use a 3S Lithium battery pack | ||
| Power Connector Type | DC5521 | ||
| Control System Parameters | Onboard Main Controller | ESP32-WROOM-32UE | |
| Onboard Module Features | Wi-Fi, BT, Dual Core, 240 MHz | ||
| Communication Interfaces | Wi-Fi/ESP-NOW/UART/USB | ||
| Wireless Control | 2.4G-WiFi/ESP-NOW | ||
| Wired Control | USB/UART | ||
| Supported Host Computers | Raspberry Pi / Jetson Orin Nano / PC and other devices with serial port support | ||
Dimensions
Unit: mm

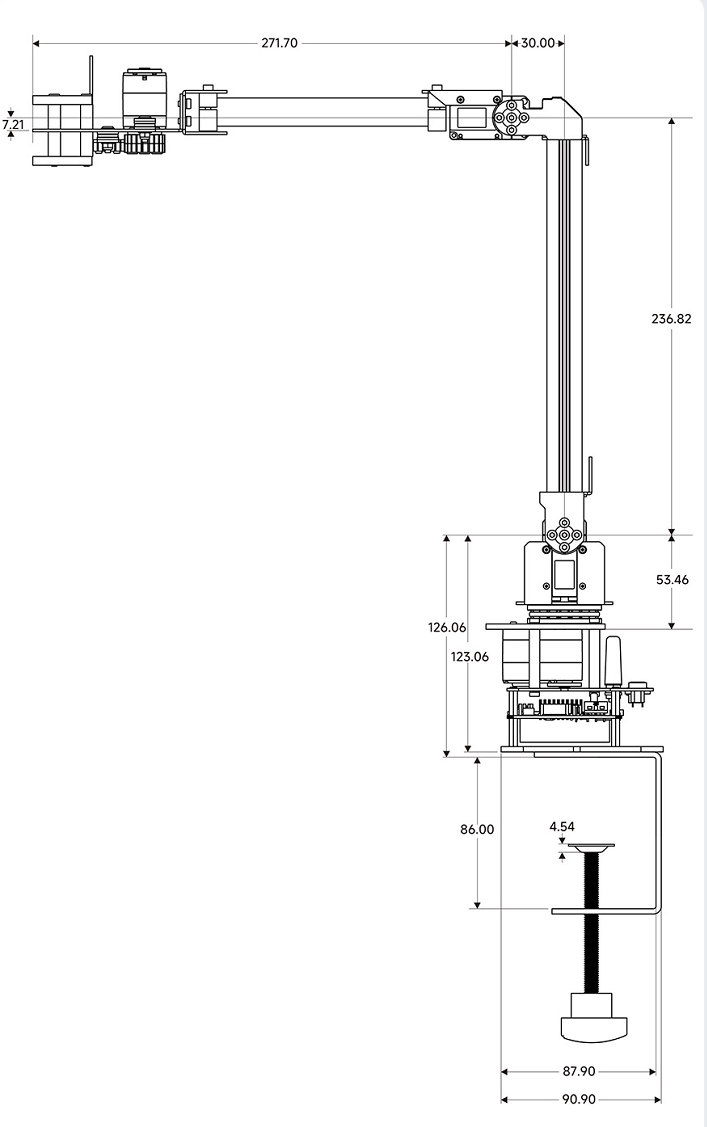

Gripper Configuration Dimensions
