Working with ESP32-S3

This chapter includes the following sections:

• Setting Up the Development Environment
• Example

Setting Up the Development Environment

1. Installation and Configuration

• For ESP32-S3 environment setup and basic usage, please refer to the following links:
  • ESP-IDF
  • Arduino ESP32
  • MicroPython
• After setting up the environment, connect the sensor and download the example package.

Example

Hardware Connection

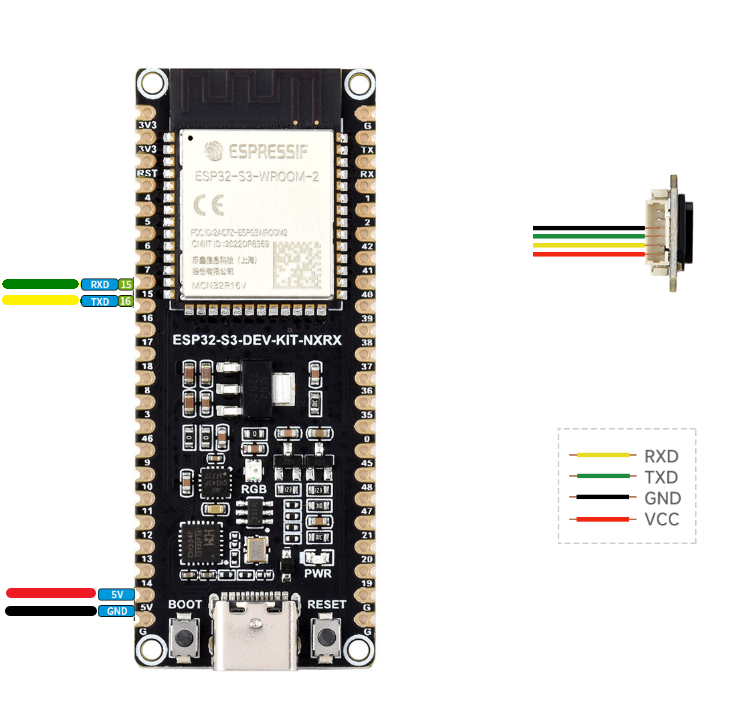

Connect as shown in the figure below.

Running the Arduino ESP32 Example

• Navigate to TOF_MINIF_Range_Sensor_Demo/TOF_MINIF_Range_Sensor_Demo/ESP32S3/Arduino/TOF_UART_Demo and double-click the TOF_UART_Demo.ino file.

• Select the development board:



• Select the ESP32-S3 port, then compile and upload.

• After upload is complete, open the Serial Monitor to view the output.

Running the MicroPython Example

• Navigate to TOF_MINIF_Range_Sensor_Demo/TOF_MINIF_Range_Sensor_Demo/ESP32S3/python and double-click the TOF_UART_Demo.py file.

• Set the chip model to ESP32 and select the corresponding port:



• Select the ESP32-S3 port, then run the example.

• The shell will display the relevant output.
