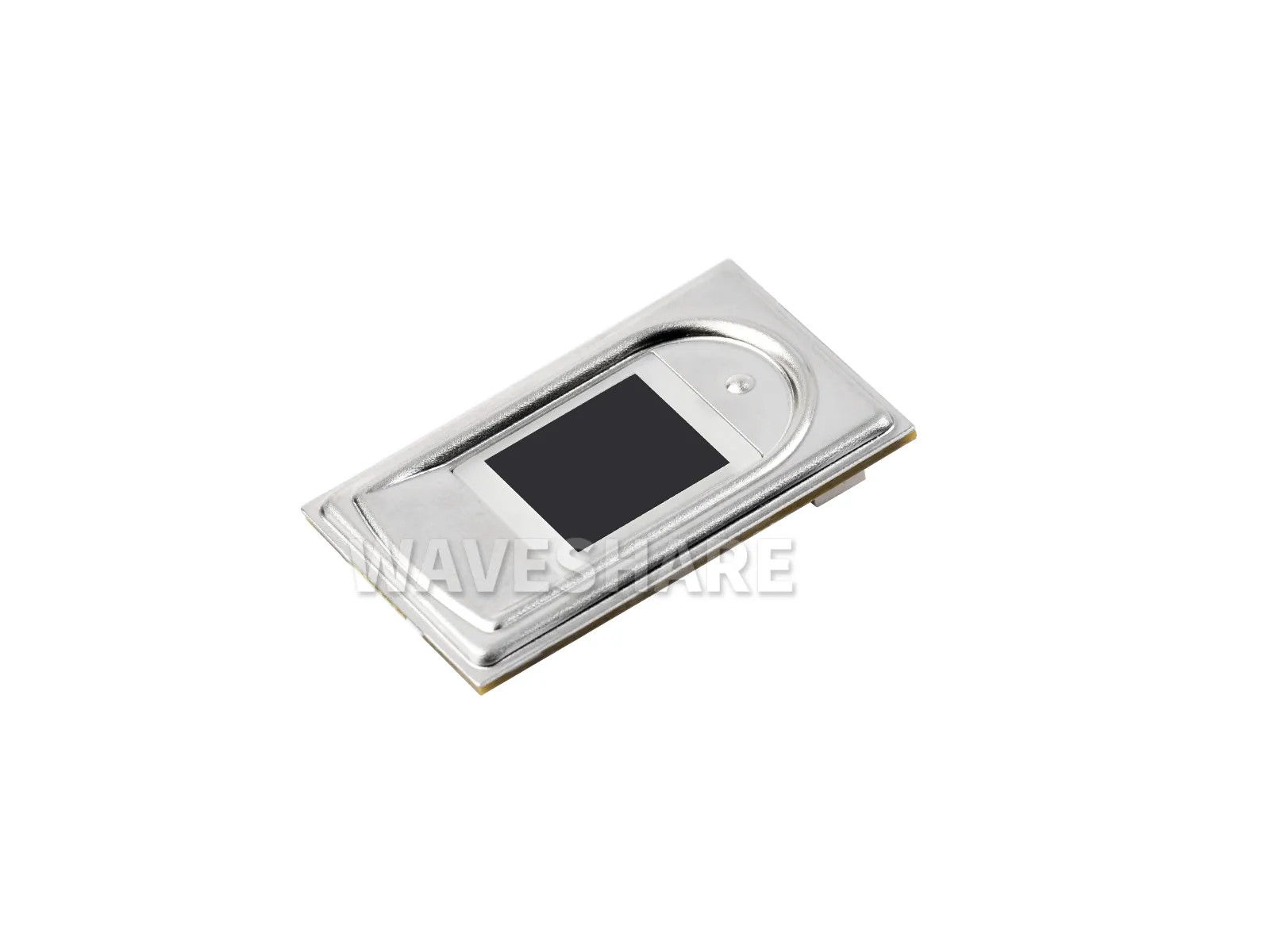

UART Fingerprint Sensor (F)
| SKU | Product |
|---|---|
| 31887 | UART Fingerprint Sensor (F) |
Features
This product uses a high-performance Cortex-core main controller and integrates a highly secure commercial fingerprint algorithm, supporting functions such as fingerprint enrollment, image capture, template extraction, and fingerprint comparison. There is no need to understand complex fingerprint recognition algorithms; you can carry out secondary development simply by sending commands over the serial port, making it suitable for integration into fingerprint recognition applications with high requirements for size and accuracy.
- Easy to use, with no need to understand the fingerprint algorithm or internal structure; the corresponding operations can be completed with simple commands
- Built-in commercial algorithm, supporting fingerprint enrollment, fingerprint comparison, fingerprint image extraction, and fingerprint template upload, with stable performance and fast recognition speed
- Capacitive fingerprint recognition with sensitive response; a finger only needs to lightly touch the capture window for fast recognition
- High hardware integration, with the main controller and fingerprint sensor integrated into one unit, making it easy to embed into small-size applications
- Built-in human body sensing device, with power-down sleep and touch wake-up functions for lower power consumption
- Capture window with LED, providing fingerprint capture indication
- Onboard UART serial and USB dual communication interfaces
- Can be connected to a PC for communication with the host software, or connected to embedded hardware platforms such as STM32 and Raspberry Pi
Application Scenarios
- Fingerprint locks
- Fingerprint safes
- Fingerprint access control
- Fingerprint time and attendance
Specifications
| Parameter | Specification |
|---|---|
| Model | UART Fingerprint Sensor (F) |
| Sensor Type | Capacitive touch sensor |
| Resolution | 508 DPI |
| Image Pixel Array | 192 × 192 |
| Fingerprint Template Size | 448 bytes |
| Sensor Dimensions | 9.6 × 9.6 (mm) |
| Fingerprint Capacity | 1000 fingerprints |
| Comparison Time | < 0.5 s (1 : N, and N ≤ 500) |
| False Acceptance Rate | < 0.001% (security level 3) |
| False Rejection Rate | < 2% (security level 3) |
| Operating Voltage | 3.3 V |
| Operating Current | < 55 mA |
| ESD Test | ESD IEC 61000-4-2 LEVEL 4 ±15 kV air discharge |
| Communication Interface | UART, USB |
| Communication Baud Rate | 115200 bps (supports 9600 bps to 115200 bps) |
| Operating Environment | Temperature: -10 ℃ to 60 ℃; Humidity: 20 %RH to 80 %RH (non-condensing) |
| Product Size | 20.40 × 33.40 (mm) |

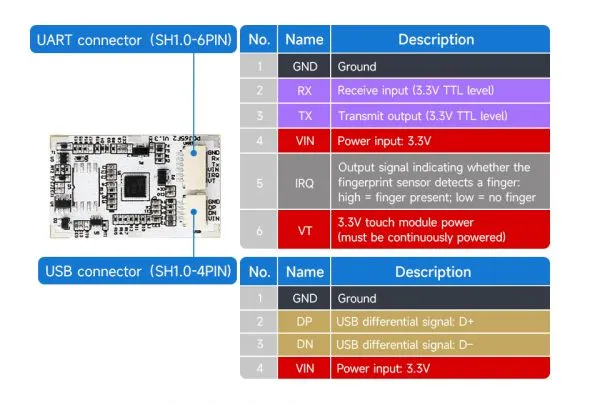

Interface Description
UART Interface (SH1.0-6PIN)
| No. | Name | Function Description |
|---|---|---|
| 1 | GND | Power ground |
| 2 | RX | Receive input (3.3 V TTL level) |
| 3 | TX | Transmit output (3.3 V TTL level) |
| 4 | VIN | Power input: 3.3 V |
| 5 | IRQ | Output signal from the fingerprint sensor indicating whether a finger is detected, active high (high level when a finger is present, low level when no finger is present) |
| 6 | VT | 3.3 V touch power supply |
USB Interface (SH1.0-4PIN)
| No. | Name | Function Description |
|---|---|---|
| 1 | GND | Power ground |
| 2 | DP | USB differential signal: D+ |
| 3 | DN | USB differential signal: D− |
| 4 | VIN | Power input: 3.3 V |

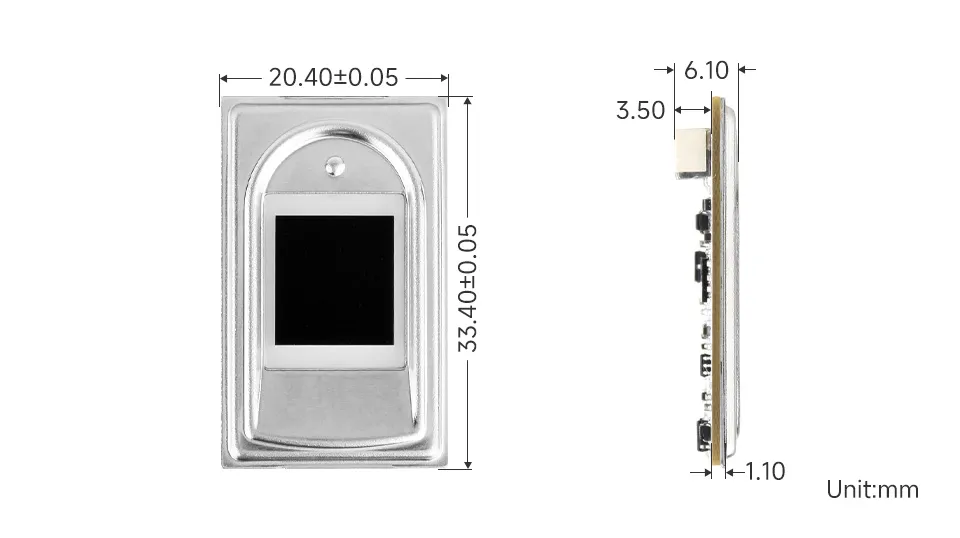

Dimensions
