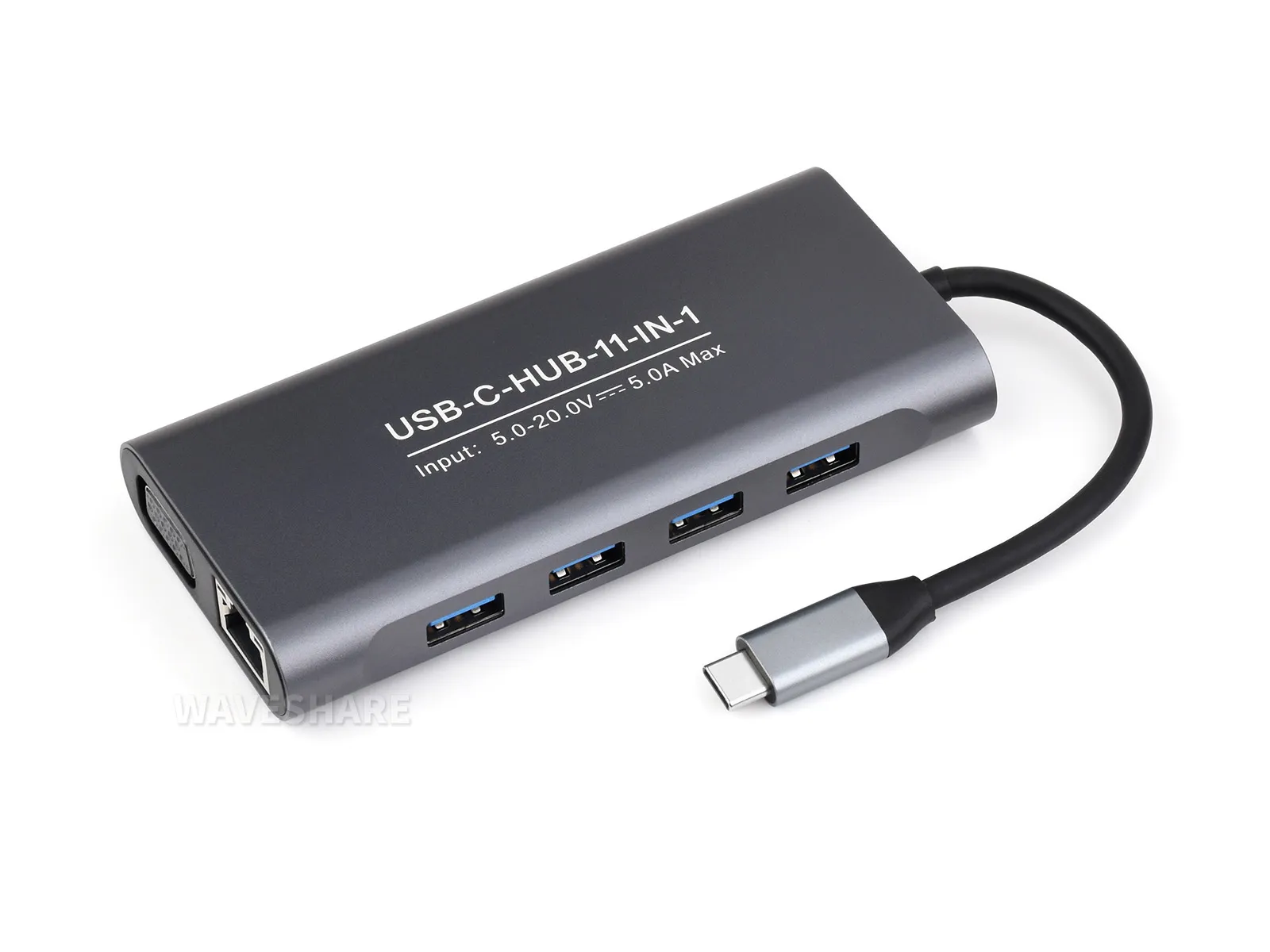

USB-C-HUB-11-IN-1
| SKU | Product |
|---|---|
| 35204 | USB-C-HUB-11-IN-1 |
Overview
The USB-C-HUB-11-IN-1 is a USB Type-C multi-function docking station that expands commonly used interfaces for computers, tablets, and other compatible devices through a single USB-C cable. The product features an aluminum alloy housing and supports plug-and-play, meeting the needs of data transfer, video output, network connectivity, memory card reading/writing, and device power supply.
Features
- USB-C full-featured upstream interface, supporting USB high-speed data transfer, DP video output, and PD fast charging protocols
- Supports PD 3.0, with a maximum power of 100 W
- Supports HDMI 1.4, up to 4K@30 Hz video output
- Supports VGA video output, up to 1920×1080@60 Hz
- Provides USB 3.0, USB 2.0, RJ45 10/100 Mbps Ethernet port, SD card slot, TF card slot, and 3.5 mm audio jack
- Aluminum alloy housing, compact design, driver-free plug-and-play
- Compatible with Windows, macOS, Linux, Android, and other operating systems

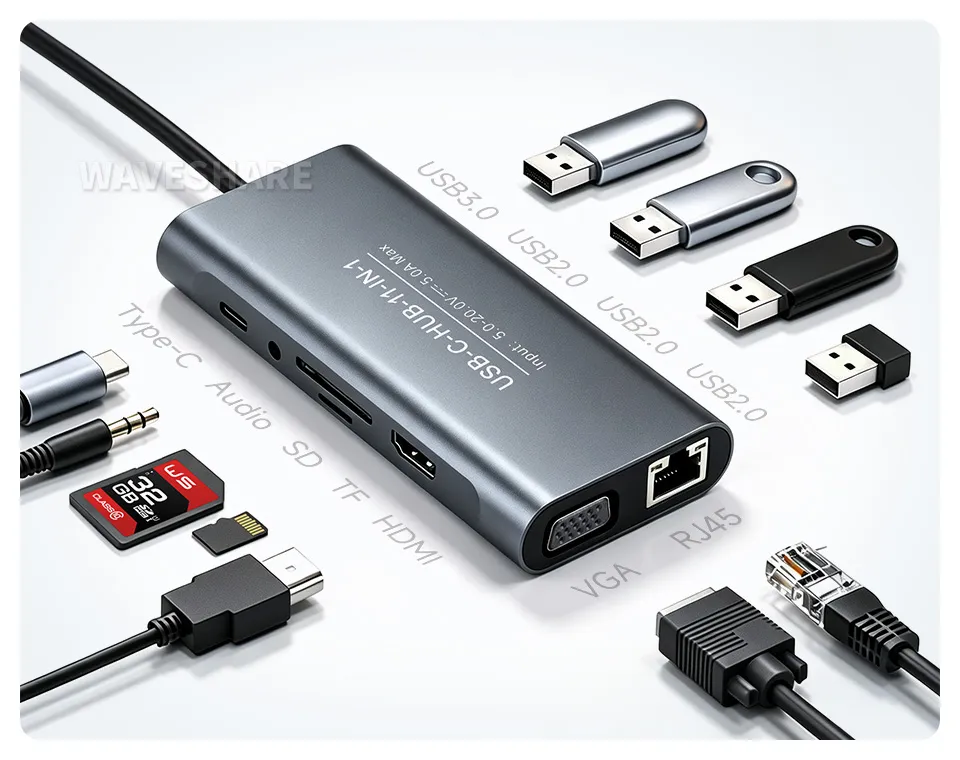

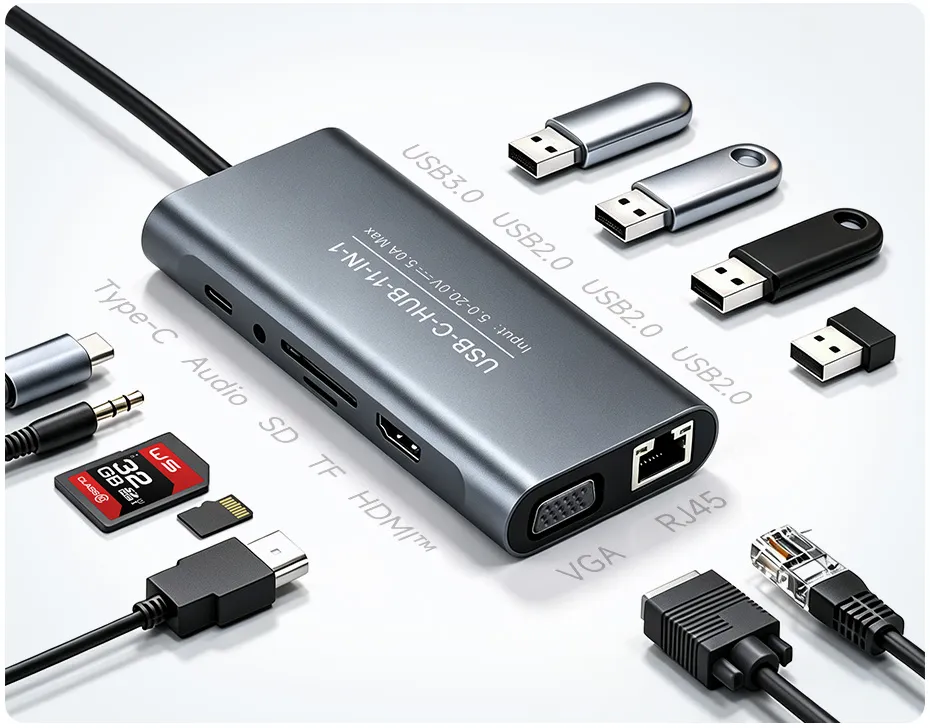

Interface Description
| No. | Interface | Function and Specifications |
|---|---|---|
| 2 | PD | PD 3.0 fast charging, supports up to 100W PD input |
| 5 | HDMI | HDMI 1.4, supports up to 4K@30 Hz, backward compatible with 1080P/720P |
| 6 | VGA | Supports up to 1920×1080@60 Hz, backward compatible with 720P |
| 7 | SD | Supports SDv1.0/v1.1/v2.0/SDHC/SDXC cards |
| 8 | TF | Supports SDv1.0/v1.1/v2.0/SDHC/SDXC cards |
| 10 | 3.5 mm Audio | Supports 8, 11.025, 12, 16, 22.05, 32, 44.1, and 48 kHz sampling rates |
| 3 | USB 3.0 | Data transfer rate up to 5 Gbps, backward compatible with USB 2.0/1.1 |
| 1 | USB-C | Full-featured upstream interface, supports USB high-speed data transfer, DP video output, and PD fast charging |
| 4 | USB 2.0 | Theoretical transfer rate up to 480 Mbps, backward compatible with USB 1.1/1.0 |
| 9 | RJ45 | 10/100 Mbps Ethernet |
Usage Tips
- Before using HDMI or VGA video output, please confirm that the host's USB-C interface supports DP Alt Mode; USB-C interfaces that only support charging or data transfer cannot output video.
- The SD card slot and TF card slot do not support simultaneous reading. Please use only one slot at a time.

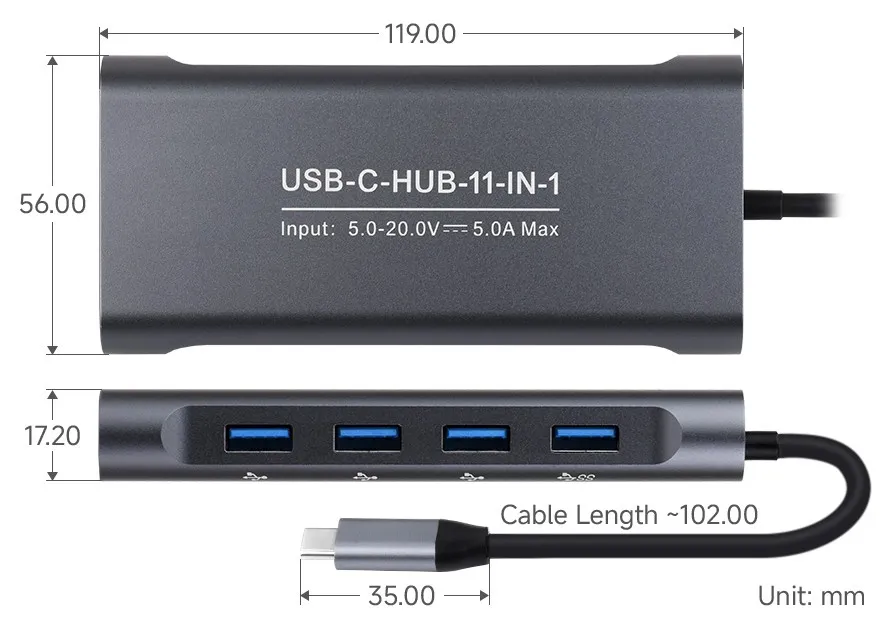

Dimensions
