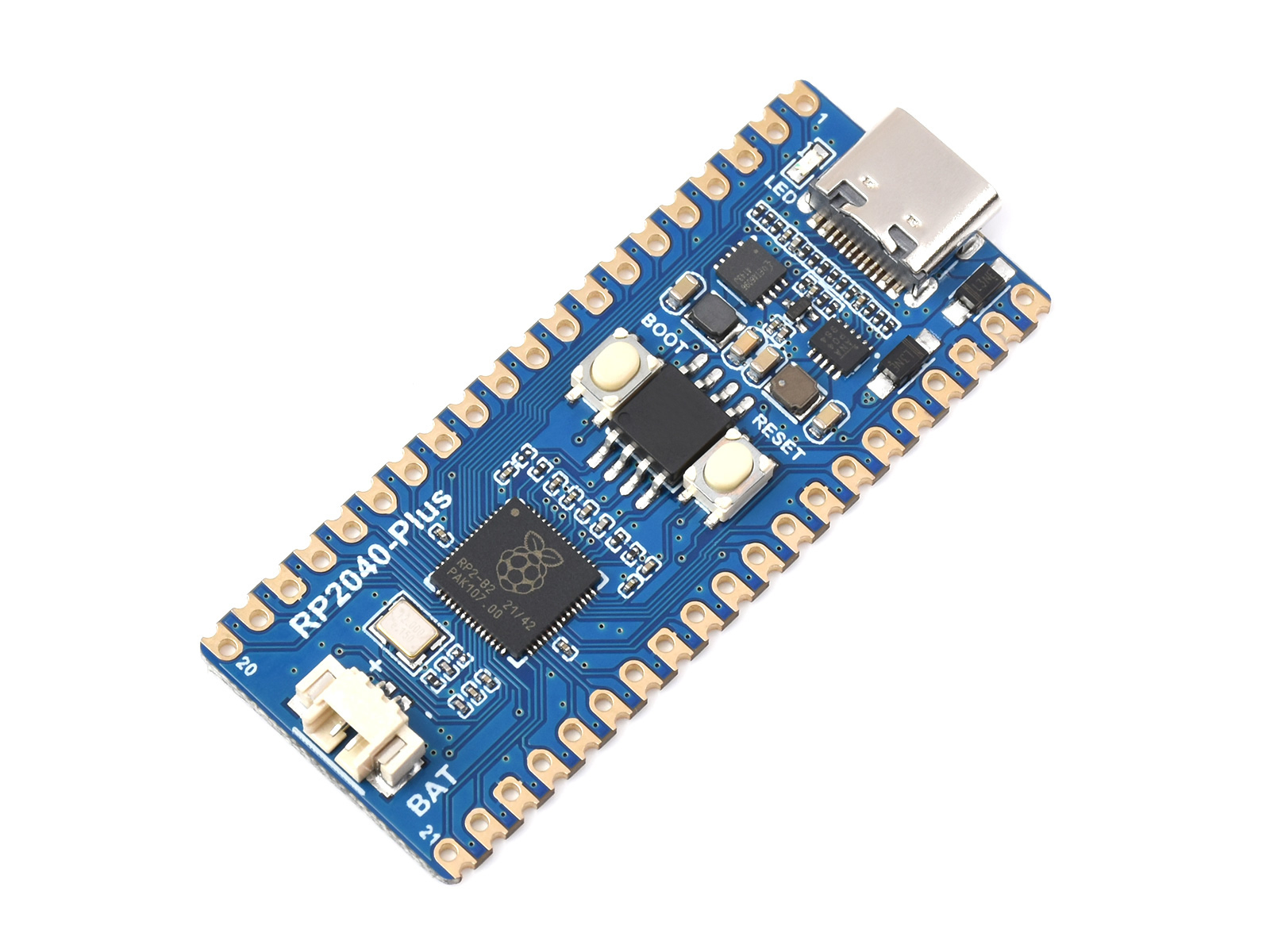

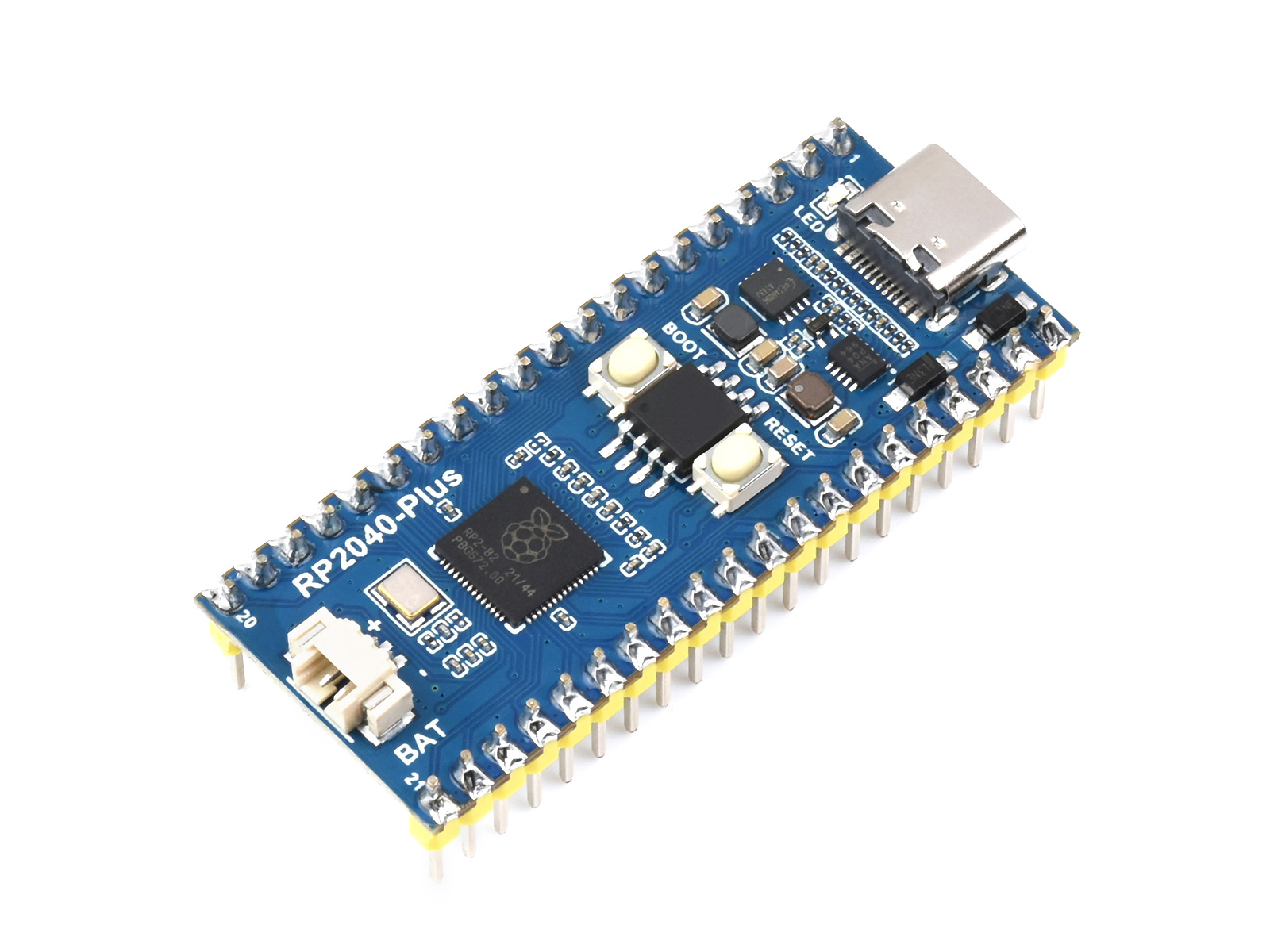

RP2040-Plus-M Product Image

The RP2040-Plus is a low-cost, high-performance microcontroller development board designed by Waveshare, featuring flexible digital interfaces. On the hardware side, it utilizes the RP2040 microcontroller chip independently developed by Raspberry Pi. It is equipped with a dual-core ARM Cortex M0+ processor running at up to 133MHz, incorporates 264KB of SRAM and 4MB/16MB (optional) of on-chip Flash, and provides 26 multifunctional GPIO pins. On the software side, developers can choose between the C/C++ SDK provided by Raspberry Pi or use MicroPython. It comes with comprehensive development materials and tutorials, enabling quick entry into development and easy integration into products.

SKUProduct
20290RP2040-Plus
20808RP2040-Plus-M
23503RP2040-Plus-16MB
23504RP2040-Plus-16MB-M

Features​

  • Utilizes the RP2040 microcontroller chip designed by Raspberry Pi
  • Equipped with a dual-core ARM Cortex M0+ processor and a flexible clock running at up to 133MHz
  • Built-in 264KB of SRAM and 4MB of on-chip Flash
  • Utilizes a Type-C port, eliminating concerns about plug orientation.
  • Onboard lithium battery charge/discharge interface, beneficial for mobile applications
  • Onboard DC-DC chip MP28164, a high-efficiency buck-boost converter capable of handling load currents up to 2A
  • Castellated module design allows direct soldering and integration onto user-designed carrier boards
  • USB1.1 host and slave device support
  • Supports low-power sleep and hibernation modes
  • Drag-and-drop programming using mass storage over USB
  • Up to 26 multifunctional GPIO pins
  • 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, and 16 controllable PWM channels
  • Accurate on-chip clock and timer
  • On-chip accelerated floating-point libraries
  • Built-in temperature sensor for real-time chip temperature monitoring
  • 8 × programmable I/O (PIO) state machines for custom peripheral support

Onboard Resources​

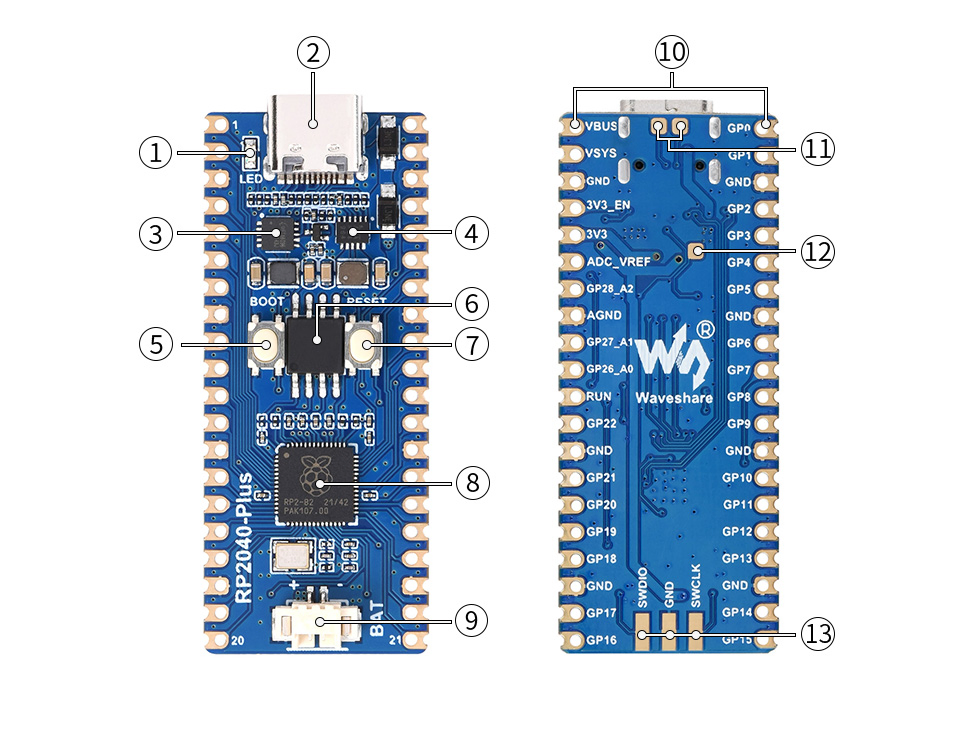

RP2040-Plus Hardware Resources

  1. LED Indicator User status indicator (not a power LED), used for operational status signaling
  2. USB Type-C Interface For program download and power supply, supports USB communication
  3. ETA6096 High-efficiency lithium battery charge management chip, supports single-cell 3.7V lithium battery charging
  4. MP28164 High-efficiency DC-DC buck/boost power chip, enhances system power supply stability
  5. BOOT Button Press during reset to enter download mode
  6. On-Chip Flash Provides program and data storage, available in 4MB (W25Q32JVSSIQ) and 16MB (W25Q128JVSIQ) variants
  7. RESET Button System reset button for rebooting the device
  8. RP2040 Dual-core ARM Cortex-M0+ processor, operating at up to 133MHz
  9. Battery Interface MX1.25 connector for connecting a 3.7V lithium battery, supports charging and discharging functions
  10. Pin Headers Compatible with the standard Raspberry Pi Pico pin interface for easy peripheral expansion
  11. USB Test Points Expose USB signals for convenient debugging and testing
  12. BOOT Test Points Connected to the BOOT button circuit, facilitates automatic downloading and debugging
  13. DEBUG Interface For program download and online debugging, supports development and debugging needs

Interfaces​

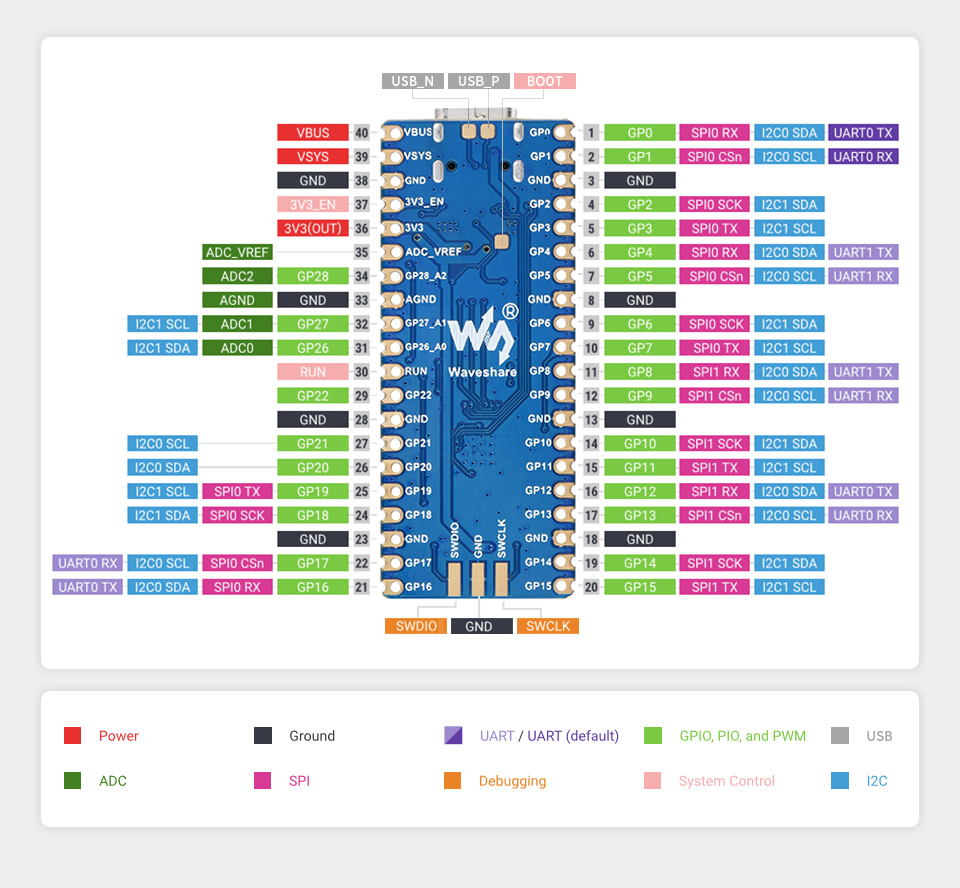

RP2040-Plus Pin Definitions

Dimensions​

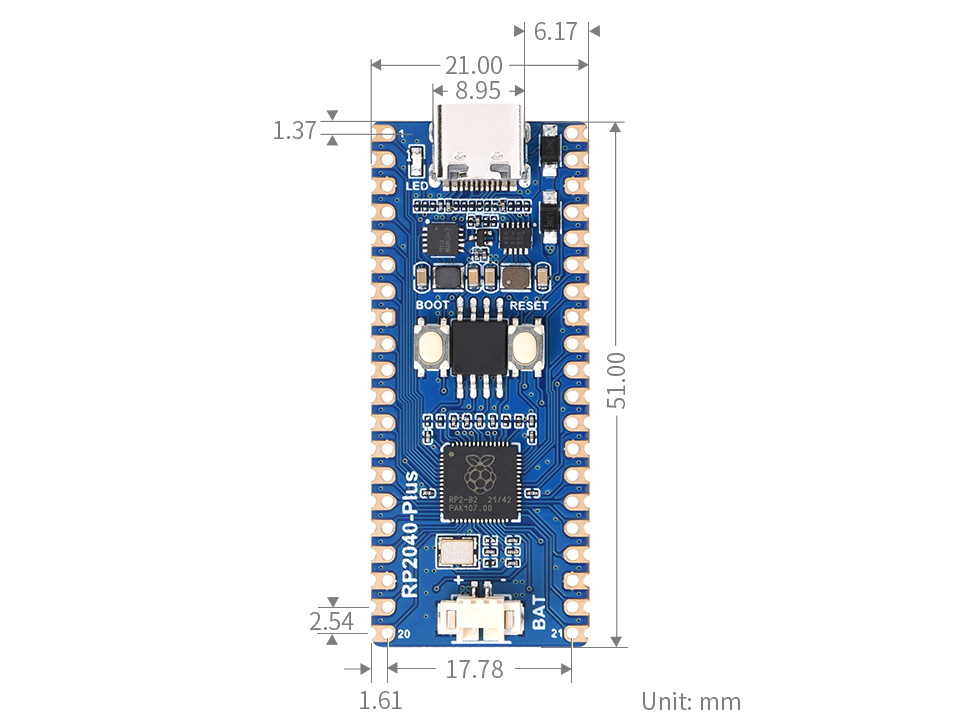

RP2040-Plus Product Dimensions

Development Methods​

The RP2040-Plus supports three programming languages: MicroPython, C/C++, and Arduino, offering developers flexible choices. You can select the appropriate development tools and programming methods based on project requirements and personal preference:

Each of the three development methods has its own advantages. Developers can choose based on their needs and skill level. MicroPython is simple to learn and quick to get started with, suitable for beginners and non-professionals. Arduino and VS Code provide more advanced development tools and stronger control capabilities, suitable for developers with a professional background or higher performance requirements, and are more suitable for complex project development.

  • Thonny IDE (Working with MicroPython): Thonny is a lightweight Python Integrated Development Environment designed for beginners and educational scenarios, now widely used for MicroPython / CircuitPython development. Its interface is simple and intuitive, featuring a built-in Python interpreter, support for serial REPL, code flashing, and debugging, with a straightforward setup process. MicroPython is easy to learn and runs without compilation, making it ideal for beginners to quickly start embedded development. You can refer to the Working with MicroPython for initial setup, which provides detailed environment configuration steps and example programs.

  • VSCode + Pico SDK (Working with C/C++): VSCode is a powerful cross-platform code editor. By installing the Pico VSCode extension, a complete C/C++ development environment can be quickly set up. This extension integrates the Pico SDK toolchain, CMake build system, flashing and debugging tools, supports graphical operations, and offers high development efficiency. C/C++ development fully utilizes hardware performance, making it suitable for projects with higher performance requirements and professional developers, and is more applicable for complex embedded applications. You can refer to the Working with C/C++ for initial setup, which provides detailed environment configuration steps and example programs.

  • Arduino IDE (Working with Arduino): The Arduino IDE is a convenient, flexible, and easy-to-use open-source electronics prototyping platform. Arduino boasts a vast global user community, offering a massive library of open-source code, project examples, tutorials, and rich library resources. These libraries encapsulate complex functionalities, allowing developers to implement various features quickly without delving into low-level details. It is well-suited for rapid development and prototype verification, significantly shortening development cycles. You can refer to the Working with Arduino for initial setup, which provides detailed environment configuration steps and example programs.
